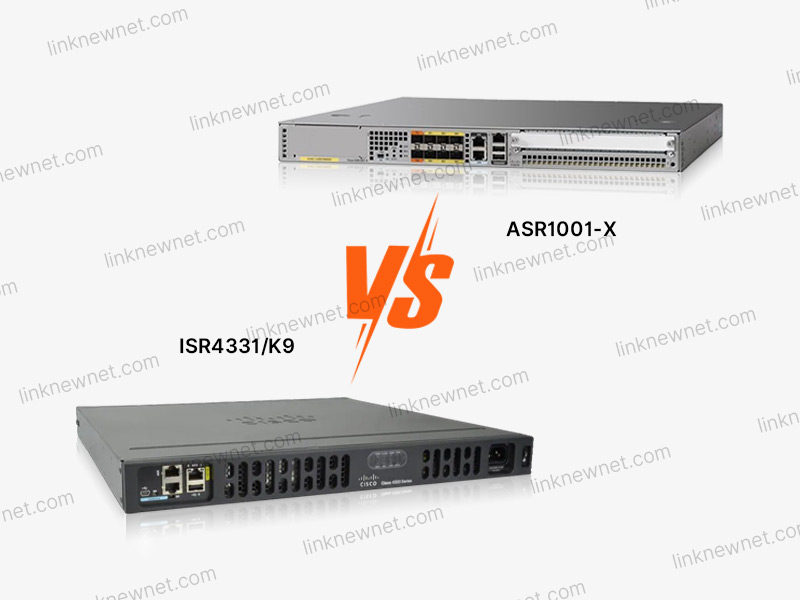

Cisco ASR1001-X vs ISR4331/K9: Service Provider vs Enterprise Router Face-Off

When comparing Cisco's ASR1001-X (service provider edge router) with the ISR4331/K9 (enterprise branch router), we're examining two fundamentally different classes of networking equipment designed for distinct operational environments. This comprehensive analysis highlights seven critical comparison points to help network architects understand which solution fits their specific requirements.

Technical Specifications Comparison

The ASR1001-X demonstrates 5-10x greater performance metrics, positioning it as a carrier-class solution compared to the enterprise branch-focused ISR4331/K9.

Functional Capabilities Analysis

1. Performance Benchmarks

• Routing Performance:

• ASR1001-X: 5 million pps

• ISR4331: 500,000 pps

• Application Handling:

• 50 VoIP calls

• 15 video streams

• Basic office applications

• 500+ concurrent VPN tunnels

• 100+ HD video streams

• Carrier-grade QoS policies

• ASR1001-X manages:

• ISR4331 optimal for:

2. Advanced Feature Support

Shared Capabilities:

• Cisco IOS-XE operating system

• Basic firewall functionality

• IPsec VPN support

ASR1001-X Exclusives:

• MPLS forwarding

• BGP route reflector

• NetFlow v9/sFlow

• Full BFD implementation

• Segment Routing support

Physical Design Comparison

Chassis Architecture:

• ASR1001-X:

• 2RU service provider chassis

• Redundant, hot-swappable power

• Front-accessible service modules

• Carrier-grade cooling

• ISR4331/K9:

• 1RU compact enterprise design

• Single power supply

• Office-optimized cooling

• Space-efficient for racks

Environmental Specifications:

• Operating temperature:

• ASR1001-X: 0 to 40°C (with precision cooling)

• ISR4331: -5 to 45°C (office environments)

• Noise levels:

• ASR1001-X: 60 dBA (data center acceptable)

• ISR4331: 45 dBA (office-friendly)

User Experience Evaluation

Administration & Management:

• Both utilize:

• Cisco DNA Center compatibility

• Common CLI structure

• REST API access

Operational Differences:

• ASR1001-X Advantages:

• Carrier-grade monitoring

• Advanced traffic engineering

• Detailed protocol analytics

• ISR4331 Strengths:

• Simplified branch configuration

• Quick deployment

• Lower administrative overhead

Real-World Performance:

• Route convergence:

• ASR1001-X: <50ms

• ISR4331: 300-500ms

• Configuration complexity:

• ASR1001-X requires more expertise

• ISR4331 offers wizard-driven setup

Pricing & Total Cost Analysis

Acquisition Costs:

• ISR4331/K9: 6,500−8,500

• ASR1001-X: 18,000−22,000

Operational Expenditures:

• Power consumption difference: ~$200/year

• Rack space requirements:

• ASR1001-X needs 2x more space

• Cooling considerations:

• ASR1001-X requires better ventilation

Five-Year TCO Considerations:

• ASR1001-X justified for:

• Service provider deployments

• Large enterprise edge

• Mission-critical applications

• ISR4331 economical for:

• Branch office connectivity

• Small business needs

• Distributed enterprises

Power Efficiency Metrics

Power Specifications:

• Input options:

• Both support AC/DC power

• ASR1001-X offers N+1 redundancy

• Energy monitoring:

• Both provide detailed metrics

Efficiency Comparison:

• Performance per watt:

• ASR1001-X: 133 Mbps/W

• ISR4331: 54 Mbps/W

• Idle power draw:

• ASR1001-X: 90W

• ISR4331: 30W

Compatibility & Ecosystem Integration

Third-Party Interoperability:

• Both support:

• Standard SNMP monitoring

• NETCONF/YANG models

• Syslog reporting

ASR1001-X Enhanced Integration:

• Full MPLS ecosystem support

• BGP route server compatibility

• Segment routing integration

• Service provider OSS integration

Module Support:

• ASR1001-X accommodates:

• Shared Port Adapters

• Encryption modules

• 40G/100G interfaces

• ISR4331 limited to:

• Single SM-X module

• Basic interface cards

Software Support & Lifecycle

Current Software Features:

• ASR1001-X receives:

• Carrier-grade features

• Advanced routing protocols

• Service provider enhancements

• ISR4331 gets:

• Enterprise branch features

• Basic SD-WAN

• Office-optimized functions

Security Updates:

• Both receive:

• Regular vulnerability patches

• 5+ years of maintenance

• ASR1001-X qualifies for:

• Extended security support

• Critical infrastructure updates

Future Roadmap:

• ASR1001-X positioned for:

• 400G readiness

• Enhanced segment routing

• Cloud-scale networking

• ISR4331 focuses on:

• Branch optimization

• Basic SD-WAN

• Security essentials

Decision Framework

Select ISR4331/K9 When:
✔ Deploying to enterprise branches
✔ Budget under $10,000 required
✔ Basic routing needs only
✔ No service provider requirements

Choose ASR1001-X When:
✔ Operating at network edge
✔ Supporting service provider needs
✔ Requiring carrier-grade features
✔ Can justify 3x price premium

Key Selection Criteria:

1. Network role (enterprise vs service provider)

2. Performance requirements

3. Protocol support needs

4. Available infrastructure budget

The ASR1001-X stands as Cisco's compact service provider workhorse, while the ISR4331/K9 serves as a capable enterprise branch router. These solutions target completely different market segments, with the ASR1001-X being the clear choice for service provider environments and the ISR4331/K9 better suited for typical branch office deployments.

Implementation Tip: Carefully analyze your actual traffic patterns and growth projections before deciding. The performance difference between these platforms becomes most apparent when handling complex routing scenarios or during peak traffic conditions. Consider engaging Cisco's Advanced Services team for proper sizing guidance if evaluating the ASR1001-X for critical deployments.
