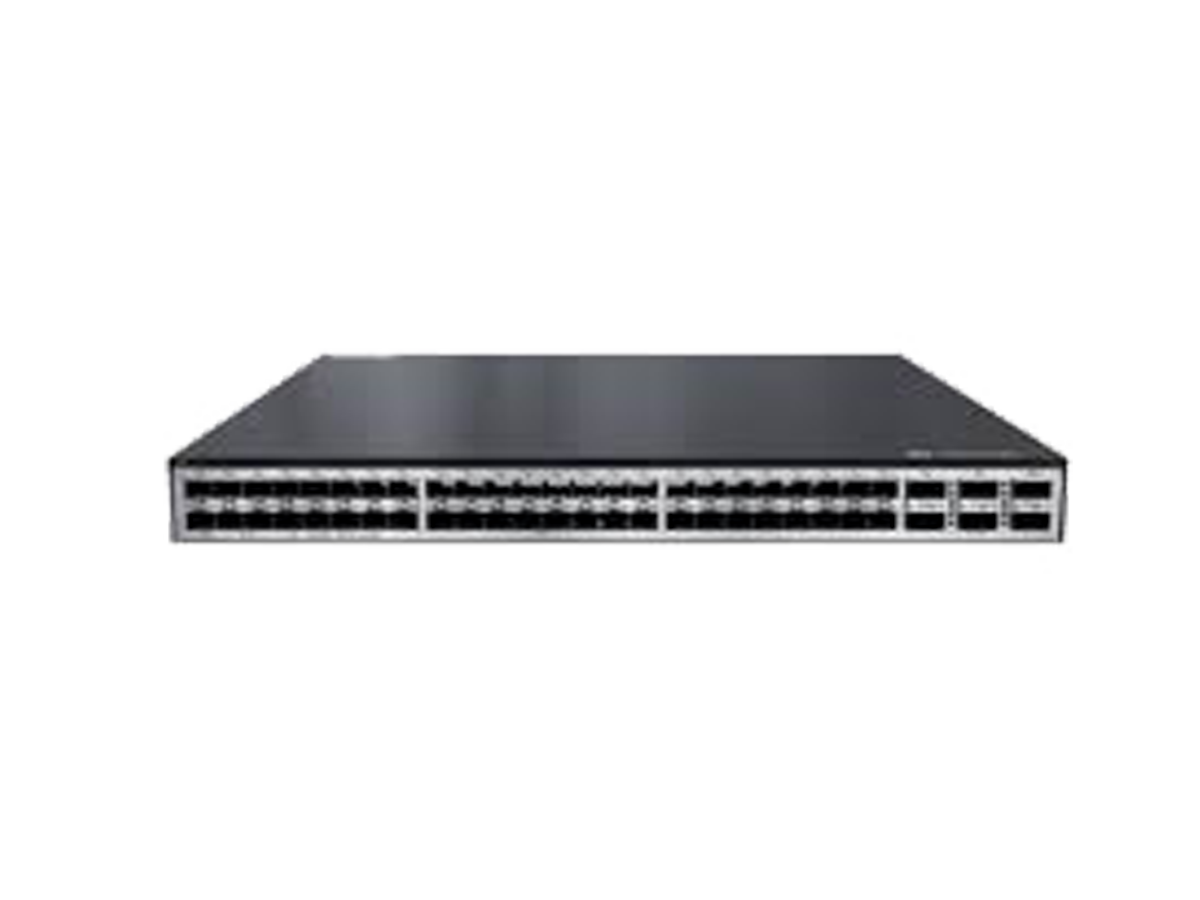

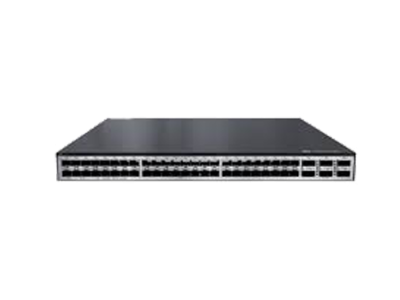

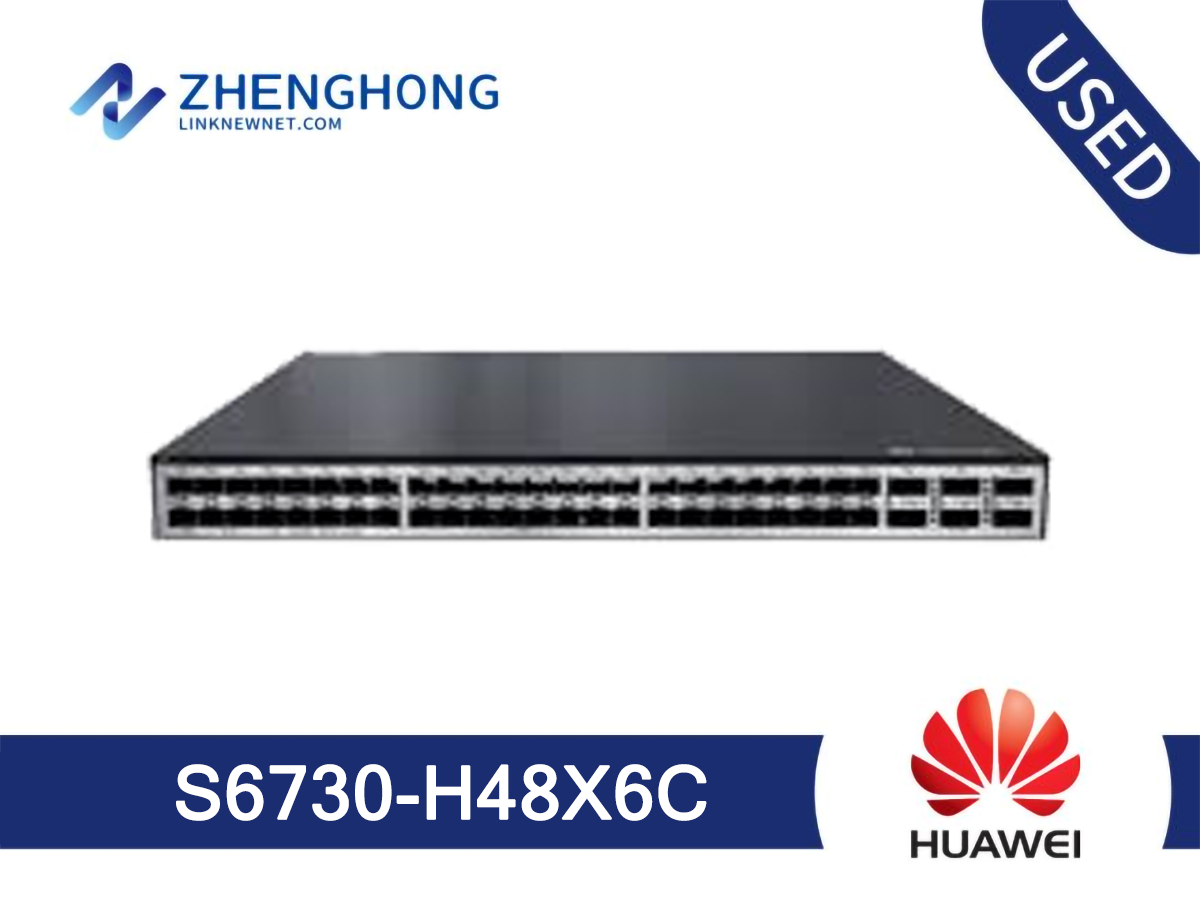

Huawei S6700 Series Switches S6730-H48X6C Overview
Huawei S6730-H48X6C (48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module)
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned S6730-H48X6C
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
S6730-H48X6C Specification | |
Fixed ports | 48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Chassis height(U) | 1U |
Maximum power consumption | 274W |
Minimum power consumption | 97W |
Storage temperature | -40-70℃ |
Operating altitude | 5000 m |
Noise (sound pressure at normal temperature) | 65dB(A) |
Fans | 4, Fan modules are pluggable |
Input voltage | • AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage：-38.4V DC～-72V DC |
Input current | AC 600W：Max 8A DC 1000W：Max 30A |
Surge protection specification
| AC power interface: differential mode: ±6kV: common mode: ±6kV DC power interface: differential mode: ±2kV: common mode: ±4kV |
Power supply type | 600W AC Power 1000W DC Power |
