DS-C9250I-K9 vs C9200-48PB-A: In-Depth Comparison from Specifications to Scenarios

Aug 07 , 2025 4

1. DS-C9250I-K9 vs C9200-48PB-A: In-Depth Comparison from Specifications to Scenarios

In enterprise network equipment selection, Cisco’s Catalyst 9200 series remains a popular choice for mid-to-high-end access/aggregation layers. This article focuses on two typical models—DS-C9250I-K9 and C9200-48PB-A—dissecting their differences and application values from technical specifications, functional features to real-world scenarios, providing reference for enterprise users.

2. Performance Differences: The Capability Divide Behind Hard-Core Parameters

Processing Speed and Switching Capacity

DS-C9250I-K9 is equipped with Cisco’s self-developed Catalyst 9200 Series High-Performance ASIC, delivering a switching capacity of 176 Gbps and a forwarding rate of 130.94 Mpps, supporting wire-speed forwarding; C9200-48PB-A uses the same series of optimized ASIC but has a slightly lower switching capacity (160 Gbps) and forwarding rate (120.94 Mpps). Both can meet the needs of mixed 10G/1G networking, but DS-C9250I-K9 performs more stably in high-density traffic scenarios (e.g., video conferencing, big data transmission).

Running Memory and Storage Capacity

DS-C9250I-K9 is equipped with 2 GB DDR4 memory + 16 GB eMMC flash memory, supporting expansion to 8 GB memory (requires additional modules); C9200-48PB-A comes standard with 4 GB DDR4 memory + 8 GB flash memory, with non-expandable memory. Memory differences directly affect multi-service load capacity—DS-C9250I-K9 requires memory expansion to handle complex ACLs and QoS policies; C9200-48PB-A’s large memory design is more suitable for lightweight multi-service scenarios (e.g., ordinary office access).

3. Functional Features: Scenario-Based Capability Differentiation

Interfaces and Expansion

DS-C9250I-K9 offers 48 Gigabit Ethernet ports (PoE+ optional) + 4 10G SFP+ uplink ports, supporting FlexStack-Plus stacking technology (max 8 units stacked, 40 Gbps bandwidth); C9200-48PB-A features 48 fixed PoE+ Gigabit ports + 4 10G SFP+ uplink ports, supporting only basic StackWise-480 stacking (max 4 units, 32 Gbps bandwidth). DS-C9250I-K9’s flexibility is higher, suitable for scenarios requiring dynamic adjustment of stack scale; C9200-48PB-A’s fixed PoE+ ports simplify deployment, ideal for branch office rapid online.

Security and Intelligence

DS-C9250I-K9 supports Cisco DNA Center integration, enabling deep linkage with network analytics and automated policies (e.g., location-based access control); C9200-48PB-A has built-in basic ACLs, 802.1X authentication, suitable for SMEs with moderate security requirements. Additionally, DS-C9250I-K9 supports NetFlow v9/IPFIX traffic monitoring, while C9200-48PB-A only supports sFlow, giving the former an edge in traffic optimization.

4. Design and Appearance: Practicality in Industrial Design

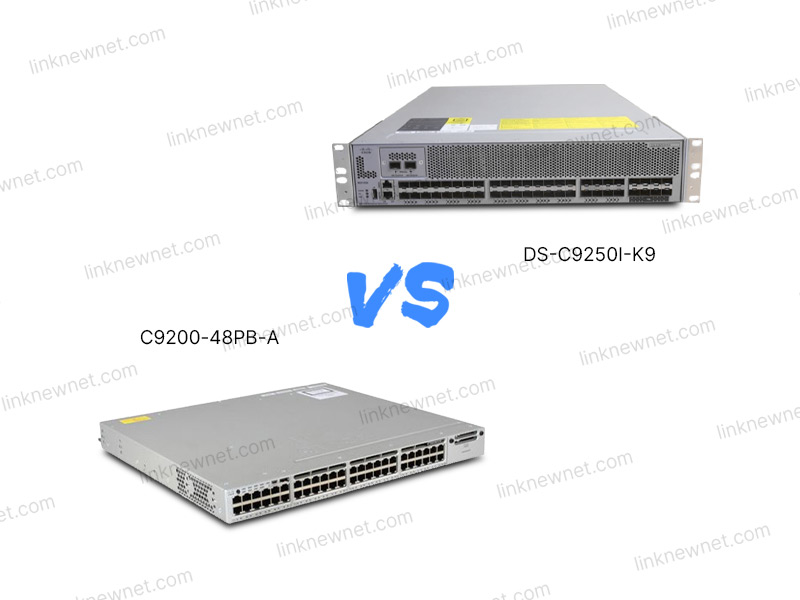

DS-C9250I-K9 adopts a 1U rack-mount design (dimensions: 44.5×44.5×4.4 cm, weight ~7.5 kg), with a matte metal casing and heat dissipation holes on both sides, suitable for dense data center deployment; C9200-48PB-A is also 1U rack-mount but slightly larger (44.5×44.5×4.6 cm, weight 8.2 kg), with anti-slip rubber pads on the casing, better suited for desktop or semi-open machine room environments. Both feature status indicator lights (front panel) and expansion slots (rear panel), but DS-C9250I-K9’s stacking interfaces are more discreet, reducing accidental touch risks.

5. User Experience: Details from Deployment to O&M

Deployment Convenience

C9200-48PB-A’s fixed PoE+ port design eliminates configuration hassles. Paired with Cisco Network Assistant (CNA), SMEs can complete access configuration for 50 devices in 30 minutes; DS-C9250I-K9, with flexible stacking, requires upfront planning of stack topology (e.g., master/standby role assignment), extending deployment time to ~1 hour but improving future scalability efficiency.

O&M Friendliness

DS-C9250I-K9 runs Cisco IOS XE OS, offering both a graphical Web interface (Cisco DNA Center) and advanced CLI, suitable for hierarchical management by technical teams; C9200-48PB-A also uses IOS XE but has a simplified Web interface (basic configuration only), relying more on CLI operations, demanding higher technical skills from O&M personnel.

6. Cost-Performance Comparison: Balancing Budget and Needs

Assuming current market prices: DS-C9250I-K9 ~18,000 yuan, C9200-48PB-A ~12,000 yuan (prices vary by channel). In terms of unit price, C9200-48PB-A is more cost-effective, but its fixed PoE+ ports and basic stacking limit expansion; DS-C9250I-K9, though 50% pricier, supports memory expansion, flexible stacking, and DNA Center integration, making it ideal for enterprises planning 3-5 years of growth (e.g., medium-sized campuses, educational institutions). Conclusion: Choose C9200-48PB-A for tight budgets with no near-term expansion needs; opt for DS-C9250I-K9 if leaving upgrade room is critical.

7. Product Advantages: Irreplaceable Strengths in Their Domains

• DS-C9250I-K9: High-performance ASIC, flexible stacking, expandable memory, deep DNA Center integration—suited for mid-to-large enterprise core access layers or complex multi-service environments (e.g., mixed video surveillance + wireless AP + IP phone networks).

• C9200-48PB-A: Cost-effective, fixed PoE+ ports, simplified O&M—ideal for SME branch offices, retail stores, or scenarios requiring only basic access.

8. System Upgrade: Steps, Common Issues, and Solutions (Key)

System upgrade is a core part of network device maintenance. Below is a practical guide for both models:

Pre-Upgrade Preparation

• Backup Configuration: Use copy running-config tftp: or Cisco DNA Center to back up the current running configuration, preventing data loss from failed upgrades.

• Check Compatibility: Visit Cisco’s official support page (), enter the device serial number, and confirm target firmware compatibility with hardware (e.g., memory, interface modules). DS-C9250I-K9 must verify memory expansion module compatibility; C9200-48PB-A must ensure PoE+ module firmware is upgraded synchronously.

• Choose Upgrade Method: Recommend Cisco DNA Center batch upgrade (supports parallel multi-device upgrades) or CLI execution: archive download-sw /overwrite tftp://<TFTP_Server_IP>/<Firmware_File_Name>.

Upgrade Process and Common Issues

• Issue 1: Power Loss During Upgrade
  If power fails mid-upgrade, the firmware may be corrupted, booting the device into ROMmon mode (displaying “rommon 1 >”). Solution: Prepare a formatted USB drive (FAT32), rename the firmware file to “c9200-universalk9.17.06.02.SPA.bin” (actual version may vary), insert it into the device, restart, and boot via boot system usbflash0:c9200-universalk9.17.06.02.SPA.bin.

• Issue 2: Service Disruption After New Firmware
  Some legacy services (e.g., custom ACLs, QoS policies) may conflict with new firmware features. Solution: Test in a lab environment (using Cisco Virtual Internet Router Simulator, VIRS) pre-upgrade, or use IOS XE’s “configuration rollback” feature (configure replace command) to restore old configurations quickly.

• Issue 3: Unsynchronized Stack Upgrade (DS-C9250I-K9)
  In stacked DS-C9250I-K9 deployments, if the master upgrades successfully but slaves lag, stack splitting may occur. Solution: Disable automatic upgrades on slave devices pre-upgrade (no software auto-upgrade), manually upgrade master→slave in sequence, and verify all member status as “Ready” via show stack.

9. Product Series Use Cases and Advantage Summaries

• DS-C9250I-K9: A university campus network core access layer deployment case used 8 stacked units to support 300+ terminals (50 wireless APs, 20 IP phones). Paired with DNA Center, traffic was automatically scheduled, maintaining latency <20ms during peak enrollment (2000+ concurrent users). Its strength lies in “high scalability + intelligent O&M,” ideal for complex multi-service environments.

• C9200-48PB-A: A chain convenience store’s HQ-branch architecture deployed 100+ units as access switches, using fixed PoE+ ports to power POS machines and cameras directly. Batch configuration via CNA reduced single-branch deployment time from 2 hours to 30 minutes. Its strength is “low cost + easy deployment,” suited for standardized small-to-medium networks.

10. Detailed Pros and Cons
