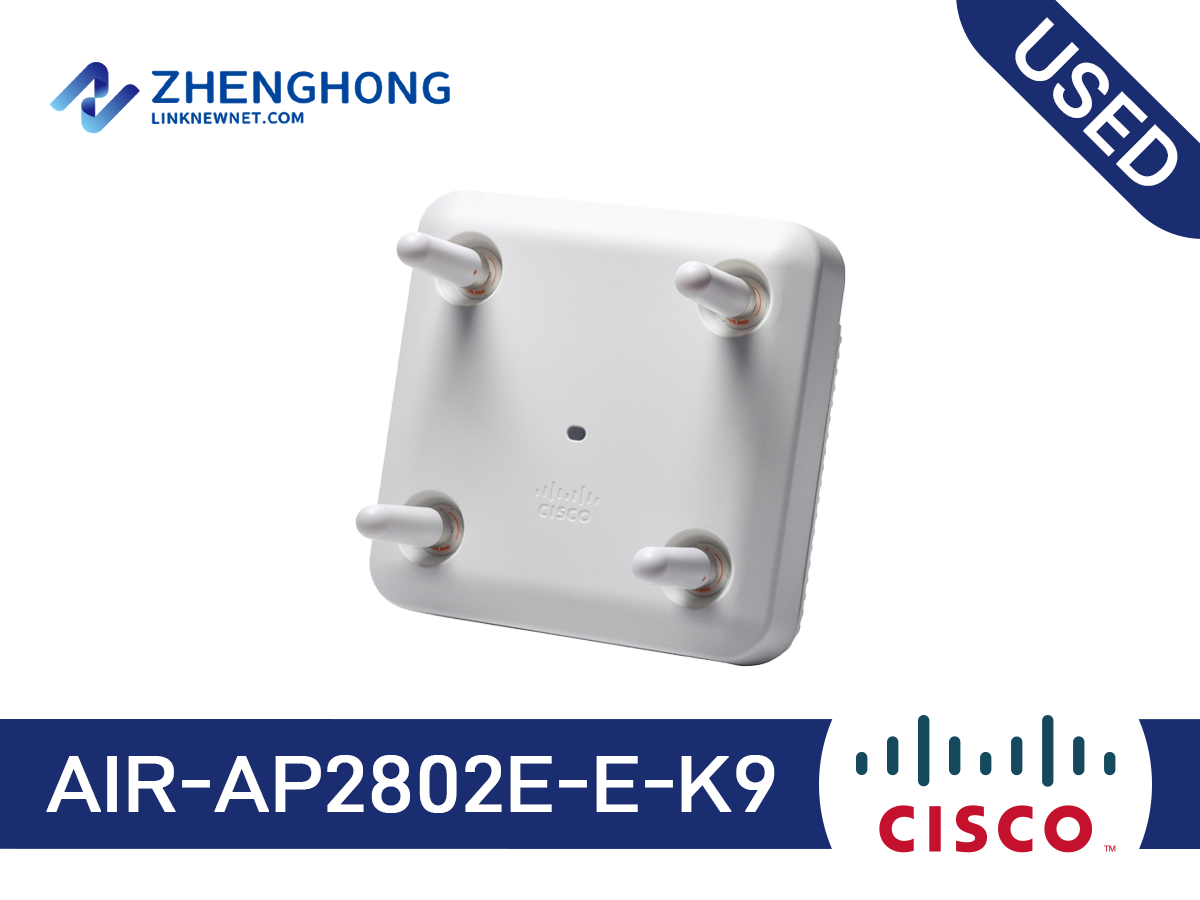

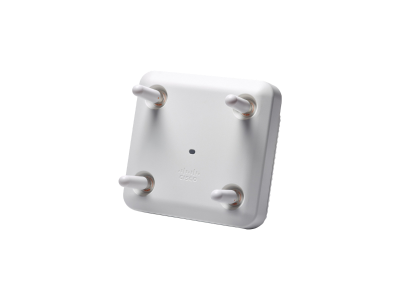

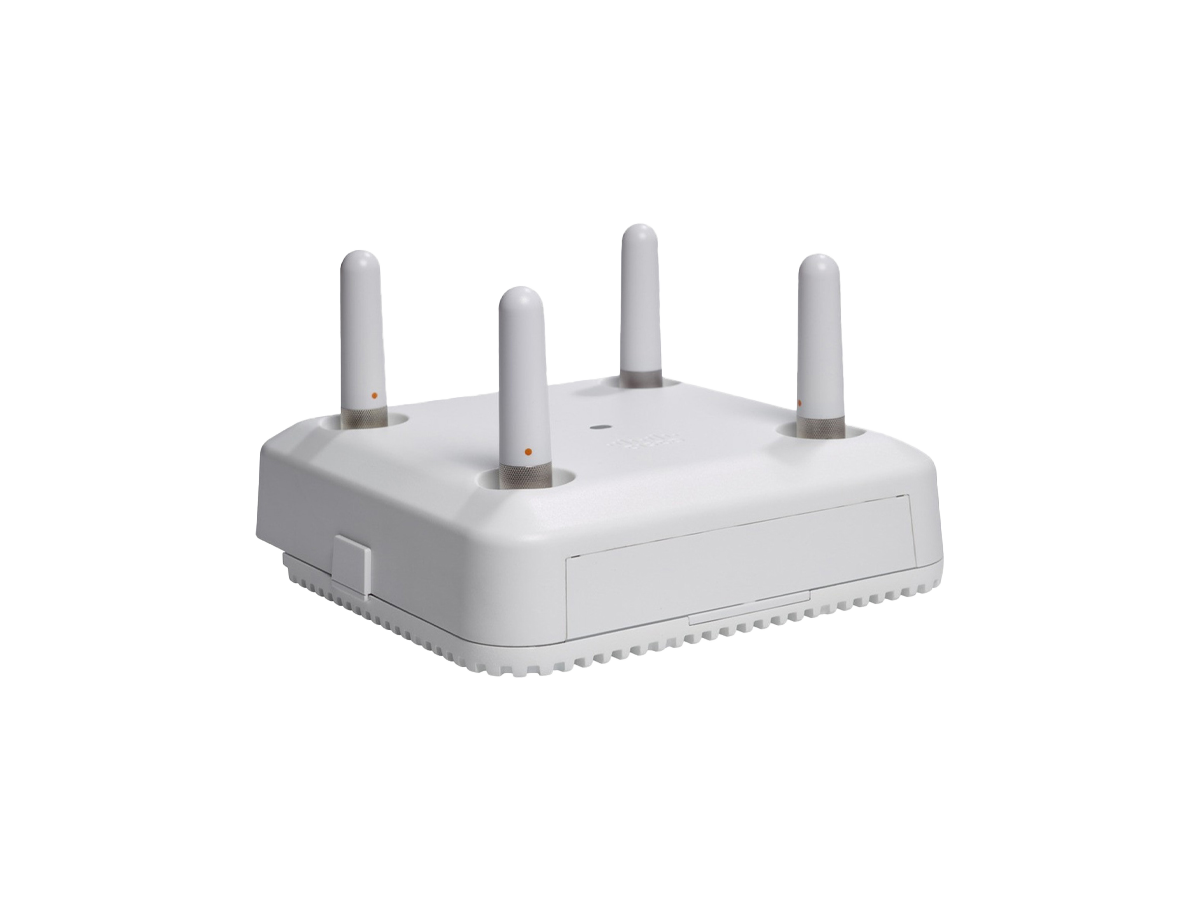

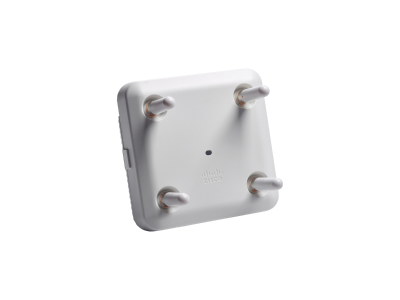

AIR-AP2802E-E-K9 - Cisco 2800 Access Point

Model: AIR-AP2802E-E-K9

Detail: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, 2xGbE, E Regulatory Domain

Condition: USED

List Price: $1444 Price: $866

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-AP2802E-E-K9 Specification
Software	Cisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS^®XE Software Release 16.3
Supported wireless LAN controllers	Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst^®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities	4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
802.11ac Wave 2 capabilities	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Integrated antenna	Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)	2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Smart antenna connector	Available on the 2802e Series access points only Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio

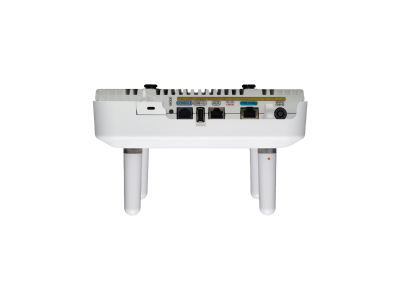

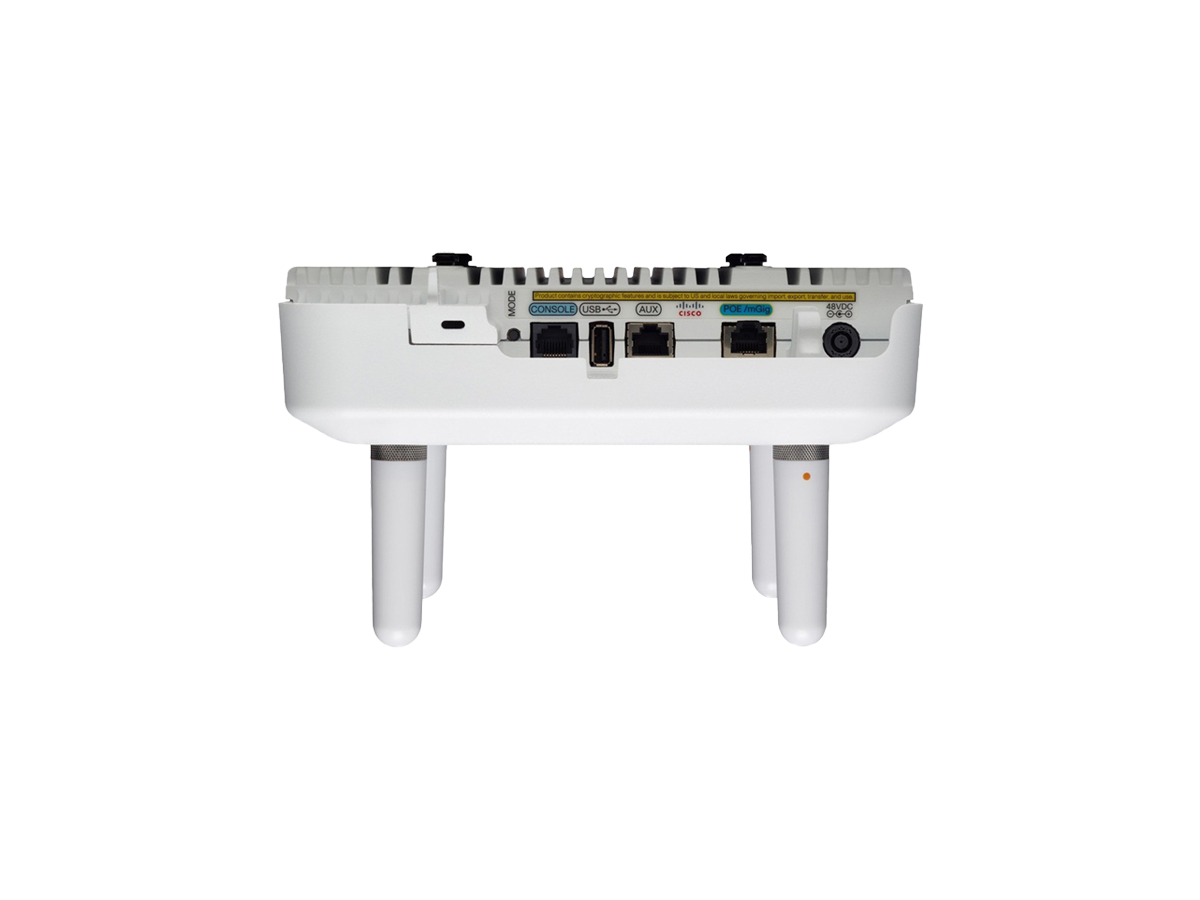

Interfaces	2802I/E ◦ 2x100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50”
Weight	Cisco Aironet 2802i 3.53 lb (1.6 kg) Cisco Aironet 2802e 4.6 lb (2.09 kg)
Input power requirements	802.3at PoE+, Cisco Universal PoE (Cisco UPOE^®) 802.3at power injector (AIR-PWRINJ6=)
Power draw	26W at the PSE with all features enabled except for the USB 2.0 port 30W at the PSE with the USB 2.0 port enabled
Environmental	Cisco Aironet 2802i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 2802e Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1024 MB DRAM 256 MB flash
Warranty	Limited lifetime hardware warranty
Frequency band and 20-MHz operating channels	E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

Q&A

What accessories are available for the AIR-AP2802E-E-K9?

Accessories for the AIR-AP2802E-E-K9 include compatible external antennas, mounting kits, and power injectors to facilitate diverse installation environments.

How does the AIR-AP2802E-E-K9 compare to similar products?

Compared to similar models, the AIR-AP2802E-E-K9 offers a balance of cost, performance, and cutting-edge features like CleanAir, making it a competitive choice in its category.

What are common troubleshooting steps for the AIR-AP2802E-E-K9?

Troubleshooting steps include checking network connections, ensuring correct antenna placement, updating firmware, and monitoring via the Cisco management interface.

What types of external antennas are compatible with the AIR-AP2802E-E-K9?

The AIR-AP2802E-E-K9 is compatible with a range of Cisco external antennas designed to extend coverage and signal strength for different environmental needs.

What is the difference between Cisco APs and Aruba APs?

These two brands of APs focus on different areas.

There are so many APs in the market, how can I select?

Consider your budget, and what you need AP to do.

What is the difference between Huawei wireless and Cisco wireless?

These two brands of wireless products focus on different areas.

What is the coverage of AIR-AP2802E-E-K9?

The coverage radius of Cisco indoor AP is about 25-30m, and outdoor AP is about 100m.

How cost-effective is the AIR-AP2802E-E-K9?

The AIR-AP2802E-E-K9 offers high performance at a competitive price, delivering robust 802.11ac Wave 2 capabilities and advanced features like CleanAir technology for interference-free connectivity.

What are the key features of the AIR-AP2802E-E-K9?

The AIR-AP2802E-E-K9 features CleanAir tech for interference management, 4x4:3 MIMO, external antenna support, and dual 2xGbE ports, making it ideal for demanding wireless environments.

What are the common application scenarios for the AIR-AP2802E-E-K9?

The AIR-AP2802E-E-K9 is suited for high-density environments like business campuses, educational institutions, and enterprise settings requiring robust and reliable wireless coverage.

How do I install the AIR-AP2802E-E-K9?

Installation involves mounting the unit, connecting external antennas, and integrating with your network using the dual 2xGbE ports, followed by configuration through the management interface.

Does the AIR-AP2802E-E-K9 require regular upgrades?

Regular firmware updates for the AIR-AP2802E-E-K9 are recommended to maintain security and performance, enhancing features and fixing vulnerabilities.

Are there alternative products to the AIR-AP2802E-E-K9?

Alternatives include other Cisco models like the Cisco 3800 Access Point or the Cisco 4800 Series for varied performance needs and features.
