Cisco Nexus 2000 Series N2K-C2348TQ-E|LinkNewNet

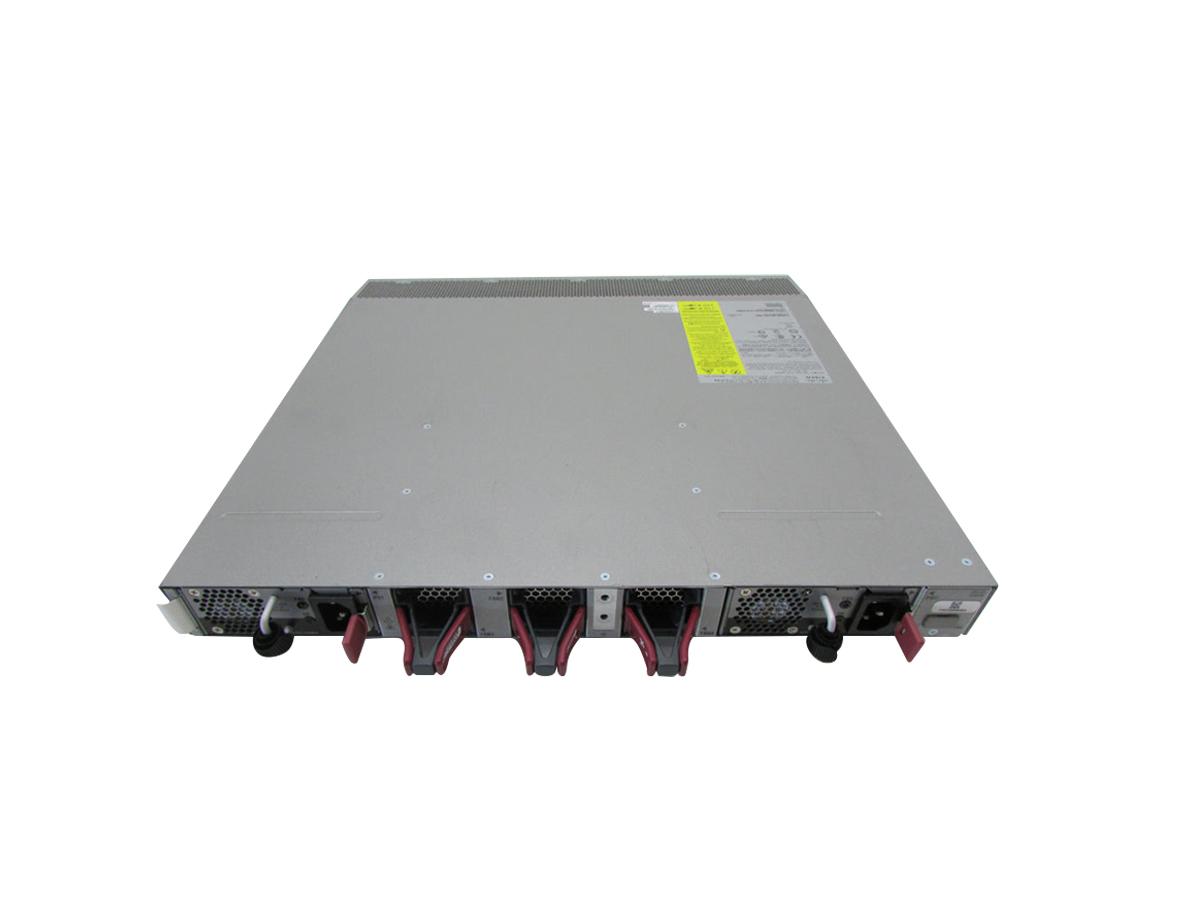

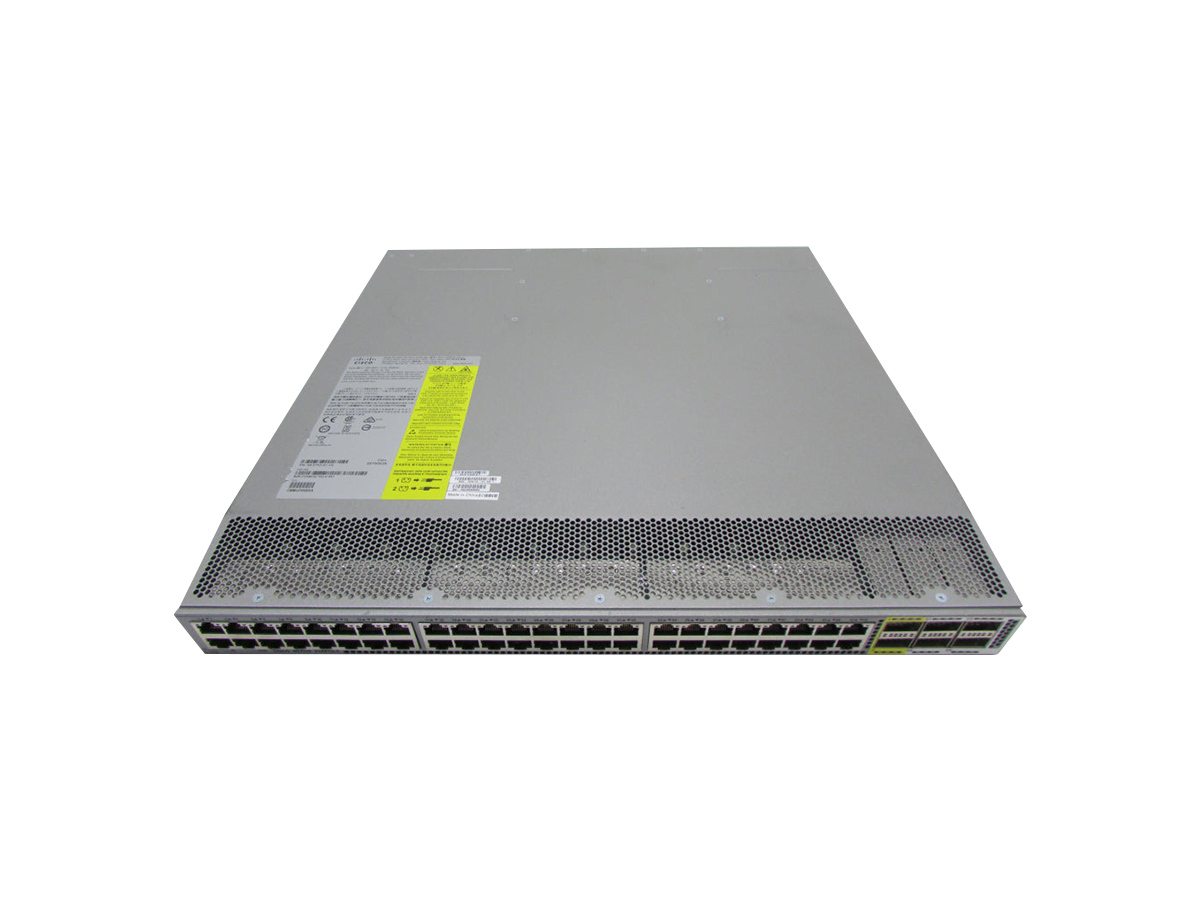

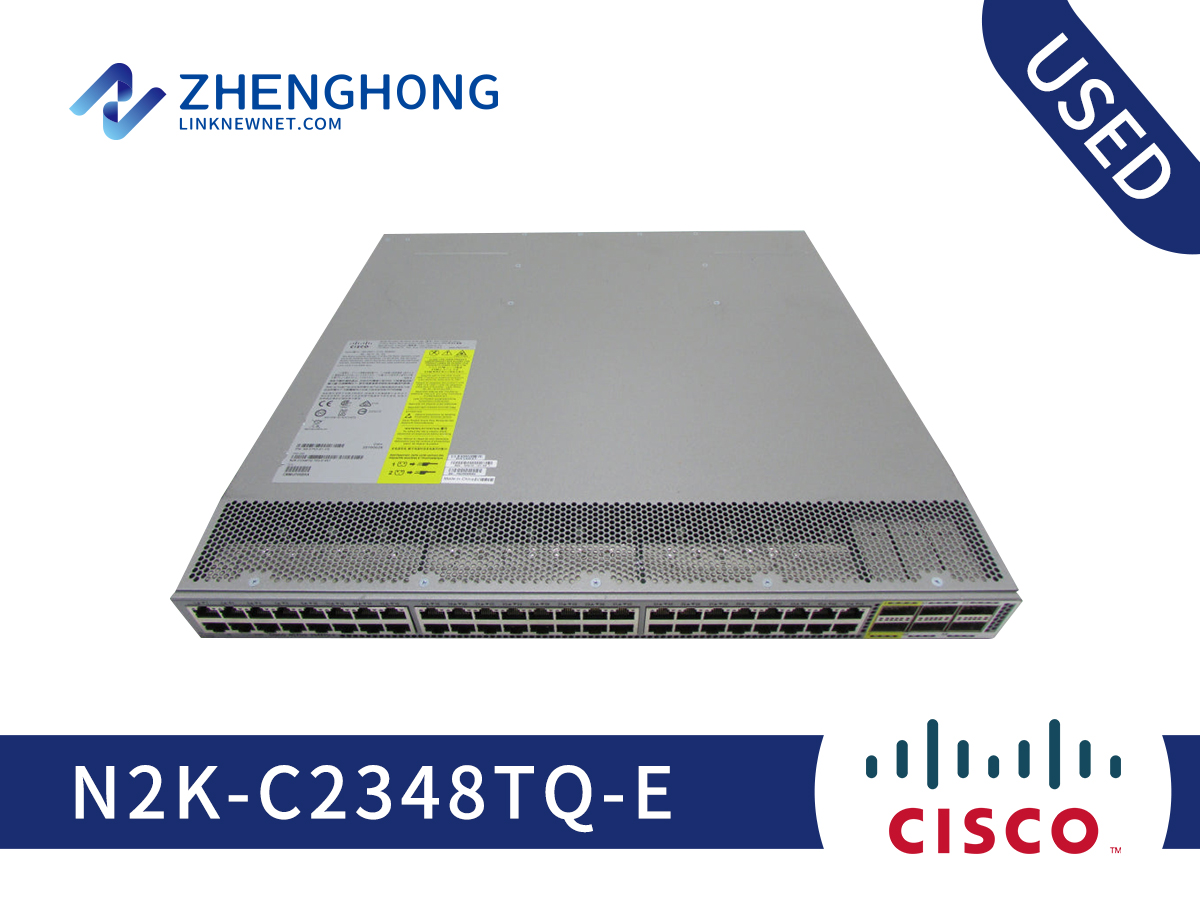

Cisco Nexus 2000 Series N2K-C2348TQ-E

Model: N2K-C2348TQ-E

Detail: Nexus 2000, 10GT FEX; 48x1/10T; 6x40G QSFP

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

N2K-C2348TQ-E Specification
Fabric extender host interfaces	48
Enhanced Ethernet	DCB
Fabric extender fabric interfaces	6 x 40 Gigabit Ethernet QSFP (24 x 10 Gigabit Ethernet)
Oversubscription	Up to 2:1
Performance	Hardware forwarding at 1440 Gbps or 2160 mpps
FCoE	FCoE support up to 30m with Category 6a and 7 cables (Cisco Nexus 5500 and 5600 platforms and 6000 Series)
Cisco parent switch	Cisco Nexus 5500 and 5600 platforms Cisco Nexus 6000 Series
Minimum software	Cisco NX-OS Release 7.3(0)N1(1) (Cisco Nexus 5500 and 5600 platforms and 6000 Series)
Fabric speed	Up to 240 Gbps in each direction (480-Gbps full duplex)
Environment	Operating temperature: 32 to 131°F (0 to 55°C) Non-operating temperature: -40 to 158°F (-40 to 70°C) Humidity: 5 to 95 percent (noncondensing) Altitude: 0 to 10,000 ft. (0 to 3000m)
Power supply	N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, and N2200-PDC-350W-B
Weight	8.0 kg
Dimensions (H x W x D)	4.37 x 43.94 x 43.36 cm
Fabric extender host interface type	48 100M/1/10GBASE-T ports: RJ-45 connectors
Heat dissipation	952 BTU/hour (typical); 1190 BTU/hour (maximum)
Regulatory Compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety	UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 IEC 60950-1AS/NZS 60950-1GB4943
RoHS	The Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ are RoHS-6 compliant
Network Equipment Building Standards (NEBS)	The Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ meet NEBS level-3 standards (hardware revision 3) (not currently supported)
Fan modules	NXA-FAN-30CFM-F and NXA-FAN-30CFM-B (N+1 redundancy = 3 fans)
Typical input operating power	280W at 30m (maximum 350W)
Security	Local classification (256 access control list [ACL] entries)
Monitoring MIBs	RMON-MIB
Layer 2 features	Layer 2 VLAN trunks IEEE 802.1Q VLAN encapsulation Cisco EtherChannel technology on uplinks PortChannel on server ports on Cisco Nexus 2300 platforms Advanced PortChannel hashing Jumbo frames on all ports (up to 9216 bytes) Pause frames (Priority Flow Control [PFC] and IEEE 802.3x) Private VLANs (promiscuous only on uplinks) Local multicast replication on Cisco Nexus 2300 platform (8000 entries) Autonegotiation to 1000BASE-T; full duplex on host interfaces

Q&A

Q What is N2K-C2348TQ-E？

A N2K-C2348TQ-E is a Cisco Nexus 2300 Platform Chassis, offering 10G BASE T Fabric Extender, 2 power supplier, 3 Fan Modules, 48x100M/1/10GT (RJ45) + 6x40G QSFP+(req QSFP+) and choice of airflow.

Q What is Cisco FEX?

A The introduction of the Cisco Adapter Fabric Extender (Adapter FEX) provides the same architectural benefits for the network interface card (NIC) as are provided for the physical access layer. Adapter FEX is logically an extension of the parent switch inside the server.

Q Why use Cisco FEX?

A The main benefits of Cisco FEX Technology include: Simplified operations with efficient resource utilization FEX Technology enables better utilization of network resources by consolidating multiple 1 Gigabit Ethernet adapters to a single 10 Gigabit Ethernet adapter and ensure efficient usage of 10 Gigabit Ethernet ...

Q What is the difference between a switch and a fabric extender?

A Traditional Switching: A Comparison. A Fabric Extender (FEX) in Nexus is a technology that allows for the expansion of a traditional switch's ports and capabilities. It is essentially an extension of a parent switch, also known as a Fabric Interconnect, which provides centralized management and control.
