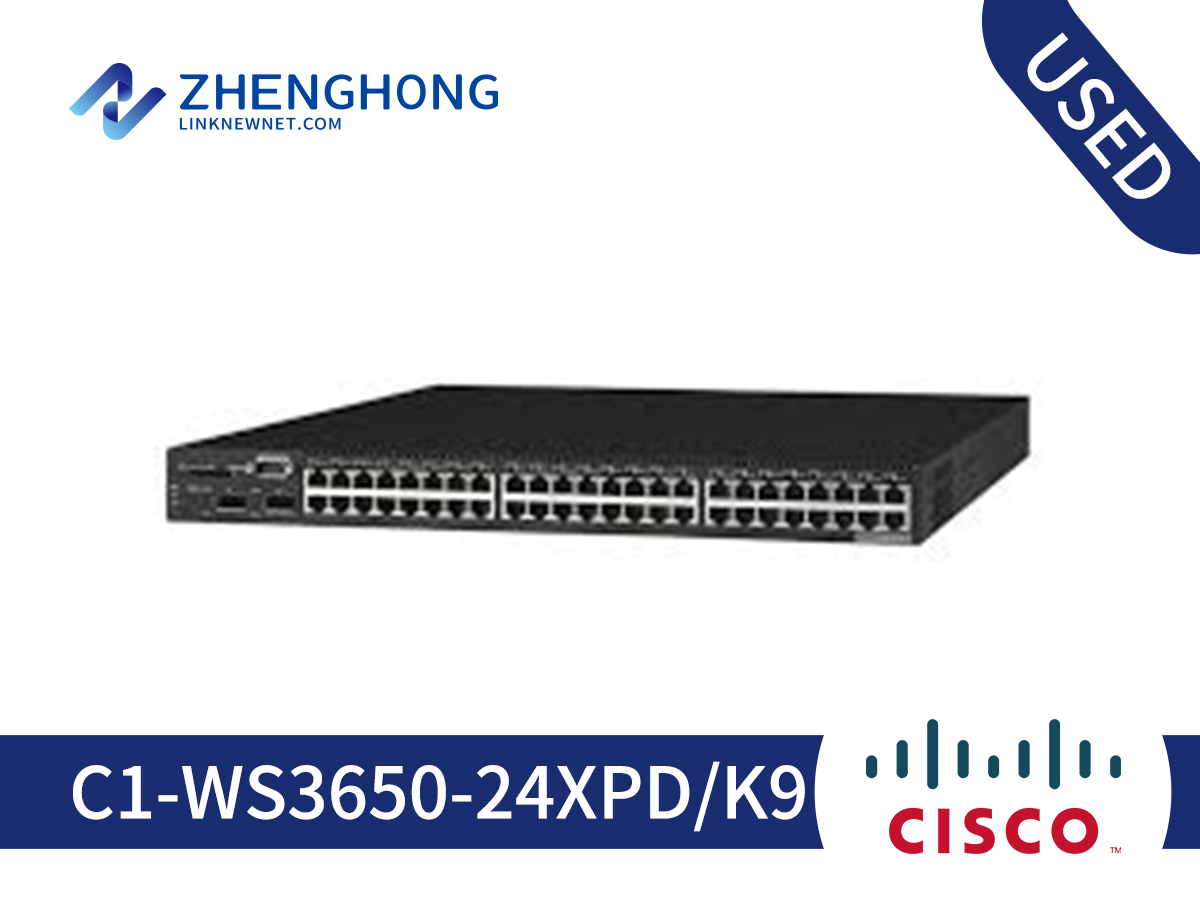

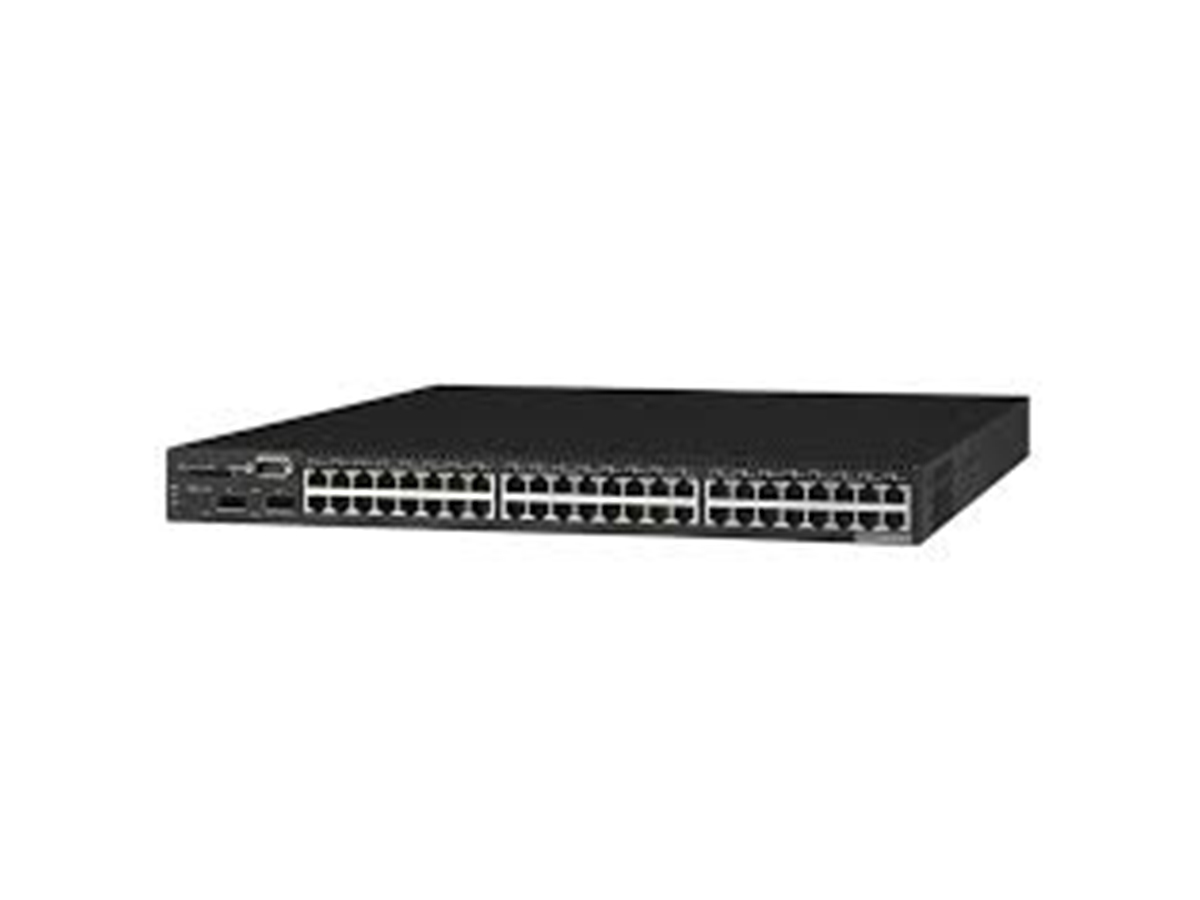

C1-WS3650-24XPD/K9 Specification | |
Device Type | Switch - 24 ports - managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 390 W |
Performance | Switching capacity: 88 Gbps ¦ Forwarding performance: 68.45 Mpps |
Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | Static IP routing |
RAM | 4 GB |
Flash Memory | 2 GB |
Status Indicators | Port transmission speed, port duplex mode, system, active, status, PoE |
Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
Power Device | Internal power supply - hot-plug |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Power Provided | 640 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Rack Mounting Kit | Included |
MTBF | 528,280 hours |
Width | 17.5 in |
Depth | 17.6 in |
Height | 1.7 in |
Weight | 16.01 lbs |
Min Operating Temperature | 23 °F-113 °F |
Humidity Range Operating | 5 - 96% (non-condensing) |
Min Storage Temperature | -40 °F-158 °F |
