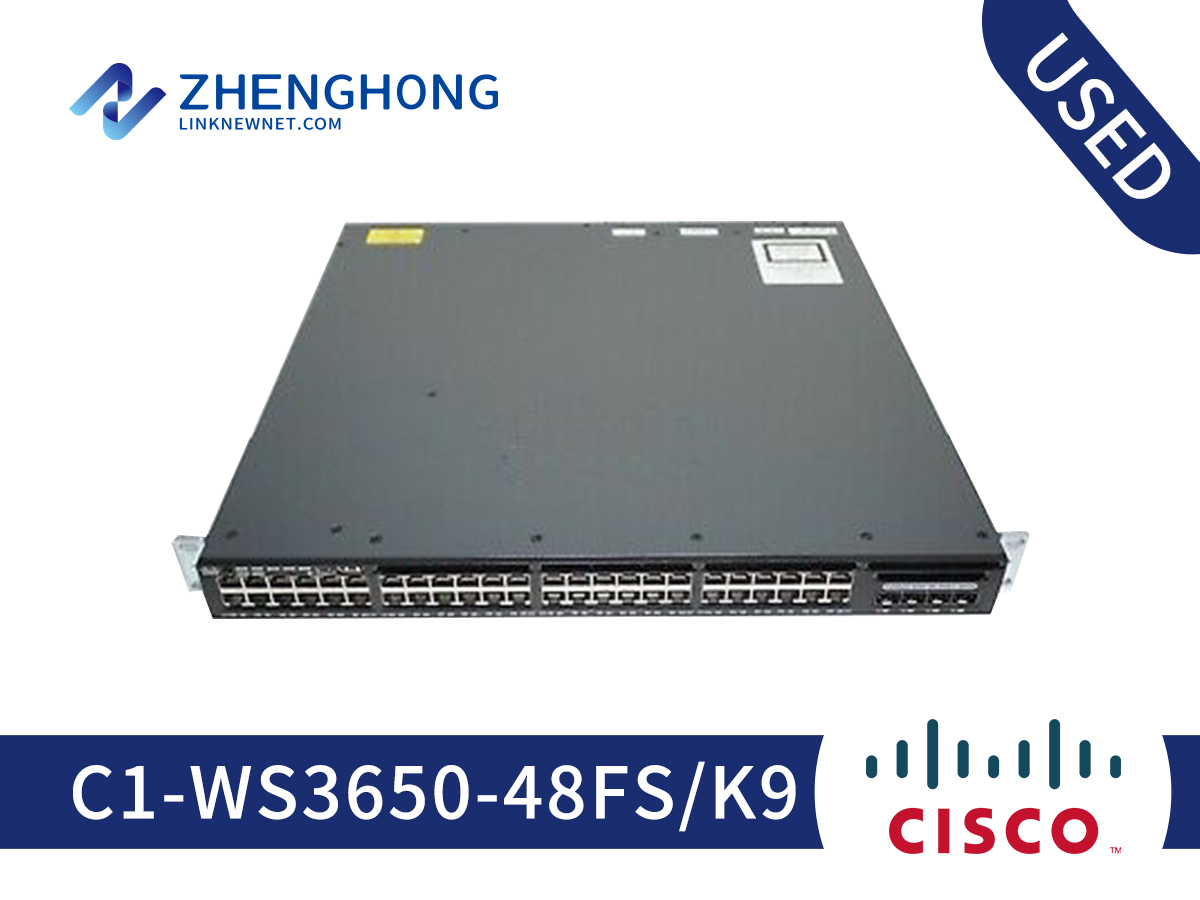

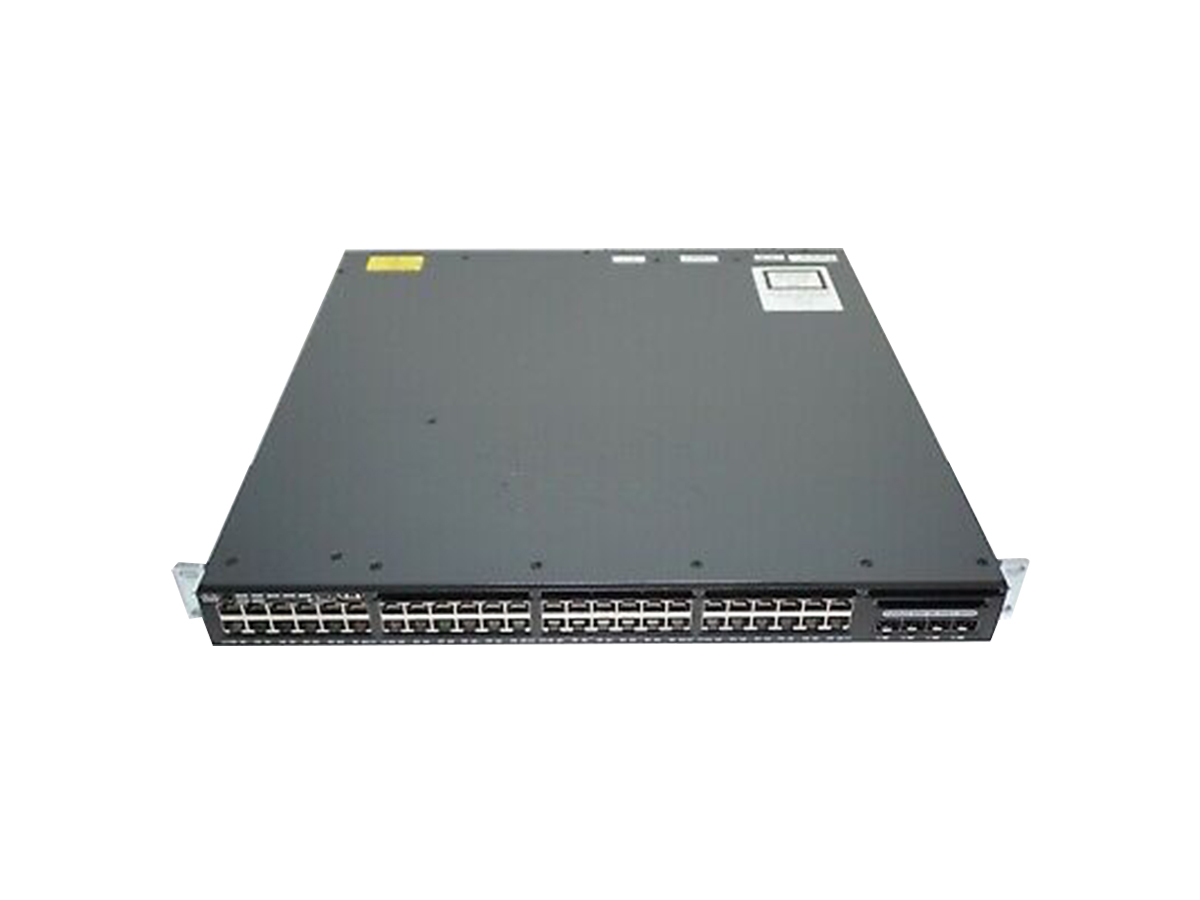

C1-WS3650-48FS/K9 Specification | |
Device Type | Switch - 48 ports - managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 775 W |
Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | Static IP routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), EIGRP Stub Routing, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Flexible NetFlow (FNF) |
RAM | 4 GB |
Flash Memory | 2 GB |
Status Indicators | Port transmission speed, port duplex mode, system, active, status, PoE |
Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
Power Device | Internal power supply - hot-plug |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Power Provided | 1025 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
MTBF | 383,760 hours |
Dimensions(w*d*h) | 17.5 in*19.1 in*1.7 in |
Weight | 17.2 lbs |
Operating Temperature | 23 °F-113 °F |
Humidity Range Operating | 5 - 96% (non-condensing) |
Storage Temperature | -40 °F-158 °F |
