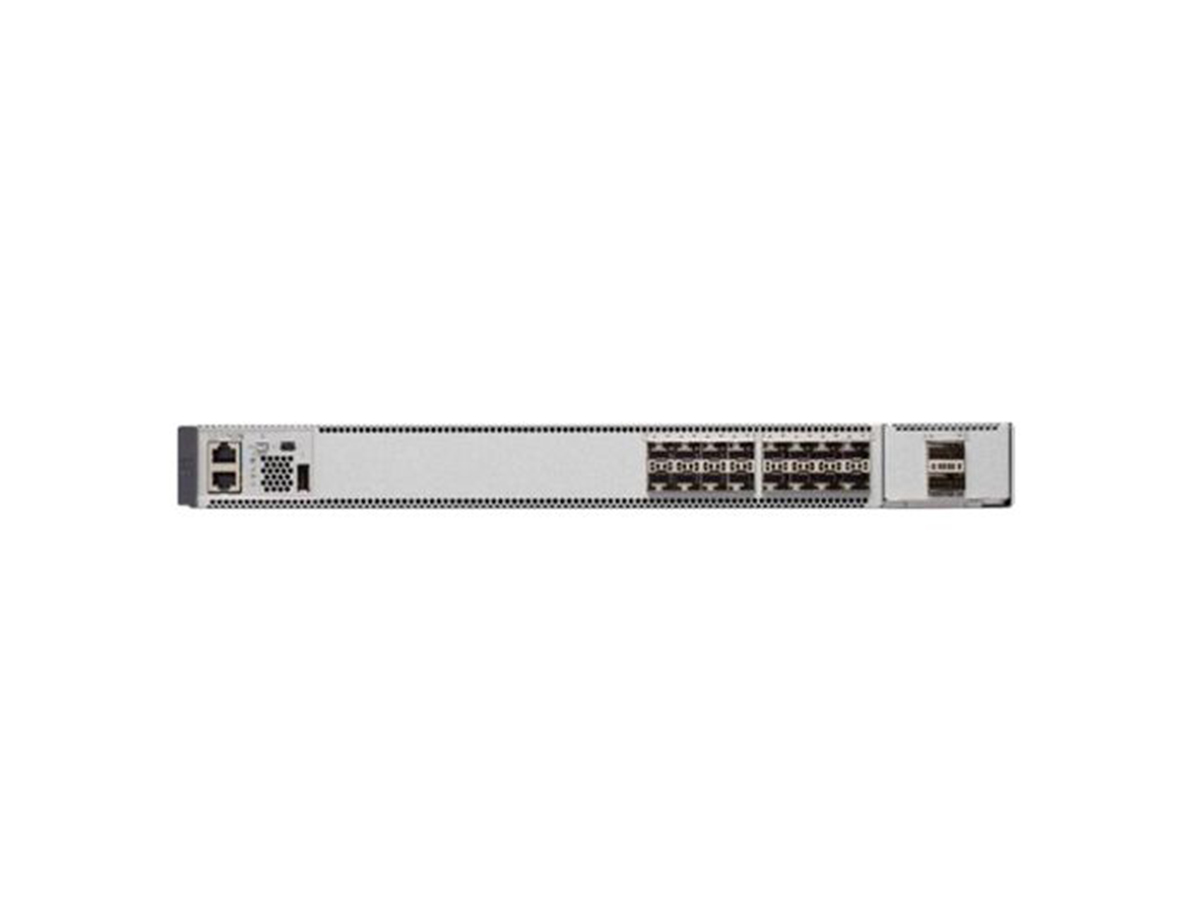

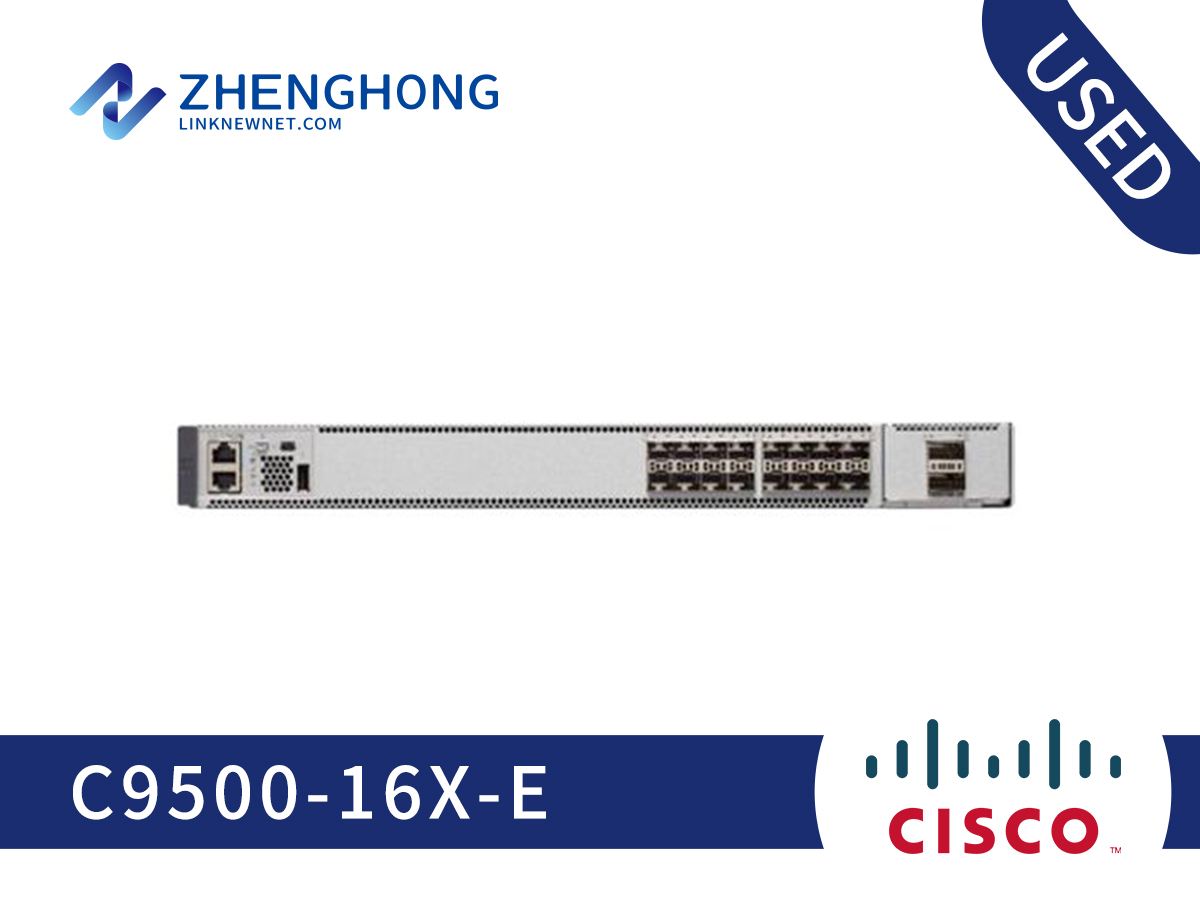

C9500-16X-E Specification | |
Performance specifications | |
Switching capacity | Up to 480 Gbps |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Flash | 16 GB |
Total number of MAC addresses | Up to 64,000 |
Total number of IPv6 routes | Up to 32,000 indirect Up to 40,000 host |
Forwarding rate | Up to 360 Mpps |
Security ACL scale | Up to 18000 |
FNF entries | Up to 512,000 |
DRAM | 16 GB |
VLAN IDs | 4000 |
Jumbo frame | 9198 bytes |
Power supply specifications | |
Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
Power max rating | 950 W |
Dimensions, physical specifications and MTBF | |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
MTBF (hours) | 315,790 |
Operating temperature | 32° to 104°F (0° to 40°C) |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Storage temperature | -4° to 149°F (-20° to 65°C) |
Altitude | Operation up to 6000 feet at 55°C and 13,000 feet at 45°C |
