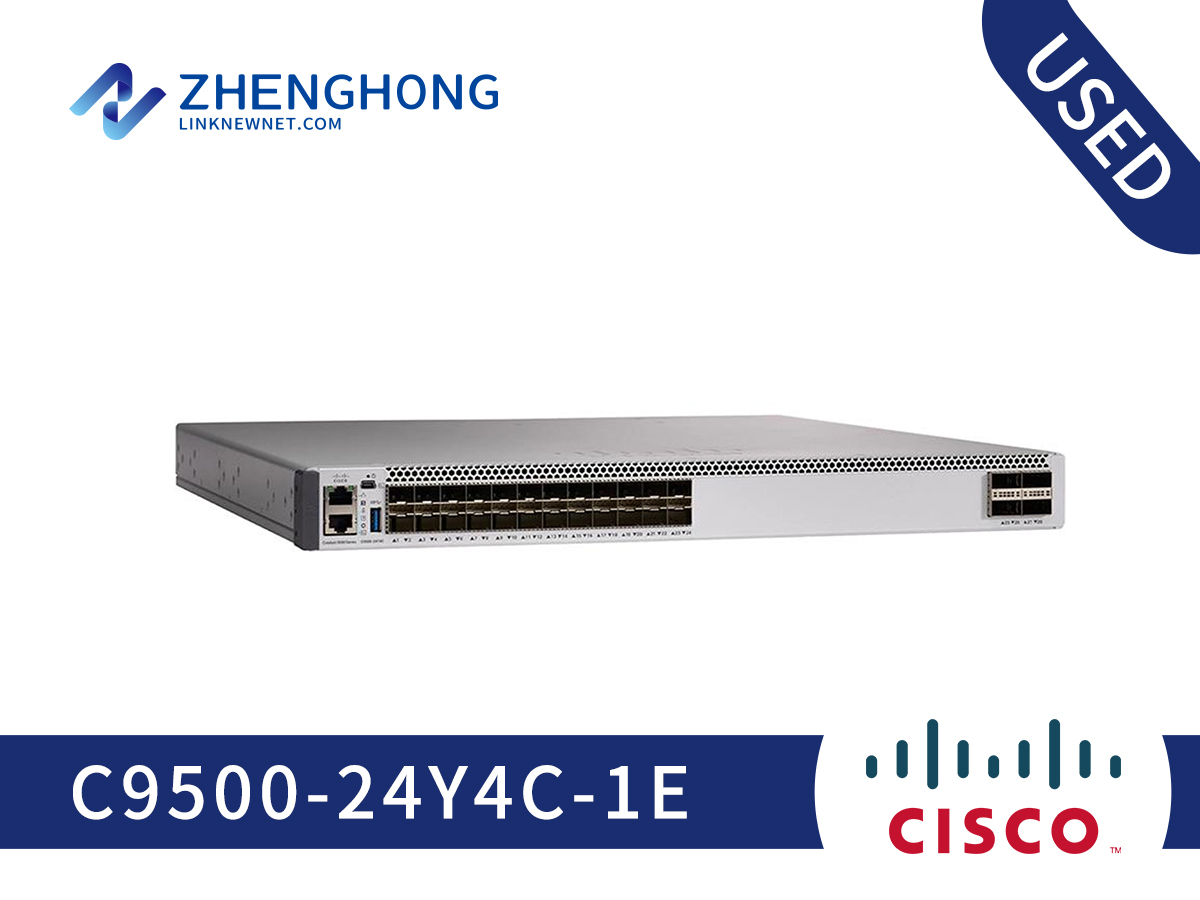

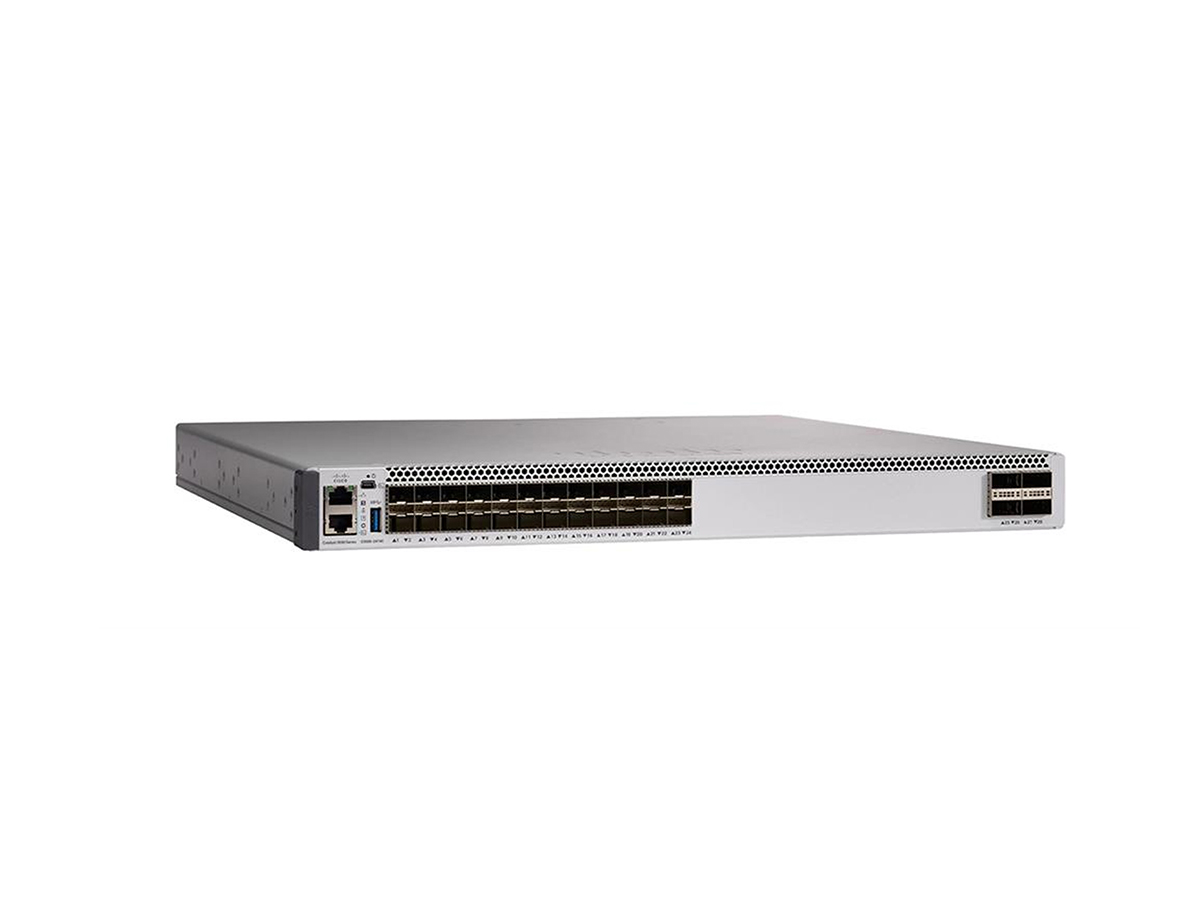

Cisco Switch Catalyst 9500 C9500-24Y4C-1E

Model: C9500-24Y4C-1E

Detail: 9500 1Y DNA Essentials, HW, 1 RU

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C9500-24Y4C-1E Specification
Product Code	C9500-24Y4C-1E
Product Description	9500 1Y DNA Essentials, HW
Rack units (RU)	1 RU
Minimum software requirement	Cisco IOS XE Software Release 16.8.1a
ASIC	UADP 3.0
Switching capacity	Up to 2.0Tbps
Forwarding rate	Up to 1 Bpps
Total number of MAC addresses	Up to 82,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 212,000 indirect + direct Up to 90,000 host/ARP
Total number of IPv6 routes	Up to 212,000 indirect + direct Up to 90,000 host
Total number of IPv4 Multicast routes	Up to 32,000
Total number of IPv6 Multicast routes	Up to 32,000
QoS ACL scale	Up to 16000
Security ACL scale	Up to 27000
FNF entries	Up to 98,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	4000
Jumbo frame	9216 bytes
Safety certifications	C9500-12Q, C9500-24Q, C9500-40X, C9500-16X •UL 60950-1 •CAN/CSA-C22.2 No. 60950-1 •EN 60950-1 •IEC 60950-1 •AS/NZS 60950-1 •GB4943 C9500-32C, C9500-32QC, C9500-24Y4C, C9500-48Y4C •IEC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences •AS/NZS 60950.1.2011 •CAN/CSA-C22.2 No. 60950-1-07 •GB 4943-95 •EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences •NOM-019-SCFI-1998 •UL 60950-1, Second Edition
EMI and EMC compliance	•47 CFR Part 15 Class A •CNS13438: 2006 Class A •EN 300 386 V1.6.1 •EN61000-3-2: 2014 •EN61000-3-3: 2013 •ICES-003 Issue 6: 2016 Class A •KN 32: 2015 Class A •TCVN 7189: 2009 Class A •EN 55032:2012/ AC:2013 Class A •EN 55032:2015 Class A •CISPR 32 Edition 2 Class A •V-2/2015.04 Class A •V-3/2015.04 Class A •CISPR24: 2010 + A1: 2015 •EN 300 386 V1.6.1 •EN55024: 2010 + A1: 2015 •KN35: 2015 •TCVN 7317: 2003
Dimensions (H x W x D)	1.73 x 17.5 x 18.0 in

Q&A

Q What is the buffer size of the Cisco C9500?

A As of the latest information available, the Cisco Catalyst 9500 Series switches provide a buffer size ranging from 32MB to 64MB. The buffer size is an essential component of a switch as it helps to manage and handle network traffic efficiently.

Q What is Cisco Catalyst 9500?

A Catalyst 9500 Series switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT])

Q Is Cisco Catalyst 9500 a core switch?

A Catalyst 9500 fixed-core switches are a building block for Software-Defined Access, Cisco's leading enterprise architecture.
