WS-C2960S-24TS-L | |
Product list | |
Product code | WS-C2960S-24TS-L |
Power cable | No |
Button | No |
Product parameters | |
Network Ports | 24 |
Network (RJ-45) Ports | 24 |
Port Detail | 24 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 10/100/1000Base-T |
Layer Supported | 2 |
Expansion Slots | 4 |
Expansion Slot Type | SFP |
Management | DHCP QoS VLAN SNMP v1, v2, v3 Syslog CLI RMON CiscoWorks LAN Management Solution |

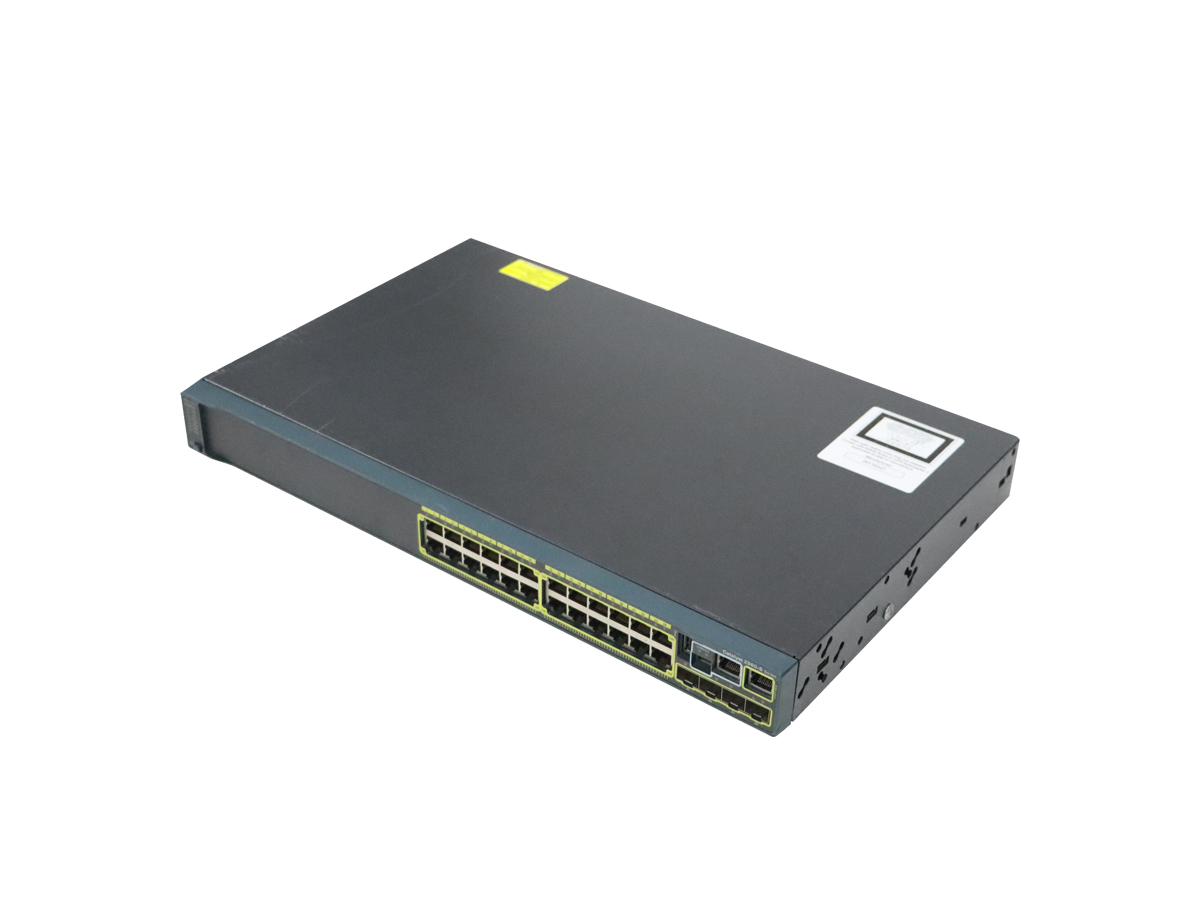

Introduction | The Cisco Catalyst 2960-S Series Switches are fixed-configuration Gigabit Ethernet switches (Figure 1) that provide enterprise-class Layer 2 switching for campus and branch access applications. |
Memory | |
Memory Technology | DRAM |
Standard Memory | 128 MB |
Flash Memory | 64 MB |
Power Device | |
Power Source | Power Supply |
Input Voltage | 110 V AC 220 V AC |
Physical specifications | |
Width | 17.5 in |
Height | 1.8 in |
Depth | 11.8 in |
Weight | 10 lbs |
Environmental Parameters | |
Min Temperature | 23 °F |
Max Temperature | 131 °F |
Humidity Operating | 5 - 95% (non-condensing) |
