Cisco Catalyst 3750-X Series Switch WS-C3750X-12S-E|LinkNewNet

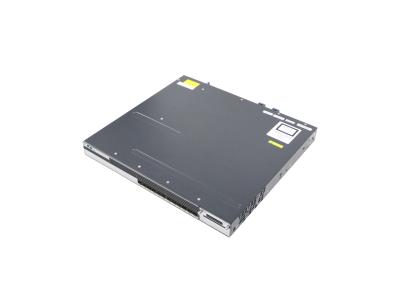

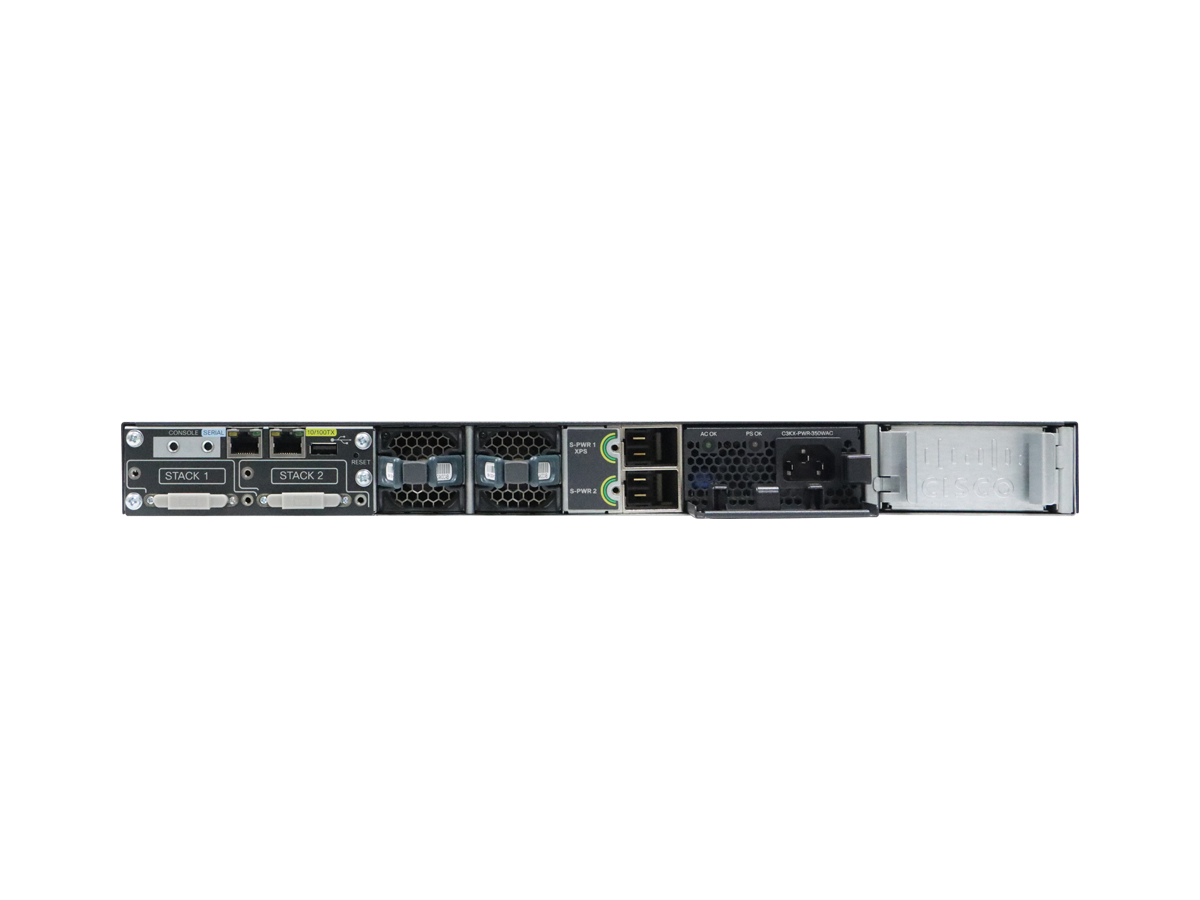

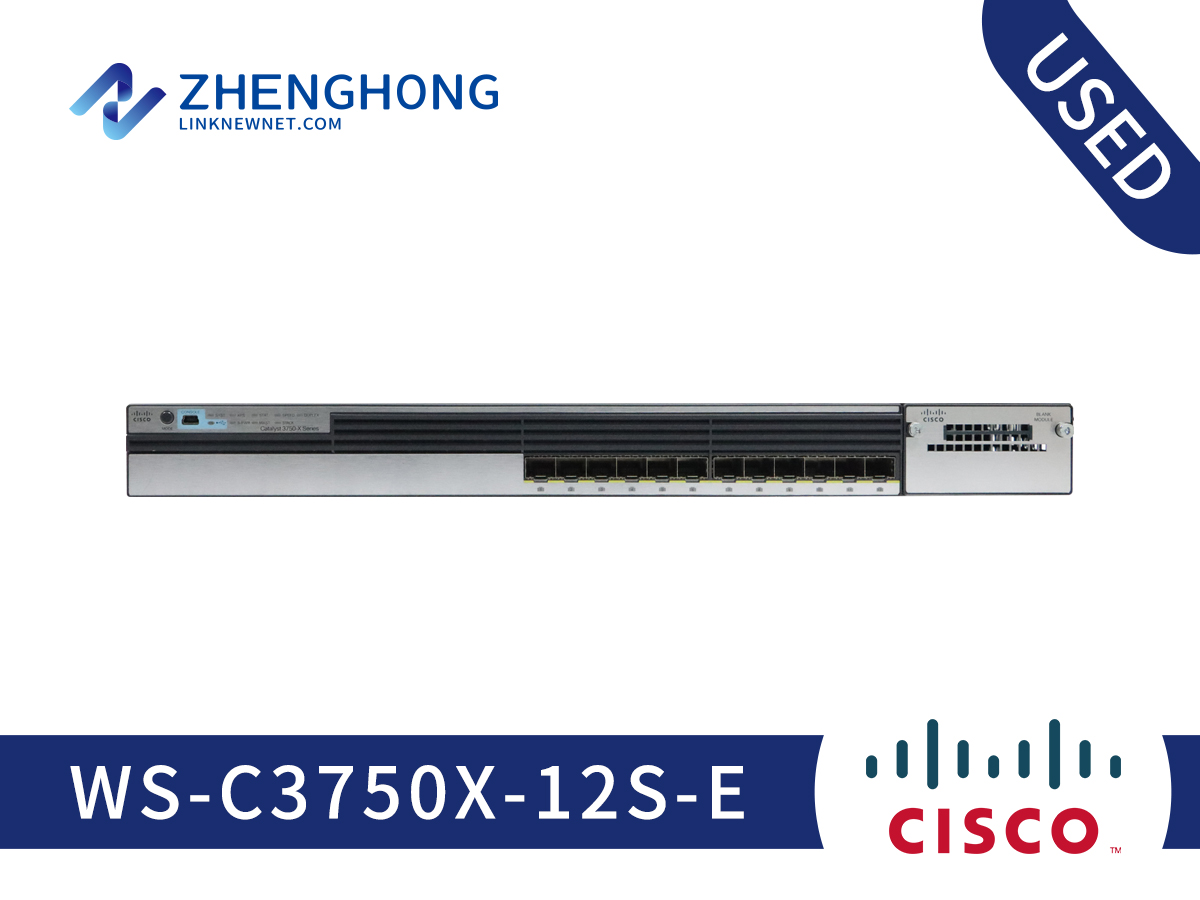

Cisco Catalyst 3750-X Series Switch WS-C3750X-12S-E

Model: WS-C3750X-12S-E

Detail: Cisco Catalyst 3750X Series Switch 12 Port GE SFP IP Services

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3750X-12S-E
Product list
Product code	WS-C3750X-12S-E
Power cable	No
Button	No
Product parameters
Network Ports	12
Product Description	Catalyst 3750X 12 Port GE SFP IP Services
Product Type	Layer 3 Switch
Token Ring Port	No
LRE Port	No
Stack Port	Yes
Number of Total Expansion Slots	13
Expansion Slot Type	SFP
Management	QoS VLAN Embedded Event Manager Command-line interface SNMPv1, v2c, v3 DHCP Telnet RMON Syslog CiscoWorks LAN Management Solution Cisco Network Assistant
Introduction	Cisco Catalyst 3750-X Series Switch WS-C3750X-12S-E is an enterprise-class lines of stackable and standalone switches, respectively. Catalyst 3750-X switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. Cisco Catalyst 3750-X Series with StackWise Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X switches enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
Memory
Standard Memory	256 MB
Memory Technology	DRAM
Flash Memory	128 MB
Power Device
PoE Port	No
Input Voltage	110 V AC
Physical specifications
Width	44 cm
Height	4.45 cm
Depth	46 cm
Weight	6 kg
Environmental Parameters
Min Temperature	23 °F
Max Temperature	131 °F
Humidity Operating	5 - 95% (non-condensing)

Q&A

Q What is the power consumption of Cisco 3750X 12s?

A 87.1 W

Q What is the maximum throughput of a Cisco 3750X?

A With 10G uplink support, modular redundant power supplies and fans, and a 64Gbps stacking throughput, the 3750X is well worth it's increased cost.

Q What is the maximum number of VLANs on a Cisco switch?

A VLANs have the following configuration guidelines and limitations: The maximum number of VLANs per VDC is 4094. You can reuse VLAN ID numbers in different VDCs.

Q What is difference between layer 2 and layer 3 switch?

A Layer 2 switches offer limited to no routing capabilities within network segments such as VLANs. Layer 3 switches offer routing between different network segments. Limited scalability. Higher scalability enabled by layer 3 switches' cross network segment routing capabilities.
