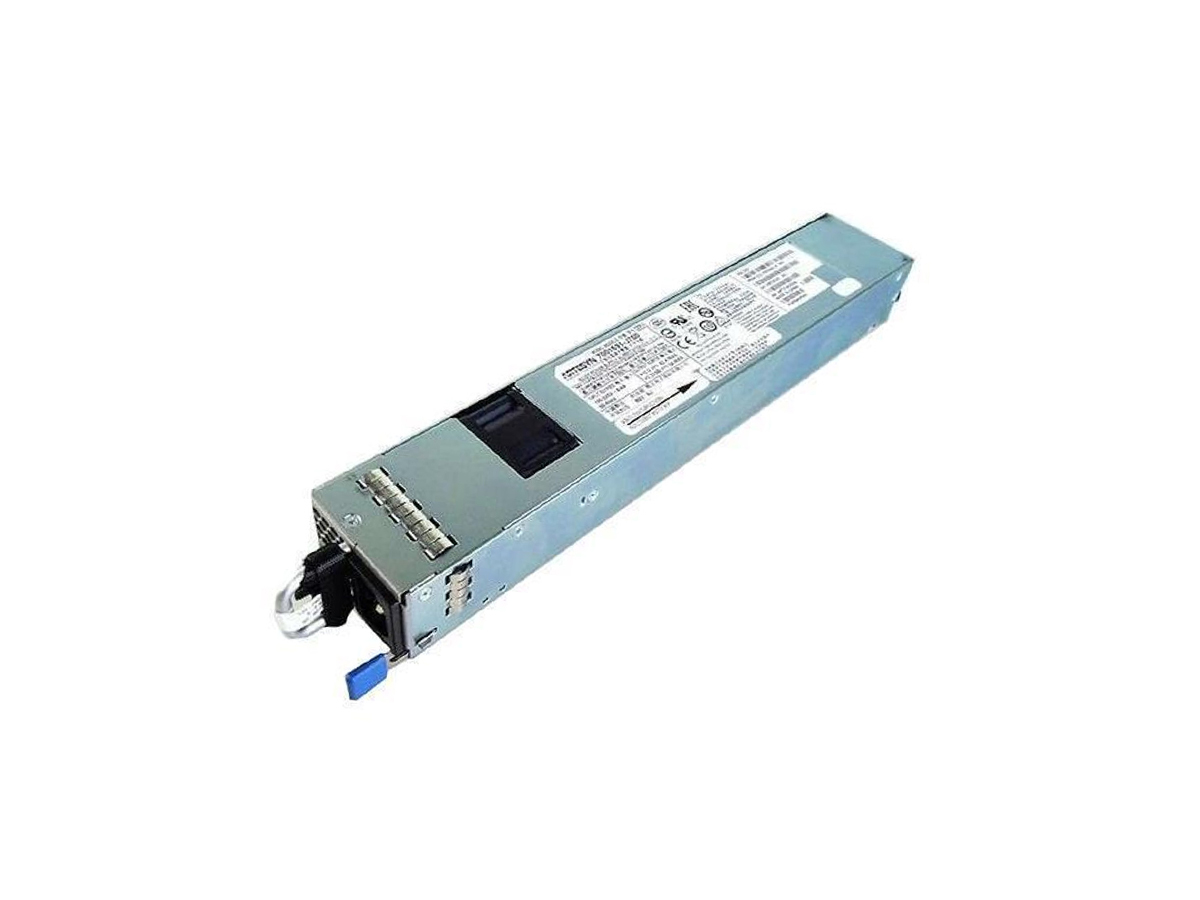

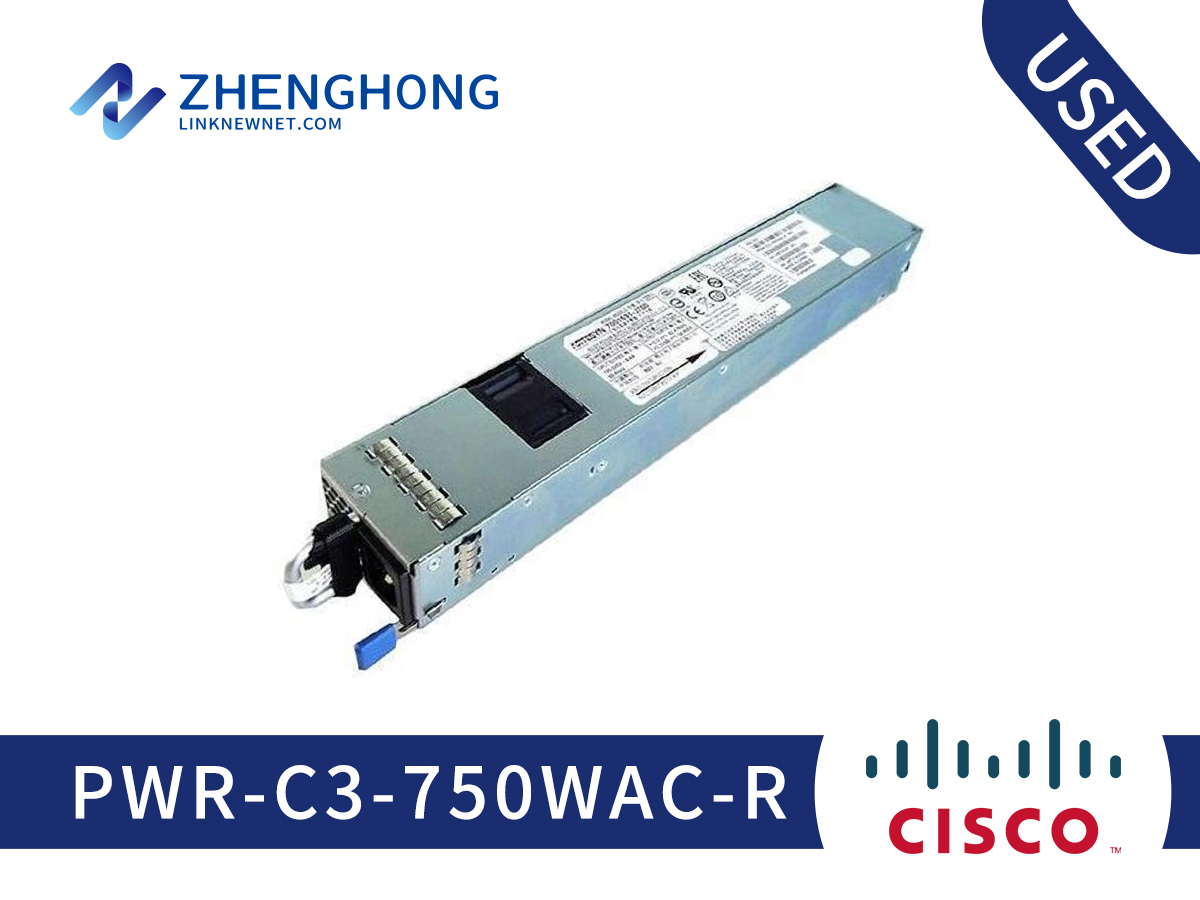

PWR-C3-750WAC-R | |
Product list | |
Product code | PWR-C3-750WAC-R |
Product parameters | |
Maximum output power | 750W |
Frequency Required | 50-60 Hz |
Input current | 11-6A |
Input Voltage | 90-264VAC |
Output ratings | 12 VDC at 62A, 3.3 VDC at 3A |
Total output BTU (Note: 1000 BTU/hr = 293W) | 1122 BTU/hour (nominal) 1365 BTU/hour (max) |
Physical specifications | |
Height | 1.58 inch(4.01 cm) |
Width | 2.15 inch(5.46 cm) |
Depth | 14.28 inch(36.27 cm) |
Weight | 3.70 pounds(1.68kg) |
