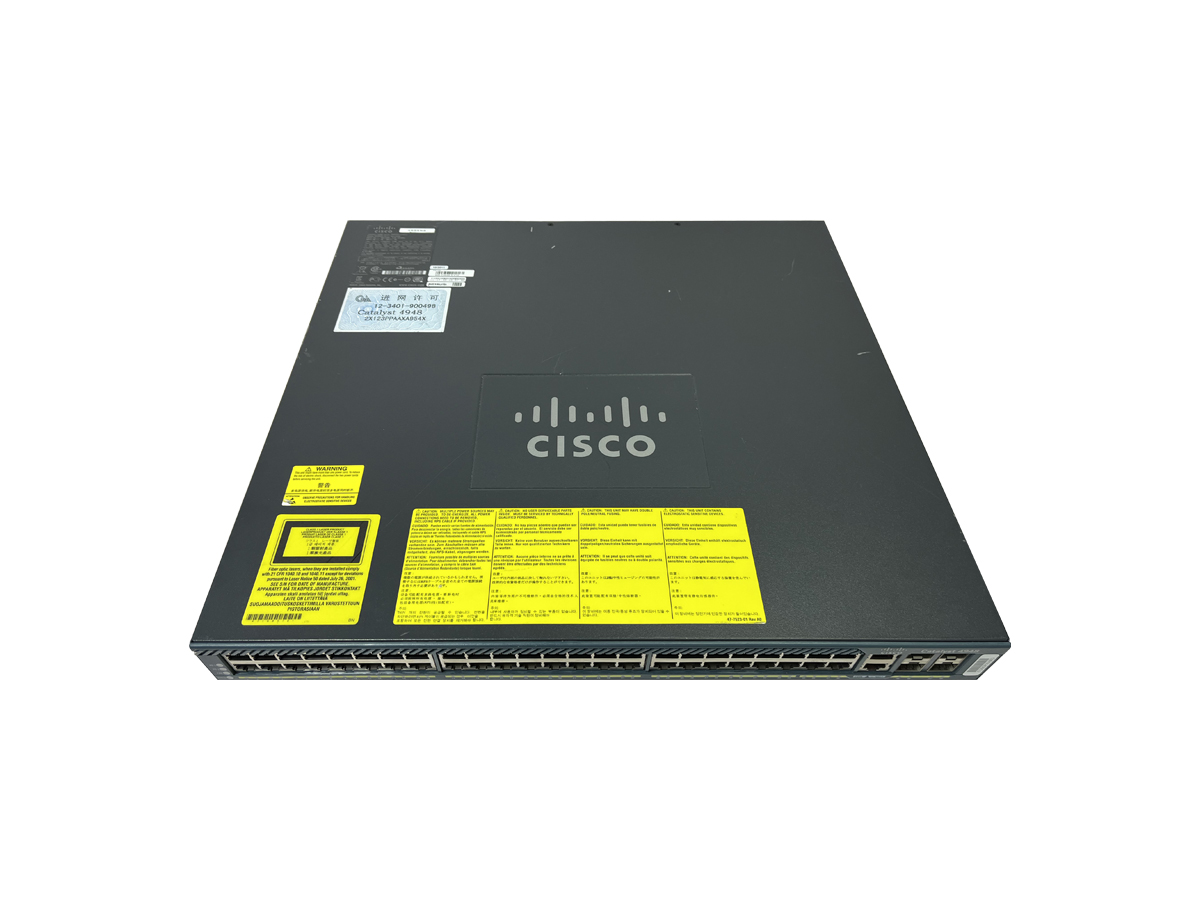

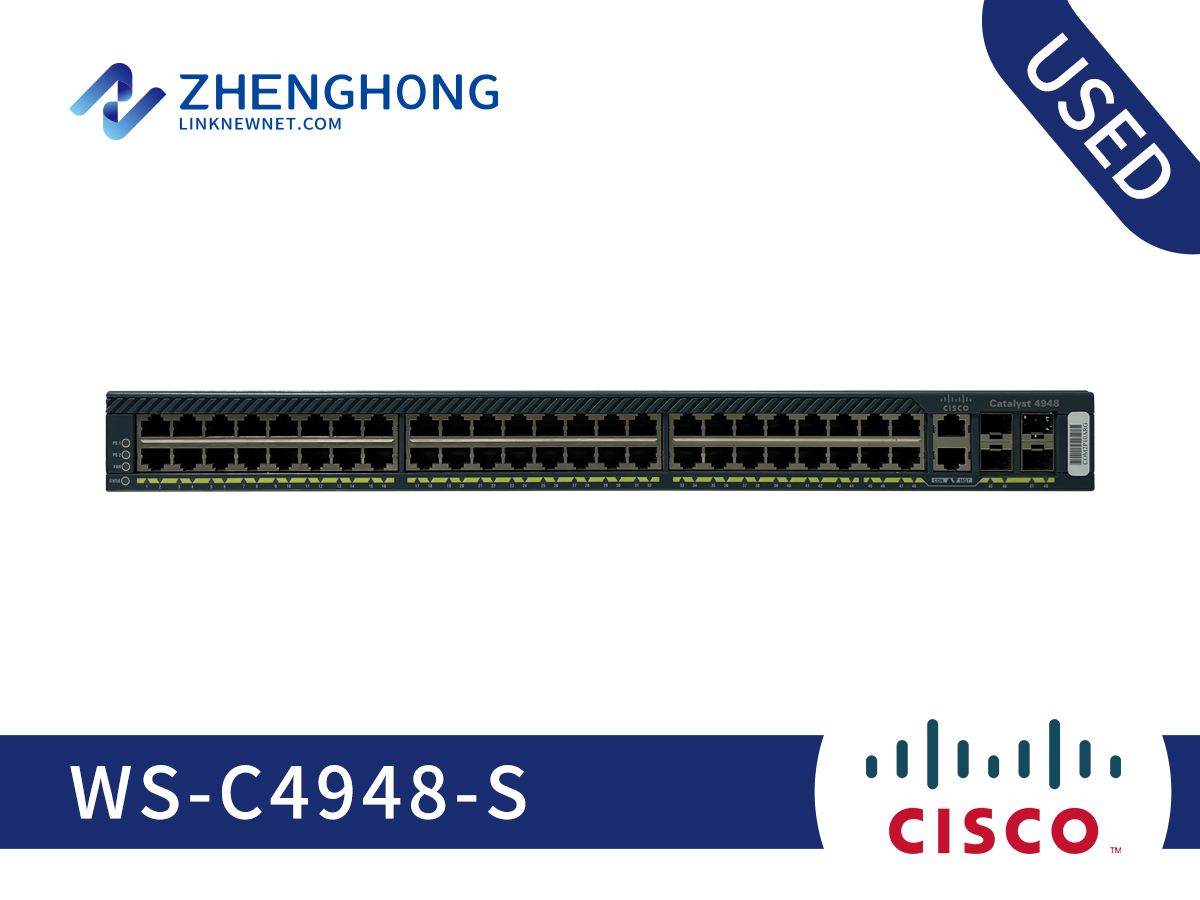

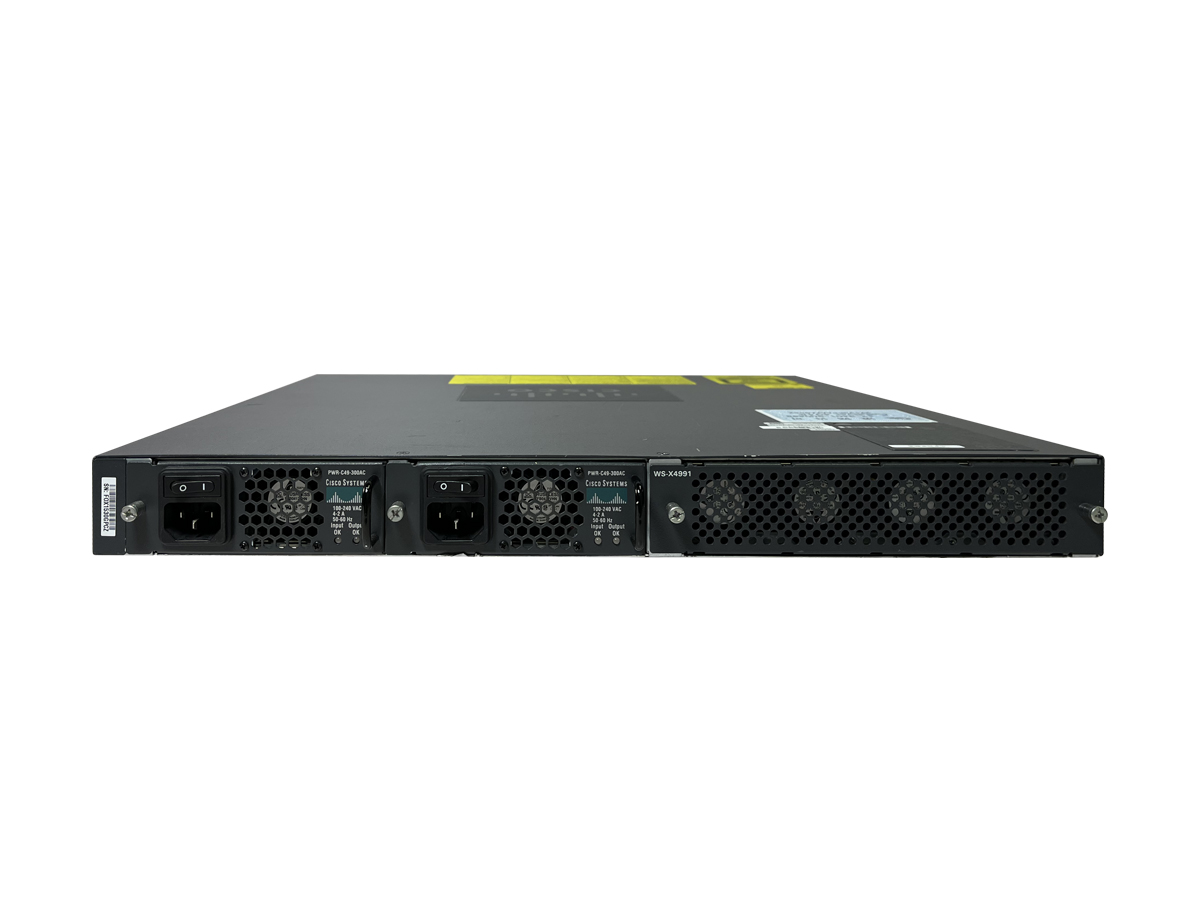

WS-C4948-S | |
Product list | |
Product code | WS-C4948-S |
Power cable | No |
Button | No |
Product parameters | |
Port | 48 |
Port/ Slot Details | 48 x Gigabit Ethernet Network 4 x 10 Gigabit Ethernet Expansion Slot |
Ethernet Technology | 10/100/1000Base-T |
Network Technology | Gigabit Ethernet |
Data Transfer Rate | 1000 Mbps |
Connector Type | RJ-45 |
Management | QoS CLI RMON VLAN |
Status Indicators | Link OK, Link/activity, Port status, Power, System |
Compliant Standards | IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
Introduction | Cisco Catalyst 4948E Ethernet Switches are the Cisco Catalyst 4900 Series data center switches built from the start to deliver best-in-class, full-featured server-access switching. |
Physical specifications | |
Width | 17.28 in |
Height | 1.75 in |
Depth | 15.79 in |
Weight | 23.4 lbs |
Power Device | |
Installed Qty | 0 |
Max Supported Qty | 2 |
Depth | Optional |
Type | Internal power supply |
Environmental Parameters | |
Min Temperature | 32 °F |
Max Temperature | 104 °F |
Humidity Operating | 10 - 90% (non-condensing) |
