N3K-C3048TP-1GE | |
Product list | |
Product code | N3K-C3048TP-1GE |
Power cable | No |
Button | No |
Product parameters | |
Port | 48 |
Port Type | 48 x Gigabit Ethernet Network 4 x 10 Gigabit Ethernet Expansion Slot |
Usb | Yes |
Network(RJ-45)Port | 48 |
Expansion Slot Type | SFP+ |
Expansion Slot | 4 |
Layer Supported | 3 |
Management | VLAN DHCP QoS CLI Telnet Syslog SNMP v1, v2, v3 Cisco DCNM RMON MIB |

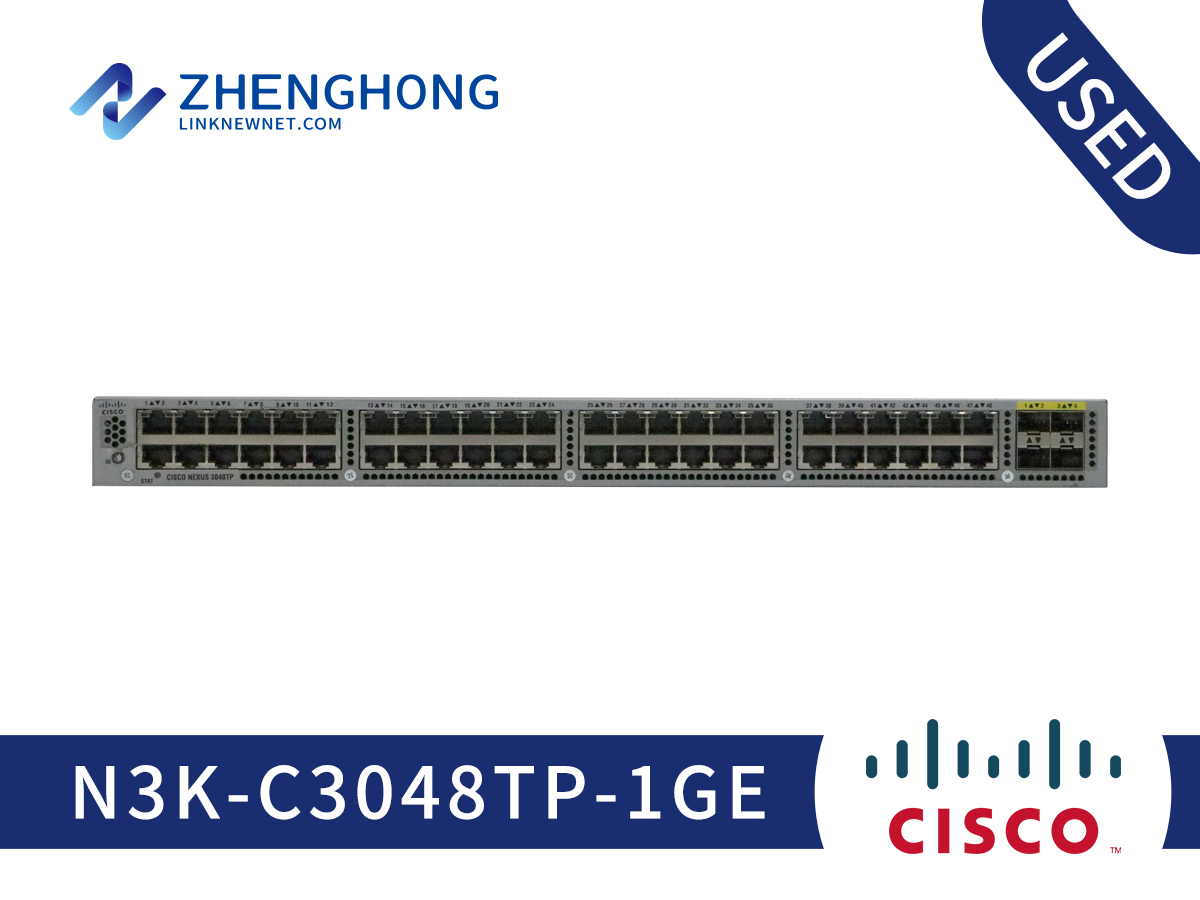

Introduction | The Cisco Nexus 3048 Switch (Figure 1) is a line-rate Gigabit Ethernet Top-of-Rack (ToR) switch and is part of the Cisco Nexus 3000 Series Switches portfolio. The Cisco Nexus 3048, with its compact one-Rack-Unit (1RU) form factor and integrated Layer 2 and 3 switching, complements the existing Cisco Nexus family of switches. |
Power Device | |
Power Source | Power Supply |
Input Voltage | 110 V AC 220 V AC |
Physical specifications | |
Width | 17.3 in |
Height | 1.7 in |
Depth | 19.9 in |
Weight | 20.5 lbs |
Environmental Parameters | |
Min Temperature | 32 °F |
Max Temperature | 104 °F |
Humidity Operating | 10 - 85% (non-condensing) |
