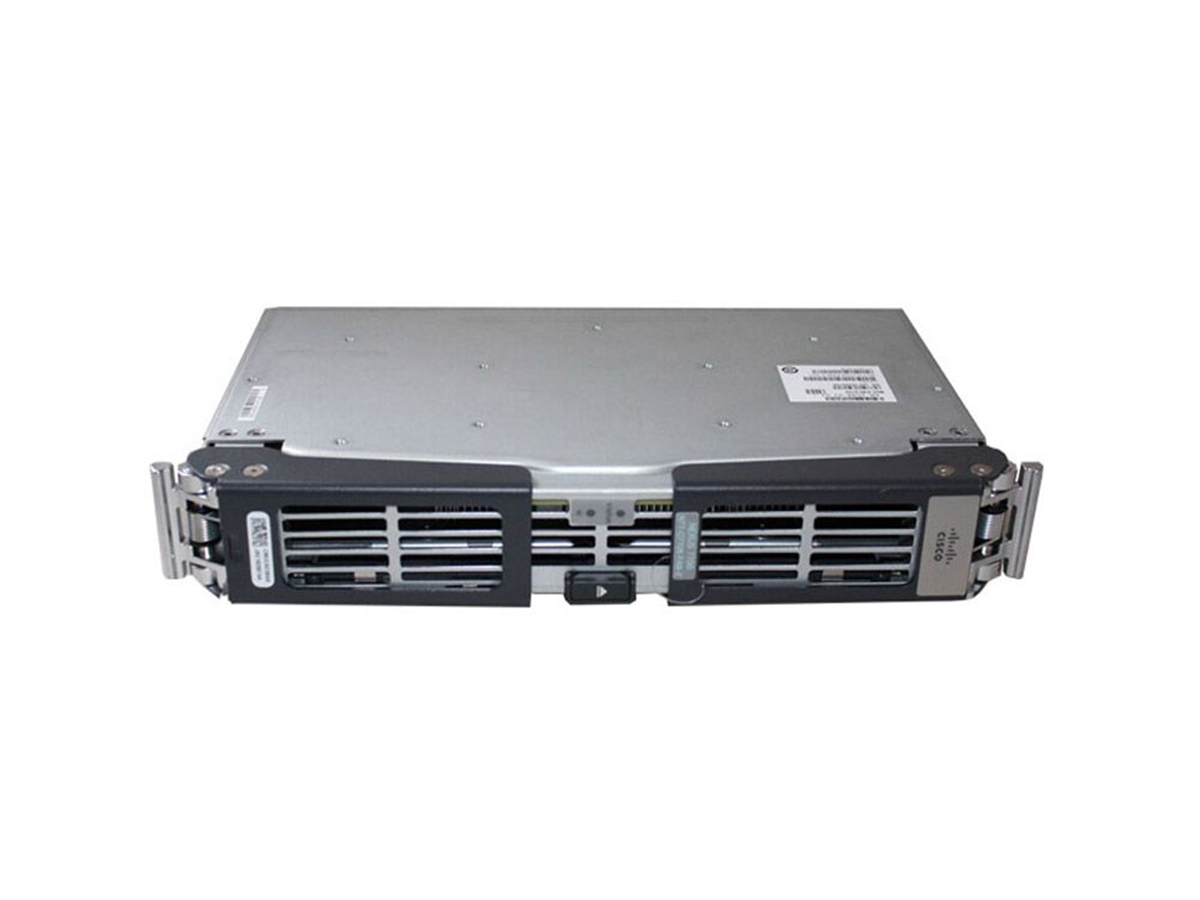

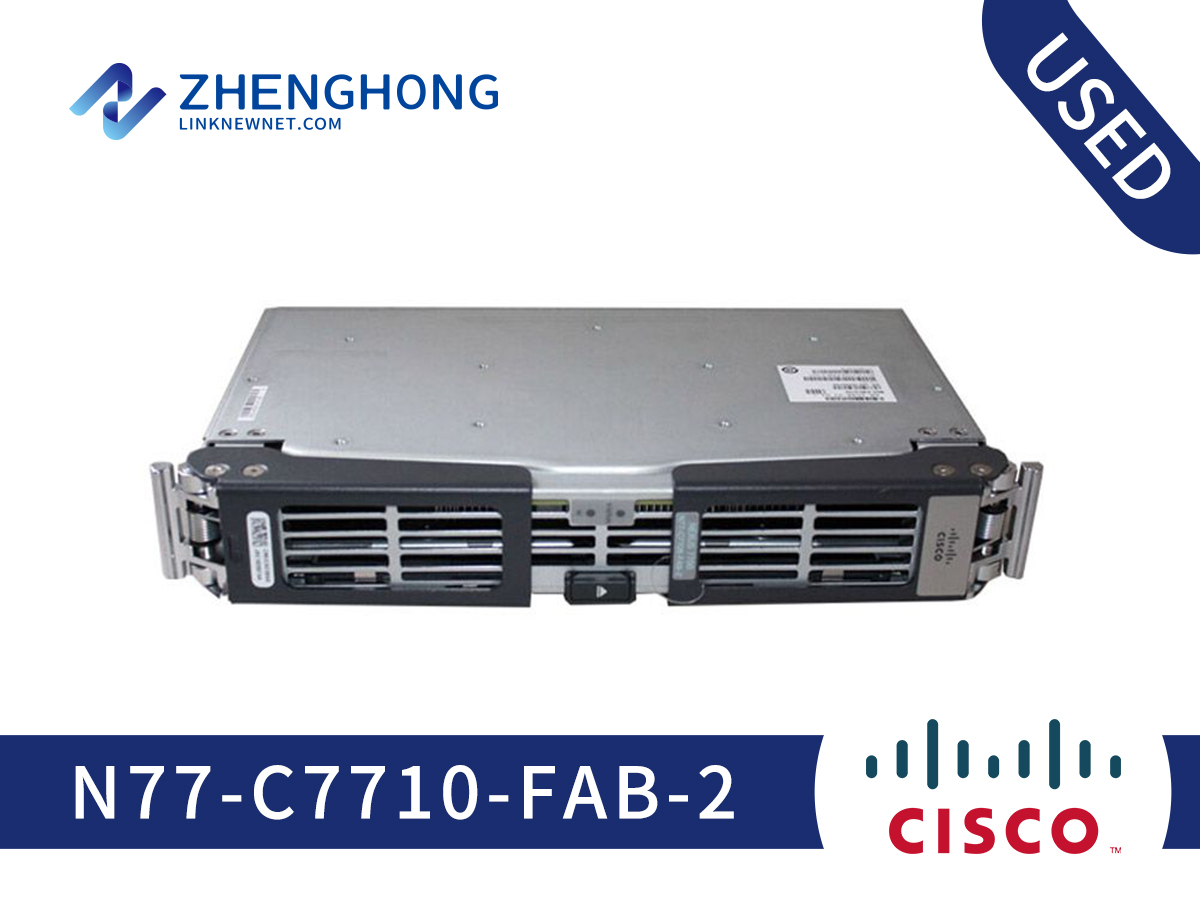

N77-C7710-FAB-2 | |
Product list | |
Product code | N77-C7710-FAB-2 |
Power cable | No |
Button | No |
Product parameters | |
Software | Cisco NX-OS Software Release 6.2.2 (minimum requirement) |
Performance | 220 Gbps per slot per Fabric-2 module 1.32 Tbps per slot for an aggregate of six Fabric-2 modules |
Reliability | Online insertion and retrieval (OIR) hot swappability |
MIBs | Supports Simple Network Management Protocol Version 1 (SNMPv1, v2c, and v3 (see the Cisco NX-OS Software release notes for details about specific MIB support) |
Management | Cisco Data Center Network Manager (DCNM) 6.2.2 or later |
Interfaces | XML Scriptable command-line interface (CLI) Cisco DCNM web services Python Tool Command Language (TCL) Cisco IOS® Embedded Event Manager (EEM) Cisco Open Network Environment (ONE) Platform Kit (OnePK) OpenFlow |
Features | Cisco Nexus 7000 Series Fabric Module N77-C7710-FAB-2 |
Introduction | The Cisco Nexus 7700 Fabric-2 modules for the Cisco Nexus 7700 Series switches are separate fabric modules that provide parallel fabric channels to each I/O and supervisor module slot. Up to six simultaneously active fabric modules work together, delivering up to 1.32 Tbps per slot. |
Physical specifications | |
Width | 45.95 CM |
Height | 5.13 CM |
Depth | 23.42 CM |
Weight | 4.99 KG |
Product compatibility | |
Supported | Cisco Nexus 7710 Switch |
