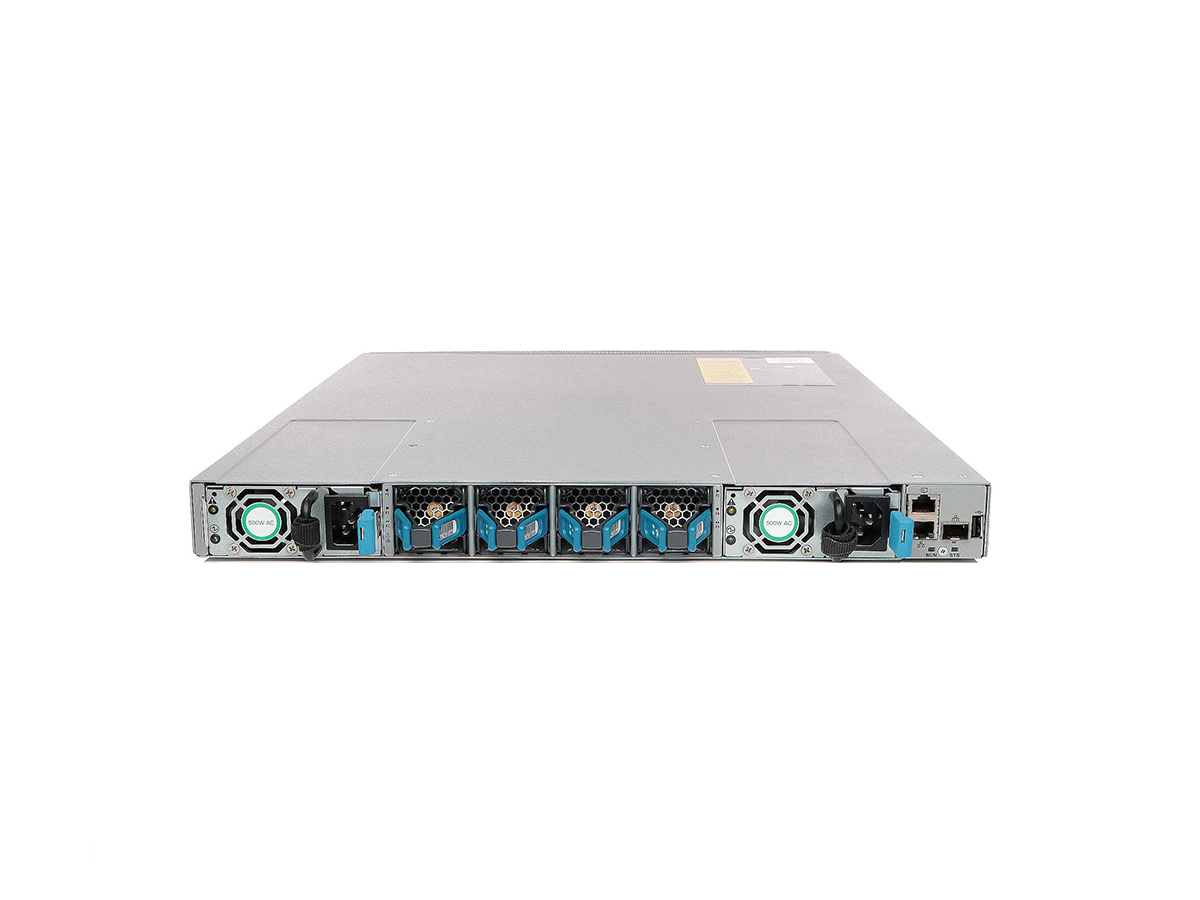

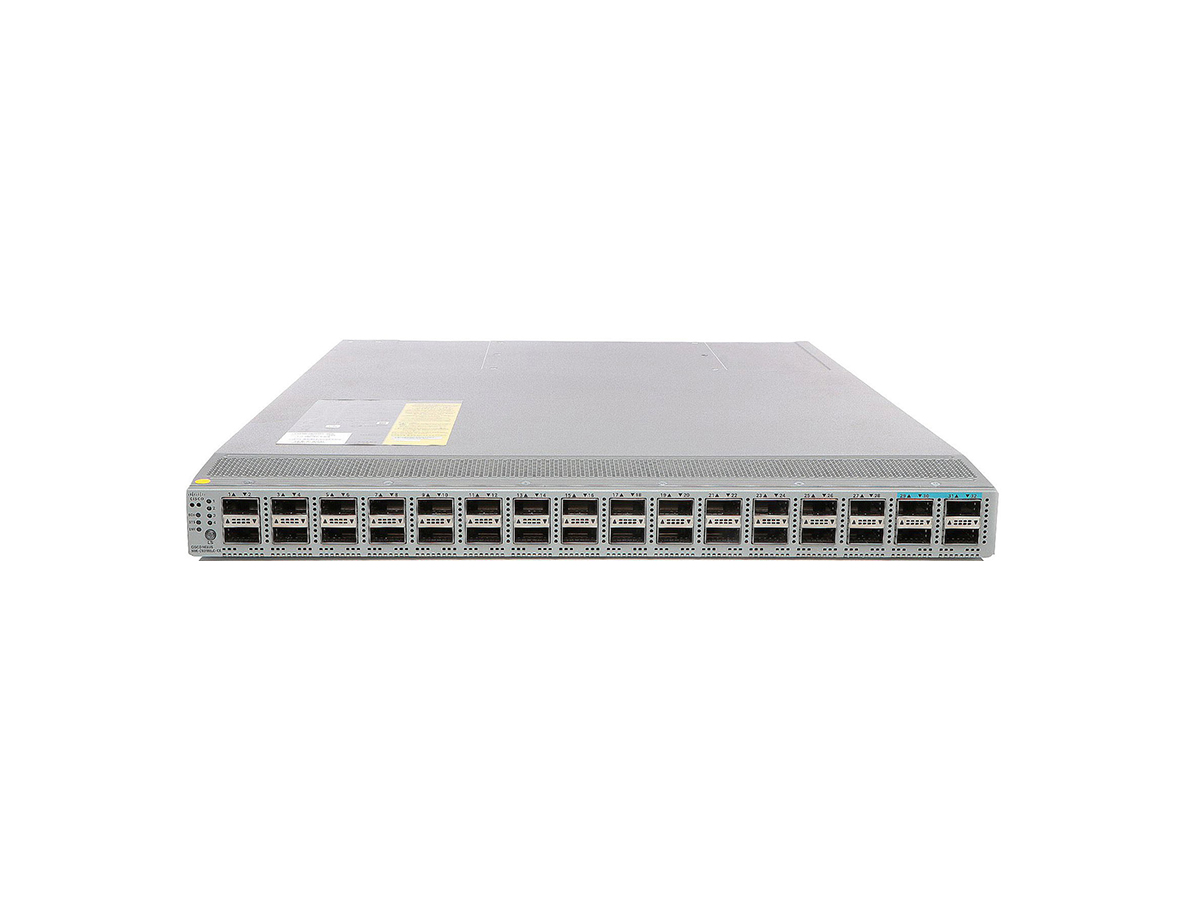

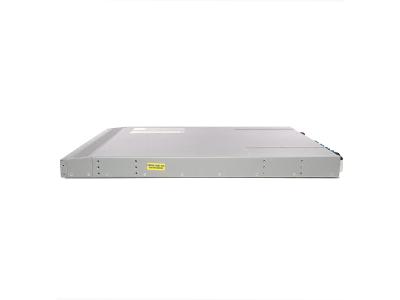

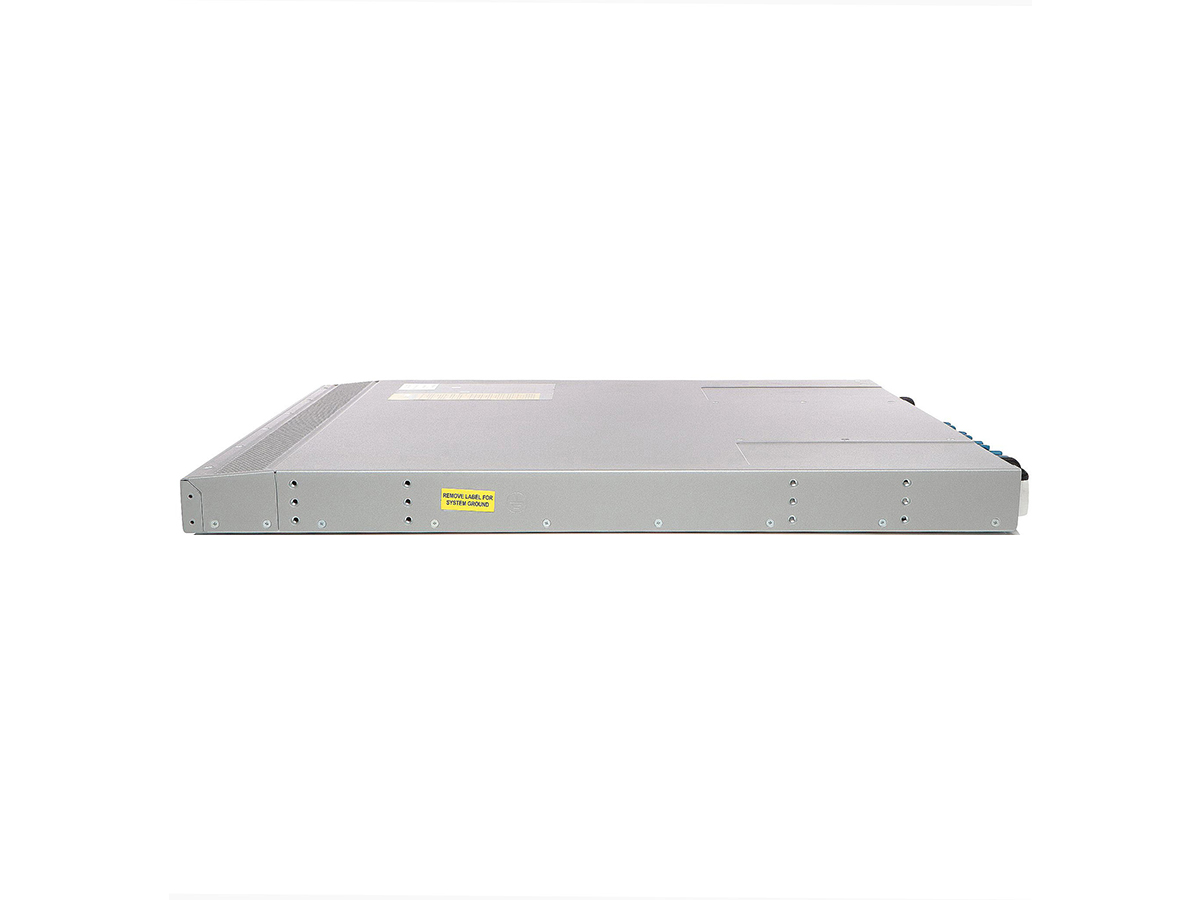

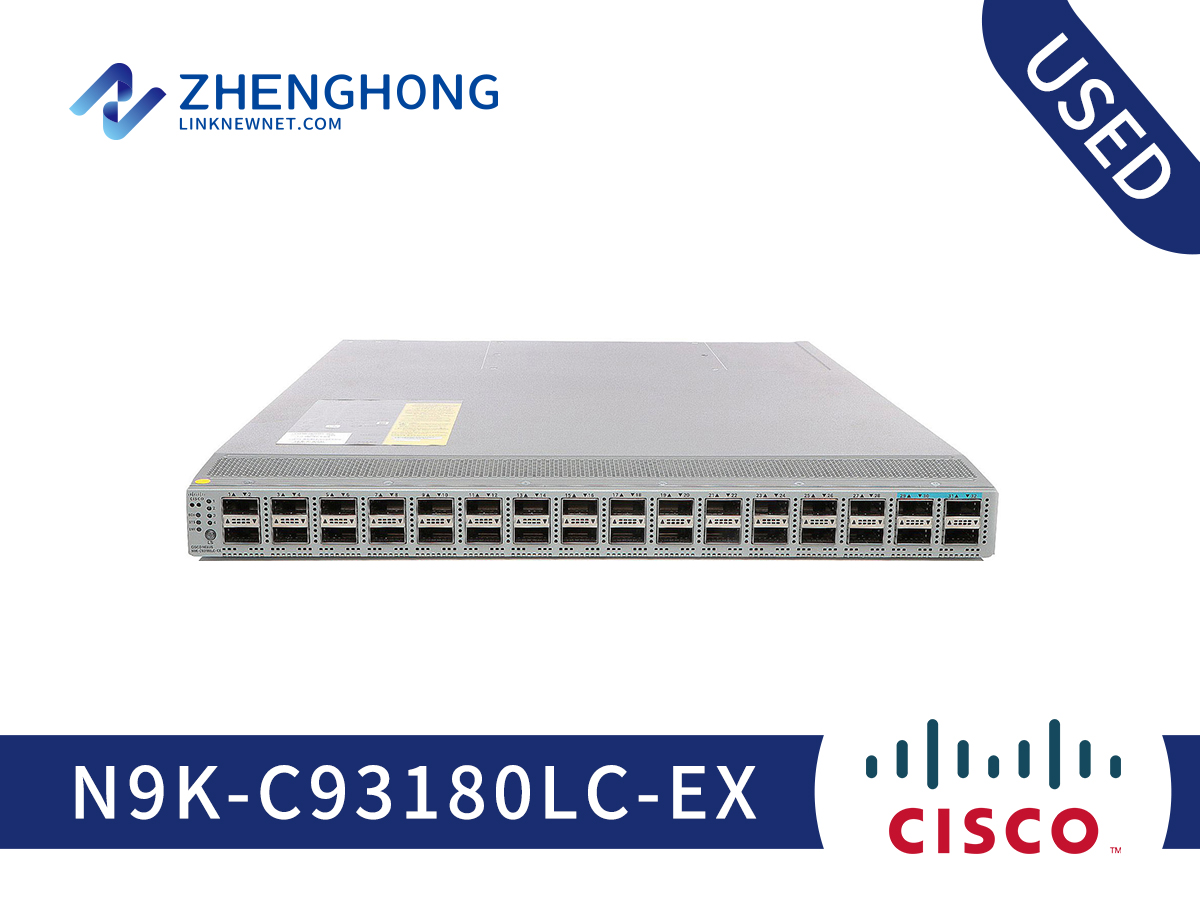

N9K-C93180LC-EX | |
Product list | |
Product code | N9K-C93180LC-EX |
Power cable | No |
Button | No |
Product parameters | |
QSFP+ Ports | 24 |
QSFP28 Ports | 6 |
Expansion Slots | 6 |
Expansion Slot Type | QSFP+ QSFP28 |
Port Details | 24 x 40 Gigabit Ethernet Expansion Slot 6 x 100 Gigabit Ethernet Expansion Slot |
Ethernet Technology | 100 Gigabit Ethernet 40 Gigabit Ethernet |
Network Technology | 40GBase-X 100GBase-X |
Layer Supported | 3 |
Introduction | Building on the success of first-generation Cisco Nexus 9300 platform switches, the latest Cisco Nexus 9300-EX and 9300-FX platforms can collect comprehensive Cisco Tetration Analytics telemetry information at line rate across all ports without adding any latency to the packets or negatively affecting switch performance. |
Physical specifications | |
Width | 17.3 in |
Height | 1.7 in |
Depth | 22.5 in |
Weight | 17.7 lbs |
Environmental Parameters | |
Min Temperature | 23 °F |
Max Temperature | 131 °F |
Humidity Operating | 5 - 95% (non-condensing) |
