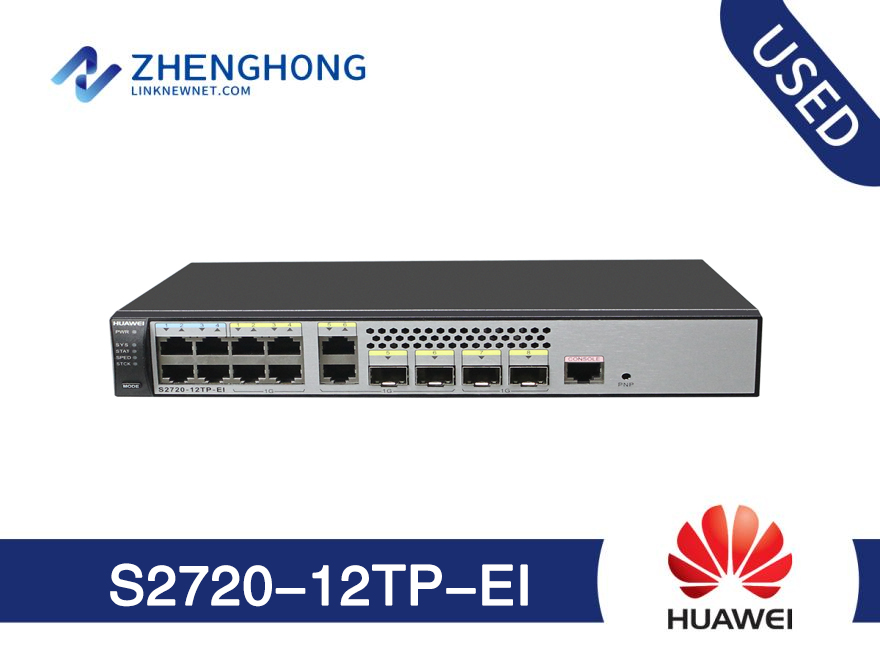

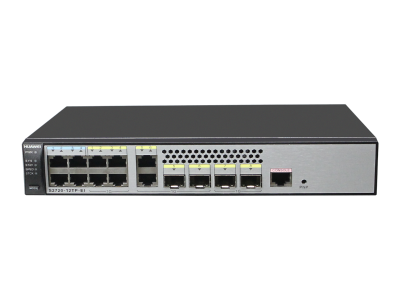

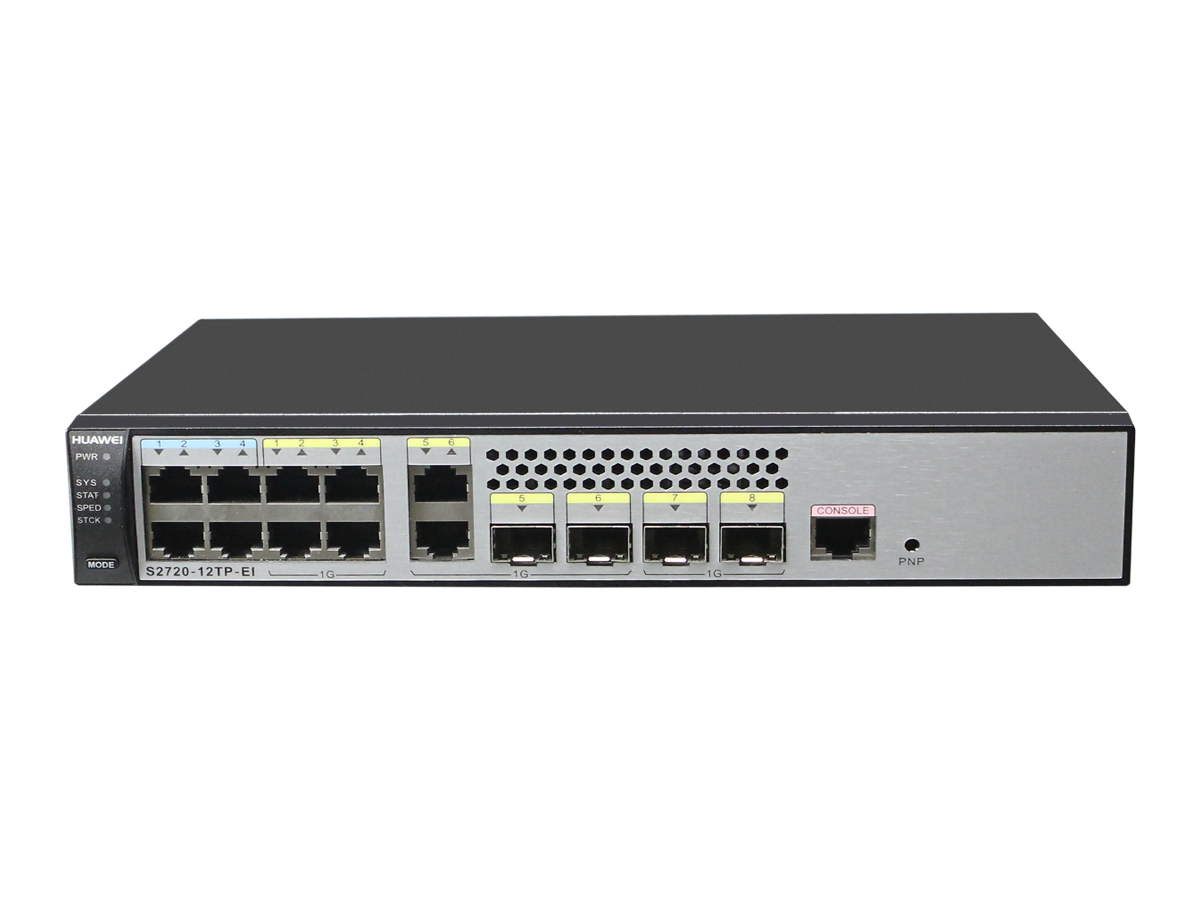

S2720-12TP-EI Specification | |
Item | Description |
Memory (RAM) | 512 MB |
Flash | 512 MB in total. |
Mean time between failures (MTBF) | 23.8 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±7 kV |
Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
Dimensions (H x W x D) |
|
Stack ports | Two 1000BASE-X ports |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput) | 12.85 W |
Typical power consumption (30% of traffic load) | 10.39 W |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification |
|
