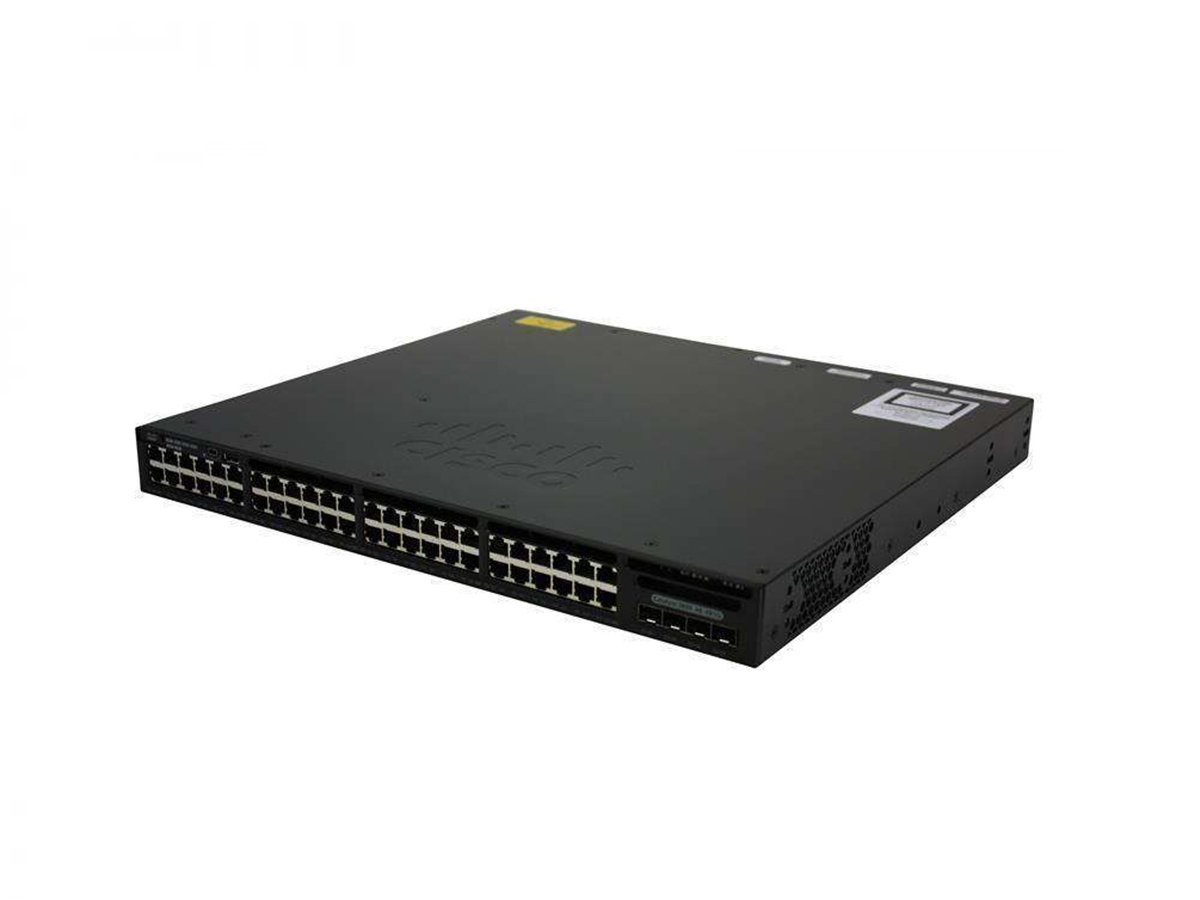

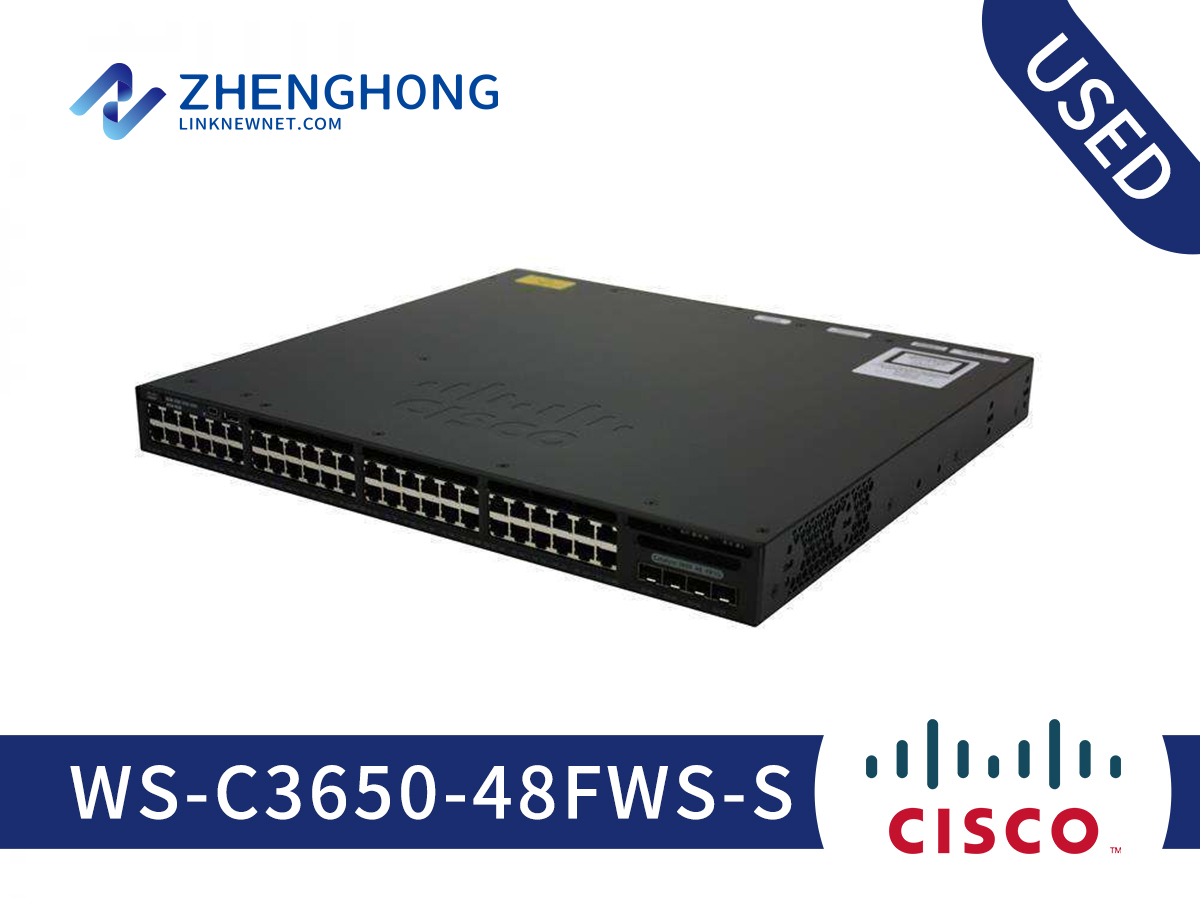

WS-C3650-48FWS-S Specification | |
Enclosure type | Rack-mountable - 1U |
Ports | 48 x 10/100/1000 (POE+) + 4 x 1G SFP |
Product Type | Layer 3 Switch |
Ethernet Technology | Gigabit Ethernet |
Switching Capacity | 176Gbps |
Maximum stacking number | 9 |
Stack Bandwidth | 160Gbps |
Forwarding Performance | 77.37Mpps |
Expansion Slot Type | SFP |
Maximum VLANs IDs | 4,094 |
MAC Address Table Size | 32K |
RAM | 4 G |
Flash Memory | 2 G |
Number of AP per switch/stack | 50 |
Number of wireless clients per switch/stack | 1000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 40Gbps |
Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | power redundant slot |
Power supply | PWR-C2-1025WAC |
Power Device | Power supply - redundant - plug-in module |
Voltage range (Auto) | 100V-240V |
Width | 17.5 Inches (44.5 cm) |
Depth | 19.125 Inches (48.6 cm) |
Height | 1.73 Inches (4.4 cm) |
Shipping Weight | 17.49 Kg |
