Catalyst 3650 Switch WS-C3650-48TS-L|LinkNewNet

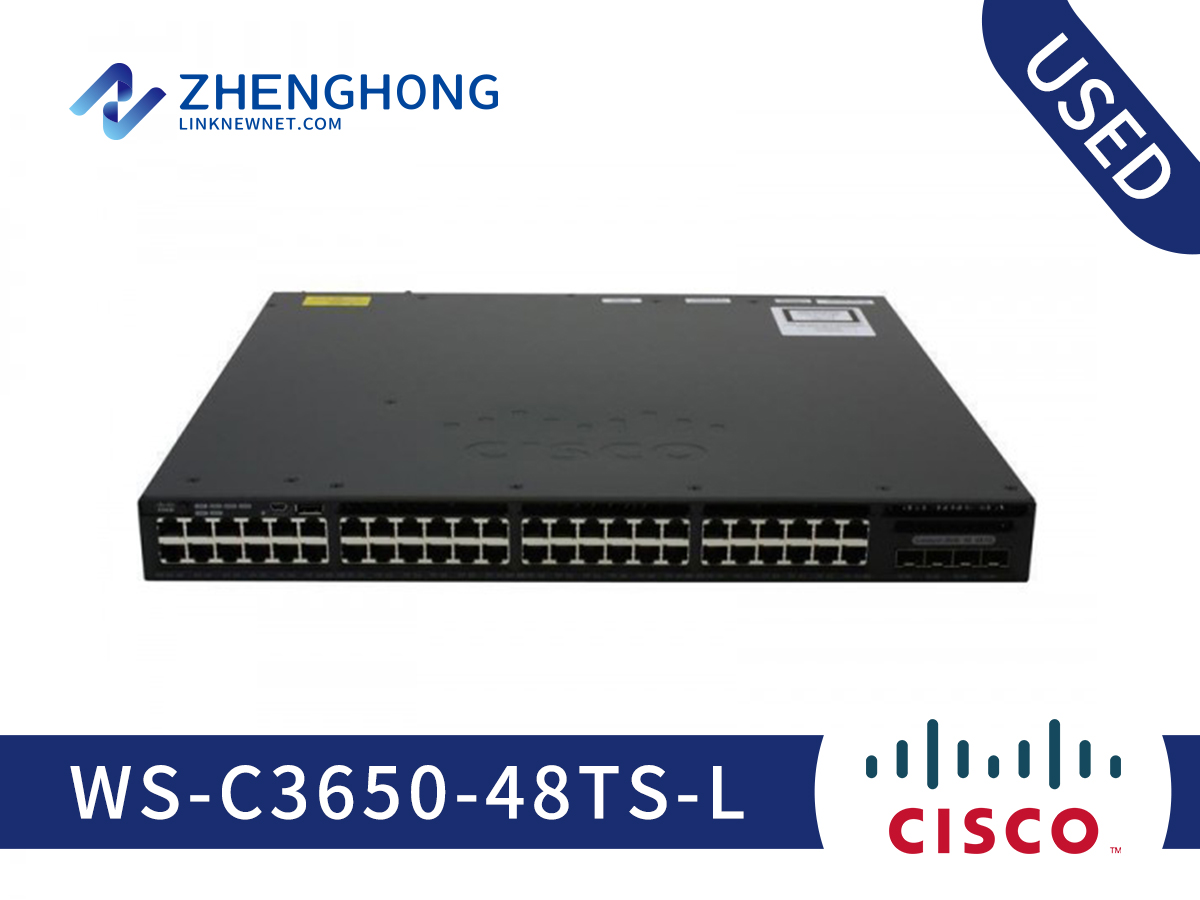

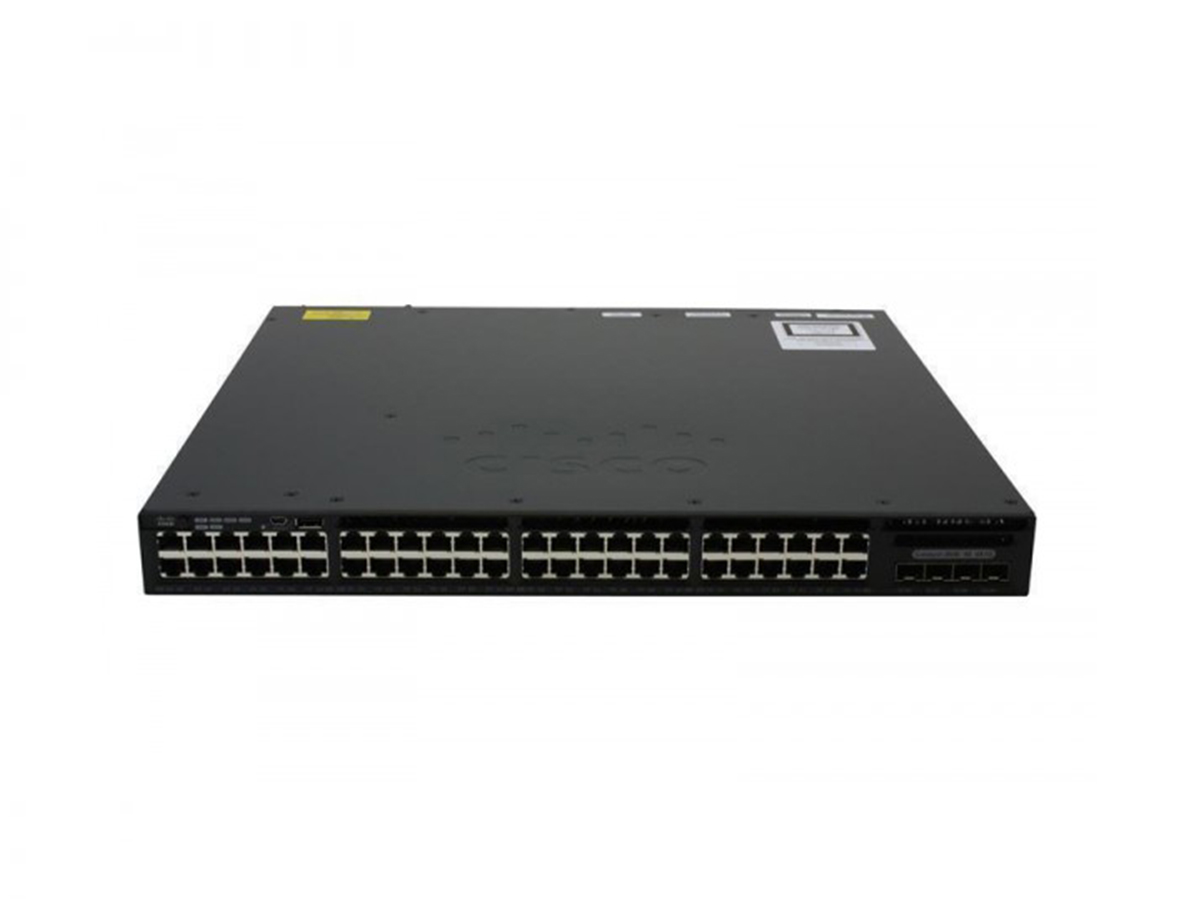

Catalyst 3650 Switch WS-C3650-48TS-L

Model: WS-C3650-48TS-L

Detail: Cisco Catalyst 3650 48 Port Data 4x1G Uplink LAN Base,2x 10Gbps SFP+ Ports

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3650-48TS-L Specification
Enclosure type	Rack-mountable - 1U
RAM	4 G
Flash Memory	2 G
Switching Capacity	176Gbps
Maximum stacking number	9
Stack Bandwidth	160Gbps
Forwarding Performance	77.37Mpps
CPU	Multicore CPU
Ports	48 x 10/100/1000 + 4 x 1G SFP
Network management Interface	· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling · Management console port: RJ-45-to-DB9 cable for PC connections
Wireless
Number of AP per switch/stack	50
Number of wireless clients per switch/stack	1000
Supported Aironet AP series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	power redundant slot
Power supply	PWR-C2-1025WAC
Accessory & Rack Moubt Kits	· ACC-KIT-T1: Accessory kit · RACK-KIT-T1: Rack mount kit · 4PT-KIT-T1:Extension rails and brackets for four-point mounting
Stacking module & cable	· C3650-STACK-KIT: Stack Module · STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length · STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length · STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Miscellaneous
Height	4.4 cm
Width	44.5 cm
Depth	44.8 cm
Shipping Weight	17.49 Kg
System software / license
System software	IOS LAN Base (Upgradable)
Technical Support and Services	· Cisco SMARTnet Service · Cisco Smart Foundation Service · Cisco SP Base Service · Cisco Focused Technical Support Services
Software license	· C3650-48-L-S : LAN Base to IP Base RTU paper license · C3650-48-L-E: LAN Base to IP Services RTU paper license · L-C3650-48-L-S: LAN Base to IP Base RTU electronic license · L-C3650-48-L-E: LAN Base to IP Services RTU electronic license
Environmental Ranges
With AC power supply Operating environment and altitude
Short-term exception up to 10,000 feet (3000 m)	23ºF to 113ºF (-5ºC to 45ºC)
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception up to 5000 feet (1500 m)	23ºF to 122ºF (-5ºC to 50ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating altitude	Up to 16,400 Feet (Up to 5000m)
Storage altitude	Up to 16,400 Feet (Up to 5000m)
Operating temperature up to 6000 ft (1800 m)	23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m)	23ºF to 95ºF (-5ºC to 35ºC)
Storage environment	-40ºF to 160ºF (-40ºC to 70ºC)

Q&A

Q Is a service module available for the WS-C3650-48TS-L?

A There are no service modules for the WS-C3650-48PS-L. The Cisco Catalyst 3650 natively supports the features supported by the service module in the 3560-X. The Cisco Catalyst 3650 is hardware ready for MACsec, and software support will be added in a future release. Check release notes for availability.

Q Can the WS-C3650-48TS-L act as a wired switch?

A Yes, the WS-C3650-48PS-L can act as a wired switch as well as a converged wired wireless switch.

Q Does the switch support front-to-back airflow?

A Yes. The Cisco Catalyst 3650 supports front-to-back airflow.

Q What happens if a fan on the WS-C3650-48TS-L fails?

A The WS-C3650-48PS-L can operate for up to four hours with two active fans at ambient temperature of 25°C without errors. A longer duration might cause errors and reduce reliability of the switch. The failed fan should be replaced within four hours.
