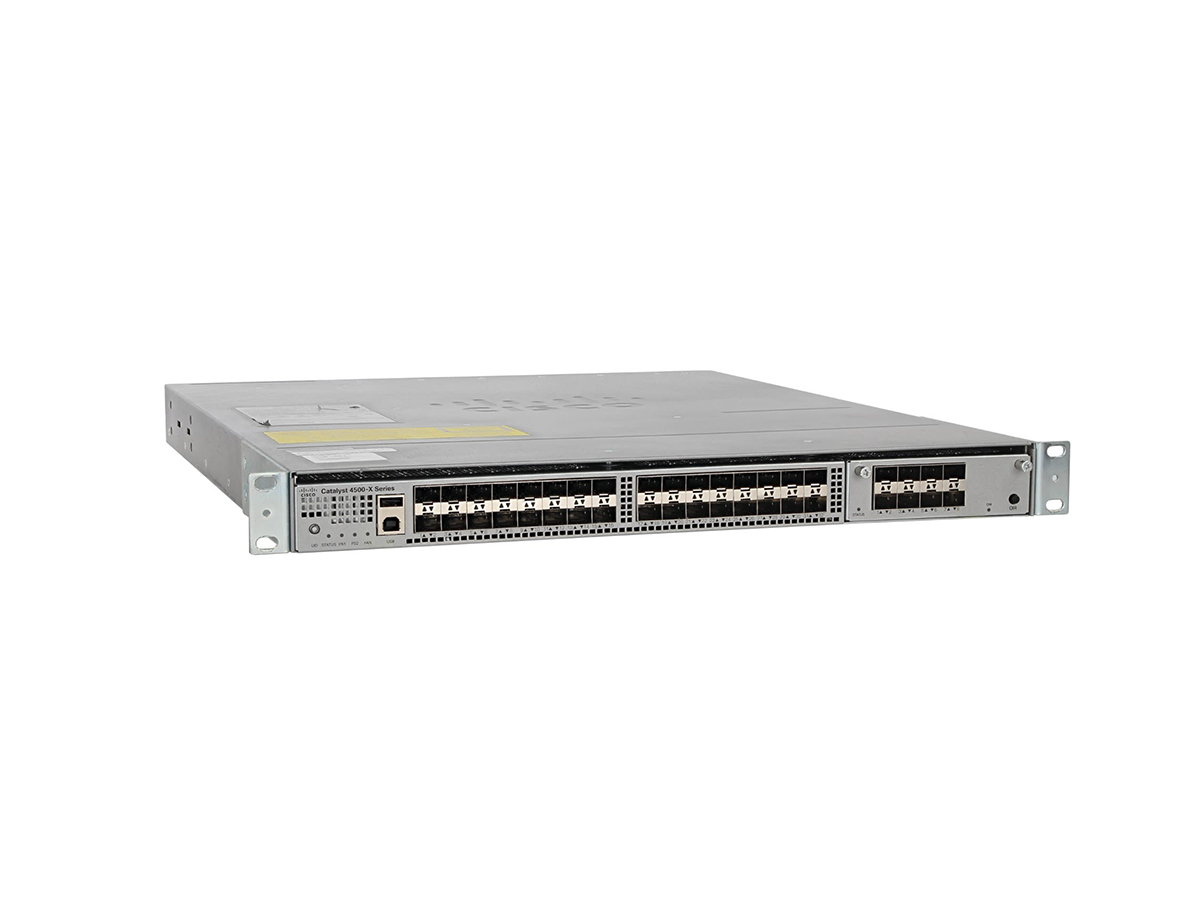

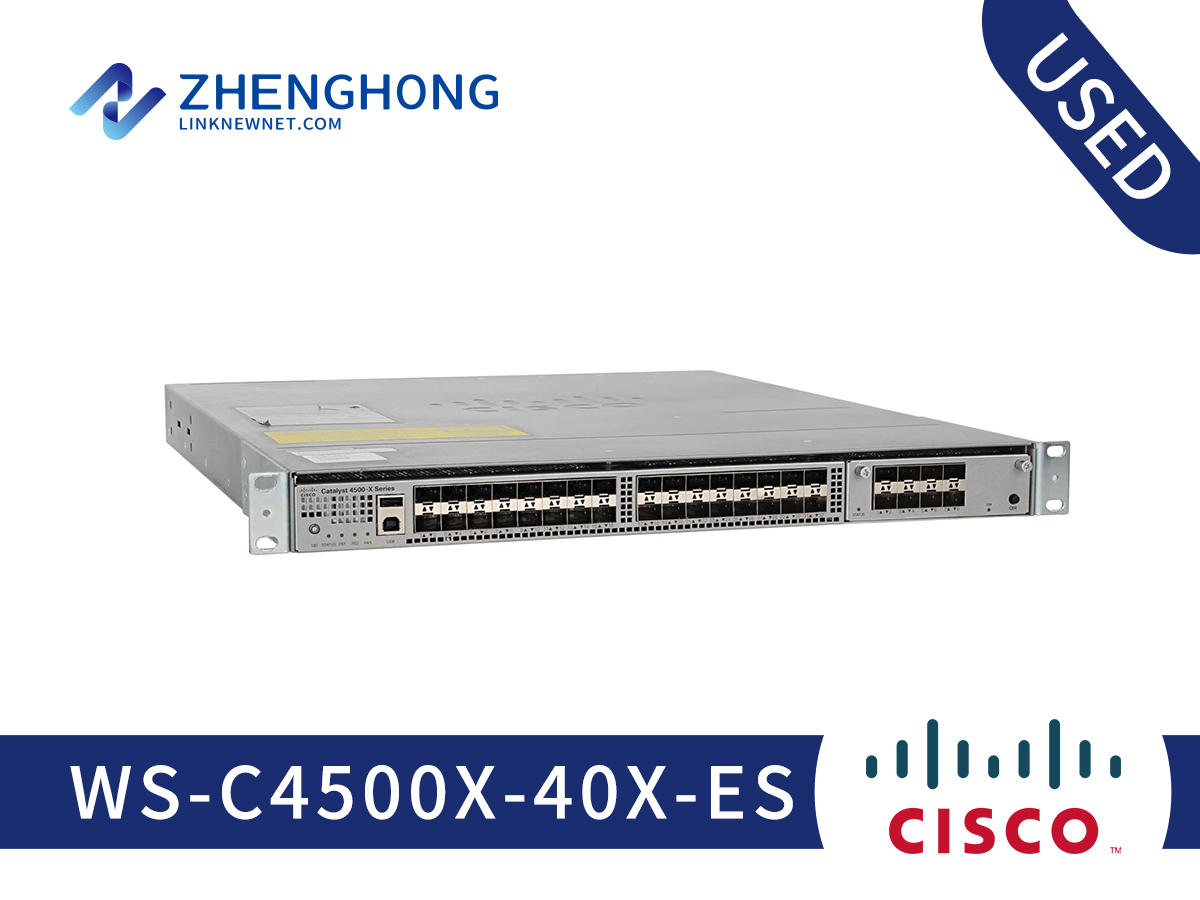

Catalyst 4500-X Services WS-C4500X-40X-ES

Model: WS-C4500X-40X-ES

Detail: Catalyst 4500-X 40 Port 10G Ent. Services, Frt-to-Bk, No P/S

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C4500X-40X-ES Specification
System
Dual Power Supply	Yes
Management Port	10/100/1000 Base-T
USB Port	Type A (storage and boot) up-to 4 GB
Expansion Module (Optional)	8x10 GE SFP+/SFP - C4KX-NM-8SFP+
Fan Redundancy	No performance impact with single fan failure
Scalability
Media Access Control (MAC) Entries	55K
Flexible Netflow Entries	128K
Total VLANs	4094
Jumbo Frame Support for Bridged and Routed Packets	Up to 9216 bytes
Dynamic Host Configuration Protocol (DHCP) Snooping Entries	12K (DHCP snooping bindings)
Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN)	8 line rate bidirectional sessions (ingress and egress)
High Availability and Resiliency
Max number of Virtual Switch Links	8
Number of stackable switches in VSS	Up to 2
VSS Throughput	Up to 1.6 Tbps
Virtual Switch Link	1GE or 10GE
High Availability Solution	Virtual Switching System (VSS)
CPU and Memory
Onboard Memory (SRAM DDR-II)	4 GB
NVRAM	2 GB
CPU	Dual Core 1.5 GHz
Port Buffers	32-MB Shared Memory
QoS Features
Aggregate Traffic Rate-Limiting Policers (1K=1024)	16K
Port Queues	8 Queues/Port
CPU Queues	64
Qos Policy Enforcement	Per Port or Per Vlan or Per Port, Per VLAN Granularity
Security Features
Traffic Storm Control (formally known as Broadcast/Multicast Suppression)	Yes
Micro Flow Policer	Yes. Supported using flow records in the class-map
Security ACL Entries (1K=1024)	128K (64K ingress and 64K in egress) Shared with QoS
CPU HW Rate Limiters by Packet Per Second (pps) and Bit Rate Policers (bps)	Supported in hardware control-plane policing (CoPP)
Virtualization Features
VRF-Lite Scalability	64
Easy Virtual Network (EVN) Scalability	32
Environmental Conditions
Operating Temperature	0°C to 40°C (RH to 90%)
Storage Temperature	-40°C to 70°C (RH 93%)
RoHS	Reduction of Hazardous Substances (ROHS) 5
Power Supply
AC Power Max Rating	750W
DC Power Max Rating	750W
System Power Consumption	330W nominal/400W max
Input-Voltage Range and Frequency	AC 100 to 240 VAC 50-60 Hz/DC -72 VDC to -40 VDC
Total Output BTU (Note: 1000 BTU/hr = 293W)	1122 BTU/hr (330 W) nominal/1365 BTU/hr (400 W) max
MTBF Information
WS-C4500X-F-16SFP+	209,330
WS-C4500X-F-32SFP+	199,720
C4KX-FAN-R	L10 Life 60,000 at 40C
Regulatory Standards Compliance
Regulatory Compliance	CE marking
Industry EMC, Safety, and Environmental Standards	GR-63-Core Network Equipment Building Systems (NEBS) Level 3 GR-1089-Core Level 3

Q&A

Q What is the alternative to Cisco 4500?

A The replacement for 4500 series is the 9400 series. The models are 9404, 9407 and 9410.

Q What is Cisco 4500X?

A The Cisco Catalyst 4500-X Series offers key innovations, including: ● Platform Scalability: Delivers up-to 800 Gbps of switching capacity, capable of scaling up to. 1.6-Tbps capacity with the VSS technology. Future-proof investment with modular uplink and auto. -detect 10 Gigabit Ethernet and 1 Gigabit Ethernet ports.

Q How do I reset my Cisco 4500X?

A Factory reset Cisco 4500X switch

Connect to the console interface.
Stop the boot sequence and enter ROM monitor by pressing Ctrl-C during the first 5 seconds of bootup.
Configure the switch to boot-up without reading the configuration memory (NVRAM).
Reboot the system.
