Cisco Catalyst 6500 Series Switch WS-C6513-E|LinkNewNet

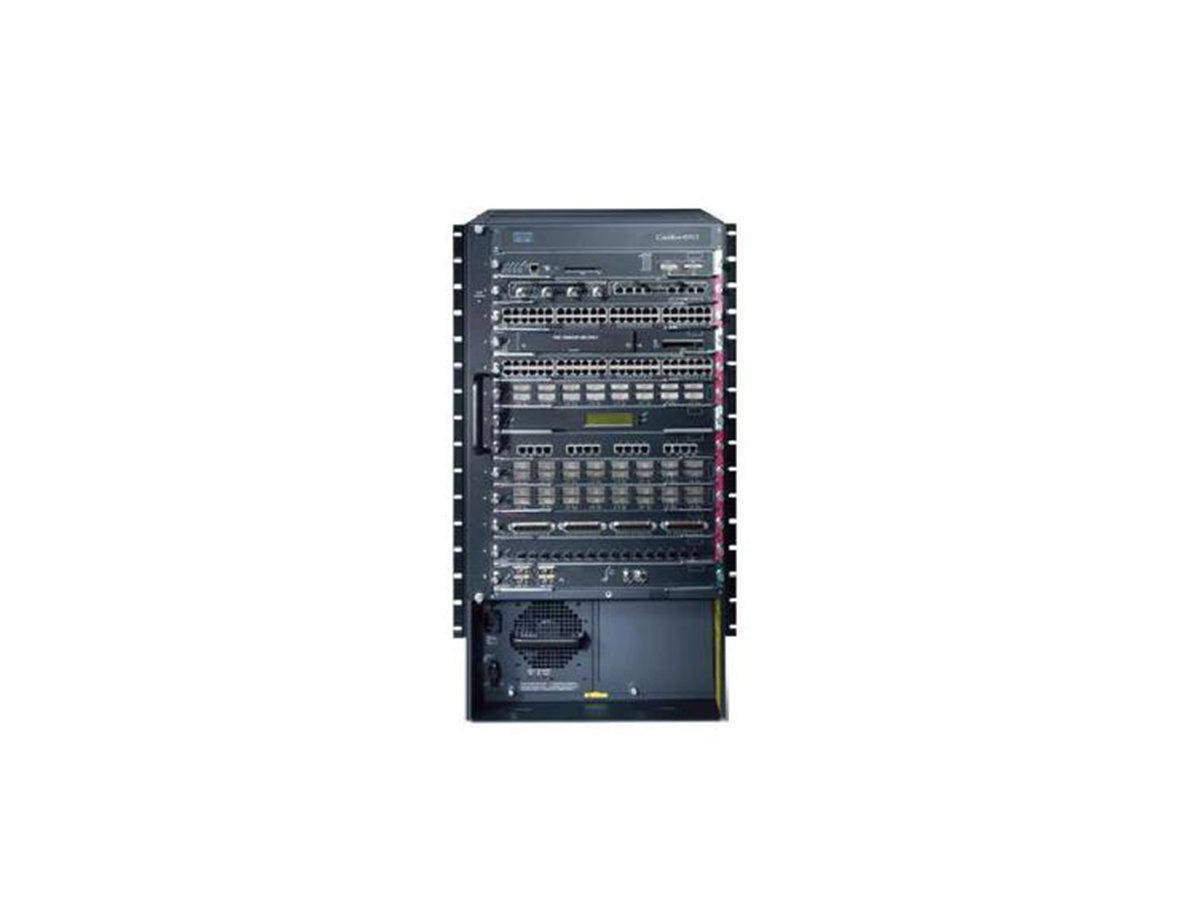

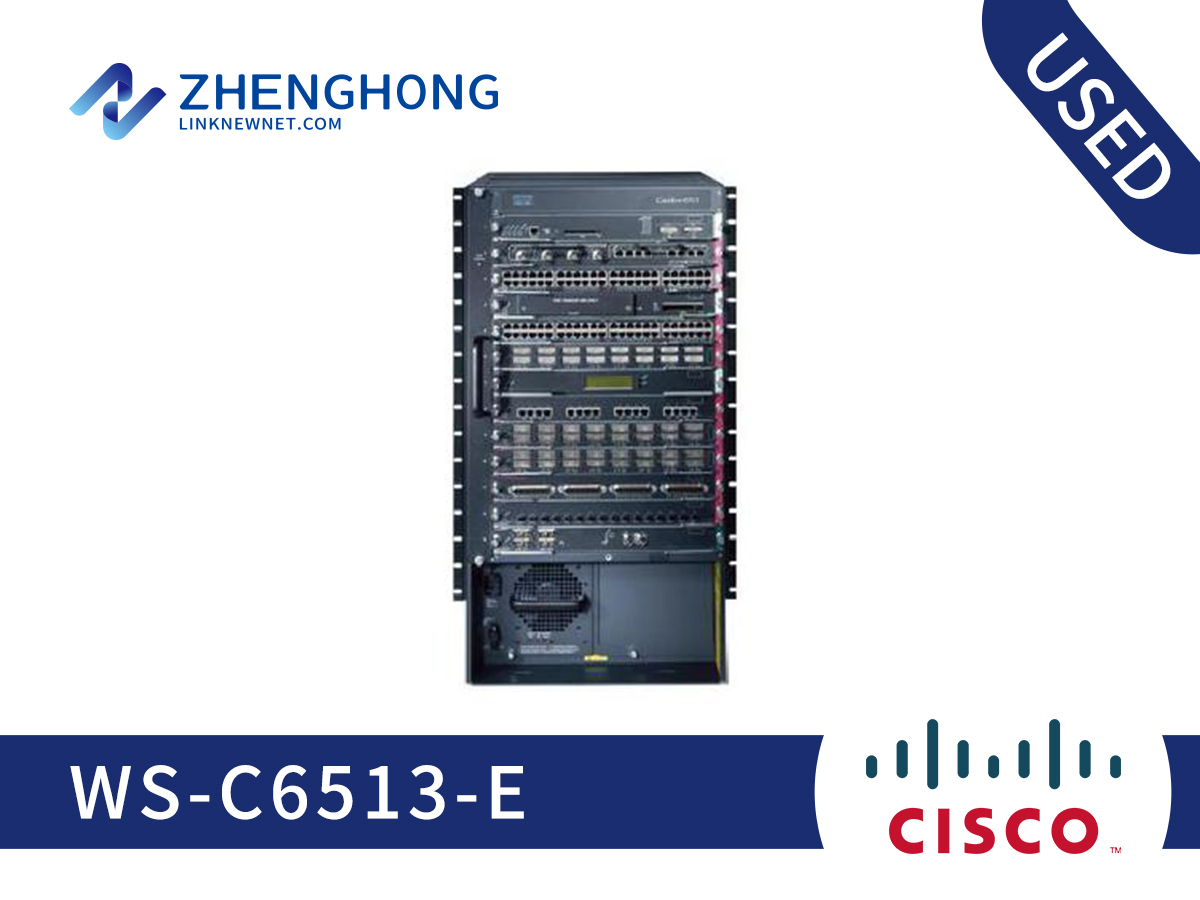

Cisco Catalyst 6500 Series Switch WS-C6513-E

Model: WS-C6513-E

Detail: Enh C6513 Chassis, 13slot, 19RU, No Fan Tray, No Pow Supply

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C6513-E Specification
Product Type	Switch Chassis
Number of Slots	13
Manageable	Yes
Stack Port	No
PoE (RJ-45) Port	No
Redundant Power Supply Supported	Yes
Form Factor	Rack-mountable
Power Source	Power Supply
Layer Supported	3
Inches	32.7 x 17.3 x 18.1
Centimeters	83.0 x 43.9 x 46
Rack Units (RU)	19
Chassis Only (lbs)	102
Fully Configured (lbs)	280
Input Voltage	100 to 240 VAC -48 to -60 VDC
Operating Temperature	32°F to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)

Q&A

Q What is WS-C6513-E?

A Cisco WS-C6513-E Cisco Catalyst 6513 Enhanced Chassis with Fan Module. Enclosure type: 20RU Desktop. Power Details: 3000W AC, 4000W AC, 6000W AC, 8700W AC, 2500W DC, 4000W DC, 6000W DC. MTBF (Mean Time Before Failure): 225,000 hours. Temperature Range (storage): -40 °F to 104 °F.

Q What is the throughput of a Cisco Catalyst 6500?

A Connections and throughput options: 32-, 256-, and 720-Gbps bandwidth with a system throughput of: 15, 30, 210, and up to 400 Mpps. 1000 Mbps) and duplex mode (half or full) with attached devices.

Q What is the capacity of a Cisco 6500 switch?

A The Cisco ® Catalyst ® 6500 Enhanced Series Chassis will be capable of delivering up to 180 Gbps of per-slot bandwidth with a system capacity of up to 4 terabits per second. A system configured for VSS will be capable of delivering up to 8 Tbps of system bandwidth.

Q How many Cisco Catalyst 6500 series switches can be part of a VSS?

A The Cisco Catalyst 6500 Series Virtual Switching System allows the combination of two switches into a single, logical network entity from the network control plane and management perspectives.
