A Guide to Installing and Maintaining the A9K-RSP880-TR Router

Introduction

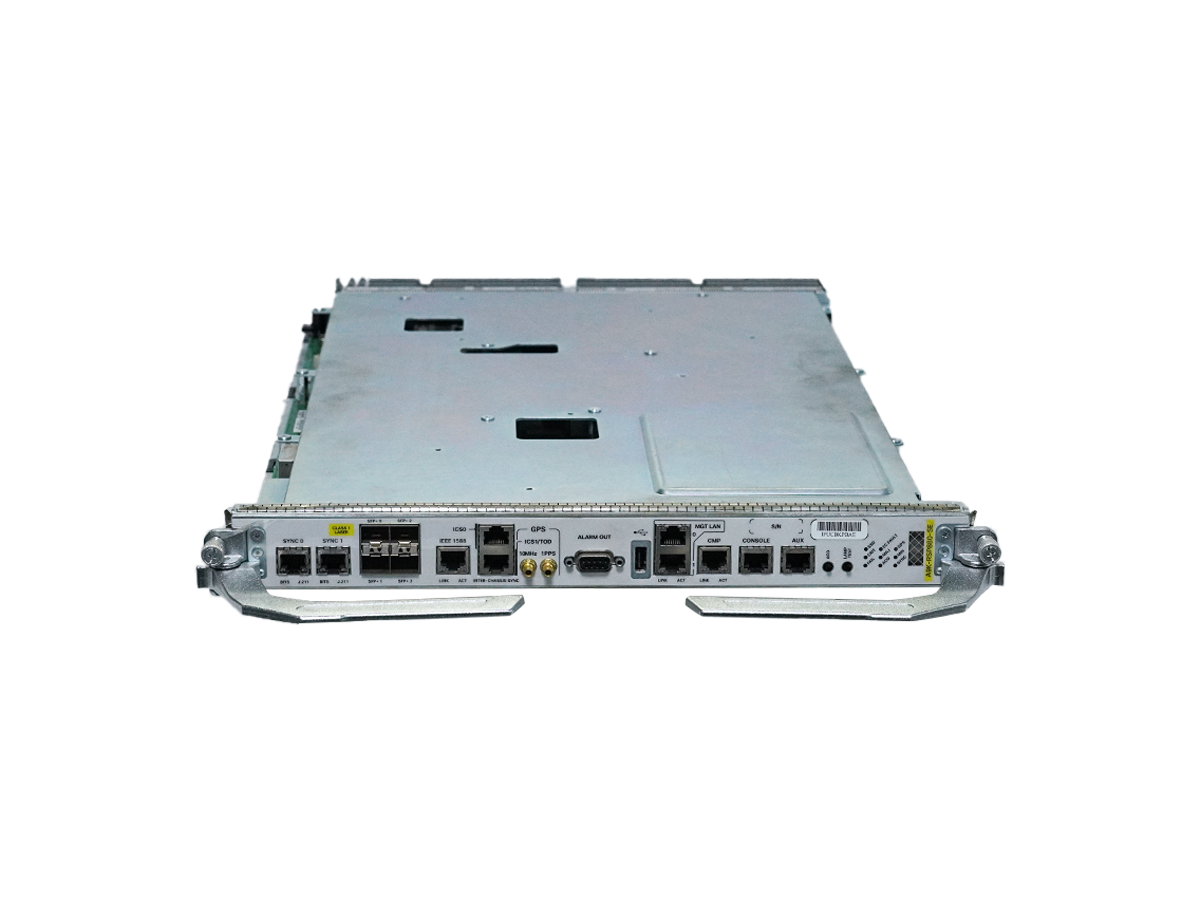

The Cisco ASR 9000 Series A9K-RSP880-TR is a high-performance Route Switch Processor (RSP) designed for large-scale networks. It plays a critical role in ensuring fast and reliable data routing. To maximize its efficiency and lifespan, proper installation and regular maintenance are essential. This guide provides clear steps for setting up the device and keeping it in optimal condition.

Installation Process

1. Pre-Installation Preparation

Before installing the A9K-RSP880-TR, take the following precautions:

• Ensure the ASR 9000 chassis is powered off and properly grounded.

• Verify that the correct slot (RSP slot) is available.

• Use an anti-static wrist strap to prevent electrostatic discharge (ESD) damage.

2. Step-by-Step Installation

3. Post-Installation Verification

After installation, confirm that the system recognizes the new RSP. Use the device’s management interface to check its status and ensure proper functionality.

Maintenance Best Practices

1. Firmware and Software Updates

• Regularly check for firmware updates from Cisco.

• Schedule updates during maintenance windows to minimize disruption.

2. Environmental Conditions

• Maintain proper airflow and cooling (recommended temperature: 0°C to 40°C).

• Monitor system temperature and fan performance to prevent overheating.

3. Routine Hardware Checks

• Perform periodic inspections for dust buildup and clean vents as needed.

• Check for loose connections or signs of wear.

4. Backup and Redundancy

• Keep a backup RSP module for failover protection.

• Regularly save configuration files to prevent data loss.

5. Troubleshooting Common Issues

• If the module fails to power on, verify power supply connections.

• If performance degrades, check for overheating or outdated firmware.

Conclusion

Proper installation and maintenance of the A9K-RSP880-TR are crucial for network stability and performance. By following these guidelines, network administrators can ensure smooth operation and extend the lifespan of this critical component.

For additional support, consult Cisco’s official documentation or contact their technical team.

This guide is intended for professional use. Always follow safety procedures when handling networking hardware.
