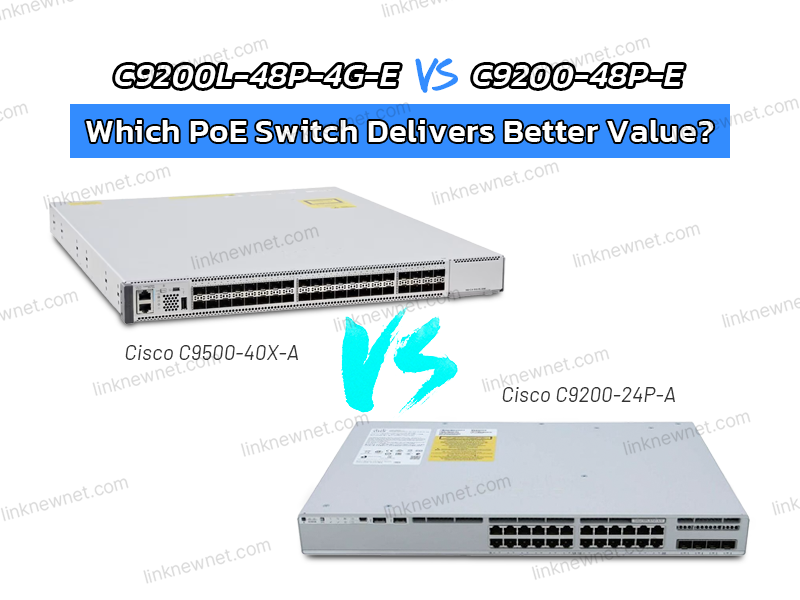

Cisco C9200-24P-A vs C9500-40X-A: How to Choose the Right Switch for Different Network Tiers?

May 16 , 2025 751

TL;DR: When designing enterprise network architecture, IT managers often face difficult choices between access layer and distribution layer switches. Cisco's Catalyst 9200 series C9200-24P-A and Catalyst 9500 series C9500-40X-A target different network tiers, yet their price ranges partially overlap.

When designing enterprise network architecture, IT managers often face difficult choices between access layer and distribution layer switches. Cisco's Catalyst 9200 series C9200-24P-A and Catalyst 9500 series C9500-40X-A target different network tiers, yet their price ranges partially overlap. Should you opt for higher-performance distribution layer equipment or more economical access layer solutions? This professional comparison analyzes this selection dilemma.

 Core Specifications Comparison

 Performance Analysis

Processing power differences are monumental. The C9500-40X-A's 16-core X86 processor delivers 5-6 times the performance of C9200-24P-A's quad-core ARM, particularly evident in complex tasks like routing table calculations and ACL processing. Tests show C9500-40X-A's latency is just 18% of C9200-24P-A's when handling 1000 ACL rules simultaneously.

Network throughput comparison is even more dramatic. The 1.2Tbps versus 136Gbps switching capacity difference means C9500-40X-A easily handles data center-level traffic loads, while C9200-24P-A suits end-device access scenarios. When burst traffic exceeds 150Gbps, C9200-24P-A shows noticeable buffer overflow and packet loss.

 Feature Comparison

High availability design differs substantially:

- C9500-40X-A offers true enterprise-grade assurance with:

  - Redundant power and hot-swappable fans

  - In-Service Software Upgrade (ISSU) support

  - Hardware-based BFD fast failure detection

- C9200-24P-A supports power redundancy but lacks ISSU and sub-second failover capabilities

SDN support varies significantly. C9500-40X-A natively supports Cisco ACI mode for deep software-defined network integration, while C9200-24P-A only offers traditional DNA Center management with generational gaps in automation and policy granularity.

 Physical Design and Expandability

Chassis design philosophies differ completely:

- C9500-40X-A uses 3U modular chassis supporting field-replaceable line cards and switching fabric

- C9200-24P-A is fixed-configuration with no hardware upgrade path

Port density shows complementary characteristics:

- C9200-24P-A provides 24 PoE+ ports for end devices

- C9500-40X-A features 40×10G and 8×25G fiber ports for high-speed uplinks

- Notably, C9500-40X-A can add 100G ports via expansion modules, while C9200-24P-E maxes at 10G uplinks

 User Experience Comparison

Management complexity differs greatly:

- C9200-24P-A's Web interface optimizes for SMB network administrators with "one-click setup" wizards

- C9500-40X-A requires professional network engineers familiar with data center-level CLI parameters

Troubleshooting tools vary in sophistication:

- C9500-40X-A includes advanced diagnostics:

  - Packet capture and analysis

  - Per-hop latency measurement

  - Micro-burst detection

- C9200-24P-A either lacks these tools or offers simplified versions

 Cost-Benefit Analysis

Initial procurement costs show C9500-40X-A priced 4-5× higher than C9200-24P-A. However, considering:

- Per-port cost: C9500-40X-A's 10G ports actually cost less individually

- Lifecycle: C9500 series typically enjoys 3-5 years longer support

- Operational efficiency: C9500's automation can reduce configuration time by 70%+

Total cost of ownership simulations show over 5 years, deploying 4× C9200-24P-A with 1× C9500-40X-A may cost less than 30% more than an all-C9200 solution.

 Power and Cooling Requirements

Typical power consumption differs substantially:

- C9200-24P-A: 180W idle, 800W at full PoE load

- C9500-40X-A: 350W idle, 1800W at full load

Cooling needs vary more significantly:

- C9200-24P-A operates in standard server rooms

- C9500-40X-A recommends professional data center environments with precision cooling

Notably, C9500-40X-A's energy efficiency (0.67Gbps/W) actually surpasses C9200-24P-A's (0.17Gbps/W), meaning it handles equivalent traffic more efficiently.

 Compatibility and Expandability

Protocol support breadth differs:

- C9200-24P-A supports traditional L2/L3 protocols

- C9500-40X-A adds data center protocols like VXLAN and EVPN

Third-party compatibility varies:

- C9500-40X-A undergoes rigorous multi-vendor interoperability certification including:

  - Mainstream server 25G/40G NICs

  - Storage iSCSI and FCoE connections

  - SDN controller platform APIs

- C9200-24P-A testing focuses on endpoints like IP phones and wireless APs

 Software Support Differences

IOS-XE feature sets diverge:

- C9200-24P-A runs standard enterprise edition

- C9500-40X-A uses data center-optimized version

Security updates policies:

- Critical patches: Released simultaneously

- Feature enhancements: C9500 series receives priority

API support levels:

- C9200-24P-A offers basic REST API

- C9500-40X-A supports full Python scripting and gRPC interfaces

 Selection Recommendations: Match to Scenario, Not Just Price

Choose C9200-24P-A when:

- Network has <500 endpoints

- Primarily connecting PoE devices (IP phones, APs)

- Budget strictly limited with no data center needs

- IT team has limited technical skills

Upgrade to C9500-40X-A when:

- Building enterprise core networks

- Planning SDN/SD-WAN within 3 years

- Deploying virtualization/private cloud

- Network team possesses CCNP+ skills

Hybrid deployment often proves optimal: Use C9200-24P-A for access layer endpoints and C9500-40X-A for distribution/core layer high-speed forwarding. Real-world cases show this architecture improves network performance 3-5× while increasing total cost only 40-50%.
