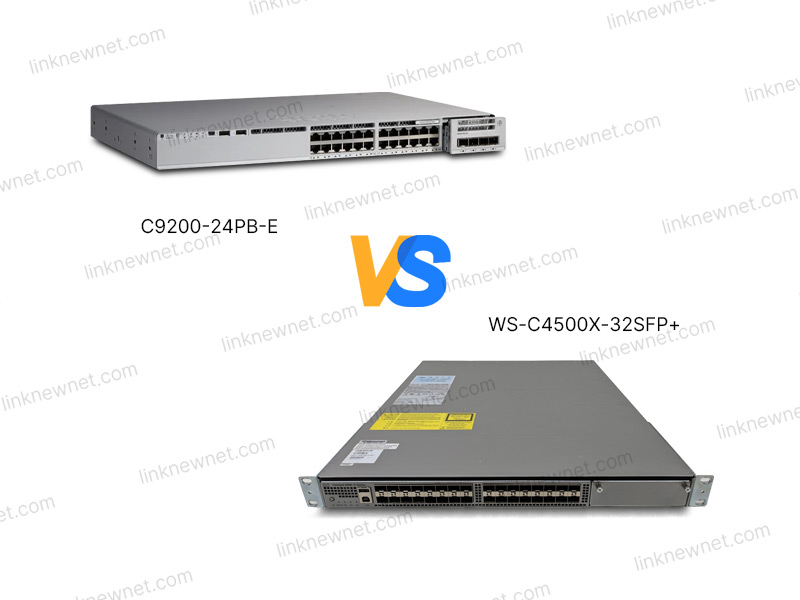

C9200-24PB-E vs WS-C4500X-32SFP+: A Guide to Mismatched Competition Between Access and Aggregation Layers

In enterprise network architecture, "choosing between access or aggregation" is a common dilemma for IT leaders. Two classic Cisco devices—C9200-24PB-E (Catalyst 9200 access switch) and WS-C4500X-32SFP+ (Catalyst 4500-X aggregation switch)—exemplify this dynamic. The former focuses on "high-density PoE access," while the latter emphasizes "flexible Layer 3 switching." The former suits "one-step deployment" for SMEs; the latter meets "smooth expansion" for medium-sized networks. This article breaks down their differences and application logic from technical specs to real-world scenarios, helping enterprises find the "cost-effective" solution.

1. Performance Differences: Hard Metrics Divide Between Access and Aggregation

Processing Speed: Switching Capacity Determines "Layer Positioning"

C9200-24PB-E and WS-C4500X-32SFP+ have distinct core performance parameters due to their roles:

• C9200-24PB-E: As an access-layer device, it prioritizes "terminal coverage," with a switching capacity of 120 Gbps and forwarding rate of 90.72 Mpps, supporting wire-speed forwarding. Ideal for 24-terminal mixed access (e.g., office PCs, IP phones, wireless APs).

• WS-C4500X-32SFP+: Positioned for aggregation, it handles traffic aggregation and filtering, with a switching capacity of 480 Gbps and forwarding rate of 361.44 Mpps. It supports 10G/40G high-speed uplinks and can aggregate traffic from 32×10G SFP+ ports, serving as the "nerve center" of medium-sized networks.

Memory & Storage: Underlying Capabilities for Multi-Service Loads

Memory determines support for ACLs, QoS, and routing tables; storage affects log and configuration retention:

• C9200-24PB-E: Standard 4 GB DDR4 RAM + 8 GB eMMC flash (non-expandable). 4 GB suffices for light multi-service (e.g., 50 basic ACLs, 10 QoS groups) but lacks support for large routing tables (static routing only).

• WS-C4500X-32SFP+: Standard 8 GB DDR4 RAM (expandable to 64 GB) + 16 GB flash (expandable to 256 GB). Large memory supports complex Layer 3 features (OSPF, BGP), and ample flash stores logs/backups, ideal for "self-governing" aggregation zones.

2. Functional Features: Division of Labor Between "Access Tools" and "Aggregation Brains"

Interfaces & Expansion: From "Terminal Coverage" to "Traffic Aggregation"

• C9200-24PB-E:

• 24×Gigabit PoE+ ports (370W total PoE) for powering IPs, APs;

• 2×10G SFP+ uplinks, basic StackWise-480 stacking (max 2 units), suitable for "horizontal expansion" in small access layers;

• No routing function, relies on upper-layer switches/routers for cross-subnet communication.

• WS-C4500X-32SFP+:

• 32×10G SFP+ ports (configurable to 1G/10G), no built-in PoE (requires external adapters);

• Supports Virtual Switching System (VSS) (max 2 units, 160 Gbps bandwidth) for high availability and load balancing;

• Integrated routing engine with OSPF, EIGRP, BGP support, acting as a regional gateway.

Security & Management: From "Basic Protection" to "Policy Control"

• C9200-24PB-E:

• Basic ACLs (MAC/IP filtering), 802.1X authentication, lightweight DNA Center integration (traffic monitoring only);

• Suited for simple security needs (e.g., SME office networks).

• WS-C4500X-32SFP+:

• Advanced ACLs (port/protocol-based filtering), DHCP Snooping, IP Source Guard;

• Deep integration with Cisco ISE for multi-factor authentication (802.1X+MAC+user), ideal for high-security environments (e.g., financial branches).

3. Design & Appearance: Industrial Design for Scene Adaptation

Though both rack-mounted, details reflect their roles:

• C9200-24PB-E:

• Size: 44.5×44.5×4.2 cm, 6.8 kg, matte metal case with side vents;

• Front: 24 PoE+ ports (status LEDs); rear: 2×10G SFP+ slots;

• Designed for "compact deployment," suitable for desktops/half-open machine rooms (e.g., store weak current boxes).

• WS-C4500X-32SFP+:

• Size: 44.5×44.7×8.7 cm, 13.2 kg, redundant fan modules for better cooling;

• Front: 32 hot-swappable SFP+ slots; rear: 2×10G SFP+ uplinks + 2×40G QSFP28 expansion slots;

• Designed for "high reliability," ideal for data centers or enterprise machine rooms.

4. User Experience: Real Feedback from Deployment to O&M

Deployment Efficiency: "Plug-and-Play" vs. "Policy Tuning"

• C9200-24PB-E:

• Ultra-simple deployment: 24 PoE+ ports power terminals directly. With CNA’s batch configuration, 50 devices (APs + phones) deploy in ~30 mins;

• No complex setup, suitable for non-professionals or outsourced teams.

• WS-C4500X-32SFP+:

• Requires pre-planning: VLANs, routing protocols (OSPF), QoS policies need configuration. Initial setup takes 1-2 hours;

• Suited for enterprises with dedicated network engineers familiar with CLI or advanced Web interfaces (Cisco DNA Center).

O&M Difficulty: "Reactive Response" vs. "Proactive Prevention"

• C9200-24PB-E:

• Reactive maintenance: Basic log viewing (port error packets), fault diagnosis relies on experience (e.g., checking PoE power limits);

• Ideal for stable networks with "few issues, fast response."

• WS-C4500X-32SFP+:

• Proactive maintenance: Cisco Prime Infrastructure monitors traffic trends, predicts link congestion (e.g., 10G port utilization >80% for 3 days), and generates optimization suggestions;

• Suited for "business-sensitive" networks (e.g., e-commerce, video conferencing).

5. Cost-Performance Comparison: "Invest by Need" Trumps "Blindly Chasing High-End"

Assuming prices: C9200-24PB-E ~¥12,000; WS-C4500X-32SFP+ ~¥35,000.

• Choose C9200-24PB-E: For SMEs (≤50 terminals) with simple needs (access + basic power), no dynamic routing/advanced security. It meets needs at the lowest cost.

• Choose WS-C4500X-32SFP+: For medium enterprises (100-500 terminals) needing traffic aggregation, dynamic routing, or high security (e.g., financial branches, hospitals). Its scalability avoids repeat investments over 3-5 years.

6. Product Advantages: "Expertise Wins"

• C9200-24PB-E:
  ✅ 24-port high-density PoE+ for SMEs/retail;
  ✅ Low cost reduces initial investment;
  ✅ Simple deployment for non-professionals.

• WS-C4500X-32SFP+:
  ✅ 32×10G SFP+ ports for high-speed aggregation;
  ✅ Large memory + expandable storage for complex policies;
  ✅ VSS stacking ensures high availability for aggregation.

7. System Upgrade: Steps, Issues, and Fixes (Key)

System upgrades are critical for stability. Below is a practical guide:

Pre-Upgrade: 3 Must-Dos

• Backup Config:

• C9200-24PB-E: Use copy running-config tftp: or CNA export;

• WS-C4500X-32SFP+: Use archive download-sw /backup or Cisco Prime backup.

• Check Compatibility:

• Verify firmware compatibility with hardware (PoE modules, SFP+) on Cisco Software Download.

• C9200-24PB-E: Disable auto-upgrade on slaves (no software auto-upgrade);

• WS-C4500X-32SFP+: Ensure VSS members have matching firmware versions.

• Choose Method:

• Recommend batch upgrade via DNA Center/Prime or CLI:

  # C9200-24PB-E
  archive download-sw /overwrite tftp://192.168.1.100/c9200-universalk9.17.06.02.SPA.bin

  # WS-C4500X-32SFP+
  archive download-sw /overwrite tftp://192.168.1.100/ws-c4500x-universalk9.17.06.02.SPA.bin

Upgrade Process: 3 Common Issues & Solutions

• Issue 1: Power Loss Mid-Upgrade

• Symptom: Device reboots to "rommon 1 >" (ROMmon mode), firmware corrupted.

• Fix: Use a FAT32 USB drive with renamed firmware, boot via boot system usbflash0:filename.bin.

• Issue 2: Service Disruption Post-Upgrade

• Symptom: ACLs/QoS fail, or 10G ports not recognizing transceivers.

• Fix: Test in a lab (Cisco VIRS); roll back via configure replace flash:old_config.txt; check transceiver drivers.

• Issue 3: Unsynchronized Stack Upgrade (WS-C4500X-32SFP+ Only)

• Symptom: Master upgrades, but slave shows "Member 2: Failed."

• Fix: Disconnect slave uplinks pre-upgrade; manually upgrade master→slave; confirm "Ready" status via show switch.

8. Product Use Cases: Scenarios Define the "Best Fit"

• C9200-24PB-E: A coffee chain deploys 24-port switches for 15 POS + 5 cameras + 4 PCs in 20 mins per store, cutting costs by 50%. Strength: "Low cost + easy deployment" for standardized retail.

• WS-C4500X-32SFP+: An education metro network uses 32-port 10G switches to aggregate 10 schools’ traffic, supporting OSPF/BGP and VSS for 99.99% availability. Strength: "High scalability + reliability" for multi-node aggregation.

9. Detailed Pros & Cons: A Clear Choice List

10. Conclusion: Match Needs, Not Specs

The core difference between C9200-24PB-E and WS-C4500X-32SFP+ is "access efficiency" vs. "aggregation intelligence." Enterprises should align with their needs: choose C9200-24PB-E for "quick terminal coverage" or WS-C4500X-32SFP+ for "traffic aggregation + policy control." The value of network devices lies in supporting business, not chasing specs.
