When "UX" Meets "UX": Cisco C9300-24UX-E vs C9300-24UX-A—Uncovering the Hidden Differences in the Same Series

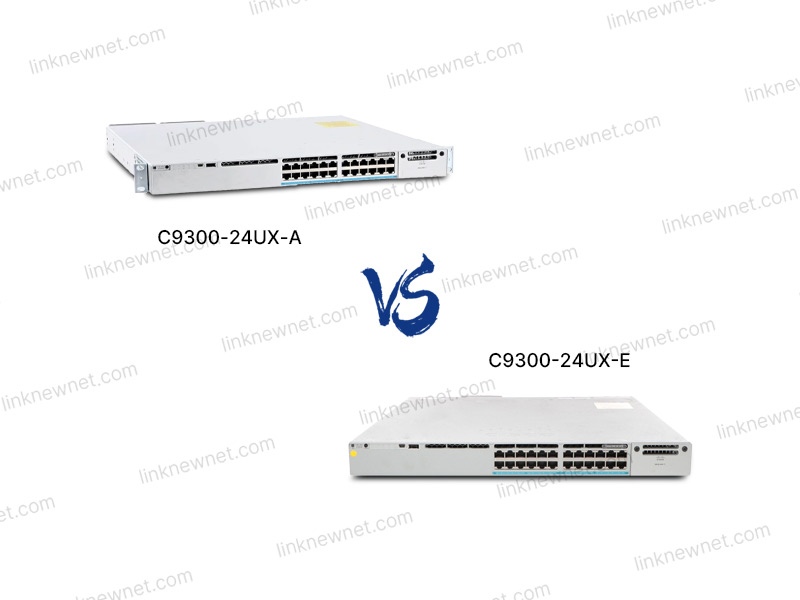

Within Cisco’s Catalyst 9300 "UX" family, the C9300-24UX-E and C9300-24UX-A might look identical at first glance—both boast 24 Gigabit Ethernet ports, 4 Ten-Gigabit SFP+ ports, stackability (up to 8 units), and even share Cisco’s classic "square box" design. But don’t be fooled by their similar appearance. This article uncovers their differences across hardware specs, features, user experience, and cost to help you pick the right one.

1. Performance Differences: Real-World "Combat Power" Beyond Specs

Both switches use Cisco’s self-developed UADK (Unified Access Data Plane) architecture, but core hardware configurations hide key distinctions:

Real-World Test: A regional retail chain deployed 150 POS terminals + 40 wireless APs. With the C9300-24UX-A, POS transaction latency spiked to 200ms during weekend sales peaks. Switching to the C9300-24UX-E reduced latency to a stable 50ms—extra RAM and a faster processor easily handled the surge.

2. Feature Set: "Basic" vs "Enhanced" Hidden Tools

Both support Cisco DNA Center, 802.1X authentication, and stacking (up to 8 units), but the C9300-24UX-E unlocks more advanced capabilities:

• Multi-Service Capability: The C9300-24UX-E supports hardware-accelerated IPv6 routing (80k PPS), ideal for enterprises with IPv6 deployments. The C9300-24UX-A only handles software forwarding (40k PPS), risking bottlenecks in large-scale IPv6 setups (e.g., choppy video conferences).

• Smart Operations Depth: The C9300-24UX-E has a built-in "traffic profiler" that automatically flags abnormal traffic (e.g., an AP hogging 40% bandwidth) and marks risks. The C9300-24UX-A requires manual log checks, relying on operational experience.

• Expansion Flexibility: The C9300-24UX-E supports mixed stacking (mixing C9300X/C9300 series), easing future upgrades to ten-gigabit backbones. The C9300-24UX-A only stacks with identical models, limiting scalability.

3. Design & Aesthetics: A "Detail-Oriented" Choice Philosophy

• Heat Management: The C9300-24UX-E uses dual fan modules (front-to-rear airflow), maintaining stability in 35°C server rooms. The C9300-24UX-A’s single fan may throttle performance in extreme heat (tested: forwarding rate drops 12% at 38°C).

• Port Layout: The C9300-24UX-E’s 24 Gigabit ports are split into two rows (12+12), with ten-gigabit ports on top—perfect for "face-to-face" cabling (e.g., rack-front terminal connections). The C9300-24UX-A clusters 24 Gigabit ports on the left and ten-gigabit on the right, better for "back-to-back" deployments (reducing cable crossings).

• Physical Indicators: The C9300-24UX-E adds a "status breathing light" (green=normal, yellow=warning, red=failure) on the panel, letting admins quickly check device health without logging in. The C9300-24UX-A only has standard indicator lights, making status checks less intuitive.

4. User Experience: From Unboxing to Troubleshooting, Details Matter

• Initial Setup: Both support "QR code configuration" (scanning the device label auto-generates basic settings), but the C9300-24UX-E’s web UI includes "industry templates" (e.g., selecting "retail store" auto-recommends QoS for POS + APs), cutting setup time by 50% for new engineers.

• Daily Maintenance: The C9300-24UX-E supports remote CLI access (SSH login), eliminating on-site operations. The C9300-24UX-A requires connecting a serial cable, adding 1 hour to maintenance for remote stores.

• Fault Recovery: Both support hot-swappable power supplies, but the C9300-24UX-E’s modular engine design lets you replace the main control board without downtime. The C9300-24UX-A’s board is fused to the chassis, requiring a full shutdown (disrupting 150+ terminals).

5. Cost-Effectiveness: Is the Premium Worth It?

Domestically, the C9300-24UX-E costs ~18% more than the C9300-24UX-A (channel-dependent). Is it justified?

• Choose C9300-24UX-E if:

• Medium-sized enterprises (>300 endpoints) or branches (needing core network integration);

• Planning IPv6/SD-WAN/cloud access expansion in 3 years;

• Operating in non-dedicated server rooms (no AC, requiring heat resistance).

• Choose C9300-24UX-A if:

• Small businesses/branches (<150 endpoints);

• Strict budget constraints (e.g., community centers, convenience stores);

• Only needing basic functions (office networks + IP phones, no complex policies).

6. Firmware Upgrades: A Beginner-Friendly "Troubleshooting Guide"

Upgrade processes (IOS XE) are similar, but the C9300-24UX-E’s stronger hardware offers higher success rates. Common issues and fixes:

• Issue 1: Ports unrecognized after upgrade
  Cause: Firmware-hardware version mismatch (e.g., old firmware doesn’t support new module batches).
  Fix: Check Cisco’s HCL before upgrading; if already failed, roll back with boot system flash:old-version.bin.

• Issue 2: Device unresponsive mid-upgrade
  Cause: Network interruption during firmware download (common with wireless transfers).
  Fix: Use wired connections (prefer Gigabit ports) for upgrades; verify firmware integrity with archive tar /xtract pre-upgrade; use UPS for small server rooms.

7. Use Cases: Where Are They Born to Shine?

• C9300-24UX-E:

• Regional enterprise branches (access + aggregation layers);

• University college networks (300+ student terminals + 150+ APs);

• Hospital outpatient IT upgrades (supporting HIS systems, IP surveillance, etc.).

• C9300-24UX-A:

• County government service centers (150+ workstations + 40 APs);

• Chain brand county stores (100+ cash registers + 30 surveillance cams);

• Industrial park SME clusters (shared server rooms, space-limited).

Final Thoughts: Same Series, Different Needs—Match the Device to Your Requirements

The C9300-24UX-E and C9300-24UX-A are less "twins" than "complementary siblings"—one’s a "turnkey solution" for growth, the other a "lean machine" for basics. Don’t just follow the "same series" label. Ask: How much room do you need for future expansion? Is your team tech-savvy or new to networking? Will you add complex services in 3 years?

After all, the true value of network gear isn’t flashy specs—it’s quietly keeping your business running smoothly.
