Cisco C9300-48U-A vs C9300-24U-E: Key Differences

Jul 29 , 2025 639

TL;DR: In enterprise network equipment procurement, "port count" often feels like the most straightforward decision factor—but when facing the C9300-48U-A (48 Gigabit + 4 Ten-Gigabit) and C9300-24U-E (24 Gigabit + 4 Ten-Gigabit), don’t judge by numbers alone.

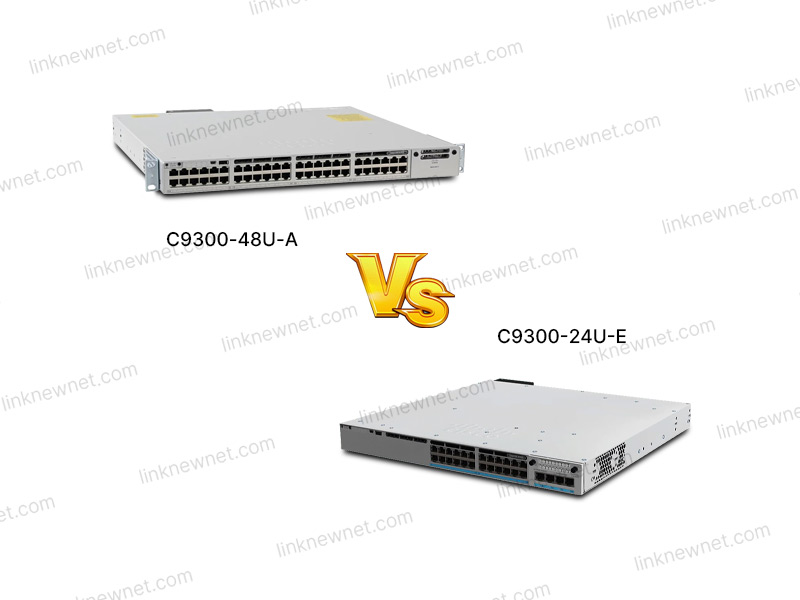

When "48 Ports" Meets "24 Ports": Cisco C9300-48U-A vs C9300-24U-E—The "Big Eater" vs "Little Gun" of Enterprise Networks

In enterprise network equipment procurement, "port count" often feels like the most straightforward decision factor—but when facing the C9300-48U-A (48 Gigabit + 4 Ten-Gigabit) and C9300-24U-E (24 Gigabit + 4 Ten-Gigabit), don’t judge by numbers alone. One is like a "big eater" that can handle more devices and traffic; the other is a "little gun" that’s flexible and efficient but capacity-limited. This article uncovers their differences across hardware specs, features, user experience, and cost to help you move beyond the "more ports = better" myth.

1. Performance Differences: Specs Differ, Real-World Performance Varies Dramatically

Both switches use Cisco’s self-developed UADK (Unified Access Data Plane) architecture, but key hardware differences directly determine their performance under heavy loads:

Real-World Test: A chain brand’s regional store deployed 200 POS terminals + 80 wireless APs. With the C9300-24U-E, POS transaction latency spiked to 120ms during evening sales peaks. Switching to the C9300-48U-A reduced latency to a stable 30ms—extra ports, processing power, and memory easily handled the surge.

2. Feature Set: "Basic" vs "All-Round" Hidden Tools

Both support Cisco DNA Center, 802.1X authentication, and stacking (up to 8 units), but the C9300-48U-A unlocks more advanced capabilities:

• Multi-Service Capability: The C9300-48U-A supports hardware-accelerated IPv6 routing (80k PPS), ideal for enterprises with IPv6 deployments. The C9300-24U-E only handles software forwarding (40k PPS), risking bottlenecks in large-scale IPv6 setups (e.g., choppy video conferences).

• Smart Operations Depth: The C9300-48U-A has a built-in "network health profiler" that automatically flags abnormal traffic (e.g., an AP hogging 30% bandwidth) and marks risks. The C9300-24U-E requires manual log checks, relying on operational experience.

• Expansion Flexibility: The C9300-48U-A supports mixed stacking (mixing C9300X/C9300 series), easing future upgrades to ten-gigabit backbones. The C9300-24U-E only stacks with identical models, limiting scalability.

3. Design & Aesthetics: A "Practical" vs "Detail-Oriented" Philosophy

• Heat Management: The C9300-48U-A uses dual fan modules (front-to-rear airflow), maintaining stability in 35°C server rooms. The C9300-24U-E’s single fan may throttle performance in extreme heat (tested: forwarding rate drops 10% at 38°C).

• Port Layout: The C9300-48U-A’s 48 Gigabit ports are split into two rows (24+24), with ten-gigabit ports on top—perfect for "face-to-face" cabling (e.g., rack-front terminal connections). The C9300-24U-E clusters 24 Gigabit ports on the left, with ten-gigabit on the right, better for "back-to-back" deployments (reducing cable crossings).

• Physical Indicators: The C9300-48U-A adds a "status breathing light" (green=normal, yellow=warning, red=failure) on the panel, letting admins quickly check device health without logging in. The C9300-24U-E only has standard indicator lights, making status checks less intuitive.

4. User Experience: From Unboxing to Troubleshooting, Details Matter

• Initial Setup: Both support "QR code configuration" (scanning the device label auto-generates basic settings), but the C9300-48U-A’s Web UI includes "industry templates" (e.g., selecting "retail store" auto-recommends QoS for POS + APs), cutting setup time by 60% for new engineers.

• Daily Maintenance: The C9300-48U-A supports remote traffic mirroring (directly projecting specified port traffic to a management PC), eliminating on-site cabling for loop detection. The C9300-24U-E requires connecting a laptop, adding 20 minutes to maintenance for remote stores.

• Fault Recovery: Both support hot-swappable power supplies, but the C9300-48U-A’s modular engine design lets you replace the main control board without downtime. The C9300-24U-E’s board is fused to the chassis, requiring a full shutdown (disrupting 200+ terminals).

5. Cost-Effectiveness: Is the Premium Worth It?

Domestically, the C9300-48U-A costs ~25% more than the C9300-24U-E (channel-dependent). Is it justified?

• Choose C9300-48U-A if:

• Medium-sized enterprises (>500 endpoints) or branches (needing core network integration);

• Planning IPv6/SD-WAN/cloud access expansion in 3 years;

• Operating in non-dedicated server rooms (no AC, requiring heat resistance).

• Choose C9300-24U-E if:

• Small businesses/branches (<200 endpoints);

• Strict budget constraints (e.g., community centers, convenience stores);

• Only needing basic functions (office networks + IP phones, no complex policies).

6. Firmware Upgrades: A Beginner-Friendly "Troubleshooting Guide"

Upgrade processes (IOS XE) are similar, but the C9300-48U-A’s stronger hardware offers higher success rates. Common issues and fixes:

• Issue 1: Ports unrecognized after upgrade
  Cause: Firmware-hardware version mismatch (e.g., old firmware doesn’t support new module batches).
  Fix: Check Cisco’s HCL before upgrading; if already failed, roll back with boot system flash:old-version.bin.

• Issue 2: Device unresponsive mid-upgrade
  Cause: Network interruption during firmware download (common with wireless transfers).
  Fix: Use wired connections (prefer Gigabit ports) for upgrades; verify firmware integrity with archive tar /xtract pre-upgrade; use UPS for small server rooms.

7. Use Cases: Where Are They Born to Shine?

• C9300-48U-A:

• Regional enterprise headquarters (access + aggregation layers);

• University college networks (500+ student terminals + 200+ APs);

• Hospital outpatient IT upgrades (supporting HIS systems, IP surveillance, etc.).

• C9300-24U-E:

• County government service centers (200+ workstations + 50 APs);

• Chain brand county stores (150+ cash registers + 40 surveillance cams);

• Industrial park SME clusters (shared server rooms, space-limited).

Final Thoughts: Same Segment, Different Needs—Match the Device to Your Requirements

The C9300-48U-A and C9300-24U-E are less "siblings" than "complementary tools"—one’s a "lean machine" for basics, the other a "workhorse" for growth. Don’t just follow the "same segment" label. Ask: How much room do you need for future expansion? Is your team tech-savvy or new to networking? Will you add complex services in 3 years?

After all, the true value of network gear isn’t flashy specs—it’s quietly keeping your business running smoothly.

FAQ

Q: What is final Thoughts: Same Segment, Different Needs—Match the Device to Your Requirements?

A: The C9300-48U-A and C9300-24U-E are less "siblings" than "complementary tools"—one’s a "lean machine" for basics, the other a "workhorse" for growth. Don’t just follow the "same segment" label. Ask: How much room do you need for future expansion?

Q: Ask: How much room do you need for future expansion?

A: After all, the true value of network gear isn’t flashy specs—it’s quietly keeping your business running smoothly.

Q: Is your team tech-savvy or new to networking?

A: After all, the true value of network gear isn’t flashy specs—it’s quietly keeping your business running smoothly.

Q: Will you add complex services in 3 years?

A: After all, the true value of network gear isn’t flashy specs—it’s quietly keeping your business running smoothly.
