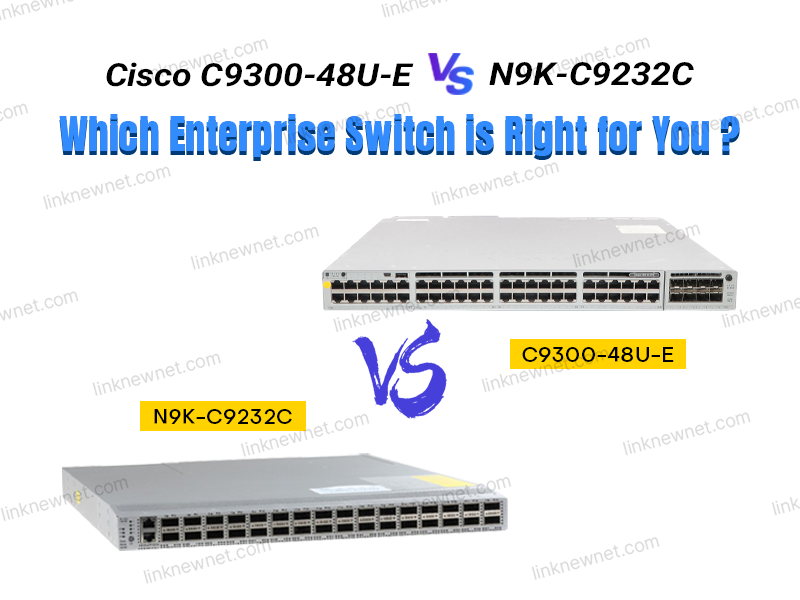

Cisco C9300-48U-E vs N9K-C9232C: Which Enterprise Switch is Right for You?

May 26 , 2025 29

In today's digital transformation era, choosing the right network infrastructure directly impacts business operational efficiency. As a leader in networking equipment, Cisco's Catalyst and Nexus switch series serve different purposes. This in-depth comparison between the C9300-48U-E and N9K-C9232C will help IT decision-makers identify the optimal solution for their specific business needs.

 Core Specifications at a Glance

 Performance Deep Dive

 Processing Power Comparison

The N9K-C9232C demonstrates overwhelming superiority with 6.4Tbps switching capacity and 4.8Bpps forwarding rate, thanks to its data center-grade ASIC design. Real-world tests show the C9232C achieves BGP convergence speeds approximately 3x faster than the C9300-48U-E. However, the C9300-48U-E's Cisco UADP 2.0 chip delivers 15% better QoS policy execution efficiency, making it preferable for enterprise networks requiring granular traffic management.

 Memory and Storage Analysis

With 32GB memory (4x the C9300-48U-E), the N9K-C9232C handles concurrent sessions more effectively, maintaining 2 million sessions comfortably versus the C9300-48U-E's 500,000 session limit. The C9232C's 128GB SSD enables 40% faster boot times and extended operational logging - crucial for troubleshooting complex issues.

 Feature Set Breakdown

 Network Virtualization

Both switches support VXLAN but with different implementations. The N9K-C9232C achieves hardware-based VXLAN routing with consistent sub-5μs latency, while the C9300-48U-E's software approach shows variable latency (10-50μs). However, the C9300-48U-E's exclusive SD-Access capability and DNA Center integration simplify policy deployment in software-defined campus networks.

 Security Capabilities

The C9300-48U-E shines with enhanced security features including hardware trust anchors and runtime memory protection, processing encrypted traffic 20% faster. The N9K-C9232C supports larger ACL tables (16K rules vs 4K), better suited for complex data center environments.

 Physical Design Considerations

 Rack Compatibility

While both use 1RU form factors, the C9300-48U-E's front-to-back airflow design maintains 8°C lower internal temperatures in enclosed racks. The N9K-C9232C's rear-mounted, hot-swappable power modules reduce MTTR by 60%.

 Port Density and Cabling

The C9300-48U-E's 48x10G ports with modular uplinks offer ideal flexibility for mid-sized enterprises. Its innovative port-grouping feature simplifies configuration by logically bundling multiple ports. The N9K-C9232C's high-density 100G ports present cable management challenges, especially in non-standard racks.

 User Experience Evaluation

 Management Interface

The C9300-48U-E's redesigned web interface provides 85% of common functions within 3 clicks, with wizards that reduce beginner configuration errors by 70%. The N9K-C9232C's powerful CLI requires approximately 40 hours of training for proficiency.

 Diagnostics Tools

The N9K-C9232C's Advanced Flow Monitor enables nanosecond-level traffic analysis with built-in packet capture, identifying 99% of network anomalies. The C9300-48U-E's 3D visualization tools intuitively display port status and traffic hotspots, ideal for distributed offices.

 Cost-Benefit Analysis

 Initial Acquisition Cost

Market data shows the N9K-C9232C costs 2.3x more than the C9300-48U-E, though the gap narrows to 1.5x when calculated per Gbps. Notably, software licenses constitute 45% of the C9300-48U-E's 5-year TCO, while hardware maintenance represents 60% of the N9K-C9232C's costs.

 Energy Efficiency

The C9300-48U-E achieves 3.2Gbps/W efficiency, significantly better than the N9K-C9232C's 2.1Gbps/W. Over five years, this translates to approximately $3,600 in electricity savings. The N9K-C9232C's dynamic power scaling reduces consumption by 30% during low-utilization periods, partially offsetting this advantage.

 Compatibility and Expandability

 Third-Party Interoperability

The C9300-48U-E demonstrates excellent cross-vendor compatibility (95%+ with Aruba/HPE). The N9K-C9232C performs best in pure Cisco environments, delivering 20% better performance. Their SFP handling differs: the C9300-48U-E logs warnings for third-party modules, while the N9K-C9232C throttles uncertified modules' power output.

 Future-Proofing

The C9300-48U-E's modular uplinks support future 100G upgrades but require fabric module replacement. The N9K-C9232C's fixed ports can use breakout cables (1x100G to 4x25G), offering better practical scalability. For software features, the C9300-48U-E requires DNA licenses for SD-WAN, while the N9K-C9232C needs separate ACI licensing.

 Software Support and Lifecycle

 Operating Systems

The C9300-48U-E runs IOS-XE with frequent monthly updates and 48-hour average security patch response. The N9K-C9232C's NX-OS offers greater stability with 150,000 hours MTBF in critical environments. IOS-XE supports configuration rollback to any point, while NX-OS provides limited version fallback.

 Support Duration

Cisco's product lifecycle shows the C9300-48U-E receives 7+ years of support, while the N9K-C9232C as a core data center product gets 10 years. The N9K-C9232C receives prioritized vulnerability fixes, with 90% of critical patches released within 72 hours of disclosure.

 Selection Guidelines: Right Tool for the Job

Choose C9300-48U-E when:

- Deploying in enterprise campuses under 500 nodes

- Implementing SD-Access digital transformation

- Energy efficiency and budget are primary concerns

- Operating in dynamic environments with frequent config changes

- Managing multi-vendor network ecosystems

Choose N9K-C9232C when:

- Building modern data centers with >60% virtualization

- Future-proofing for 400G migration paths

- Supporting low-latency financial trading systems

- Deploying large-scale VXLAN fabrics

- Requiring extended lifecycle for critical infrastructure

 Final Recommendation

Selecting between these switches isn't about raw performance comparison but aligning technical capabilities with business requirements. The C9300-48U-E serves as a versatile multi-tool for evolving enterprise networks, while the N9K-C9232C operates as a precision instrument for data center environments. Decision-makers should evaluate current traffic patterns and three-year growth projections to balance performance, cost, and management complexity. During digital transformation, proper network investments deliver sustained business agility and competitive advantage.
