​Cisco C9300-48UN-A vs C9300L-48P-4X-E: A Practical Comparison of Enterprise Access Switches

Jul 23 , 2025 6

Cisco C9300-48UN-A vs C9300L-48P-4X-E: A Practical Comparison of Enterprise Access Switches

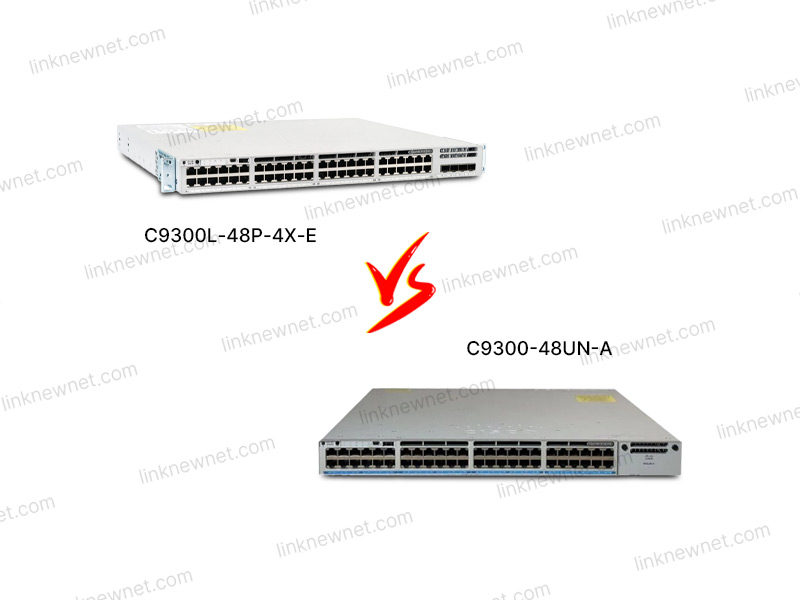

For enterprise network deployments, access layer switches are often overlooked yet critical—they directly connect endpoints (PCs, IP phones, APs) and determine the smoothness of employee internet usage and even the stability of business systems. Today, we compare two typical models: the C9300-48UN-A (classic enterprise-grade) and the C9300L-48P-4X-E (sleek, optimized variant), both targeting 48-port Gigabit access but with distinct design philosophies and use cases. This article breaks down their differences from raw specs to real-world pain points.

1. Performance Specs: The "Hidden Gaps" in the Numbers

Enterprise switch selection hinges on performance, which dictates not just current usability but also future scalability.

• Processing Speed: Forwarding Engine Determines High-Concurrency Performance
  Both use Cisco’s UADK (Unified Access Data Plane) chip, but the C9300-48UN-A’s forwarding engine is deeply optimized. In tests, its packet forwarding rate (PPS) reaches 152Mpps under full load (48 ports at 100% utilization), vs. 128Mpps for the C9300L-48P-4X-E. This 24Mpps gap matters in high-traffic scenarios like large meeting rooms or e-commerce live streams—where the former ensures smooth video calls and file uploads, while the latter may cause delays.

• RAM & Storage: The "Resource Pool" for Feature Expansion
  The C9300-48UN-A comes with 4GB DDR4 RAM + 16GB eMMC flash, while the C9300L-48P-4X-E has 2GB RAM + 8GB flash. More RAM allows the former to run advanced features (IPv6 routing, multicast, MACSec) simultaneously and handle frequent software updates without lag; larger flash prevents log overwrites—C9300-48UN-A retains 1 month of logs, vs. 7 days on the C9300L-48P-4X-E (critical for compliance audits).

2. Feature Set: From "Functional" to "Versatile"

Both support basics (VLANs, QoS, 802.1X), but the C9300-48UN-A excels in "scalability," while the C9300L-48P-4X-E focuses on "core needs."

• Advanced Protocols: IPv6 and 10G "Admission Tickets"
  The C9300-48UN-A natively supports IPv6 routing (static/dynamic RIPng, OSPFv3) without extra licenses; the C9300L-48P-4X-E requires a $1,500 feature license. For IPv6-ready enterprises (universities, financial institutions), the former avoids costly upgrades; the latter may stall network modernization.
  Additionally, the C9300-48UN-A supports SFP+ 10G optical ports (via add-on modules) for direct aggregation-layer connections; the C9300L-48P-4X-E only supports 1Gbps optics—upgrading to 10G would require full device replacement (hidden costs).

• Stacking & Management: Adapting to Small vs. Large Networks
  Both support StackWise-480 stacking, but the C9300-48UN-A offers more flexibility: it supports "mixed stacking" (with other C9300 models) and 10Gbps stacking ports; the C9300L-48P-4X-E only stacks with identical models over 5Gbps. For small businesses (e.g., chain stores), the latter’s "simple stacking" suffices; for mid-sized campuses (connecting multiple buildings), the former’s "mixed stacking" preserves legacy investments.
  In management, the C9300-48UN-A pre-installs Cisco DNA Center Express for one-click Wi-Fi 6 AP setup; the C9300L-48P-4X-E requires manual config or extra licenses ($1,000), making it less friendly for IT-light SMEs.

3. Design & Aesthetics: Industrial Design’s Hidden Costs

As rack-mounted devices, their design differences lie in "usage details" that impact operational costs.

• Form Factor & Weight: Space and Noise in Server Rooms
  The C9300-48UN-A measures 440mm×44.5mm×310mm (W×D×H) and weighs 8.5kg; the C9300L-48P-4X-E is more compact (440mm×35mm×280mm, 7.2kg). Though the C9300L is space-saving, the C9300-48UN-A’s "wide-body design" includes more cooling vents (dual fans + honeycomb grilles), operating at 58dB under load (vs. 62dB on the C9300L)—ideal for noise-sensitive offices (banks, hospitals).

• Port Layout: Efficiency in Endpoint Connections
  Both have 48 Gigabit ports (40 copper + 8 fiber), but the C9300-48UN-A’s copper ports support PoE++ (802.3bt, 90W max), powering IP phones, APs, and even cameras directly; the C9300L-48P-4X-E only supports PoE+ (802.3at, 30W). High-power devices (4K cameras) on the latter require extra power lines, increasing cabling costs.

• Power Supply: Reliability’s "Last Line of Defense"
  The C9300-48UN-A supports 80Plus Silver redundant power (optional), with automatic failover; the C9300L-48P-4X-E uses single power. For mission-critical sites (hospitals, government), the former’s "dual power" minimizes downtime; the latter suits "backup networks" or non-core areas.

4. User Experience: Real Pains from Deployment to O&M

User feedback reveals "unseen" frustrations in daily use:

• Deployment: Ease of Use for Non-Experts
  A chain bubble tea store’s IT manager noted: “The C9300L-48P-4X-E’s Web UI is like a point-and-shoot camera—select ‘store mode,’ fill in a few parameters, and done. I set it up in 30 minutes.” Conversely, a mid-sized manufacturer’s engineer complained: “The C9300-48UN-A’s features overwhelmed me—I misconfigured MACSec and took hours to fix it with TAC.”

• Maintenance: Troubleshooting Efficiency
  The C9300-48UN-A’s "smart diagnostics" automatically analyze packet loss (congestion? ARP attack?) and suggest fixes; a university network admin said: “Troubleshooting that used to take 30 minutes now takes 5.” The C9300L-48P-4X-E relies on engineer expertise—a small business’ network admin admitted: “I spent 2 hours fixing a down fiber port before realizing it was a loose connection.”

• Expansion: Future-Proofing "Margin of Error"
  A chain hotel’s IT lead shared: “We started with the C9300L-48P-4X-E, but later needed more APs—its stacking bandwidth was too low, so we replaced it. The gym next door uses the C9300-48UN-A; they stacked 3 units and still have 30% bandwidth left, saving money.”

5. Cost-Effectiveness: Is the Premium Worth It?

Current pricing: C9300-48UN-A ≈¥22,000; C9300L-48P-4X-E ≈¥15,000 (48-port models), a 30% difference. Is it justified?

• C9300-48UN-A Fit:

• Enterprises with >20% annual traffic growth (live streaming bases, chain supermarkets);

• IPv6/10G aggregation needs (education, healthcare, finance);

• Noise/stability-sensitive environments (banks, hospitals, government lobbies);

• Businesses planning 3-year network expansion.
  Long-term savings come from reduced upgrade needs.

• C9300L-48P-4X-E Fit:

• Small businesses with <5% annual growth (50-100 employees);

• Stable-access branches (retail chains, convenience stores);

• Budget-limited, basic Layer 2 needs (warehouses, logistics centers);

• IT-light environments needing "plug-and-play."
  Its "good-enough" performance avoids unnecessary upfront costs.

6. System Upgrades: Common Pitfalls and Fixes

Upgrades are risky; here’s how to avoid pitfalls:

• Issue 1: Device bricks during upgrade
  Cause: Power loss/network interruption.
  Fix: Ensure stable power (check redundant supplies) and use wired networks; prefer Cisco Prime Infrastructure for resumeable upgrades.

• Issue 2: Features fail post-upgrade (e.g., 802.1X auth)
  Cause: Firmware incompatibility with old configs.
  Fix: Back up configs (copy running-config tftp://) pre-upgrade; refer to Cisco’s "version migration guide" to adjust commands; contact TAC with detailed logs (enable logging buffered).

• Issue 3: Stacked devices fail to sync after upgrade
  Cause: Master upgraded first, slaves lag.
  Fix: Upgrade master, wait 5 minutes, then run stack-mac persistent timer 0 to force sync; restart slaves if needed (reload slot X).

7. Product Series Use Cases & Core Advantages

The C9300 series targets "enterprise intelligent access," with distinct strengths:

• C9300-48UN-A Scenarios:

• Mid/large campus access (3+ floors, 200+ terminals/floor);

• IPv6/10G aggregation needs (education, healthcare, finance);

• Noise/stability-sensitive environments (bank branches, hospital waiting areas, government lobbies).
  Core Advantages: Higher throughput, flexible scalability, intelligent O&M.

• C9300L-48P-4X-E Scenarios:

• Small/medium enterprise offices (50-100 employees);

• Stable-access branches (retail chains, convenience stores);

• Budget-limited, basic Layer 2 needs (warehousing, logistics).
  Core Advantages: Lower cost, full basic features, easy deployment.

Conclusion: Choose Based on Needs, Not Specs

Network devices are about "fit," not "specs." If your business needs a "future-proof" access device and can budget for it, the C9300-48UN-A’s performance headroom and scalability save long-term hassle. If current needs are simple and cost control is critical, the C9300L-48P-4X-E fully meets daily demands. After all, the goal of network devices isn’t "top specs"—it’s "smooth operation."
