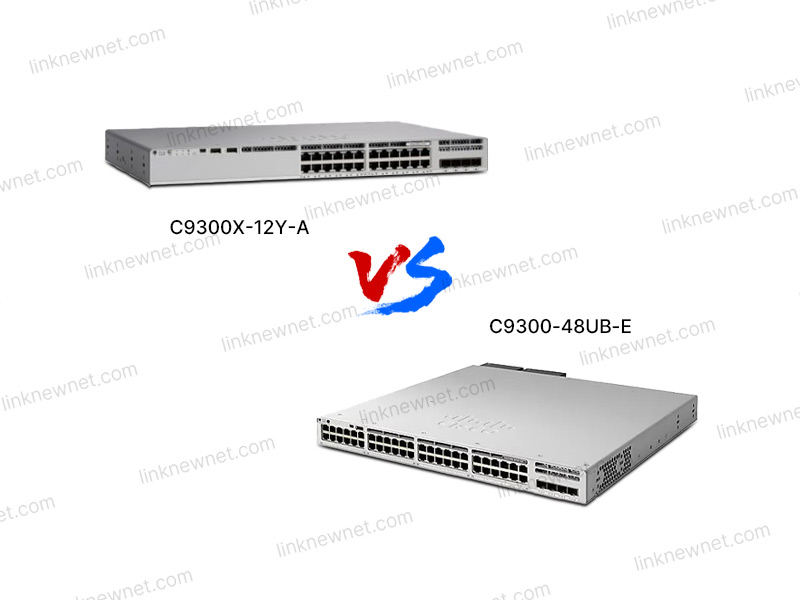

Cisco C9300X-12Y-A vs C9300-48UB-E: In-Depth Comparison for Enterprise Networking

In enterprise network device selection, the difference between "12-port" and "48-port" often directly determines a device’s applicable scenario. The Cisco Catalyst 9300 Series models C9300X-12Y-A (enhanced 12-port) and C9300-48UB-E (basic 48-port) are a prime example—both target enterprise access/aggregation, but their differences lie in hardware positioning and scenario adaptation. This article breaks down their distinctions across hardware specs, functionality, and real-world deployment to guide your choice.

1. Performance Differences: Hardware Positioning Dictates "Processing Limits"

While both belong to the Catalyst 9300 Series, the "X" suffix in C9300X-12Y-A denotes an enhanced enterprise-grade access/aggregation switch, while C9300-48UB-E is a basic enterprise access switch. Their performance differences stem from hardware design:

• Processing Speed:

• C9300X-12Y-A: Equipped with Cisco’s custom "Eagle" ASIC chip, delivering 360Gbps switching capacity and 120Mpps packet forwarding (64-byte packets). Handles 2000+ concurrent 1080P video streams or 500+ IP phones.

• C9300-48UB-E: Uses a basic "Hawk" ASIC chip, with 240Gbps switching capacity and 80Mpps packet forwarding. Suitable for 800+ 720P video streams or 300+ IP phones.

• Running Memory:

• C9300X-12Y-A: 4GB DDR4 DRAM (expandable to 8GB), supporting complex tasks like IPv6 routing and multi-layered security policies.

• C9300-48UB-E: 2GB DDR4 DRAM (non-expandable), limited to basic VLAN configuration and static routing; may experience delays under heavy ACL loads.

• Storage Capacity:

• C9300X-12Y-A: 4GB eMMC flash (expandable to 32GB), storing the latest IOS XE versions, 5 configuration backups, and detailed logs (1 year of data).

• C9300-48UB-E: 2GB eMMC flash (non-expandable), supporting older IOS XE versions (e.g., 16.12.x) and 2 configuration backups (6 months of logs).

2. Feature Set: Overlapping Software, Divergent Scenario Adaptation

Both support Cisco DNA Center, but C9300X-12Y-A’s "enhanced" status unlocks advanced capabilities:

• Shared Features:
  Both support automated configuration (DNA Center bulk policy deployment), basic security (802.1X, MAC filtering), stacking (C9300X-12Y-A up to 8 units, C9300-48UB-E up to 4).

• Differentiated Features:

• C9300X-12Y-A: AI-driven traffic optimization, full IPv6 stack support (dual-stack auto-configuration), hardware-level MACSec encryption (10G interfaces), and enhanced security (IP Source Guard).

• C9300-48UB-E: Basic IPv4 management, limited ACL rules (≤100), no AI optimization.

3. Design & Appearance: "Compact Precision" vs. "Spacious Stability"

Their physical designs reflect port density and cooling needs:

• Port Layout:

• C9300X-12Y-A: 12 Gigabit ports (front 8/rear 4) + 4 SFP+ 10G optical ports (vertical right), compact size (~30cm×44cm×4.4cm), suitable for desktops or shallow cabinets (depth ≥80cm).

• C9300-48UB-E: 48 Gigabit ports (front 24/rear 24) + 4 SFP+ 10G optical ports (horizontal top), wider body (~53cm×44cm×4.4cm), requiring deep cabinets (depth ≥100cm) or wall mounting.

• Cooling Design:

• C9300X-12Y-A: Dual-fan "front-in, rear-out" system with high-speed airflow, optimized for ≤25℃ environments.

• C9300-48UB-E: Large-area "bottom-in, top-out" grille with dust filters, suitable for dusty industrial environments.

• Certifications:

• C9300X-12Y-A: Labeled "Enhanced," manual emphasizes "high-density scenarios"; certifications focus on EU (CE) and North America (FCC).

• C9300-48UB-E: Labeled "Basic," manual highlights "universal access"; certifications cover global markets (China CCC, Japan PSE).

4. User Experience: Resolving IT Admins’ "Scenario Anxiety"

For IT teams, "usability" hinges on alignment with operational capabilities:

• Deployment:

• C9300X-12Y-A: Ideal for small, dense scenarios (e.g., corporate meeting rooms, small branches), covering 50-100 users with 3-5 years of scalability.

• C9300-48UB-E: Suits large, broad scenarios (e.g., mid-sized offices, school labs), covering 200-300 users with low initial cost but potential future expansion needs.

• Daily Management:

• C9300X-12Y-A: DNA Center’s "smart recommendations" (e.g., auto-VLAN suggestions) simplify configuration for less experienced admins; detailed log categorization (e.g., "security," "traffic") speeds up troubleshooting.

• C9300-48UB-E: Relies on manual CLI configuration, requiring higher technical expertise; logs lack granular labeling, increasing diagnostic time.

• Troubleshooting:

• C9300X-12Y-A: Built-in "diagnostic tools" (e.g., traffic mirroring) and DNA Center AI analysis reduce average troubleshooting time to ≤15 minutes.

• C9300-48UB-E: Limited to basic CLI commands; complex issues require Cisco support (≥4-hour response).

5. Cost-Effectiveness: Price Gap ≠ Total Cost—Choose by Scenario

C9300X-12Y-A costs 1.8-2x more than C9300-48UB-E (due to hardware/performance differences). Total cost depends on scenario needs:

• Choose C9300X-12Y-A if: High-density access (e.g., financial branches, medical clinics) or future AI feature needs; saves 35% long-term costs for 100-user offices.

• Choose C9300-48UB-E if: Mid-sized offices (≤150 users) with budget constraints; 45% lower initial cost for 50-user offices.

6. Product Advantages: Scenario-Driven "Design Philosophy"

C9300’s edge lies in "on-demand design"—the two models exemplify this:

• C9300X-12Y-A: "Performance benchmark for small scenes," solving "small device, big demand" pain points (e.g., conference rooms with video conferencing + cloud collaboration).

• C9300-48UB-E: "Cost-effective choice for large scenes," meeting mid-sized enterprises’ "wide coverage, low cost" needs.

7. System Upgrades: Similar Steps, 3 Key Details

Upgrade processes are consistent, but watch these scenario-specific issues:

Upgrade Steps:

1. Download model-specific firmware from Cisco’s website (Enhanced for 12Y-A, Basic for 48UB-E).

2. Navigate to "Administration > Software Upgrade" in the Web UI, upload firmware, and select "Immediate Upgrade" (or use CLI: archive download-sw /force-reload tftp://ip/firmware.bin).

3. Wait for auto-validation (~5min), old config backup (~2min), and installation (~8min)—network remains uninterrupted.

4. Post-upgrade, check logs for errors (look for "%SYS-5-CONFIG_I" for success).

Common Issues & Fixes:

• Issue 1: C9300X-12Y-A loses AI functionality post-upgrade.
  Cause: Firmware-hardware incompatibility (e.g., legacy ASICs not supporting new AI features).
  Fix: Confirm compatibility on Cisco’s website; update firmware or contact support.

• Issue 2: C9300-48UB-E fails to recognize ports after upgrade.
  Cause: Firmware corruption or unstable TFTP transfer.
  Fix: Re-upload firmware via Console (recovery mode) or use local USB for stability.

8. Use Cases: Scenario-Specific "Precision Deployment"

Typical deployments highlight their scenario fit:

• Case 1: Financial Branch Office (C9300X-12Y-A)
  A branch needs 80+ endpoints (teller PCs, ATMs, IP cameras) with 4K video conferencing and cloud collaboration. C9300X-12Y-A’s 360Gbps capacity, AI traffic prioritization, and 12-port expansion (future IP phone support) meet
