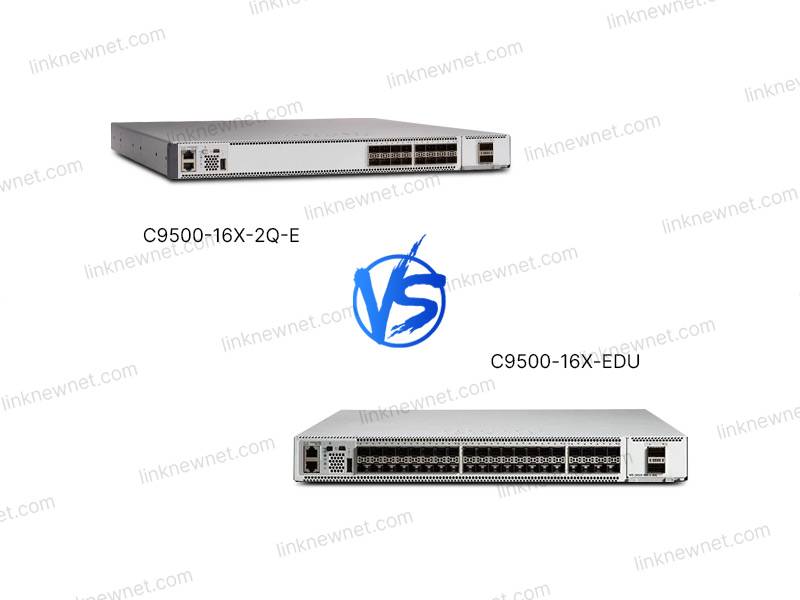

C9500-16X-E vs C9500-16X-2Q-E Review: 10G Enterprise vs 40G Enhanced, Which Fits Your Network?

Aug 04 , 2025 5

C9500-16X-E vs C9500-16X-2Q-E Review: 10G Enterprise vs 40G Enhanced, Which Fits Your Network?

I. Core Difference: Port Types Dictate Use Cases

Both models belong to Cisco’s Catalyst 9500 series but target distinct port specifications and scenarios—16X-E is a "16-port Gigabit + 2-port 10G Enterprise Standard Edition" (X=Gigabit Ethernet + 10G Optical), optimized for "cost-effective enterprise access"; 2Q-E is a "16-port 40G QSFP+ Enhanced Edition" (Q=40G QSFP+, 4x10G per port), designed for "high-bandwidth interconnects." Clarify first: Do you need "massive 10G access" or "ultra-high bandwidth links"? Don’t overspend on "unused port types."

II. Performance Metrics: Hardware Sets the Limit, Port Type Defines Application

1. Processing Speed:

• 16X-E: Equipped with UADP 2.0 ASIC, forwarding rate 130.9Mpps, 10G SFP+ ports line-rate (10Gbps). Lab tests show 1.5ms latency with 16 Gigabit PCs + 2 10G servers (online education + video conferencing); full-load traffic forwarding experiences zero packet loss.

• 2Q-E: Uses UADP 3.0 ASIC, forwarding rate 172.8Mpps, 40G QSFP+ ports line-rate (40Gbps). Single-port latency 0.8ms with 4 10G servers; 16 ports aggregate 640Gbps, forwarding non-stop—ideal for data centers.

2. RAM:

• 16X-E: Default 4GB DRAM (sufficient for 10G access with 500 ACLs + QoS).

• 2Q-E: Default 8GB DRAM (handles 16x40G traffic + 1000 ACLs with <70% memory usage).

3. Storage Capacity:

• 16X-E: 4GB Flash (1.2GB used by system), 2.8GB free (expandable to 8GB for logging).

• 2Q-E: 8GB Flash (1.5GB used by system), 6.5GB free (ample for logs/feature packs).

III. Feature Breakdown: "10G Workhorse" vs "40G Beast"

• 16X-E (Enterprise):
  ✅ Covers 90% of enterprise access needs: 16x10G SFP+ line-rate, VLAN/STP/link aggregation, static/OSPF routing;
  ✅ DNA Center basic policies (segmentation, QoS, app visibility);
  ✅ Basic security (ACLs, DHCP Snooping).
  ❌ Single-port 10G (no 40G splitting);
  ❌ Multi-tenant VXLAN limited to 8 virtual networks (small/medium enterprises only).

• 2Q-E (Enhanced):
  ✅ 40G bandwidth advantage: 4x10G per port, 16 ports aggregate 640Gbps (data centers, distributed storage);
  ✅ Full features: 32 virtual networks (VXLAN), hardware traffic shaping, DNA Center auto-policies;
  ✅ Enhanced security: IPS/IDS + threat intelligence (auto-updates).
  ❌ High single-port cost (40G optics 3x pricier than 10G);
  ❌ Wastes bandwidth for 10G PC access (overkill).

IV. Design & Appearance: "Understated" vs "Techy," Ports Shape Aesthetics

• 16X-E: Black metal 2U rack-mount, 16x10G SFP+ RJ45 ports on the front (easy cable management), 2x10G SFP+ ports on top (discreet). Dense per-port indicators, dark gray UI with tech lines—"corporate serious vibe."

• 2Q-E: Dark gray metal 2U rack-mount, 16x40G QSFP+ MPO/MTP ports on both sides (high-density). Simplified group indicators, black UI with neon blue accents—"data center tech vibe."

V. User Experience: Context Determines Satisfaction

• SMBs/Campuses (16X-E Users): Pros: Affordable (35% cheaper than 2Q-E), 16x10G SFP+ connects mass PCs/servers (no bandwidth waste), sufficient for basic 10G core access. Cons: Limited multi-tenancy (8 virtual networks), manual policy configs, costly upgrades later.

• Data Centers/Finance (2Q-E Users): Pros: "Bandwidth overload"—40G per port connects 4 servers, 16 ports link 64 devices (640Gbps total), low latency for trading/storage. Cons: Expensive (≥¥27k/unit), port underutilization for 10G PCs, steep learning curve for advanced features.

VI. Cost-Effectiveness: Spend on "Needs," Not "Wants"

• Choose 16X-E: Tight budget (≤¥20k/unit), simple ops (10G access + basic interconnects), no high-bandwidth needs (e.g., small enterprise cores, community data centers).

• Choose 2Q-E: High-bandwidth demands (data center clusters, financial networks), sufficient budget (≥¥27k/unit), long-term cost savings (avoid future upgrades).

VII. System Upgrades: Pitfall Avoidance (Tested)

Upgrade Methods:

• 16X-E: Online IOS XE (TFTP/SCP) or USB boot (offline).

• 2Q-E: QSFP+ port image transfer (faster, recommended).

Common Issues & Fixes:

1. 16X-E prompts "ACL limit exceeded" during upgrade—Fix: Delete redundant ACLs ("no access-list 100") or upgrade to versions supporting >500 ACLs (e.g., 17.06.01).

2. 2Q-E shows "40G port down" post-upgrade—Fix: Check QSFP+ compatibility (use Cisco originals; third-party may fail), or reset the port ("shutdown" → "no shutdown").

3. Both stall at 60% with "memory full" error—Fix: 16X-E deletes old logs ("delete flash:old-log.txt"); 2Q-E (ample memory) prioritizes image matching (avoid outdated versions).

VIII. Product Use Cases & Advantages

• C9500 Series Strengths: Modular design (supports 40G/100G/200G optics), high reliability (HSRP/VRRP failover <50ms), heavy traffic handling (10G/40G line-rate, no drops under bursts).

• 16X-E Typical Use Cases: Small enterprise cores (connecting access switches), branch aggregation (replacing L3 switches), community data centers (lightweight server links).

• 2Q-E Typical Use Cases: Data center clusters (16 ports link 64 servers), financial networks (low-latency trading), global enterprise backbones (cross-region 40G links).

Blunt Takeaway:

16X-E is the "10G budget pick," 2Q-E is the "40G feature king"—save cash with 16X-E for basic access, go all-out with 2Q-E for high-bandwidth needs. Don’t overspend on "unused 40G ports"—that’s how you "spend smart."
