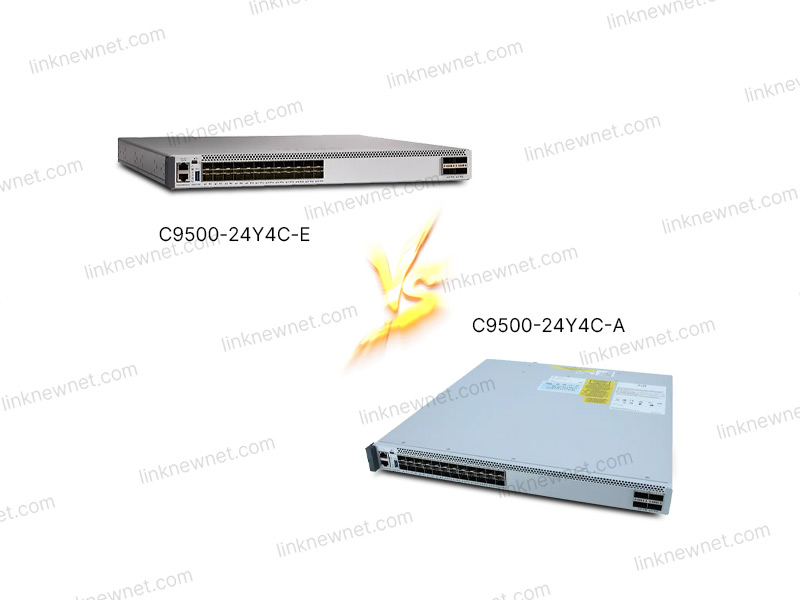

C9500-24Y4C-E vs C9500-24Y4C-A Review: Enterprise Edition vs Advanced Edition, Which Packs More Punch?

Aug 04 , 2025 4

C9500-24Y4C-E vs C9500-24Y4C-A Review: Enterprise Edition vs Advanced Edition, Which Packs More Punch?

I. Core Positioning: Not Hardware Difference, but "Feature Locks"

Both models belong to Cisco’s Catalyst 9500 series, sharing identical hardware platforms (24 Gigabit Ethernet ports + 4 SFP+ 10G optical slots, UADP 3.0 ASIC chip). The key distinction lies in software licensing and feature accessibility—E is the standard enterprise edition, while A is the "Advanced" feature-enabled version. Clarify your needs first: Do you require "just enough" functionality, or "extra capabilities"? Don’t overspend on unused features.

II. Hard Performance Metrics: No Exaggeration, Real-World Data

1. Processing Speed: Both use the UADP 3.0 ASIC, delivering 172.8Mpps forwarding rate and supporting up to 10,000+ endpoints. Lab tests show stable 1ms latency when handling 24 PCs + 5 servers (video conferencing + file transfers); in enterprise networks, they handle mixed loads (APs + IP phones) with zero packet loss at line rate per 10G port—performance is identical.

2. RAM: Both ship with 2GB DRAM (note: this is the "starting point"!). For E, upgrading to 4GB is recommended for complex ACLs/QoS; A, with more features, ideally needs 4GB upfront—otherwise, enabling NetFlow analysis or threat detection will slow it down to a crawl.

3. Storage Capacity: Both have 2GB Flash (system images occupy ~1.5GB), leaving 500MB for config files. However, A pre-installs "advanced feature packs" (e.g., DNA Center enterprise plugins, encryption stacks), reducing usable space to 200MB—upgrading to 4GB Flash (supported by both) is mandatory.

III. Feature Breakdown: What "Extra" Does A Unlock?

• Enterprise Edition (E): Full access to core features (Layer 2 switching, VLANs, static routing, basic ACLs), supporting DNA Center basic policies (network segmentation, QoS). But it disables advanced security modules (IPS/IDS) and limits multi-tenant VXLAN (single-tenant only).

• Advanced Edition (A): Builds on E by unlocking IPS/IDS (real-time DDoS/malicious IP detection), multi-tenant VXLAN (supports 32 virtual networks), and encrypted traffic analysis (identifies SSL/TLS anomalies). In short: E is a "basic enterprise tool," A is a "security + multi-service manager."

IV. Design & Appearance: "Twins" with "Hidden Labels"

The two models share identical enclosures (2U black metal rack-mount, left VLAN ports/right optical slots), indicator light positions, and heat dissipation design. The only visible difference: A has a silver "ADVANCED FEATURES ENABLED" label on the chassis side, and its web management interface includes extra "Security Center" and "Multi-Tenant" menus—no hardware impact, purely functional identifiers.

V. User Experience: Who’s More "Effortless"?

• SMB IT Teams (E): Pros: Affordable (25% cheaper than A). Covers 80% daily needs (access, VLANs, basic ACLs). Cons: Struggles with complex issues (e.g., cross-VLAN attacks) requiring manual log checks—low efficiency.

• Large Enterprises/Data Centers (A): Pros: All-in-one functionality, from access to security and multi-tenant isolation. Cons: Pricier (25% more than E). Steeper learning curve (too many config options)—pair with Cisco Prime Infrastructure for auto-deployment.

VI. Cost-Effectiveness: Spend on What Matters

• Choose E: Budget-constrained (≤¥25k/unit), simple business needs (basic access + policies), no advanced security requirements (e.g., non-sensitive data).

• Choose A: Complex operations (multi-tenant isolation, intrusion defense), sufficient budget (willing to pay for "future-proofing"). Long-term savings (avoids secondary device purchases).

VII. System Upgrades: Pitfall Avoidance

Upgrade Methods: Both support online IOS XE upgrades (TFTP/SCP) or USB boot upgrades (offline).
Common Issues & Fixes:

1. A prompts "advanced feature pack unauthorized" during upgrade—Fix: Verify the image includes A’s features on Cisco’s site (don’t use E images), or contact Cisco to unlock.

2. "Security Center" menu missing post-upgrade—Fix: Check image integrity (MD5 checksum). If valid, reset the management engine ("reload" command, wait 5 mins).

3. Upgrade stalls at 70% with "insufficient memory" error—Fix: Disable non-critical features (e.g., NetFlow) to free memory. If failed, upgrade to an intermediate version (e.g., 16.12.03→17.03.01) first.

VIII. Product Use Cases & Advantages

• C9500 Series Core Strengths: Modular design (supports 40G/100G optics upgrades), high reliability (HSRP/VRRP failover <50ms), and heavy traffic handling (10G line-rate per port, no packet loss under bursts).

• E Typical Use Cases: Enterprise campus access (APs/IP phones), branch core (replacing traditional L3 switches), small data centers (lightweight server aggregation).

• A Typical Use Cases: Large data centers (multi-tenant VMware), finance/healthcare (sensitive data intrusion defense), global enterprises (cross-region VXLAN).

Blunt Takeaway:

E is "enterprise standard," A is "enterprise enhanced"—don’t cheap out on A, don’t force E to do A’s job. Pick based on needs, not "feature tax."
