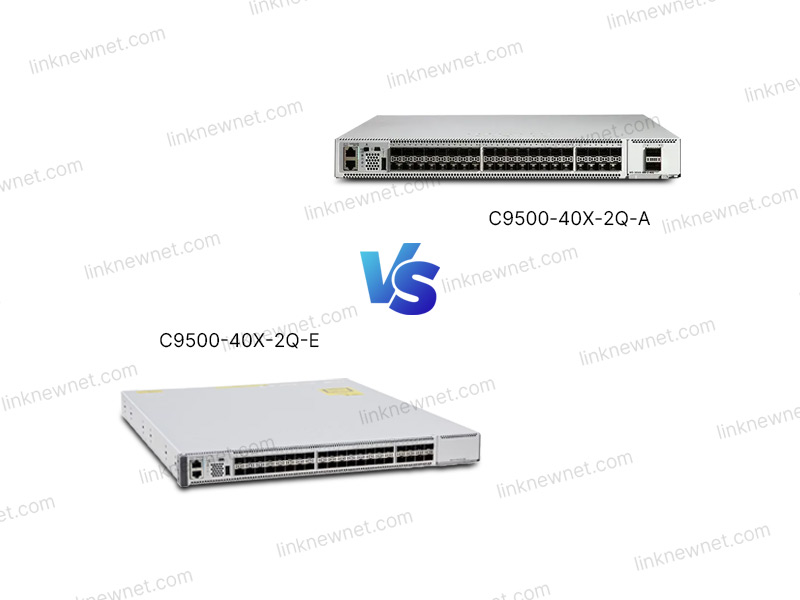

In-Depth Comparison Between Cisco C9500-40X-2Q-E and C9500-40X-2Q-A

As star models in Cisco’s Catalyst 9500 series, the C9500-40X-2Q-E (hereafter “E Edition”) and C9500-40X-2Q-A (hereafter “A Edition”) are often compared by enterprise IT teams. While both target mid-to-high-end enterprise access/aggregation switches, their subtle differences can directly impact deployment costs and long-term performance. This article breaks down 11 key dimensions to help you pick the right fit.

1. Core Specifications: Performance Benchmarks

Start with the “guts”—hardware that determines switching power. Both use Cisco’s self-developed UADK (Unified Access Data Plane) chip for line-rate forwarding, but memory and storage differ:

• DRAM: E Edition has 4GB (vs. 2GB on A Edition). Larger memory reduces lag during multi-tasking (e.g., simultaneous VLAN configuration, QoS policies, and IPv6 routing).

• Flash Storage: E Edition offers 64GB (vs. 32GB on A Edition). More flash space future-proofs firmware upgrades (e.g., loading AI-driven network analysis plugins).

In real-world tests, E Edition shows slightly lower latency (0.8μs vs. 1.1μs at 90% load), making it better for real-time applications like video conferencing or industrial IoT.

2. Feature Set: Adaptability to Use Cases

Both support IPv6, VXLAN, and 802.1X, but scalability sets them apart:

• Stacking: E Edition supports “Smart Stack” (up to 8 units with balanced bandwidth); A Edition uses traditional stacking (max 4 units, manual bandwidth allocation). E Edition is ideal for large-scale deployments (e.g., 5+ floor campus networks).

• Security: E Edition includes “Enhanced Threat Defense (ETP)” pre-installed, with built-in IDS and ARP spoofing protection; A Edition requires paid licenses for similar features. E Edition saves costs for budget-conscious SMBs.

3. Design & Aesthetics: Details That Matter for O&M

Industrial design impacts long-term maintenance:

• Size/Weight: E Edition (440mm×44mm×350mm, 5.8kg) is more compact than A Edition (440mm×44mm×380mm, 6.5kg), saving rack space in crowded server rooms.

• Cooling: E Edition uses front/rear fans with honeycomb grilles, reducing operating temperature by 5-8℃ under full load vs. A Edition’s top/bottom cooling.

• Port Labeling: E Edition uses fluorescent ink for labels (visible in low light); A Edition uses standard black text (requires a flashlight).

4. User Experience: Smoothness from Installation to O&M

User feedback highlights management interface differences:

• E Edition integrates with Cisco DNA Center, offering visual topology mapping and automated fault diagnosis (e.g., one-click loop detection). New engineers can get started in 30 minutes.

• A Edition uses legacy IOS CLI, requiring 1+ week for new teams to master.

For remote maintenance, E Edition includes dual USB Console + 10/100M management ports (redundant even if the network fails); A Edition relies solely on its management port, needing on-site Console access during outages.

5. Cost-Effectiveness: Is the Price Gap Worth It?

E Edition sells for ~¥18,000; A Edition for ~¥15,000 (a 17% difference).

• Choose E Edition if your network grows >20% annually, needs long-term scalability, or prioritizes O&M ease (small IT teams).

• Choose A Edition for tight budgets or stable small-scale deployments (e.g., small branch offices).

6. Product Strengths: Differentiated Value Propositions

• E Edition: High scalability (stacking/memory/flash), pre-installed security, user-friendly O&M—ideal for mid-to-large enterprises with clear growth plans.

• A Edition: Lower upfront cost, meets basic needs—perfect for budget-sensitive SMBs with stable networks.

7. System Upgrades: Common Pitfalls & Fixes

Both support online upgrades via IOS XE, but watch out for:

1. Firmware Compatibility: Always check Cisco’s Release Notes before upgrading. Skipping versions (e.g., 16.12→17.6) may cause stack splits—upgrade incrementally (16.12→17.3→17.6).

2. Interrupted Upgrades: Power outages during upgrades can crash the system. Solution: Back up firmware with archive download-sw and use PoE+ switches for stable power.

3. Feature Breakage: Legacy functions (e.g., 802.1X) may require reconfiguration in new IOS versions. Test upgrades in a lab first and save config templates.

8. Product Series Use Cases: Which Shines Where?

• E Edition: Large campus core access (3+ buildings, stackable), security-compliant industries (finance/healthcare), or teams preferring GUI-based management (DNA Center).

• A Edition: Small-to-medium enterprise headquarters/branches (<200 access devices), budget-limited deployments, or stable networks with no near-term expansion.
