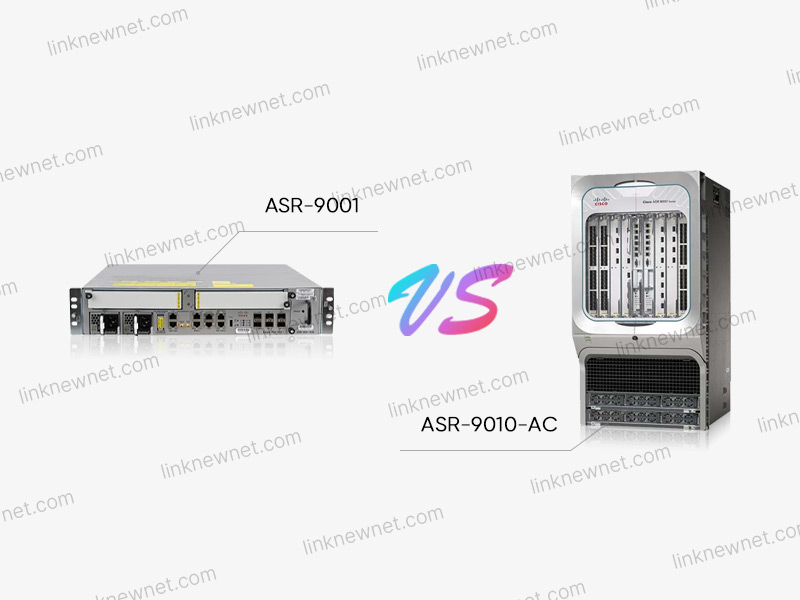

Cisco ASR-9010-AC vs ASR-9001: Core Aggregation vs Edge Router Performance Evaluation

When service providers evaluate routing infrastructure, the Cisco ASR-9010-AC (core aggregation router) and ASR-9001 (compact edge router) represent fundamentally different deployment options. This technical comparison examines their specifications, capabilities, and optimal use cases to help network architects make strategic equipment selections.

Technical Specifications Comparison

The ASR-9010-AC delivers 10x greater performance than the ASR-9001, establishing it as Cisco's flagship routing platform for carrier-grade deployments.

Functional Capabilities Analysis

1. Routing Performance

Shared Capabilities:

• MPLS routing (L2/L3 VPN)

• BGP/OSPF/IS-IS protocols

• Basic QoS policies

• NetFlow v9 monitoring

ASR-9010-AC Advantages:

• Segment routing (SRv6)

• Real-time telemetry

• 400G interface support

• Hitless software upgrades

2. Service Provider Features

• ASR-9010-AC excels in:

• Internet peering cores

• 5G mobile transport

• Cloud interconnect

• ASR-9001 optimized for:

• Cell site backhaul

• Business services edge

• Remote POP locations

Physical Design Comparison

Chassis Architecture:

• ASR-9010-AC:

• 15RU modular chassis

• Front/rear service access

• Hot-swappable components

• 120 lbs empty weight

• NEBS Level 3 compliant

• ASR-9001:

• 1RU fixed configuration

• Front-access only

• Fixed port layout

• 18 lbs weight

• Office-friendly design

Environmental Specifications:

• Operating temperature:

• ASR-9010-AC: -5°C to 55°C

• ASR-9001: 0°C to 40°C

• Acoustic noise:

• ASR-9010-AC: 75 dBA

• ASR-9001: 55 dBA

• Power options:

• ASR-9010-AC: AC/DC/HVDC

• ASR-9001: AC only

User Experience Evaluation

Management Interfaces:
Both support:

• IOS-XR 7.x operating system

• NETCONF/YANG models

• CLI and XML API

• SNMPv3 monitoring

Operational Differences:

• ASR-9010-AC better for:

• Large-scale automation

• Complex traffic engineering

• Multi-domain provisioning

• ASR-9001 ideal for:

• Zero-touch deployment

• Simple configurations

• Remote management

Pricing & Total Cost Analysis

Acquisition Costs:

• ASR-9001: 25,000−35,000

• ASR-9010-AC: 250,000−350,000

Operational Expenditures:

• Power consumption difference: ~$1,500/year

• Rack space requirements:

• ASR-9010-AC needs 15x more space

• Support contracts:

• ASR-9010-AC requires 24/7 premium SLA

Five-Year TCO Considerations:

• ASR-9010-AC justified for:

• Internet exchange points

• Cloud gateway locations

• Future-proof infrastructure

• ASR-9001 economical for:

• Edge locations

• Fixed capacity needs

• Cost-sensitive projects

Power Efficiency Metrics

Energy Usage:

• ASR-9010-AC:

• Idle: 1.2 kW

• Peak: 3.5 kW

• ASR-9001:

• Idle: 150W

• Peak: 220W

Efficiency Comparison:

• Performance per watt:

• ASR-9010-AC: 228 Mbps/W

• ASR-9001: 363 Mbps/W

Compatibility & Ecosystem

Third-Party Integration:
Both support:

• OSS/BSS systems

• SDN controllers

• Automation tools

ASR-9010-AC Advantages:

• Multi-vendor interoperability

• Cloud-scale programmability

• Precision timing (PTP, SyncE)

• OpenConfig support

Software Support & Roadmap

Current Software Features:

• Both run IOS-XR 7.x

• Segment routing support

• Model-driven telemetry

Future Development:

• ASR-9010-AC prioritized for:

• 800G/1.6T readiness

• AI-driven optimization

• Cloud-native routing

• ASR-9001 focused on:

• Security hardening

• Basic feature maintenance

Final Recommendation

Choose ASR-9001 When:
✔ Remote cell site deployment
✔ Budget under $40,000
✔ Fixed port requirements
✔ Limited facility space

Select ASR-9010-AC When:
✔ Internet core locations
✔ Need 400G+ interfaces
✔ Multi-service aggregation
✔ Future growth required

Implementation Strategy:
Deploy ASR-9010-AC at network cores and ASR-9001 at thousands of edge locations to create a scalable, hierarchical architecture.

Key Differentiators:

1. Scale: ASR-9010-AC supports 6x more interfaces

2. Performance: 800G vs 80G forwarding

3. Resilience: Full redundancy in 9010 model

4. Services: Advanced features only in 9010

Performance Note: The ASR-9010-AC represents Cisco's highest-performance routing platform, while the ASR-9001 serves as a capable edge solution. The performance differential becomes critical when handling Internet-scale traffic or advanced services.
