Cisco C9300-NM-4G: The Essential Guide to Installation and Maintenance

Why Proper Care of Your Network Module Makes All the Difference

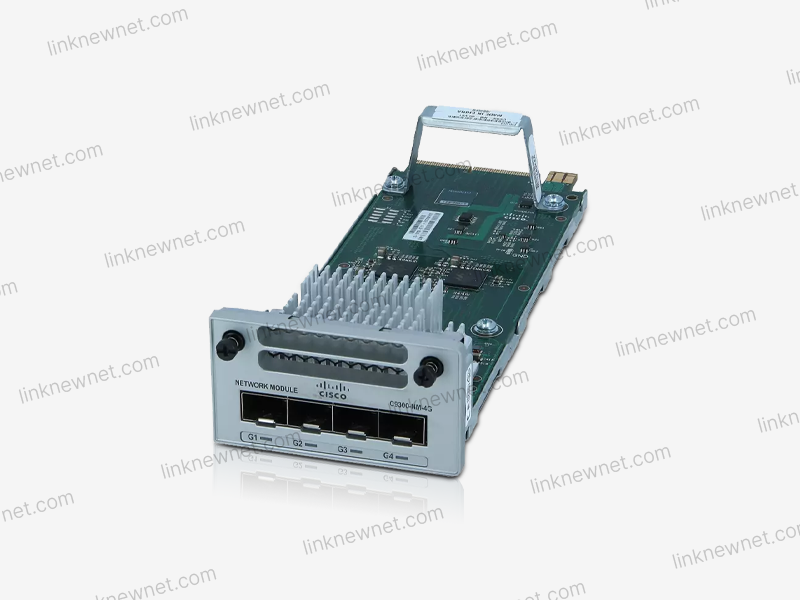

The Cisco C9300-NM-4G is a powerful 4-port Gigabit Ethernet expansion module designed for Catalyst 9300 Series switches. Whether you're upgrading an existing network or deploying new infrastructure, proper installation and maintenance are crucial for reliability, security, and peak performance.

This guide walks you through best practices for installation, firmware management, routine checks, and troubleshooting—helping you get the most out of your investment.

Step 1: Before You Begin – Pre-Installation Essentials

Before inserting the module, take these precautions:

✅ Verify Compatibility – Ensure your Catalyst 9300 switch model supports the C9300-NM-4G (check Cisco’s official documentation).
✅ Check Power Requirements – The module consumes up to 10W; confirm your switch has sufficient power capacity.
✅ Update Switch Software – The module works best with IOS XE 16.9.1 or later—update if necessary.

Pro Tip: Always back up your current switch configuration before making hardware changes.

Step 2: Installing the C9300-NM-4G Module

Physical Installation Steps

1. Power down the switch (recommended for first-time installations to avoid issues).

2. Locate the expansion slot (usually on the rear panel of the Catalyst 9300).

3. Align the module carefully and slide it in until it clicks securely into place.

4. Tighten the retention screw (prevents accidental disconnection during operation).

5. Power on the switch and confirm detection using the command-line interface.

Initial Configuration

After installation, configure the module’s ports for your network needs. Assign VLANs, set trunking modes, and enable ports as required.

Step 3: Keeping Firmware and Security Up to Date

Regular updates prevent performance issues, bugs, and security vulnerabilities.

Important: Always test updates in a non-production environment before full deployment.

Step 4: Routine Maintenance for Long-Term Reliability

Monthly Checks

• Monitor port statistics for errors or unusual traffic patterns.

• Clean dust and debris from module vents to prevent overheating.

Quarterly Tasks

• Verify firmware compliance to ensure no outdated versions are running.

• Test failover scenarios by disconnecting a port to confirm redundancy.

Common Issues and Solutions

Step 5: Knowing When to Replace the Module

Even with excellent maintenance, hardware eventually wears out. Consider replacement if:

⚠ Frequent crashes or errors persist despite troubleshooting.
⚠ Multiple ports fail and cannot be restored.
⚠ Cisco ends support, leaving the module without security updates.

Final Advice: Maximizing Performance and Lifespan

The C9300-NM-4G is a dependable component—but only if properly installed and maintained. Follow these guidelines to:

✔ Minimize unexpected downtime
✔ Ensure network security
✔ Extend hardware longevity
