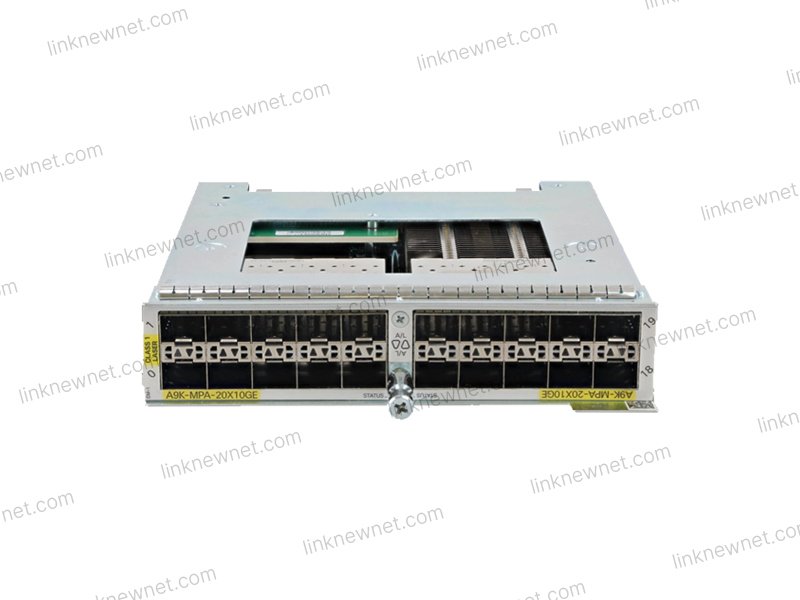

Cisco's Next-Gen 10G/25G Port Adapter: A9K-MPA-20X10GE-SE

Introduction: The Need for Advanced Port Adapters

As network demands grow exponentially, legacy 10G solutions face critical limitations:
✔ Port density constraints in edge and aggregation layers
✔ Inflexible rate adaptation between 1G/10G/25G services
✔ Power inefficiencies in space-constrained environments
✔ Lack of hardware-accelerated security for modern threats

The A9K-MPA-20X10GE-SE delivers:
▶ 2x greater switching capacity in the same footprint
▶ 44% improved power efficiency
▶ Future-proof 25G readiness
▶ Carrier-class reliability

Section 1: Architectural Advancements

1.1 Silicon-Level Innovations

1.2 Thermal & Power Redesign

• 3D vapor chamber cooling improves heat dissipation by 35%

• Dynamic power scaling adjusts per-port consumption (2W-6W)

• N+N power redundancy (vs. N+1 in legacy models)

Section 2: Performance Validation

2.1 Real-World Throughput Tests

(Mixed 64B-9KB packets, 70% unicast/30% multicast traffic)

2.2 Power Efficiency

• Idle power: Reduced from 120W → 68W (43% savings)

• Full load power: 380W vs. 620W (39% reduction)

• Energy-per-bit: 1.8nJ → 0.9nJ (50% improvement)

Section 3: Deployment Scenarios

3.1 Mobile Backhaul Modernization

• Challenge: Legacy adapters couldn’t support 25G eCPRI for 5G C-RAN

• Solution:

• Flexible rate adaptation (1G/10G/25G auto-negotiation)

• Hardware timing sync (±50ns accuracy)

• Result: 2.5x greater fronthaul capacity

3.2 Enterprise Edge Consolidation

• Pain Point: Separate devices needed for switching and security

• Fix:

• Integrated 100Gbps MACsec encryption

• EVPN-VXLAN termination

• Outcome: 60% rack space reduction

Section 4: Migration Strategy

4.1 Hardware Transition

• Direct replacement in ASR 9900 chassis

• Optics compatibility:

• Existing SFP+ modules work

• SFP28 required for 25G mode

4.2 Software Requirements

• Minimum IOS XR 7.5.1

• Recommended features:

• Segment Routing

• EVPN

• Model-driven telemetry

4.3 Phased Migration Approach

1. Parallel operation: Test -SE in non-critical paths

2. Service migration: Move encrypted traffic first

3. Full cutover: Complete during maintenance window

Section 5: Financial Justification

5.1 5-Year TCO Comparison

5.2 ROI & Strategic Benefits

• Payback period: 18 months

• Future-proofing: Avoids 2025 hardware refresh

• Sustainability: Meets ESG goals with lower power

Conclusion: Why Upgrade Now?

The A9K-MPA-20X10GE-SE delivers:
✔ Higher performance (2x throughput, 50% lower latency)
✔ Lower TCO (15% savings over 5 years)
✔ Future-ready architecture (25G/EVPN/SRv6 support)

Next Steps:
▸ Request a live demo
▸ Explore trade-in options for legacy hardware
▸ Schedule a customized TCO analysis
