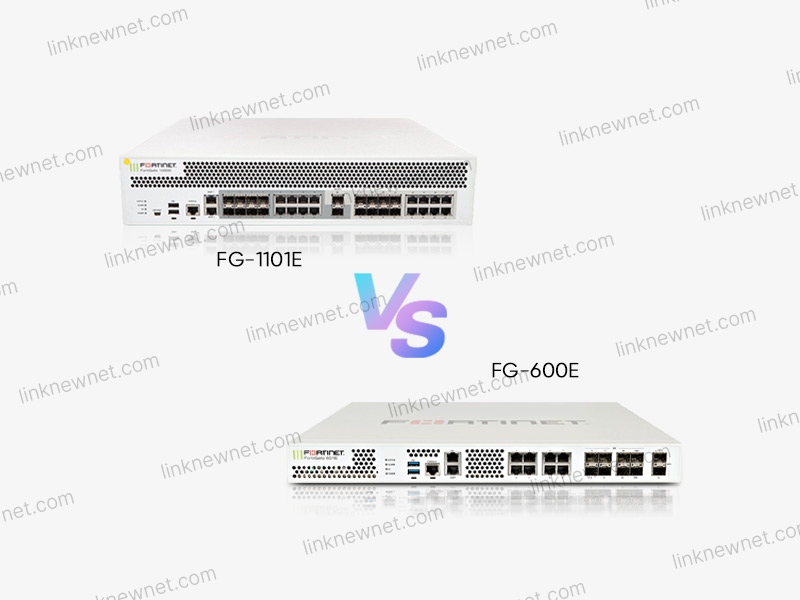

Fortinet FG-600E vs FG-1101E: High-Performance vs Enterprise Firewall Comparison

When evaluating network security solutions, organizations must carefully assess the Fortinet FG-600E (high-performance firewall) against the FG-1101E (enterprise-grade model). This comprehensive comparison examines their technical specifications, operational capabilities, and ideal deployment scenarios to assist IT professionals in making informed purchasing decisions.

Technical Specifications Comparison

The FG-1101E delivers 1.8-4x greater performance across all key metrics, establishing it as Fortinet's superior enterprise solution compared to the high-performance FG-600E.

Functional Capabilities Analysis

1. Security Performance

Shared Capabilities:

• AI-powered threat detection

• SSL/TLS inspection

• Advanced malware protection

• SD-WAN with security

• Zero Trust Network Access

FG-1101E Advantages:

• 2x higher threat inspection capacity

• Better encrypted traffic handling

• More concurrent security scans

• Higher VPN tunnel capacity

2. Network Performance

• FG-600E handles:

• 25 Gbps firewall traffic

• 12 Gbps threat inspection

• Suitable for 1,500-3,000 users

• FG-1101E manages:

• 45 Gbps firewall traffic

• 25 Gbps threat inspection

• Ideal for 5,000-10,000 users

Physical Design Comparison

Chassis Architecture:

• FG-600E:

• 1U rack-mountable

• Fixed configuration

• Standard cooling system

• 14 lbs weight

• FG-1101E:

• 2U rack-mountable

• Tool-less service panels

• Redundant power options

• 28 lbs weight

Environmental Specifications:

• Operating temperature:

• Both: 0°C to 40°C

• Noise level:

• FG-600E: 52 dBA

• FG-1101E: 62 dBA

• Power input:

• Both: 100-240V AC

User Experience Evaluation

Management Interfaces:

• Both use FortiOS 7.4+

• Web UI and CLI access

• REST API support

• Centralized management options

Operational Differences:

• FG-1101E handles:

• More complex security policies

• Higher connection volumes

• Multiple VPN tunnels simultaneously

• FG-600E optimized for:

• High-performance needs

• Large branch offices

• Data center edge deployments

Pricing & Total Cost Analysis

Acquisition Costs:

• FG-600E: 12,000−15,000

• FG-1101E: 35,000−42,000

Operational Costs:

• Power consumption difference: ~$120/year

• Support contracts:

• FG-600E: ~$3,000/year

• FG-1101E: ~$6,500/year

Five-Year TCO Considerations:

• FG-600E justified for:

• Large branch offices

• Regional data centers

• High-performance needs below enterprise scale

• FG-1101E economical for:

• Large enterprises

• Core data centers

• High-security environments

Power Efficiency Metrics

Energy Consumption:

• FG-600E:

• Idle: 70W

• Peak: 120W

• FG-1101E:

• Idle: 160W

• Peak: 240W

Efficiency Comparison:

• Performance per watt:

• FG-600E: 208 Mbps/W

• FG-1101E: 187 Mbps/W

Compatibility & Ecosystem

Third-Party Integration:
Both support:

• SIEM solutions (Splunk, IBM QRadar)

• Cloud platforms (AWS, Azure, GCP)

• Automation tools (Ansible, Terraform)

FG-1101E Advantages:

• 40G interface support

• Enhanced SD-WAN capabilities

• Advanced cloud security features

• SOC integration

Software Support & Roadmap

Current Software Features:

• Both run FortiOS 7.4+

• Same security services

• Identical management features

Future Development:

• FG-1101E prioritized for:

• Quantum-safe cryptography

• Cloud-native security

• AI-driven operations

• FG-600E receives:

• Core security updates

• Performance enhancements

Final Recommendation

Choose FG-600E When:
✔ Large branch or regional network
✔ Budget 12,000−15,000
✔ Need 25G throughput
✔ 1,500-3,000 users

Select FG-1101E When:
✔ Enterprise core network
✔ Need 45G+ throughput
✔ Mission-critical security
✔ 5,000+ users

Key Selection Criteria:

1. Network size and traffic volume

2. Performance requirements

3. Security needs

4. Available budget

Implementation Strategy:
For distributed enterprises, consider deploying FG-1101E at core locations and FG-600E at large branch locations to balance performance and cost efficiency.

Performance Note: While the FG-1101E offers superior capabilities, the FG-600E provides excellent value for organizations needing high performance below full enterprise scale. The performance difference becomes most apparent during peak traffic periods or when handling complex security policies.
