MDS 9513 Supervisor Engine Replacement Procedure

Jun 05 , 2025 517

TL;DR: Use the show system redundancy status or show module commands to check whether the engine boards are displayed correctly in the system.

MDS 9513 Supervisor Engine Replacement Procedure

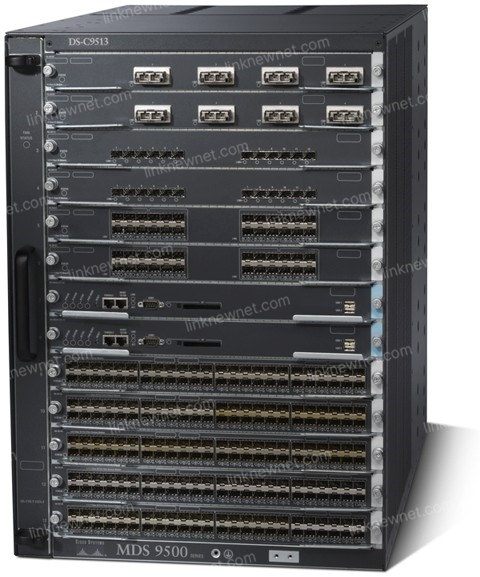

Device Overview

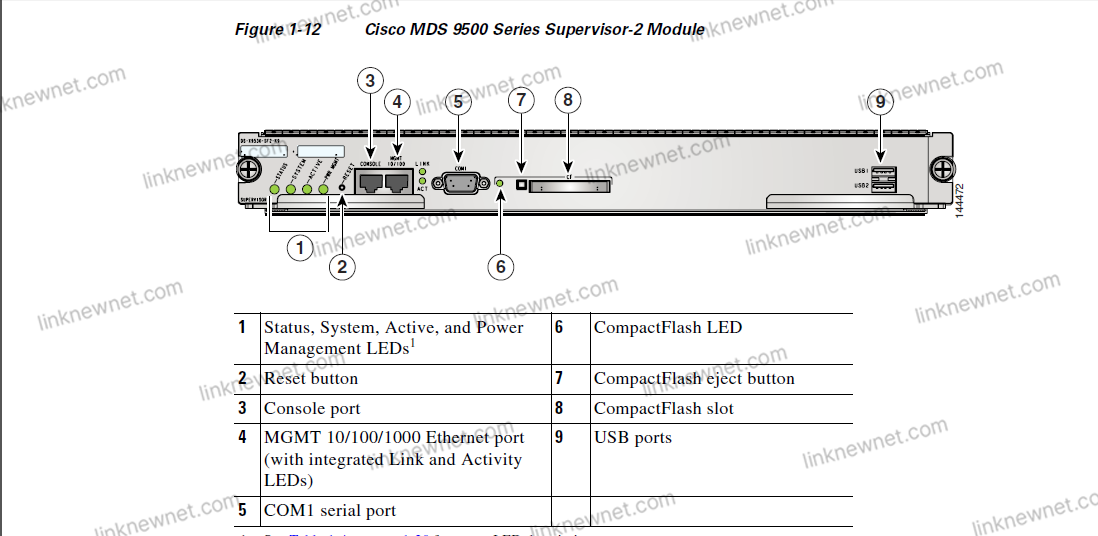

Supervisor Module Specifications

• Fixed slot locations: Slots 7 and 8 exclusively house supervisor modules

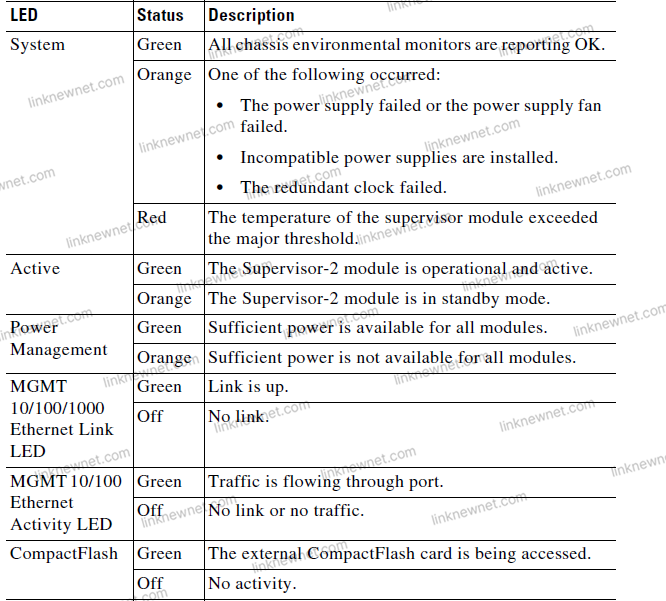

• LED indicators provide visual status information

Use the show system redundancy status or show module commands to check whether the engine boards are displayed correctly in the system.

SFBSASW0002# show system redundancy status

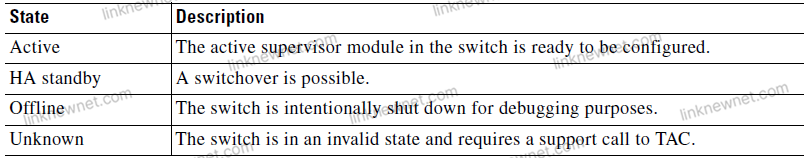

Redundancy mode

---------------

      administrative:   HA

         operational:   HA



This supervisor (sup-1)

-----------------------

    Redundancy state:   Active

    Supervisor state:   Active

      Internal state:   Active with HA standby



Other supervisor (sup-2)

------------------------

    Redundancy state:   Standby

    Supervisor state:   HA standby

      Internal state:   HA standby

SFBSASW0002# show module

Mod  Ports  Module-Type                      Model              Status

---  -----  -------------------------------- ------------------ ------------

1    48     1/2/4 Gbps FC Module             DS-X9148           ok

2    48     1/2/4 Gbps FC Module             DS-X9148           ok

3    48     1/2/4 Gbps FC Module             DS-X9148           ok

7    0      Supervisor/Fabric-2              DS-X9530-SF2-K9    active *

8    0      Supervisor/Fabric-2              DS-X9530-SF2-K9    ha-standby



Mod  Sw              Hw      World-Wide-Name(s) (WWN)

---  --------------  ------  --------------------------------------------------

1    3.2(3a)         1.5     20:01:00:0d:ec:3b:99:00 to 20:30:00:0d:ec:3b:99:00

2    3.2(3a)         1.5     20:41:00:0d:ec:3b:99:00 to 20:70:00:0d:ec:3b:99:00

3    3.2(3a)         1.5     20:81:00:0d:ec:3b:99:00 to 20:b0:00:0d:ec:3b:99:00

7    3.2(3a)         1.6     --

8    3.2(3a)         1.6     --





Mod  MAC-Address(es)                         Serial-Num

---  --------------------------------------  ----------

1    00-1b-54-02-56-90 to 00-1b-54-02-56-94  JAE1136VZJE

2    00-1b-54-02-57-28 to 00-1b-54-02-57-2c  JAE1136W2V5

3    00-1b-54-02-57-fc to 00-1b-54-02-58-00  JAE1136W2NI

7    00-19-56-3e-42-4c to 00-19-56-3e-42-50  JAB104300L6

8    00-0d-ec-47-ab-d0 to 00-0d-ec-47-ab-d4  JAE11118YW6

Replacement of defective engine boards

Confirm that the engine board is faulty and confirm the slot position and then perform the in-line replacement operation.

3. Wear electrostatic wrist strap and disconnect the defective engine from the device.

4. Insert the prepared spare parts into the device, wait for the engine to power up and start to check the wipe state

(engine initialization startup about 3-4 minutes)

ps: The software version of the engine board will be automatically synchronized during the initialization process.

5. Use show system redundancy status to check the status of the engine card.

(E) Switching Exercise

Do a switching exercise after the replacement engine card is working normally to make sure that both engine cards are working normally.

On the main engine, use the command system switchover to switch the status to standby, and then use show system redundancy status to confirm.
