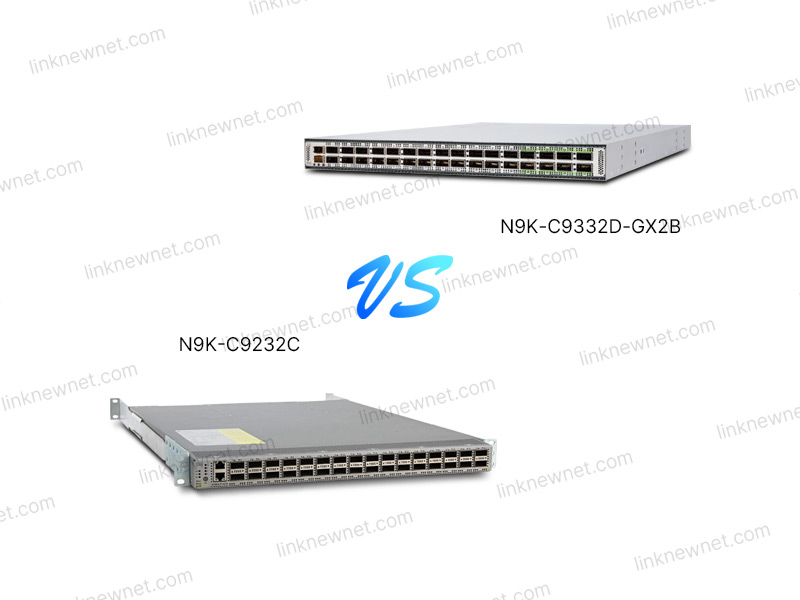

N9K-C9232C vs N9K-C9332D-GX2B: A Core Comparison of Differences and Scenario Adaptation

Aug 05 , 2025 69

1.N9K-C9232C vs N9K-C9332D-GX2B: A Core Comparison of Differences and Scenario Adaptation

Among Cisco’s Nexus 9000 series switches, the N9K-C9232C and N9K-C9332D-GX2B are two fixed-configuration models with distinct differences in performance, design, and applicable scenarios. This article will comprehensively dissect their disparities from technical specifications, functional features to real-world experience, helping users make precise choices based on their needs.

2. Performance Differences: A Hard-Core Comparison of Processing Speed, Memory, and Storage

Processing Speed and Switching Capacity

The N9K-C9232C focuses on "balanced cost-effectiveness," with a switching capacity of 2.56 Tbps and a packet forwarding rate of 1905 Mpps, suitable for core or access layers of small-to-medium data centers. In contrast, the N9K-C9332D-GX2B is positioned as an "ultra-bandwidth flagship," boasting a switching capacity of 12.8 Tbps and a packet forwarding rate of up to 7740 Mpps. It excels in hyperscale cloud data center leaf-spine architectures, particularly in multi-tenant high-concurrency scenarios.

Running Memory and Storage Capacity

The N9K-C9232C is equipped with 8GB/16GB expandable DDR4 memory (max 16GB) and 256MB flash, primarily supporting basic NX-OS functions and lightweight extensions. The N9K-C9332D-GX2B, however, comes standard with 32GB DDR4 memory (max 64GB) and 512MB flash, capable of handling complex service chaining, AI-driven network analytics (e.g., integration with Cisco DNA Center), and large-scale VXLAN tunnel deployment (supporting over 100,000 tunnels).

3. Functional Features: Coverage from Basic to Advanced Scenarios

The N9K-C9232C focuses on "general network demands," with core features including:

• Support for flexible switching between 25G/10G SFP28 ports (on select models);

• Basic VXLAN and EVPN-VXLAN for multi-tenant isolation;

• Integrated vPC (Virtual Port Channel) and NSF/SSO (Non-Stop Forwarding/Stateful Switchover) for high availability;

• Basic ACL (Access Control List) and QoS (Quality of Service) policies.

The N9K-C9332D-GX2B targets "ultra-large-scale complex scenarios" with additional capabilities:

• 100G QSFP28 ports (supporting breakout modes like 4x25G or 2x50G);

• Enhanced VXLAN-EVPN, supporting hybrid networking with MPLS and IP-in-IP;

• Hardware-level encryption (IPSec/SSL) for secure transmission of sensitive data in finance and government;

• Deep Packet Inspection (DPI) and Streaming Telemetry for integration with AI-driven operations platforms.

4. Design and Appearance: Details in Space, Heat Dissipation, and Deployment

The N9K-C9232C adopts a 1U rack-mount design, measuring 43.6mm (height) × 439.4mm (width) × 406.4mm (depth), weighing approximately 7.5kg. Its front panel densely arranges 25G optical ports and optional 1G/10G electrical ports, ideal for space-constrained enterprise branch machine rooms or labs. Its cooling system uses 2+2 redundant front/rear fans, operating below 55dB noise, suitable for office environments.

The N9K-C9332D-GX2B is also 1U rack-mount but slightly larger (44.4mm × 444.5mm × 425.5mm), weighing ~9.2kg. Its front panel features full 100G QSFP28 ports (supporting blind insertion), with rear expansion slots (optional 100G/400G line cards). The cooling system upgrades to 4+4 redundant fans with intelligent speed adjustment, supporting a wide temperature range of -5°C to 55°C, better adapted to high-density heat island data centers.

5. User Experience: Practical Feedback from Management to O&M

• Management Ease: The N9K-C9232C’s CLI (Command-Line Interface) has simple configuration logic, suitable for small teams to get started quickly; its Web UI (NX-OS Web UI) is functionally streamlined, supporting only basic monitoring. The N9K-C9332D-GX2B deeply integrates with Cisco DNA Center, offering graphical topology views, automated policy deployment (e.g., Zero-Touch Provisioning), and predictive fault diagnosis, more favorable for large O&M teams.

• Troubleshooting: The N9K-C9232C has basic log output, requiring external tools (e.g., Syslog servers) for analysis; the N9K-C9332D-GX2B supports embedded Telemetry streaming (thousands of data points per second), directly integrating with Splunk, Elasticsearch, and other analytics platforms, improving fault localization efficiency by over 60%.

6. Cost-Effectiveness Comparison: Balancing Cost and Long-Term Investment

• Initial Procurement Cost: The N9K-C9232C ranges from 15,000to20,000 (depending on configuration), while the N9K-C9332D-GX2B costs 30,000to40,000—nearly double the former.

• Power Consumption and Maintenance: The N9K-C9232C consumes ~45W (full load), vs. ~80W for the N9K-C9332D-GX2B, with long-term power cost differences to consider. However, the N9K-C9332D-GX2B’s expandability (e.g., future 400G line card upgrades) avoids secondary procurement costs over 3-5 years.

• Target Users: Choose the N9K-C9232C for budget-constrained, small-to-medium networks (e.g., enterprise access layers, university labs). For hyperscale data centers, cloud providers, or users needing to support 5-year bandwidth growth, the N9K-C9332D-GX2B offers higher long-term value.

7. Product Advantages: Irreplaceability in Their Respective Fields

• N9K-C9232C: Low cost, low power consumption, easy deployment; flexible port breakout (e.g., splitting 25G ports into 2x10G + 1x5G) adapts to diverse access needs.

• N9K-C9332D-GX2B: Ultra-high bandwidth density (32x100G), hardware-based expandability, and enterprise-grade security, serving as the "central nervous system" of hyperscale data centers; deep integration with Cisco ACI (Application Centric Infrastructure) simplifies multi-tenant network policy management.

8. System Upgrade: Processes, Common Issues, and Solutions

Upgrade Process (Example: NX-OS 10.4(3)F)

1. Pre-Check: Use show version to confirm the current version; cross-reference the Cisco Compatibility List (CCL) to ensure hardware support.

2. Backup Configuration: Execute copy running-config tftp: to export the configuration to an external storage device.

3. Download Firmware: Upload the new firmware to the switch’s Flash via TFTP/SCP.

4. Activate and Verify: Run install all kickstart bootflash:nxos.10.4.3.F.bin to activate; reboot and check show version for confirmation.

Common Issues and Solutions

• Issue 1: Post-upgrade anomalies (e.g., VXLAN tunnel failures).
  Cause: Conflicts between the new version and legacy configuration parameters (e.g., outdated tunnel modes).
  Solution: Roll back to the backup version (request system rollback), review configurations, and update parameters per Cisco documentation.

• Issue 2: Power loss during upgrade causes boot failure.
  Cause: Failure to enable "Maintenance Mode," interrupting firmware writing.
  Solution: Connect via Console, enter Loader mode (press Mode key at boot), initialize Flash with flash_init, and manually load the old firmware to repair.

9. Product Series Use Cases: Optimal Solutions for Scenario-Driven Needs

• N9K-C9232C:

• Enterprise branch data centers: Acts as an access-layer switch connecting servers to the core, supporting 25G server access and 10G uplinks.

• University labs: Provides cost-effective network interconnection for virtualized clusters (e.g., VMware ESXi), supporting vMotion migration.

• Medical imaging centers: Prioritizes PACS system traffic via QoS to avoid network congestion.

• N9K-C9332D-GX2B:

• Hyperscale cloud data centers: Serves as a leaf node in leaf-spine architectures, enabling high-speed 100G server interconnection and cross-rack traffic.

• Financial trading systems: Uses hardware encryption (IPSec) to secure transaction data while meeting microsecond-level low-latency requirements.

• Video cloud platforms: Supports over 100,000 VXLAN tunnels for elastic scheduling of multi-data center video streams.

10. Detailed Pros and Cons Summary
