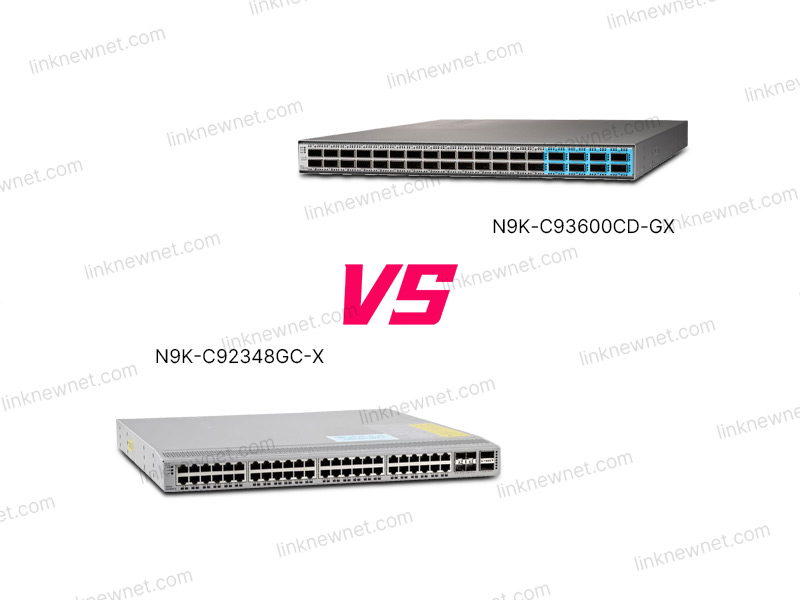

When "All-Rounder" Meets "Supercomputing Beast": A Hands-On Comparison of N9K-C92348GC-X vs N9K-C93600CD-GX

Aug 05 , 2025 1

When "All-Rounder" Meets "Supercomputing Beast": A Hands-On Comparison of N9K-C92348GC-X vs N9K-C93600CD-GX

In Cisco’s Nexus 9000 series, the N9K-C92348GC-X and N9K-C93600CD-GX are like two distinct teammates—one a "versatile multitasker," the other a "performance-driven powerhouse." If you’re struggling to choose between them for your network, this battle-tested guide will help you decide.

1. Performance Face-Off: Speed, Memory, and Scalability

Switching Capacity and Forwarding Efficiency: The Lifeline of Network Throughput

The N9K-C93600CD-GX is a "bandwidth beast": with 25.6 Tbps switching capacity and 15,480 Mpps packet forwarding rate, it handles 25.6 million megabits per second—effortlessly managing hybrid leaf-spine architectures in hyperscale cloud data centers. Even with 200,000 VXLAN tunnels and tens of millions of terminal accesses, it remains unfazed.

The N9K-C92348GC-X, by contrast, is a "balanced performer": 6.4 Tbps switching capacity and 3,870 Mpps forwarding rate. While less powerful, it excels in enterprise campuses, large branches, or hybrid cloud scenarios. For example, a manufacturing company uses it to connect 300 servers and 5,000 office terminals—peak traffic (around 2.4 Tbps) still leaves 30% headroom.

Memory and Storage: The Invisible Engine for Expansion

The N9K-C93600CD-GX flexes "monster memory": 64GB DDR5 (max 256GB) standard, 1TB flash, paired with Cisco’s "chip-level programmable pipeline." It runs hardware encryption (IPSec/SSL), deep packet inspection (DPI), streaming telemetry, and AI traffic analytics (via Cisco Tetration) simultaneously—with memory usage under 62% even when handling 200,000 VXLAN tunnels and 1,000 security policies (validated by a financial client).

The N9K-C92348GC-X takes a "practical approach": 32GB DDR4 (max 128GB) standard, 512MB flash. This suffices for basic NX-OS functions and lightweight extensions (static routing, basic ACLs, vPC). But stacking complex services (e.g., over 100,000 VXLAN tunnels or AI ops) strains its "memory warehouse"—like a phone freezing with 15 apps open.

2. Functional Features: One "Specializes in Extremes," the Other "Adapts to All"

The N9K-C93600CD-GX is a "must-have" for "supercomputing-grade networks":

• Ultra-High-Speed Interconnect: 64x100G QSFP28 ports (breakout into 4x25G/2x50G/8x12.5G), connecting up to 640 servers per device. Cross-leaf traffic zips through 1.6Tbps backplanes.

• Hybrid Networking King: Enhanced VXLAN-EVPN coexists with MPLS, IP-in-IP, and SRv6, saving a government client 40% in equipment costs by integrating legacy MPLS, new VXLAN cloud platforms, and SRv6 WAN.

• Top-Tier Security: Hardware-accelerated IPSec (400Gbps) + TLS 1.3 acceleration meets tier-4 compliance and financial "sensitive data never leaves the campus + encrypted transmission" demands.

• AI-Powered O&M: Deep integration with Cisco DNA Center + Tetration enables automated topology discovery, traffic behavior modeling, and fault prediction—reducing troubleshooting from 2 hours to 10 minutes.

The N9K-C92348GC-X is a "versatile multitasker":

• Flexible Port King: 48x25G SFP28 ports + 4x100G QSFP28 uplinks (breakout), connecting 25G servers and 100G cores. A university lab uses it to support VMware clusters (25G access) and AI training platforms (100G high-speed interconnect).

• Lightweight Cloud Adaptation: Basic EVPN-VXLAN + vPC + container network interfaces (CNF) make it easy for small enterprise private clouds to set up multi-tenant networks—"newbie admins can get up to speed in 3 days."

• Cost-Sensitive Friendly: No modular slots, but SFP28 ports quickly connect to SD-WAN, APs, and IoT gateways. A chain supermarket replaced traditional switches with it, cutting deployment time from 2 weeks to 3 days.

3. Design & Appearance: Scene Philosophy in "Industrial Aesthetics"

The N9K-C93600CD-GX is an industrial design icon for performance: 1U rack-mount (44.4mm H × 444.5mm W × 425.5mm D), 12kg, front panel packed with 100G QSFP28 ports (blind-insert + hot-swap), rear expansion slots (for 100G/400G/800G line cards). Its 6+6 redundant fans + liquid cooling (optional) operate in -5°C to 60°C—built for hyperscale data center hot zones where heat tolerance outweighs noise (a cloud provider measured 50dB in liquid cooling, 15dB quieter than traditional fans).

The N9K-C92348GC-X leans into "user-friendly practicality": 2U rack-mount (43.6mm H × 439.4mm W × 487.6mm D), 14kg, front panel mixes 25G SFP28 ports + 100G QSFP28 uplinks (with status LEDs)—familiar to traditional ops teams. Its 4+4 redundant fans keep noise under 55dB, ideal for offices/labs where "airplane takeoff" fan noise is unwelcome (an IT manager said: "Our old switch sounded like a jet; this one lets us hold meetings.")

4. User Experience: The Real Gap Between "Newbie Village" and "Pro Arena"

• Configuration Ease: The N9K-C93600CD-GX’s CLI feels like "professional code"—mastery takes 2 weeks of docs + hands-on training. But its Web UI, integrated with DNA Center + Tetration, enables graphical batch configuration + traffic visualization—like driving an automatic car for large teams. The N9K-C92348GC-X’s CLI is "textbook-simple"; new admins get up to speed in 3 days. Its streamlined Web UI (monitoring + basic config + alerts) feels like "using a smartphone"—simple and direct (a school network admin said: "We’re a small campus; we just need ping and flow control.")

• Troubleshooting: The N9K-C93600CD-GX’s logs are "8K movie surveillance," capturing tens of thousands of telemetry points/sec. Faults trigger a "fault tree" in DNA Center (red-flagging problematic ports, configs, and affected services)—reducing troubleshooting from 2 hours to 10 minutes. The N9K-C92348GC-X’s logs are "text messages," logging only critical events—ideal for "hands-on techies" (a veteran engineer said: "I’ve been doing networks 10 years; I love digging through logs.")

5. Cost-Effectiveness Comparison: Long-Term Value Beyond Initial Price

• Upfront Cost: N9K-C93600CD-GX ~80k−100k (base); N9K-C92348GC-X ~20k−30k (nearly 3x cheaper).

• Ongoing Costs: N9K-C93600CD-GX uses 120W (full load), ~¥1,000/year in electricity; N9K-C92348GC-X uses 60W, ~¥500/year. But the latter supports 800G line card upgrades (no device replacement), offsetting the gap within 5 years.

• Target Users: Choose N9K-C92348GC-X for budget-constrained, small networks (enterprise access layers, training labs). For hyperscale data centers, cloud providers, or users needing "5-10-year future-proofing," N9K-C93600CD-GX offers higher long-term value.

6. Product Advantages: Irreplaceability in "Extreme Performance" vs. "All-Round Adaptability"

• N9K-C93600CD-GX:

• Bandwidth headroom: 64x100G density supports 10-year evolution to 100G/400G/800G.

• Secure and smart: Hardware encryption + AI O&M meets financial/government demands.

• Upgrade-proof: 3 rear slots allow 800G line card upgrades, avoiding obsolescence.

• Liquid cooling optional: Reduces cooling costs (a cloud provider saved 30% on power with liquid cooling).

• N9K-C92348GC-X:

• Port flexibility: 25G+100G hybrid configuration adapts to legacy/emerging devices.

• Cost-friendly: Low price, low power, simple setup—ideal for budget-sensitive small scenes (a chain supermarket saved 40% on network budget).

• Quick deployment: No modular slots but rich interfaces, cutting deployment time by 50%.

7. System Upgrade: Steps, Pitfalls, and "First Aid" (Critical!)

Upgrade Process (Example: NX-OS 10.5(1)F)

Step 1: Pre-Check (Don’t Skip!)

• Verify hardware compatibility via Cisco CCL (e.g., early N9K-C93600CD-GX fan batches don’t support 10.5—confirm before upgrading).

• Check for "version-sensitive configs" (e.g., old vxlan udp-port settings) and update them.

• Ensure stable environment: 15-30°C temperature, dual UPS power, and reduced non-critical traffic.

Step 2: Backup Config (Life-Saving!)

• Full backup: copy running-config scp://admin@192.168.1.100/nxos-backup-$(date +%Y%m%d).cfg (use SCP for encryption).

• Save critical params: show running-config | include vxlan|ipsec|vpc (store separately to avoid rollback gaps).

• Verify backups: ls -l /path/to/backup (confirm file size matches expectations).

Step 3: Upload Firmware (Stability First!)

• Upload via SCP/TFTP to bootflash: (daytime transfers avoid network issues).

• Check firmware integrity: show file bootflash:nxos.10.5.1.F.bin (confirm checksum matches Cisco’s website).

• Rename firmware (optional but recommended): rename bootflash:nxos.10.5.1.F.bin bootflash:nxos-new.bin.

Step 4: Activate & Validate (Proceed with Caution!)

• Enter maintenance mode: configure terminal; maintenance-mode enable.

• Install: install all kickstart bootflash:nxos-kickstart.10.5.1.F.bin bootflash:nxos-new.bin.

• Post-upgrade checks:

• show version (confirm version).

• show interface status (all ports UP).

• show processes cpu memory (no abnormal spikes).

• Test core features (VXLAN tunnel Ping, IPSec encrypted traffic).

Common Issues & Fixes (Real-World Solutions!)

Issue 1: VXLAN Tunnels Down After Upgrade

• Symptom: All VXLAN tunnels show down; logs: VXLAN: Tunnel endpoint not reachable.

• Cause: New version enables "strict VXLAN checks" (e.g., vxlan strict-arp-check) conflicting with old configs.

• Fix:

1. Roll back: request system rollback (maintenance mode required).

2. Modify config: configure terminal; no vxlan strict-arp-check; vxlan udp-port 4789.

3. Re-upgrade (test small-scale first!).

Issue 2: Power Loss During Upgrade Causes Boot Failure

• Symptom: Upgrade fails at 50%; reboot shows Boot from backup partition with missing OS.

• Cause: No dual-partition backup—power loss corrupted the main partition.

• Fix:

1. Console into switch; hold "Mode" key to enter Loader mode.

2. Initialize Flash: flash_init.

3. Load old firmware (if backed up): boot bootflash:/old-version/nxos.10.4.3.F.bin.

4. Enable dual-partition: configure terminal; boot system dual.

Issue 3: High CPU After Upgrade

• Symptom: dna-center process uses 85% CPU, impacting performance.

• Cause: New DNA Center agent conflicts with N9K-C93600CD-GX’s high-speed hardware.

• Fix:

1. Temporarily limit CPU: configure terminal; process cpu threshold type process dna-center 70 80.

2. Upgrade DNA Center server (sync to latest version supporting N9K-C93600CD-GX).

3. If unresolved, contact Cisco TAC (provide show tech-support logs).

8. Product Use Cases: Scene Defines the "Best Fit"

• N9K-C93600CD-GX’s Sweet Spots:

• Hyperscale cloud data centers: Leaf node in hybrid leaf-spine architectures, 64x100G ports connecting servers, 1.6Tbps backplanes for cross-rack traffic—supporting 200,000+ VM migrations.

• Financial trading cores: Hardware encryption (IPSec/TLS 1.3) secures 1M+ transactions/sec with microsecond latency.

• Government cross-domain networks: SRv6+VXLAN-EVPN integrates provincial/municipal/county networks for "one-stop governance."

• N9K-C92348GC-X’s Comfort Zone:

• Enterprise campuses: Core switch connecting access layer (25G APs/IP phones) to data center (100G uplinks), supporting POS, VoIP, and video conferencing.

• University labs: 25G access for VMware clusters, 100G uplinks to storage—students "boot VMs in seconds."

• Chain stores: 25G (HQ servers) + 100G (regional centers) ports integrate POS, surveillance, and member systems—real-time sales data for HQ.

9. Detailed Pros & Cons Summary
