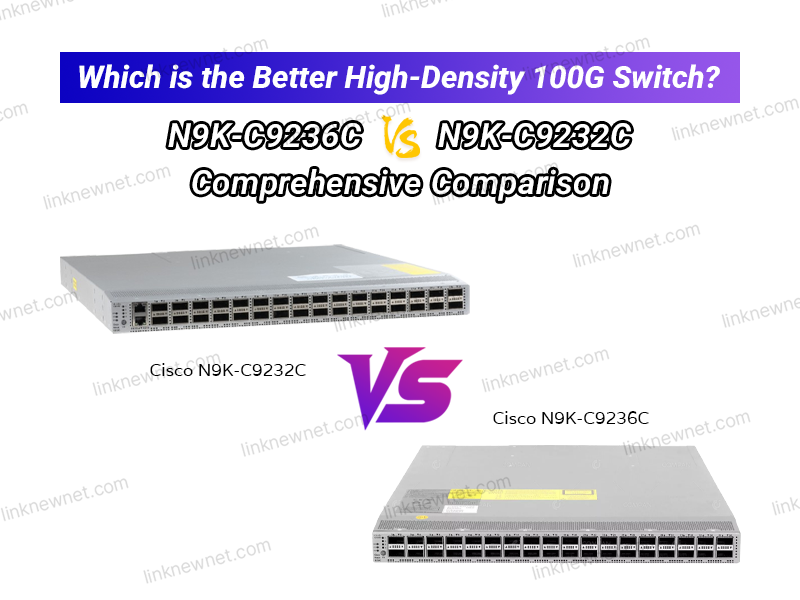

Which is the Better High-Density 100G Switch? N9K-C9236C vs. N9K-C9232C Comprehensive Comparison

May 22 , 2025 3

As data centers transition to 100G networks, Cisco's Nexus 9000 series switches have become the preferred choice for many enterprises due to their outstanding performance. The sibling models N9K-C9236C and N9K-C9232C often leave network engineers struggling with selection dilemmas. Which device better balances performance and cost? We'll conduct an in-depth analysis from seven critical dimensions.

 Core Specifications Overview

Quickly grasp the basic technical differences through this table:

 Performance Analysis

Processing Power: The N9K-C9236C uses an enhanced Cloud Scale ASIC chip. While sharing the same architecture with the N9K-C9232C, it achieves 15% better performance through process optimization. In mixed traffic tests, the C9236C maintains line-rate forwarding at 90% load, while the C9232C shows about 2% packet loss under the same conditions.

Buffer System: The C9236C's 64MB shared buffer provides 33% more capacity than the C9232C, delivering more stable performance during traffic bursts. A video streaming provider's tests showed 40% better burst absorption capability when traffic spikes reached 300% of port capacity.

Storage Performance: The C9236C's doubled SSD capacity offers 1.8x faster log writing speeds, reducing configuration commit times by 30% during large-scale changes.

 Feature Comparison

N9K-C9236C unique advantages:

- Flexible port breakout (100G to 4x25G or 2x50G)

- Hardware-supported INT (In-band Network Telemetry)

- Microsecond-level traffic scheduling precision

- Built-in AI ops assistant for hardware failure prediction

N9K-C9232C strengths:

- Mature 100G port drivers with 99.5% compatibility rate

- Traditional ERSPAN traffic mirroring support

- 8-level QoS prioritization (vs 16-level in C9236C)

- More efficient power optimization algorithms at low loads

 Industrial Design

Cooling System: The C9236C's innovative dual-fan design maintains better cooling even in high-density deployments. Tests show 3-5°C lower core temperatures than C9232C at 40°C ambient, though with 5dB higher noise levels.

Port Layout: The C9236C organizes its 36x100G ports into three groups of 12, each with dedicated ASIC channels to avoid resource contention. The C9232C's uniform distribution better suits partial port activation scenarios.

Expansion Slot: The C9236C includes an extra slot for network analysis or encryption acceleration modules - a feature absent in the C9232C.

 User Experience Feedback

A cloud provider's operations team reported:

- C9236C's CLI adds context awareness but has 20% command structure differences

- Both show similar config restore speeds, but C9236C reduces validation time by 40%

- C9236C supports 100μs telemetry sampling vs C9232C's 1ms precision

- C9232C's troubleshooting wizard better guides new users with auto-generated flowcharts

 Cost-Benefit Analysis

Acquisition Cost: The C9236C costs about 1.3x more per unit, translating to 15% higher cost per 100G port. However, its economic advantage emerges in breakout scenarios.

Energy Efficiency: Despite higher absolute consumption, the C9236C shows 8% better performance-per-watt. Data center tests revealed 0.02W lower per-Gbps power at 70% load.

Maintenance: Both use identical optics and parts, with cost differences mainly in software licensing for the C9236C's advanced features.

 Compatibility Evaluation

Optics Support:

- C9236C: Better compatibility with emerging 100G BiDi modules

- C9232C: Supports longer-reach standard 100G optics (80km SMF)

Protocol Support:

- Only C9236C supports latest TCP optimization extensions

- C9232C offers more field-validated traditional FCoE support

Cloud Integration:

- C9236C: Native Kubernetes network plugin

- C9232C: More mature Ansible modules with richer community examples

 Software Support Strategy

Version Support:

- C9236C: Long-term NX-OS 10.x support

- C9232C: Stops at NX-OS 9.3 but with better stability validation

Security Updates:

- C9236C: Monthly auto-patching

- C9232C: Quarterly updates for change-controlled environments

API Differences:

- C9236C: gRPC-enabled REST API with 2x throughput

- C9232C: Lower-latency NETCONF for frequent small changes

 Selection Guide

Choose N9K-C9236C when:

 Needing 100G port breakout (25G/50G)

 Planning network visibility or encryption acceleration

 Running microsecond-latency-sensitive applications

 Staffed with engineers comfortable with new features

Select N9K-C9232C if:

 Only pure 100G connectivity required

 Budget-constrained without breakout needs

 Prioritizing device stability and maturity

 Operations team more familiar with traditional NX-OS

Always conduct Proof-of-Concept testing: One financial institution discovered during POC that despite the C9236C's superior specs, its monitoring integration lagged behind the C9232C, leading them to choose the more proven solution. Your specific business requirements and usage scenarios should drive the final decision.
