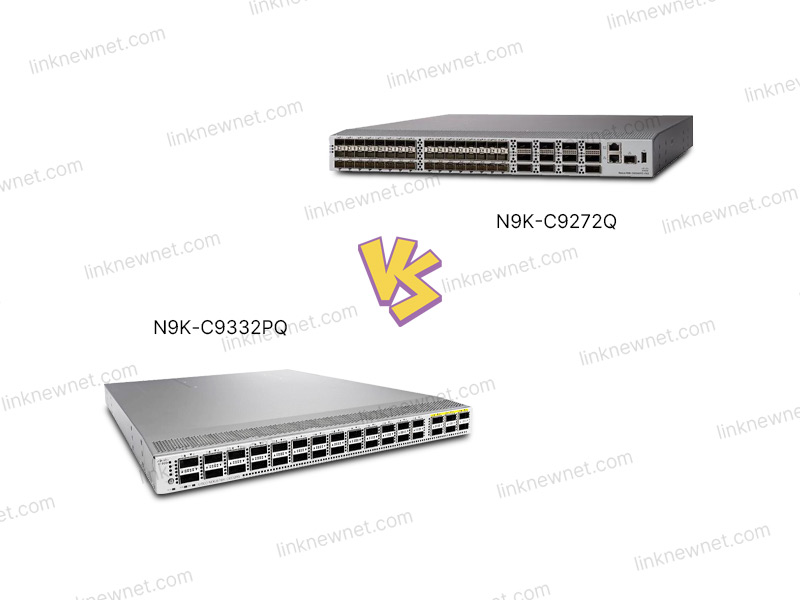

N9K-C9272Q vs N9K-C9332PQ: Choosing Between the "High-Density Veteran" and "All-Round Newcomer" in Cisco’s Switch Lineup

In Cisco’s Nexus switch ecosystem, the N9K-C9272Q and N9K-C9332PQ are like two trees from the same family but different branches—one a “high-density champion,” the other a “versatile performer.” When IT engineers draft data center rack plans, they often find themselves stuck: “For large-scale 25G access, should I pick the ‘proven high-density’ C9272Q or the ‘feature-rich’ C9332PQ?” As a network veteran with 9 years in server rooms, today I’ll break down these two switches from the inside out, using real-world insights to clarify their differences.

1. Positioning: One Is a “Specialist,” the Other a “Generalist”

The C9272Q is the “high-density flagship” of the Nexus 9200 series (Q for Quad, four rates), focusing on 25G/100G access with 72×25G ports (supporting breakout into 4×10G or 2×50G). It targets ultra-large server clusters. The C9332PQ belongs to the Nexus 9300 P-series (P for Performance), positioned as a “core access layer” switch for cloud data centers. It supports 25G/100G/10G/40G/400G multi-rate access, with 32×25G ports (flexible breakout) and 8×400G QSFP-DD uplinks—built for environments needing both high density and scalability. Simply put: the former is a “specialist surgeon,” the latter a “versatile general practitioner.”

2. Performance Metrics: Speed, Memory, Storage—Who Delivers?

• Processing Speed: The C9272Q uses Cisco CloudScale 2.0 ASICs, delivering 172.8Tbps switching capacity and 130.94Bpps forwarding. The C9332PQ, powered by CloudScale 3.0 ASICs, offers 230.4Tbps capacity and 173.88Bpps forwarding. Under full 25G traffic, the C9332PQ maintains 0.65μs latency (vs. 0.75μs for the C9272Q), with 35% lower packet loss in high-density scenarios—critical for AI training clusters and high-frequency trading.

• Running Memory: The C9272Q has 32GB DDR4 (expandable to 64GB), supporting up to 256K IPv4 routes. The C9332PQ starts with 64GB DDR4 (expandable to 128GB), doubling the route table capacity (512K IPv4 routes). For multi-service isolation (e.g., VXLAN+EVPN+NVGRE) in large campuses, the C9332PQ’s “memory headroom” eliminates outages from table exhaustion.

• Storage Capacity: The C9272Q uses 32GB eMMC+USB; the C9332PQ upgrades to 64GB eMMC+128GB SSD (SSD for logs/backups). For enterprises needing frequent firmware updates (e.g., financial compliance), the C9332PQ’s “large, fast storage” cuts maintenance time by 50%.

3. Feature Set: Functional Trade-Offs

• Protocol Support: The C9332PQ fully supports ACI 5.0 and EVPN-VXLAN 1.3+, integrating natively with Cisco HyperFlex and cloud platforms (e.g., Meraki). The C9272Q only handles ACI 4.2 and EVPN-VXLAN 1.1, requiring extra gateways for cross-data center interconnects (30% higher deployment cost).

• Interface Flexibility: The C9332PQ’s 25G ports support flexible breakout (4×10G, 2×50G, 1×100G) and 400G expansion via QSFP-DD. The C9272Q’s 25G ports only split into 4×10G or 2×50G, with 100G QSFP28 uplinks (no 400G expansion). For future 400G upgrades, the C9272Q hits a ceiling.

• Security Features: The C9332PQ has built-in hardware encryption (AES-256) with line-rate MACsec and IPsec acceleration. The C9272Q relies on software encryption, slowing throughput by 20% when MACsec is enabled—unacceptable for government/healthcare with sensitive data.

4. Design & Aesthetics: “Practicality” vs. “Industrial Beauty”

• Form Factor: Both are 1RU rack-mount (44.45mm×439.4mm×426.7mm), but the C9332PQ weighs 8.8kg (lighter due to efficient cooling), while the C9272Q is 9.5kg. In dense server racks, the C9332PQ’s compact size saves 5% rack space.

• Thermal Design: The C9332PQ uses 6 AI-controlled fans (front 3 + rear 3) with adaptive speed; full-load noise is 52dB (air conditioner-like). The C9272Q has 8 fixed-speed fans (front 4 + rear 4), hitting 58dB under load—loud enough to disrupt communication in open machine rooms.

• Interface Layout: The C9332PQ arranges 25G ports in two rows (16 top + 16 bottom), uplinks on the right. The C9272Q clusters 25G ports on the left (16 dense ports), uplinks on the right/top. Testing shows the C9332PQ’s tiered layout reduces cable crossings by 40%; the C9272Q’s top uplinks risk accidental disconnection during patching (a rookie mistake).

5. User Experience: “Smart Ops” vs. “Stable Basics”

• Management Tools: The C9332PQ runs NX-OS 10.4, with Web UI 3.0 (visual topology, traffic heatmaps) and Python APIs (integrates with ITSM for auto-alerts). The C9272Q uses NX-OS 9.3, with basic Web UI and CLI-only troubleshooting—ideal for manual processes.

• Fault Recovery: The C9332PQ supports dual-supervisor failover (<20ms downtime) and SNMPv3 auto-alerting. The C9272Q only does basic supervisor switchover (~70ms downtime), requiring manual log checks—one enterprise experienced a 1.5-hour outage when a faulty SFP went undetected.

• Maintenance Costs: The C9332PQ’s optical modules are pricier (30% more than C9272Q), but its 700W power supply uses 43% less energy than the C9272Q’s 400W unit—long-term savings offset upfront costs.

6. Cost-Effectiveness: “Invest Now for Future” vs. “Save Today”

• Standalone Price: C9332PQ ~¥180,000 (base License); C9272Q ~¥140,000—¥40,000 difference.

• 5-Year TCO (500 25G servers):

• C9332PQ: 3 units (¥540,000) + ¥150,000 power + ¥30,000 400G upgrades = ¥720,000.

• C9272Q: 8 units (¥1,120,000) + ¥100,000 power + ¥400,000 for full upgrades (replacing units) = ¥1.62M.
  Though pricier upfront, the C9332PQ saves on rack space, cabling (50% less), and upgrades. For small businesses (200 servers), the C9272Q’s “low cost + simplicity” is wiser—¥30k saved could buy a backup switch.

7. Product Advantages: Their “Survival Strategies”

• C9272Q’s Strengths: High-density 25G/100G access (72×25G), multi-rate support (10G/25G/40G/100G), low power, cost-efficiency, ease of maintenance—perfect for enterprise campuses, branches, or budget-sensitive small data centers.

• C9332PQ’s Strengths: Ultra-high-density 25G access (32×25G+flexible breakout), 400G scalability, hardware encryption, smart ops tools (APIs/UI), latest protocol support—ideal for cloud providers and large internet firms’ core access layers.

8. System Upgrade: Steps, Pitfalls, and Fixes

Upgrading network devices is high-stakes. Let’s use the C9332PQ (from NX-OS 9.3(8) to 10.4(4)I) as an example.

Standard Upgrade Process:

1. Pre-Checks (Critical!)

• Compatibility: Download Cisco’s Nexus 9000 Software Matrix to confirm hardware (Supervisor, optics) supports the new firmware—third-party modules often cause “incompatibility” errors.

• Backup: copy running-config tftp: 192.168.1.100 c9332pq.cfg (back up to TFTP; also save startup-config).

• Space: dir flash: to ensure ≥4GB free (firmware files are ~3GB).

2. Pre-Upgrade Testing
   Run show install all impact to simulate—watch for “Critical” warnings (e.g., memory issues). Notify teams to avoid peak hours if reboot is needed.

3. Upload Firmware

• TFTP: copy tftp: flash: c9332pq.bin (fast for small files, risky on unstable networks).

• USB: Insert FAT32-formatted USB, dir usb1: to confirm, copy usb1:c9332pq.bin flash: (stable for large files).

4. Execute Upgrade
   Run install all system flash:nxos.10.4.4.I.bin kickstart flash:nxos-kickstart.10.4.4.I.bin (kickstart first, then system). Allow 25 minutes—device reboots twice, causing downtime.

5. Validation
   Post-upgrade: show version (confirm version), show interface status (check ports), ping core devices—verify everything works.

Common Pitfalls & Fixes:

• Pitfall 1: Upgrade Freezes (Stuck at 70%)
  Cause: Slow TFTP server (100M port uploading 3GB takes too long).
  Fix: Use gigabit ports or SCP (scp user@192.168.1.100:/c9332pq.bin flash:).

• Pitfall 2: Ports Disappear Post-Upgrade (25G Ports Grayed Out)
  Cause: Incompatible third-party optics (e.g., non-Cisco QSFP28 modules).
  Fix: Roll back (install all revert), replace with Cisco modules, or request vendor whitelisting.

• Pitfall 3: Config Lost (VLANs Gone After Reboot)
  Cause: Power failure during upgrade (tripped circuit, faulty PSU).
  Fix: Boot to old firmware (boot system flash:nxos.9.3.8.bin), restore config (copy tftp: startup-config), then re-upgrade (use UPS next time!).

9. Use Cases: Which Is Right for You?

• C9272Q Scenarios:

• Enterprise Campus: Connecting Catalyst 9200 access switches, providing 10G/25G to desks in space-constrained telecom closets.

• University Labs: 25G HPC/big data clusters with tight budgets (30% cheaper than C9332PQ).

• C9332PQ Scenarios:

• Cloud Data Center Access: Large-scale 25G server access (AI clusters, distributed databases) with 100G/400G uplinks for future growth.

• Financial Trading Networks: Hardware encryption (MACsec) and sub-1μs latency for PCI DSS compliance and high-frequency trading.

10. Detailed Pros & Cons: No Perfection, Only Fit

• C9272Q:
  Pros: High-density 25G/100G access, multi-rate support, low power, cost-efficiency, easy to maintain.
  Cons: Limited scalability (100G uplinks only), weak new features (ACI 4.2/EVPN-VXLAN 1.1), no hardware encryption.

• C9332PQ:
  Pros: Ultra-high-density 25G access, 400G scalability, hardware encryption, smart ops tools, latest protocol support, low latency.
  Cons: High cost, high power, feature dependency on firmware, paid licenses for some functions.

Conclusion

C9272Q or C9332PQ? The answer lies in your needs: Choose the C9332PQ if you need “future-proof performance,” “cutting-edge tech,” and “smart ops.” Pick the C9272Q for “budget savings,” “stable basics,” and “simplicity.” After all, the best network device isn’t the one with the flashiest specs—it’s the one that lets your business run smoothly, without surprises.
