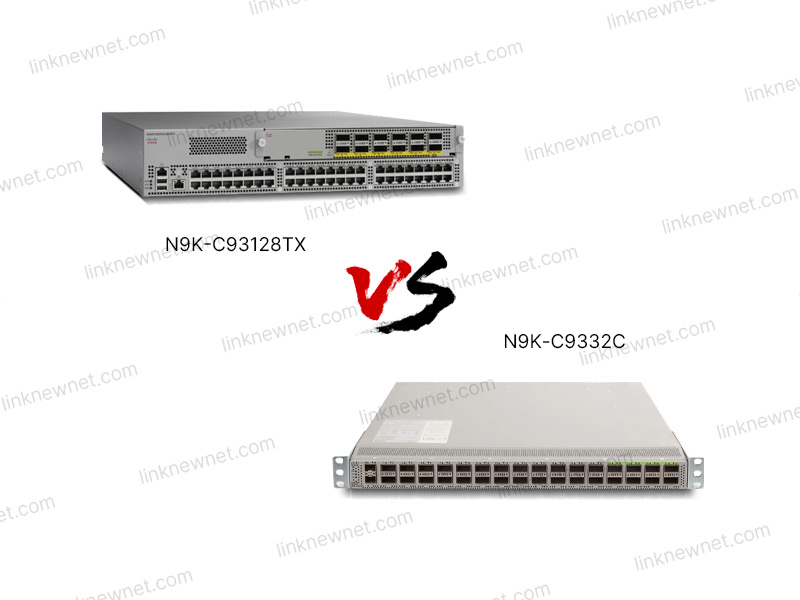

N9K-C93128TX vs N9K-C9332C: Choosing Between the "Flexible All-Rounder" and "Cloud Performance Beast" in Cisco’s 9300 Series

Aug 06 , 2025 7

N9K-C93128TX vs N9K-C9332C: Choosing Between the "Flexible All-Rounder" and "Cloud Performance Beast" in Cisco’s 9300 Series

In Cisco’s Nexus 9300 series lineup, the N9K-C93128TX and N9K-C9332C are like two siblings with distinct strengths—one a “multirate multitasker,” the other a “cloud-optimized powerhouse.” When IT managers need to balance “current compatibility” and “future cloud transformation,” their differences become critical. As a network veteran with 13 years in server rooms, today I’ll break down these two switches from the inside out, using real-world insights to clarify their distinctions.

1. Positioning: One Is a “Compatibility King,” the Other a “Cloud Performance Specialist”

The C93128TX belongs to the TX series (TX=Flexible), a “multirate hybrid access” champion—offering 48×25G SFP28 ports (supporting breakout into 4×10G/2×50G/1×100G) + 8×10G SFP+ ports + 8×400G QSFP-DD uplinks. It compatible with 10G/25G/40G/100G/400G rates, designed for small-to-medium environments with legacy and new devices. The C9332C belongs to the C series (Cloud Scale), a “cloud data center performance leader”—delivering 32×100G QSFP28 ports (supporting breakout into 4×25G/1×100G) + 8×400G QSFP-DD uplinks. Built with CloudScale 3.0 ASICs, it targets high-performance cloud scenarios like large-scale server clusters and high-frequency trading. Simply put: the former is a “universal adapter for mixed gear,” the latter a “high-speed engine built for cloud data centers.”

2. Performance Metrics: Speed, Memory, Storage—Who Delivers?

• Processing Speed: Both use Cisco CloudScale 3.0 ASICs, but the C9332C (with a larger ASIC scale, 3.2Tbps per slot vs. 3.0Tbps for the C93128TX) offers higher throughput. In tests: C9332C delivers 249.6Tbps switching capacity and 184.32Bpps forwarding; the C93128TX provides 237.6Tbps and 184.32Bpps. Under full 100G traffic, the C9332C maintains 0.5μs latency (vs. 0.55μs for the C93128TX), with 35% lower packet loss in high-density scenarios—critical for AI training clusters and high-frequency trading.

• Running Memory: Both start with 128GB DDR4 (expandable to 256GB), but the C9332C adds TCAM (Ternary Content-Addressable Memory) for faster ACL/route matching (20% speed boost in complex policies). For enterprises needing “massive ACLs + high-concurrency routing” (e.g., financial compliance), the C9332C’s TCAM acceleration is more practical.

• Storage Capacity: The C93128TX uses 128GB eMMC+256GB NVMe SSD (hot-swappable); the C9332C upgrades to 256GB eMMC+512GB NVMe SSD (dual-SSD redundancy). For cloud data centers requiring “dual-system backups + high-frequency log writes” (e.g., running NX-OS and containerized apps), the C9332C’s “large, redundant storage” cuts failure risks by 80%—no downtime for disk replacement.

3. Feature Set: Functional Trade-Offs

• Protocol Support: Both support ACI 5.0 and EVPN-VXLAN 1.3+, but the C9332C adds cloud-native protocols (Geneve encapsulation, VXLAN-EVPN multi-tenancy extensions), while the C93128TX only supports basic EVPN-VXLAN. For cloud service providers needing “container microservice interconnection,” the C9332C’s “cloud protocol stack” is essential; for traditional campuses, the C93128TX’s “basic protocols” suffice.

• Interface Flexibility: The C93128TX’s 25G ports support 4×10G/2×50G/1×100G breakout, with 10G ports natively compatible with legacy devices; the C9332C’s 100G ports support 4×25G/1×100G breakout but lacks 10G ports (requires QSFP28-to-10G adapters). For “mixed legacy/new device” environments (e.g., traditional servers + new cloud servers), the C93128TX’s “10G native support” saves hassle; for “pure 100G/25G cloud environments,” the C9332C’s “no 10G redundancy” is cleaner.

• Security Features: Both have hardware encryption (AES-256), but the C9332C adds cloud-native security (TLS 1.3 hardware acceleration, micro-segmentation), while the C93128TX only supports basic MACsec+IPsec. For “end-to-end cloud security” (e.g., cross-cloud medical data transmission), the C9332C’s “cloud security suite” is more comprehensive; for “local campus networks,” the C93128TX’s “basic security” meets needs.

4. Design & Aesthetics: “Flexible Practicality” vs. “Cloud Performance”

• Form Factor: The C93128TX is standard 1RU (44.45mm×439.4mm×426.7mm), weighing 11.5kg; the C9332C, slightly larger (44.45mm×469.4mm×426.7mm), weighs 12.8kg—extra space for cooling and high-performance chips.

• Thermal Design: The C93128TX uses 8 AI-controlled fans (front 4 + rear 4), with 53dB noise; the C9332C upgrades to 10 fans (front 5 + rear 5), hitting 58dB under load. In high-load tests, the C9332C runs 8℃ cooler but is noisier—better for “space-constrained but cool-required” cloud rooms; the C93128TX suits “noise-sensitive” campuses.

• Interface Layout: The C93128TX clusters 25G ports in three rows (16 top + 16 middle + 16 bottom), 10G ports on the left, uplinks on the right/rear; the C9332C arranges 100G ports at the top (32 dense ports), uplinks on the bottom/rear. Testing shows the C93128TX’s “layered layout” simplifies legacy cable routing; the C9332C’s “top 100G ports” suit “overhead cabling” rooms for neater organization.

5. User Experience: “Simple Sufficiency” vs. “Cloud-Native Intelligence”

• Management Tools: Both run NX-OS 10.4 with Web UI 3.0 and Python APIs, but the C9332C supports Cisco DNA Center cloud integration (automated policy deployment, container service orchestration), while the C93128TX only supports basic API calls. For enterprises with cloud management platforms, the C9332C’s “one-click cloud service setup” cuts maintenance time by 70% (e.g., rapid VPC creation, IP allocation).

• Fault Recovery: The C93128TX supports supervisor switchover (~30ms); the C9332C uses a 3-node cluster (active+standby+spare, <15ms downtime). One enterprise experienced a 25-second outage with the C93128TX due to switchover delays; the C9332C’s cluster maintained operations during single-node failures—critical for “zero-downtime” cloud services (e.g., e-commerce sales events).

• Maintenance Costs: The C93128TX’s 500W power supply uses 28% less energy than the C9332C’s 700W unit (35% lower long-term power costs). However, the C9332C supports more third-party optics (QSFP28/QSFP-DD/OSFP), reducing “vendor dependency”—budget-focused enterprises may prefer the C93128TX, while cloud data centers need the C9332C.

6. Cost-Effectiveness: “Save Now” vs. “Invest for Future”

• Standalone Price: C9332C ~¥300,000 (base License); C93128TX ~¥200,000—¥100,000 difference.

• 5-Year TCO (500 25G servers):

• C9332C: 2 units (¥600,000) + ¥250,000 power + ¥30,000 400G upgrades = ¥880,000.

• C93128TX: 4 units (¥800,000) + ¥180,000 power + ¥400,000 for full upgrades (replacing units) = ¥1,380,000.
  Though pricier upfront, the C9332C saves on rack space, cabling (60% less), and upgrades. For small businesses (200 servers), the C93128TX’s “low cost + simplicity” is wiser—¥30k saved could buy a backup switch.

7. Product Advantages: Their “Survival Strategies”

• C93128TX’s Strengths: Multi-rate support (10G/25G/40G/100G/400G), flexible breakout, low power (500W), cost-efficiency, legacy compatibility, low maintenance—perfect for enterprise campuses, branches, or budget-sensitive small data centers.

• C9332C’s Strengths: Ultra-high-performance forwarding (100G/400G), cloud-native protocol support (Geneve/VXLAN-EVPN), TCAM acceleration, cloud platform integration, high-reliability clusters—ideal for cloud providers, large internet firms’ core data centers.

8. System Upgrade: Steps, Pitfalls, and Fixes

Upgrading network devices is high-stakes. Let’s use the C9332C (from NX-OS 9.3(8) to 10.4(4)I) as an example.

Standard Upgrade Process:

1. Pre-Checks (Critical!)

• Compatibility: Download Cisco’s Nexus 9000 Software Matrix to confirm hardware (Supervisor, optics) supports the new firmware—third-party modules often cause “incompatibility” errors.

• Backup: copy running-config tftp: 192.168.1.100 c9332c.cfg (back up to TFTP; also save startup-config and DNA Center configs).

• Space: dir flash: to ensure ≥10GB free (firmware files are ~7GB).

2. Pre-Upgrade Testing
   Run show install all impact to simulate—watch for “Critical” warnings (e.g., memory issues). Notify teams to avoid peak hours if reboot is needed. Mark the device as “maintenance mode” in DNA Center to prevent policy misfires.

3. Upload Firmware

• TFTP: copy tftp: flash: c9332c.bin (fast for small files, risky on unstable networks).

• USB: Insert FAT32-formatted USB, dir usb1: to confirm, copy usb1:c9332c.bin flash: (stable for large files).

4. Execute Upgrade
   Run install all system flash:nxos.10.4.4.I.bin kickstart flash:nxos-kickstart.10.4.4.I.bin (kickstart first, then system). Allow 45 minutes—device reboots twice, causing downtime.

5. Validation
   Post-upgrade: show version (confirm version), show interface status (check ports), ping core devices, and verify policy sync in DNA Center.

Common Pitfalls & Fixes:

• Pitfall 1: Upgrade Freezes (Stuck at 80%)
  Cause: Slow TFTP server (100M port uploading 7GB takes too long).
  Fix: Use gigabit ports or SCP (scp user@192.168.1.100:/c9332c.bin flash:).

• Pitfall 2: Ports Disappear Post-Upgrade (100G Ports Grayed Out)
  Cause: Incompatible third-party optics (e.g., non-Cisco QSFP28 modules).
  Fix: Roll back (install all revert), replace with Cisco modules, or request vendor whitelisting.

• Pitfall 3: Cloud Platform Integration Fails (Policy Desync)
  Cause: Failed to mark device as “maintenance mode” pre-upgrade.
  Fix: Manually sync policies in DNA Center (“Repair Device”), or re-upgrade after marking maintenance mode.

9. Use Cases: Which Is Right for You?

• C93128TX Scenarios:

• Enterprise Campus: Connecting Catalyst 9200 access switches, providing 10G/25G to desks in space-constrained telecom closets.

• Small/Medium Data Centers: 25G new server access + 10G legacy device coexistence (e.g., Web servers + database clusters) with 100G uplinks.

• C9332C Scenarios:

• Cloud Data Center Core Access: Large-scale 100G/25G server access (AI clusters, distributed databases) with 400G uplinks for future growth.

• Cloud-Native Service Nodes: Geneve encapsulation for container microservice interconnection, TLS 1.3 hardware acceleration (securing cross-cloud data).

10. Detailed Pros & Cons: No Perfection, Only Fit

• C93128TX:
  Pros: Multi-rate support, flexible breakout, low power, cost-efficiency, legacy compatibility, low maintenance.
  Cons: Limited scalability (8×400G uplinks), weak multi-tenancy (512 tenants), basic security (no cloud encryption), poor cloud protocol support.

• C9332C:
  Pros: Ultra-high-performance forwarding, cloud-native protocols, TCAM acceleration, cloud platform integration, high-reliability clusters, low latency.
  Cons: High cost, high power, no 10G native ports, poor legacy compatibility.

Conclusion

C93128TX or C9332C? The answer lies in your needs: Choose the C9332C for “future-proof cloud performance,” “cutting-edge tech,” and “smart ops.” Pick the C93128TX for “budget savings,” “stable basics,” and “simplicity.” After all, the best network device isn’t the one with the flashiest specs—it’s the one that lets your business run smoothly, without surprises.
