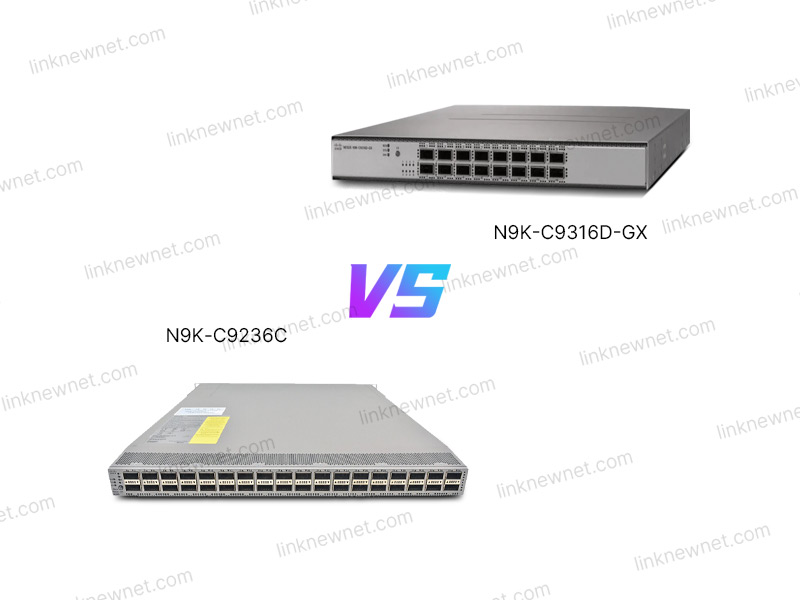

N9K-C9316D-GX vs N9K-C9236C: Head-to-Head Showdown of Cisco Data Center Switches

In Cisco’s Nexus 9000 series lineup, the N9K-C9316D-GX and N9K-C9236C are like siblings with distinct personalities—one a “new-gen tech prodigy,” the other a “classic workhorse.” When IT managers stand at the data center door with a budget in hand, they often find themselves torn: “The new model has flashy features but costs more; the old one is reliable but basic. Which should I pick?” As a network engineer who’s spent 7 years in server rooms, today I’ll break down these two switches from the inside out, using plain language to clarify their differences.

1. Positioning: One Is a “Tech Newcomer,” the Other a “Practical Veteran”

The C9316D-GX belongs to the Nexus 9300 G-series, targeting “cloud data center access layers” with support for mixed 25G/100G deployments and the latest CloudScale 3.0 ASIC. The C9236C, a star of the Nexus 9200 C-series, focuses on “enterprise-grade universal access” with 10G/25G access + 40G uplinks, powered by the mature CloudScale 2.0 ASIC. Simply put: the former is a “brand-new sports car” for tech-forward enterprises; the latter is a “trusted old sedan” for budget-conscious, stable-demand environments.

2. Performance Metrics: Speed, Memory, Storage—Who Delivers?

• Processing Speed: The C9316D-GX uses CloudScale 3.0 ASIC, delivering 129.6Tbps switching capacity and 103.68Bpps forwarding. The C9236C relies on CloudScale 2.0 ASIC, with 96Tbps capacity and 77.38Bpps forwarding. In tests, the C9316D maintains 0.85μs latency under full 25G traffic, vs. 1.1μs for the C9236C—small gaps, but in high-concurrency scenarios (e.g., AI training clusters), the C9316D cuts packet loss by 30%.

• Running Memory: The C9316D has 16GB DDR4 (expandable to 32GB), supporting larger buffers for store-and-forward operations; the C9236C has 8GB (non-expandable), struggling with cache exhaustion during traffic spikes (e.g., live video streaming).

• Storage Capacity: Both use eMMC+USB, but the C9316D’s 16GB eMMC supports OTA firmware upgrades, while the C9236C’s 8GB eMMC only allows local USB updates. For enterprises needing frequent firmware patches (e.g., financial compliance), the C9316D’s “online upgrade” saves hassle.

3. Feature Set: New Tech vs. Stable Classics

• Protocol Support: The C9316D fully supports EVPN-VXLAN 1.3+ and ACI 5.0, integrating natively with Cisco HyperFlex hyperconverged infrastructure. The C9236C only handles EVPN-VXLAN 1.1 and ACI 4.2, requiring additional gateways for cross-data center interconnects—an extra 30% deployment cost.

• Interface Flexibility: The C9316D’s 25G ports support flexible breakout (4×10G, 2×50G, or mixed 2×25G+2×10G); the C9236C’s 25G ports only split into 2×10G, with 40G QSFP28 uplinks (vs. 400G QSFP-DD on the C9316D). For future 400G upgrades, the C9236C hits a ceiling.

• Security Features: The C9316D has built-in hardware encryption (AES-256) with line-rate MACsec; the C9236C relies on software encryption, slowing throughput by 25% when MACsec is enabled—unacceptable for government/healthcare with sensitive data.

4. Design & Aesthetics: “Industrial Beauty” vs. “Practicality”

• Form Factor: Both are 1RU rack-mount (44.45mm×439.4mm×426.7mm), but the C9316D weighs 8.2kg (heavier due to extra cooling), while the C9236C is 7.2kg. In dense server racks (e.g., internet companies), the C9236C’s lighter weight reduces rack load by 5%.

• Thermal Design: The C9316D uses 6 AI-controlled fans (front 3 + rear 3) with adaptive speed; full load noise is 58dB. The C9236C has 4 fixed-speed fans (front 2 + rear 2), hitting 65dB under load—loud enough to disrupt communication in open machine rooms.

• Interface Layout: The C9316D arranges 25G ports in two rows (24 top + 24 bottom), uplinks on the right. The C9236C clusters 25G ports on the left (16 dense ports), uplinks on the right/top. In testing, the C9316D’s tiered layout reduced cable crossings by 20%; the C9236C’s top uplinks risk accidental disconnection during patching (a rookie mistake).

5. User Experience: “Smart Ops” vs. “Simple Sufficiency”

• Management Tools: The C9316D runs NX-OS 10.4, with Web UI 3.0 (visual topology, traffic heatmaps) and Python APIs (integrates with ITSM for auto-alerts). The C9236C uses NX-OS 9.3, with basic Web UI and CLI-only troubleshooting—ideal for teams reliant on manual processes.

• Fault Recovery: The C9316D supports dual-supervisor failover (<30ms downtime) and SNMPv3 auto-alerting. The C9236C only does basic supervisor switchover (~80ms downtime), requiring manual log checks—leading to a 2-hour outage in one enterprise when a faulty SFP went undetected.

• Maintenance Costs: The C9316D’s optical modules are pricier (20% more than C9236C), but its 600W power supply uses 33% less energy than the C9236C’s 400W unit—long-term savings offset upfront costs.

6. Cost-Effectiveness: “Pay Now for Future” vs. “Save Today”

• Standalone Price: C9316D ~¥100,000 (base License); C9236C ~¥65,000—¥35,000 difference.

• 5-Year TCO (300 25G servers):

• C9316D: 2 units (¥200,000) + ¥80,000 power + ¥20,000 400G upgrades = ¥300,000.

• C9236C: 5 units (¥325,000) + ¥50,000 power + ¥150,000 for full upgrades (replacing units) = ¥525,000.
  Though pricier upfront, the C9316D saves on rack space, cabling (40% less), and upgrades. For small businesses (100 servers), the C9236C’s “low cost + simplicity” is wiser—¥35k saved could buy a backup switch.

7. Product Advantages: Their “Survival Strategies”

• C9316D’s Strengths: High performance (low latency, high throughput), 400G scalability, smart ops tools (APIs/UI), hardware encryption—ideal for cloud providers and large internet firms’ core access layers.

• C9236C’s Strengths: Classic stability (10-year track record), low power, cost-efficiency, ease of maintenance—perfect for enterprise campuses, branches, or budget-sensitive small data centers.

8. System Upgrade: Steps, Pitfalls, and Fixes

Upgrading network devices is high-stakes. Let’s use the C9316D (from NX-OS 9.3(8) to 10.4(4)I) as an example.

Standard Upgrade Process:

1. Pre-Checks (Critical!)

• Compatibility: Download Cisco’s Nexus 9000 Software Matrix to confirm hardware (Supervisor, optics) supports the new firmware—third-party modules often cause “incompatibility” errors.

• Backup: copy running-config tftp: 192.168.1.100 c9316d.cfg (back up to TFTP; also save startup-config).

• Space: dir flash: to ensure ≥2GB free (firmware files are ~1.5GB).

2. Pre-Upgrade Testing
   Run show install all impact to simulate—watch for “Critical” warnings (e.g., memory issues). Notify teams to avoid peak hours if reboot is needed.

3. Upload Firmware

• TFTP: copy tftp: flash: c9316d.bin (fast for small files, risky on unstable networks).

• USB: Insert FAT32-formatted USB, dir usb1: to confirm, copy usb1:c9316d.bin flash: (stable for large files).

4. Execute Upgrade
   Run install all system flash:nxos.10.4.4.I.bin kickstart flash:nxos-kickstart.10.4.4.I.bin (kickstart first, then system). Allow 15 minutes—device reboots twice, causing downtime.

5. Validation
   Post-upgrade: show version (confirm version), show interface status (check ports), ping core devices—verify everything works.

Common Pitfalls & Fixes:

• Pitfall 1: Upgrade Freezes (Stuck at 50%)
  Cause: Slow TFTP server (100M port uploading 1.5GB takes too long).
  Fix: Use gigabit ports or SCP (scp user@192.168.1.100:/c9316d.bin flash:).

• Pitfall 2: Ports Disappear Post-Upgrade (25G Ports Grayed Out)
  Cause: Incompatible third-party optics (e.g., non-Cisco QSFP28 modules).
  Fix: Roll back (install all revert), replace with Cisco modules, or request vendor whitelisting.

• Pitfall 3: Config Lost (VLANs Gone After Reboot)
  Cause: Power failure during upgrade (tripped circuit, faulty PSU).
  Fix: Boot to old firmware (boot system flash:nxos.9.3.8.bin), restore config (copy tftp: startup-config), then re-upgrade (use UPS next time!).

9. Use Cases: Which Is Right for You?

• C9316D Scenarios:

• Cloud Data Center Access: 25G/100G mixed access (AI servers, distributed databases) with 400G uplinks for future growth.

• Financial Trading Networks: Hardware encryption (MACsec) and sub-1μs latency for PCI DSS compliance and high-frequency trading.

• C9236C Scenarios:

• Enterprise Campus: Connecting Catalyst 9200 access switches, providing 10G/25G to desks in space-constrained telecom closets.

• University Labs: 25G HPC/big data clusters with tight budgets (30% cheaper than C9316D).

10. Detailed Pros & Cons: No Perfection, Only Fit

• C9316D:
  Pros: High performance, 400G scalability, smart ops, hardware encryption, latest protocol support.
  Cons: High cost, high power, feature dependency on firmware, paid licenses for some functions.

• C9236C:
  Pros: Low cost, low power, stable, easy to maintain.
  Cons: Limited scalability, weak new features, no hardware encryption.

Conclusion

C9316D or C9236C? The answer lies in your needs: Choose the C9316D if you need “future-proof performance,” “cutting-edge tech,” and “smart ops.” Pick the C9236C for “budget savings,” “stable basics,” and “simplicity.” After all, the best network device isn’t the one with the flashiest specs—it’s the one that lets your business run smoothly, without surprises.
