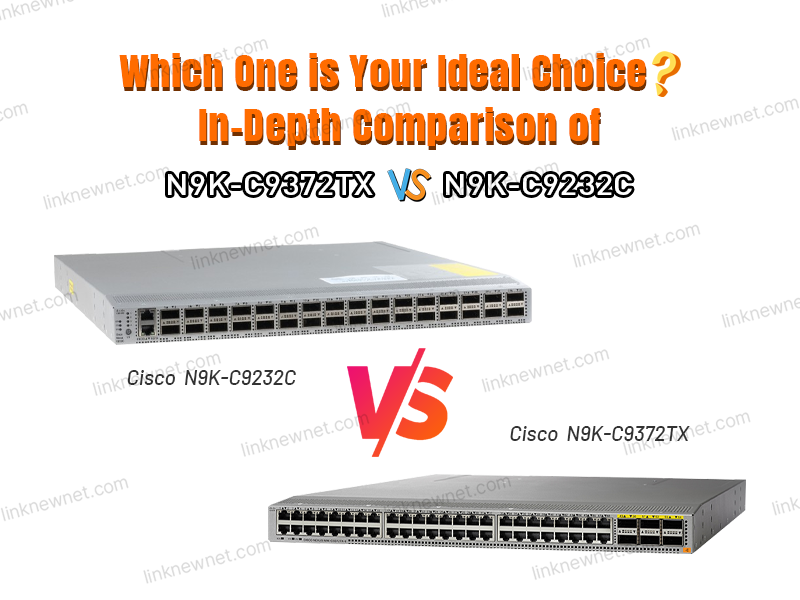

Which One is Your Ideal Choice? In-Depth Comparison of N9K-C9372TX vs. N9K-C9232C

May 22 , 2025 2

In today's rapidly evolving networking equipment market, Cisco's Nexus 9000 series switches have consistently drawn significant attention. Among them, the N9K-C9372TX and N9K-C9232C models often leave users grappling with selection dilemmas. Which one truly meets your requirements? Let's uncover the answer through a comprehensive comparison.

 Core Specifications Comparison

First, let's examine the fundamental technical parameters of both devices through a concise table:

 Performance Analysis

In terms of processing power, the N9K-C9232C clearly dominates with its 6.4Tbps switching capacity and 2.4Bpps forwarding rate—double that of the N9K-C9372TX. This disparity stems from their different design purposes: the C9232C is engineered for high-density 100G environments, while the C9372TX suits 10G/40G hybrid deployment scenarios.

Regarding memory and storage, the C9232C again doubles the specifications with 64GB memory and 32GB SSD, enabling it to handle more complex routing tables and larger buffers—particularly advantageous in multi-tenant environments. However, for small-to-medium businesses or branch offices, the C9372TX's 32GB memory proves entirely sufficient.

 Feature Set Showdown

The N9K-C9372TX shines with its flexible port configuration—48x10G ports meet most enterprises' current bandwidth needs, while 6x40G uplinks provide room for future expansion. It supports overlay technologies like VXLAN and OTV, making it ideal for virtualized environments.

The N9K-C9232C focuses on high-density 100G applications, supporting more advanced traffic engineering and granular QoS policies. Its standout features include Segment Routing and EVPN support, providing a solid foundation for software-defined networking (SDN) deployments. For users planning a 400G upgrade path, the C9232C represents the more future-proof choice.

 Design and Form Factor

Both devices share identical chassis dimensions (443×610×87 mm) and similar thermal designs, supporting front-to-back and side-to-side airflow modes. The most visible difference lies in port layouts—the C9372TX's front panel is densely populated with SFP+ and QSFP+ ports, while the C9232C adopts a cleaner 32xQSFP28 configuration.

Weight-wise, the C9232C is slightly heavier due to higher-density components (empty: ~18.6kg, fully loaded: ~22.7kg) compared to the C9372TX (empty: ~16.8kg, fully loaded: ~20.4kg). Both support standard rack mounting with identical installation processes.

 User Experience Evaluation

In practical use, the N9K-C9372TX offers a gentler learning curve due to its moderate configuration and familiar 10G environment. Its CLI interface resembles traditional Cisco switches, allowing experienced network engineers to quickly adapt. Its power efficiency and noise control also make it more office-environment friendly.

The N9K-C9232C demands greater expertise to fully utilize its capabilities, especially when tuning 100G links and deploying advanced features. Some users report noticeably increased fan noise under heavy loads, making it better suited for data center environments. However, its modular NX-OS operating system provides more flexible customization options.

 Pricing Considerations

Price remains a critical factor for many buyers. Market research indicates the N9K-C9372TX typically costs about 60-70% of the C9232C's price, making it more attractive for budget-conscious projects. However, from a total cost of ownership (TCO) perspective, the C9232C's high-density nature might prove more economical in certain scenarios—for instance, when numerous 100G ports are needed, the C9232C saves rack space and cabling costs.

Note that both devices support Cisco's flexible subscription licensing, but the C9232C generally requires higher-tier licenses to unlock all features—a hidden cost that should be factored into decisions.

 Power Efficiency Comparison

Power consumption differs significantly: the N9K-C9372TX draws 350W (typical)/500W (max), while the N9K-C9232C requires 450W (typical)/700W (max)—primarily due to 100G ports' higher power demands.

However, when examining energy efficiency (throughput per watt), the C9232C performs better. Tests show the C9232C handles ~14.2Gbps per watt at full load versus the C9372TX's ~10.3Gbps. For large data centers, this difference could translate to substantial electricity cost savings.

 Compatibility and Expandability

Both switches integrate with Cisco ACI (Application Centric Infrastructure), but subtle compatibility differences exist:

- N9K-C9372TX offers better compatibility with legacy 1G/10G equipment, particularly when using older SFP modules

- N9K-C9232C provides superior support for emerging 25G/50G breakout modes and future 400G adapters

Regarding expandability, the C9232C clearly leads with its backplane bandwidth headroom, while the C9372TX's architecture resembles fixed-configuration switches with limited expansion options.

 Software Support Breakdown

Cisco provides unified NX-OS for both devices, but version support policies differ:

- C9372TX supports older NX-OS versions (from 7.0(3)I2), ideal for stability-focused environments

- C9232C requires newer NX-OS (recommended 9.2(1)+) to unlock full potential, but gains access to more modern features

Both receive at least 5 years of critical security patches. Notably, the C9232C includes enhanced cloud integration features like native Kubernetes networking plugin support.

 Final Recommendations

After thorough analysis, we recommend:

Choose N9K-C9372TX if:

- Your current needs focus on 10G connectivity with 40G uplinks

- Budget is constrained with no plans for large-scale 100G upgrades within 3-5 years

- Your team is more familiar with traditional Cisco switch management

- Deployment environments are sensitive to noise and power consumption

Choose N9K-C9232C if:

- You require immediate high-density 100G infrastructure

- Future 400G network evolution is planned

- You operate complex multi-tenant or cloud-native environments

- Your team possesses expertise in managing high-end switches

Ultimately, there's no universally "better" option—only what's "more suitable" for your specific situation. Understanding your business requirements, growth projections, and technology roadmap is key to making the right choice. In the fast-changing networking landscape, today's "adequate" solution might become tomorrow's bottleneck. A moderately forward-looking approach often yields longer equipment lifecycles and better ROI.
