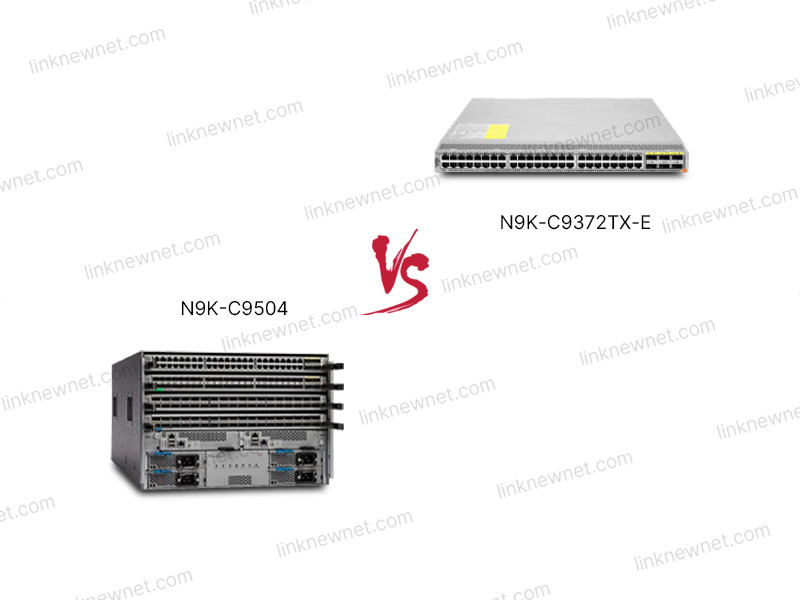

Access vs Core: N9K-C9504 vs N9K-C9372TX-E, the "Role Play" of Modular Core and High-Density Access

Aug 08 , 2025 5

1. Access vs Core: N9K-C9504 vs N9K-C9372TX-E, the "Role Play" of Modular Core and High-Density Access

In Cisco’s Nexus 9000 family, the N9K-C9504 (hereinafter "9504") and N9K-C9372TX-E (hereinafter "9372TX") are like "task-specific partners"—the former a "versatile all-rounder" for modular core switches, the latter a "high-density specialist" for access-layer deployments. This article breaks down their real-world differences across 15 dimensions to help you look beyond spec sheets.

2. Performance Strengths: "Big Heart" of the Core vs "Multitool" of the Access Layer

Despite belonging to the same Nexus 9000 series, their distinct roles lead to significant hardware differences:

• Processing Speed:

• 9504: Modular design with Cloud Scale ASIC (CSA), 400Gbps per-slot bandwidth, 25.6Tbps total switching capacity (8 slots fully populated), line-rate forwarding; VXLAN latency 0.6μs, ideal for cross-data center interconnects.

• 9372TX: Fixed configuration with simplified ASIC, 100Gbps per-slot bandwidth (but higher port density), 1.6Tbps total capacity; VXLAN latency 0.8μs (slightly higher but sufficient for enterprise access).

• Running Memory:

• 9504: 32GB DDR4 (expandable to 256GB), supporting large flow tables (e.g., 2 million ACL rules);

• 9372TX: 16GB DDR3 (non-expandable), 800,000 flow entries, suited for small-to-medium traffic (e.g., office endpoints).

• Storage Capacity:

• 9504: 16GB eMMC (expandable to 64GB), USB3.0 external drives (max 2TB) for logs/system images;

• 9372TX: No onboard storage, relies on USB2.0 (max 500GB) for OS loading, slower boot (20% delay) but lower cost.

3. Feature Sets: "Swiss Army Knife" of the Core vs "Vertical Specialist" of the Access Layer

• 9504:

• Modular expansion (mix-and-match line cards, service cards, expansion cards), supporting 400G line cards, firewall cards, and load balancers;

• Deep integration with ACI, EVPN-VXLAN, SRv6, and micro-segmentation, ideal for hybrid cloud environments.

• 9372TX:

• Fixed configuration: 48×25G SFP28 ports + 4×100G QSFP28 uplinks, optimized for "high-density access";

• Native PoE++ (30W per port, 720W max), powering IP phones, APs, and cameras in one cable;

• Basic L2 features only (VLAN, STP), no hardware encryption/QoS, suited for simple "endpoint-access" networks.

4. Design & Appearance: "Rack Giant" vs "Desk-Friendly"

• 9504:

• Dimensions: 2RU × 88mm width × 680mm depth (25kg), front panel with 48×10G SFP+ + 4×400G QSFP-DD uplinks;

• Redundancy: Dual power supplies (1+1) + dual fans (N+1), hot-swappable, requiring 600mm-deep racks;

• Cooling: Bottom-to-top airflow, dependent on data center precision cooling.

• 9372TX:

• Dimensions: 1RU × 44mm width × 430mm depth (8kg), front panel with 48×25G SFP28 + 4×100G QSFP28 uplinks (3× port density of 9504);

• Redundancy: Optional single power supply, no redundant fans (natural cooling), fitting small machine rooms/offices;

• Cooling: Front-to-rear through-flow, silent operation, office-friendly.

5. User Experience: Real Pain Points for Ops Teams

• 9504:

• Strengths: Virtualized clustering (vPC+) simplifies cross-chassis management;

• Pain points: Complex configuration (managing 8 slots), 3+ months learning curve for new engineers; large logs (50GB/day) risk eMMC overflow.

• 9372TX:

• Strengths: Simplified CLI (70% fewer core-layer commands), "show interface" output focused on key metrics (traffic/errors), IT staff proficient in 1 week;

• Pain points: Limited expansion (fixed ports), full replacement needed for new services; no virtualization, VRRP-dependent for redundancy.

6. Cost-Effectiveness: Long-Term Investment Math

• Initial Cost: 9504 ~¥1.2M (8-slot base), 9372TX ~¥350k (48×25G+4×100G), nearly 3× price difference.

• Expansion Costs:

• 9504 supports 400G/800G optics (~¥30k/module), 9372TX fixed (no expansion);

• 9504 reduces device count (e.g., 2 units vs 10 for 2000 servers), saving 70% on rack space/cabling.

• Maintenance Costs:

• 9504 requires ACI licenses (~¥80k/year), automated ops (Ansible);

• 9372TX has no license fees but longer troubleshooting time (1.5+ extra hours daily), ideal for budget-constrained SMBs.

7. Product Advantages: Scenario-Driven "Uniqueness"

• 9504: Ultra-high performance (25.6Tbps), flexible expansion, high reliability; perfect for hyperscale data centers, cloud provider cores, and multi-tenant platforms.

• 9372TX: High-density 25G ports (48), PoE++ (720W), simplified ops; ideal for campus access, branch aggregation, and AP/camera deployments.

8. System Upgrade: Details Determine Success (Key Section)

Upgrade Scenario: Migrating from NX-OS 9.2(5) to 10.5(2)F (IPv6 SRv6/hardware encryption).

Upgrade Process & Challenges:

1. Pre-Check Phase:

• 9504: Use show module firmware to sync all modules, force upgrade with software upgrade module <slot> force;

• 9372TX: Verify optics with show interface transceiver vendor, replace non-Cisco modules.

• 9504 Issue: Module firmware mismatches (e.g., a service card stuck at 9.2(3)) cause failures;

• 9372TX Issue: Third-party optics (non-Cisco 100G QSFP28) fail due to driver incompatibility.

• Fixes:

2. Backup & Rollback:

• 9504: Split backups (configs to TFTP, logs to external server);

• 9372TX: Use copy running-config scp://admin@192.168.1.100/ for encrypted SSH transfers.

• 9504 Issue: 16GB eMMC may overflow when backing up configs/logs;

• 9372TX Issue: Slow USB2.0 backups (40MB/s) risk interruption from loose connections.

• Fixes:

3. Downtime Control:

• 9504: Disable non-essential services pre-upgrade (conf t ; no ip dhcp pool test-vlan);

• 9372TX: Use NSF/SSO for sub-30-second downtime via active-standby alternation.

• 9504 Issue: Rolling upgrades may disrupt traffic if non-critical services (e.g., test VLAN DHCP) run;

• 9372TX Issue: Full reboots cause 5-10 minute outages for core apps (e.g., OA systems).

• Fixes:

4. Post-Upgrade Validation:

• 9504: Add temporary IPv6 routes (ipv6 route 0.0.0.0/0 2001:db8::1) while migrating devices;

• 9372TX: Load encryption licenses with license boot module c9300-ipservices, verify with show crypto ipservices.

• 9504 Issue: Strict IPv6 checks drop unrouted IPv6 traffic, breaking legacy IPv4 devices;

• 9372TX Issue: Hardware encryption (IPSec) inactive without license activation.

• Fixes:

9. Product Use Cases

• 9504 Scenarios:

• Cloud data center core: 200k+ VMs, ACI for cross-AZ isolation, hybrid modules (400G line cards + firewalls) meet compliance needs;

• Multi-tenant financial platforms: 1M+ endpoints per tenant, hardware QoS ensures <10μs latency for trading.

• 9372TX Scenarios:

• Campus access layer: 500+ APs/IP phones, PoE++ (720W) eliminates extra power cabling, 25G ports link to access switches;

• Branch aggregation: MPLS VPN with 50ms BFD failover, ensuring ERP stability between branches/headquarters.

10. Detailed Pros & Cons

11. Conclusion: How to Choose?

• 9504: For hyperscale cloud data centers, multi-tenant platforms, or future expansion plans.

• 9372TX: For small-to-medium networks (<5,000 endpoints), cost-sensitive deployments, or PoE-heavy access needs.
