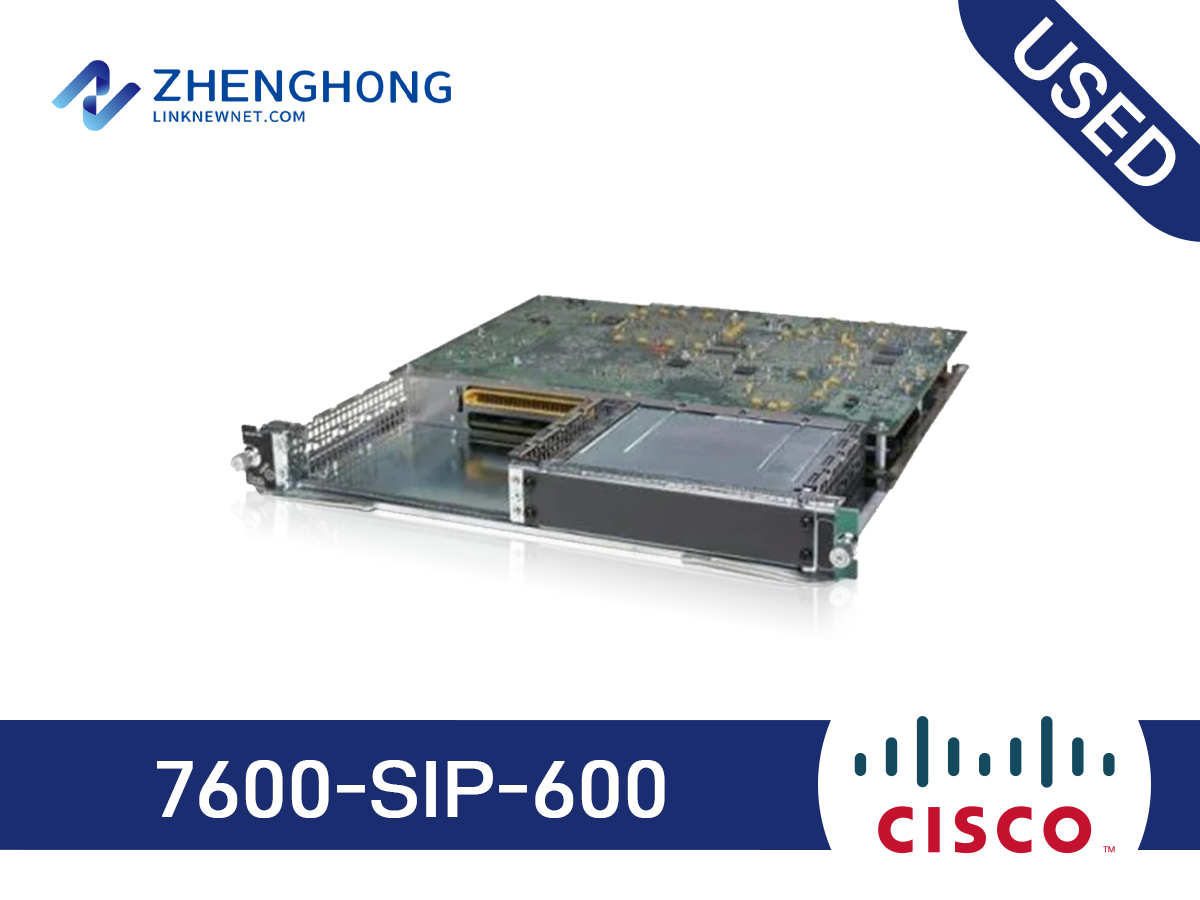

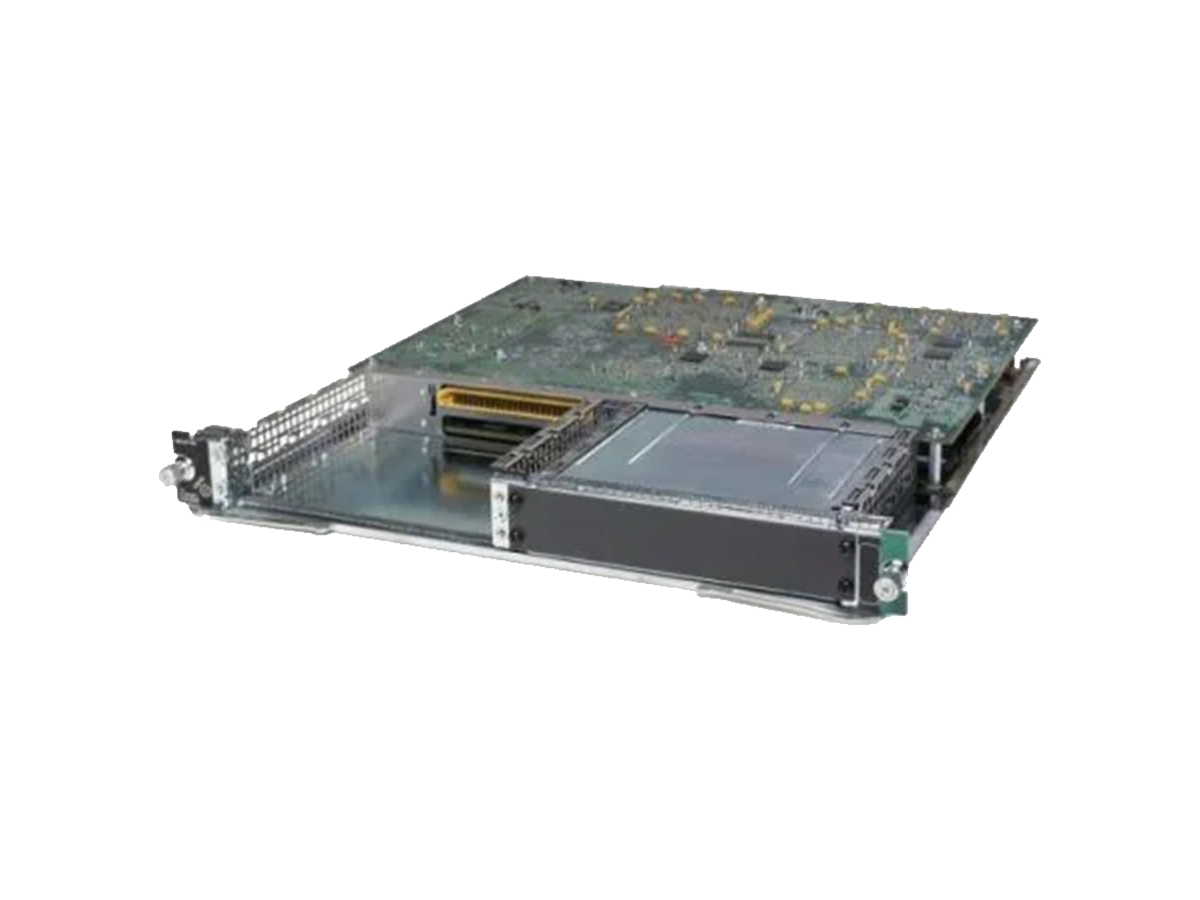

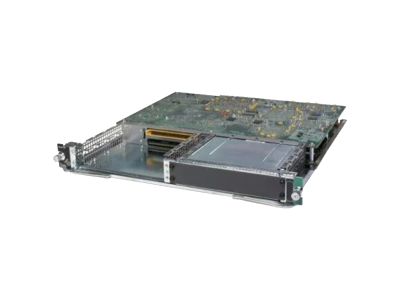

7600-SIP-600 - Cisco 7600 SPA Interface Processor

Technical Specification

Chassis Compatibility:

This Cisco module is compatible with all Cisco 7600 Series router chassis, as well as Catalyst® 6500 services switch chassis (excluding the Cisco 7603)

Central Forwarding Engine Compatibility:

This Cisco plug-in module is compatible with Catalyst® 6500 Series supervisor engines 720-3B and 720-3BXL (and later generations), however, it requires switch fabric connectivity; Because of this, the Cisco 7600 SIP 600 is not supported with Supervisor Engine 32

Distributed Forwarding Card (DFC):

DFC-3BXL

Supports up to 24 Mpps, distributed forwarding

Supports up to one million hardware forwarding entries and up to 256,000 NetFlow entries

Slot Configuration:

Per each Cisco 7600 SIP 600 plug-in module, one single-height or double-height shared port adapter (SPA)

Memory:

Route memory: 1GB

Packet memory: 256MB

Supported Shared Port Adapters:

Cisco 1-Port 10 Gigabit Ethernet Shared Port Adapter (pluggable IEEE LAN PHY XFP optics)

Cisco 10-Port Gigabit Ethernet Shared Port Adapter (SFP pluggable optics)

Cisco 5-Port Gigabit Ethernet Shared Port Adapter (SFP pluggable optics)

Cisco 1-Port OC-192/STM-64 POS Shared Port Adapter (XFP pluggable optics)

Cisco 1-Port OC-192/STM-64 POS Shared Port Adapter (long-reach fixed optics)

Link Encapsulations:

Ethernet II (with optional IEEE 802.1q encapsulation)

Packet over SONET/SDH (POS) with either Point-to-Point Protocol (PPP) or Cisco High-Level Data Link Control (HDLC) encapsulation

Hardware Queues:

8000 queues dynamically shared between ingress and egress processing

Hierarchical Quality of Service (HQoS): Supports up to 1000 parent queues max.

Management Information Base (MIBs):

Cisco Entity MIB (CISCO-ENTITY-MIB)

Cisco Entity Asset MIB

Cisco Entity Field-Replaceable Unit (FRU) Control MIB

Cisco Entity Alarm MIB

Interface IF MIB (RFC 2233)

Definitions of Managed Objects for Bridges (RFC 1493)

Evolution of Interfaces Group of MIB-II (RFC 1573)

Simple Network Management Protocol (SNMP) MIB II (RFC 1213)

Remote Monitoring (RMON) MIB (RFC 1757)

Switch Monitoring (SMON) MIB

Features & Benefits

Modularity:

One Shared Port Adapter (SPA) per Cisco 7600 SIP 600 module

Offers supercharged, impenetrable services while sustaining an alluring footprint and scalability

Performance:

Up to 24 millions of packets per second (Mpps)

This plug-in module is capable of line-rate performance with 41-byte IP packets

Packet Memory:

256MB

Supports up to 200 ms combined bidirectional buffering

Switch Fabric Connectivity:

20-Gbps fabric channel

Uses 720-Gbps fabric modules for data forwarding

Online Insertion & Removal (OIR):

Supports OIR of the SIP & SPA

Delivers hitless Online Insertion & Removal to reduce the impact of add, change and remove operations
