AIR-ANT2524DW-R|LinkNewNet

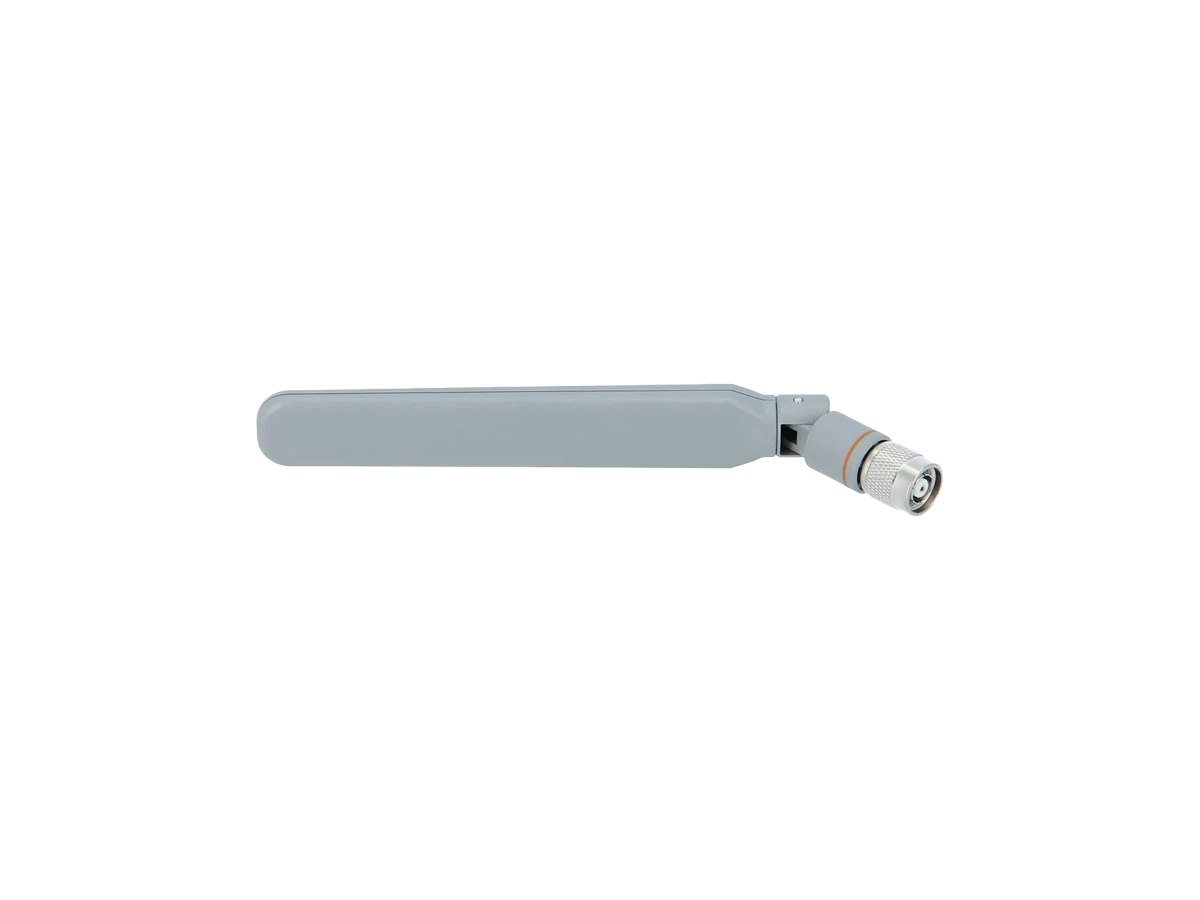

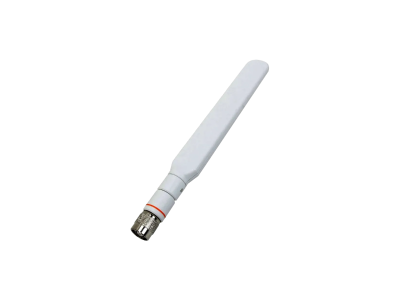

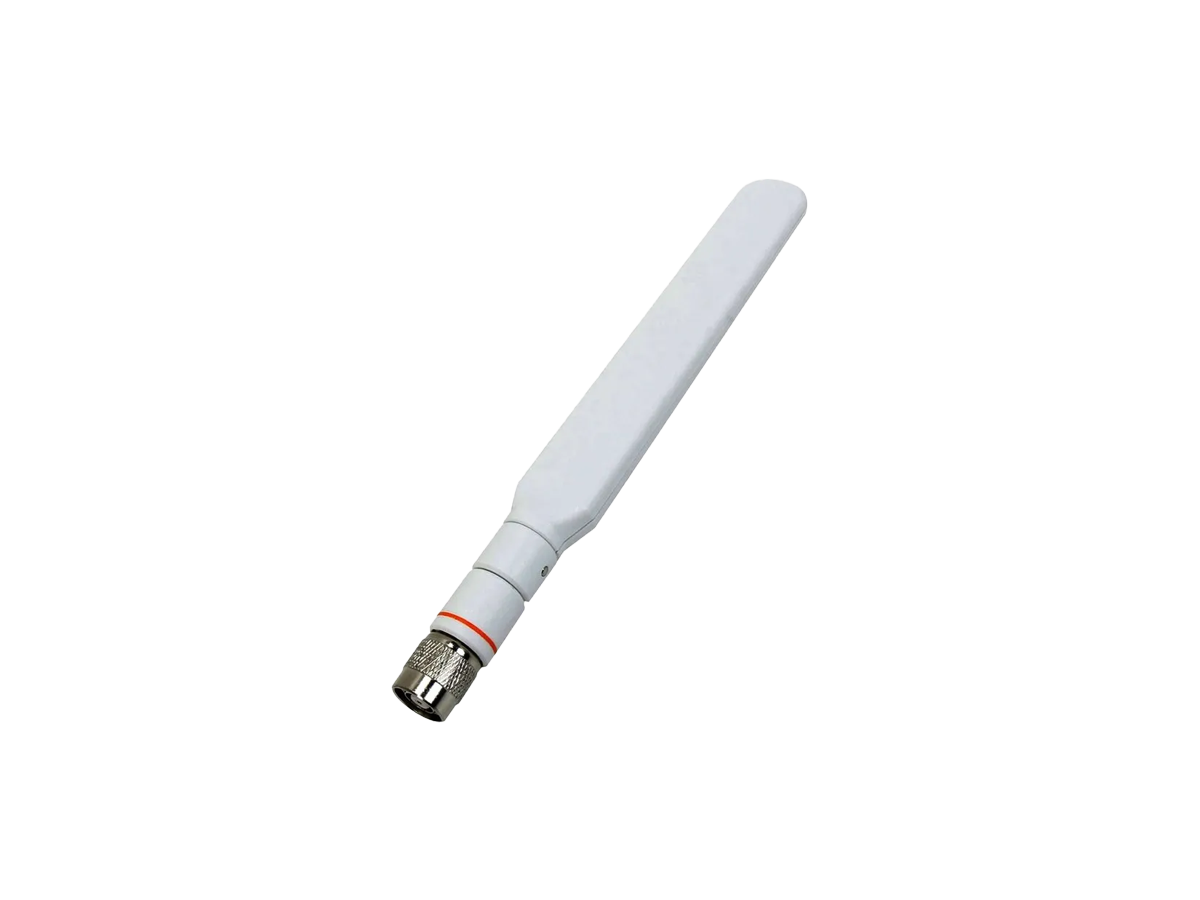

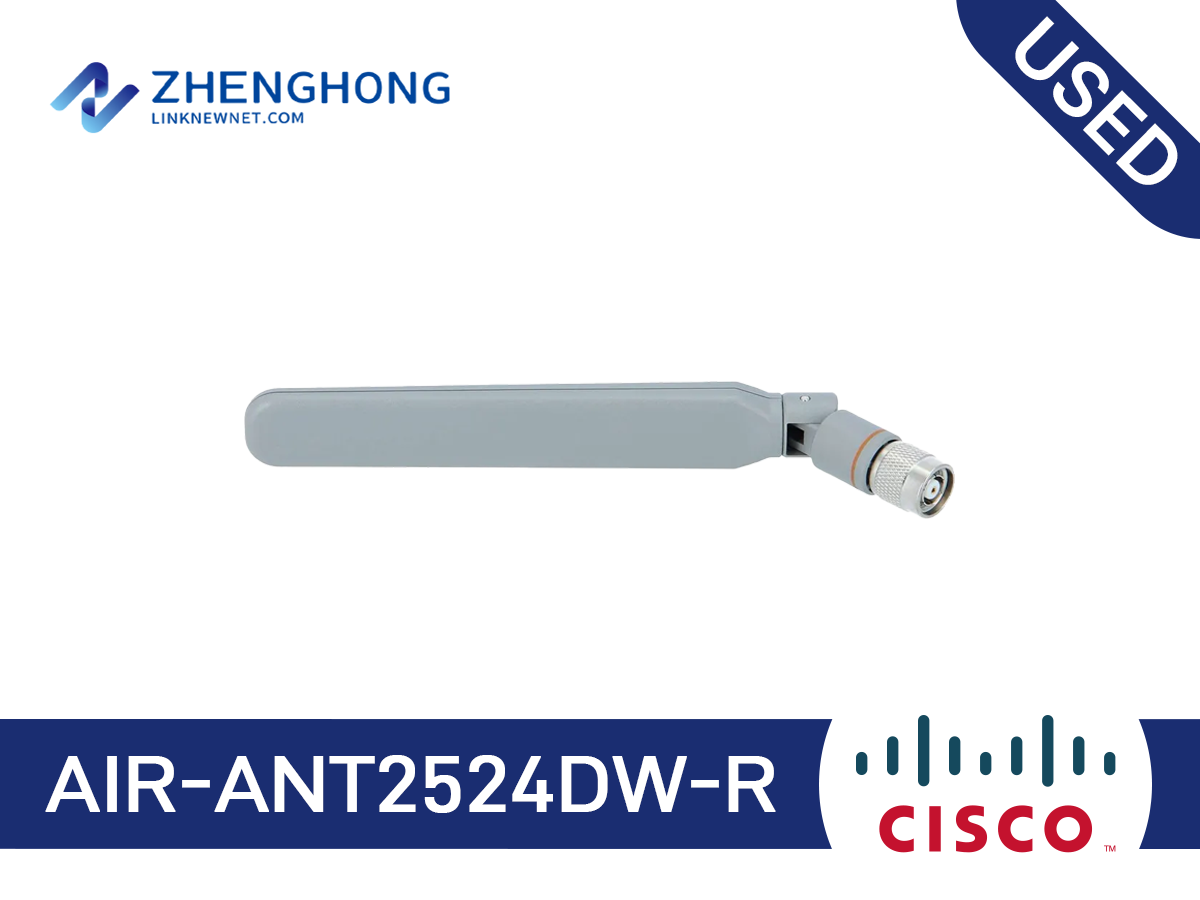

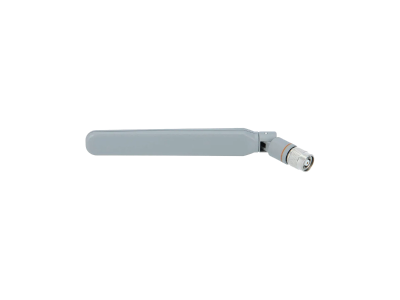

AIR-ANT2524DW-R Cisco Antennas - Dual Band

Model: AIR-ANT2524DW-R

Detail: Cisco AIR-ANT2524DW-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., White, RP-TNC

Condition: USED

List Price: $25 Price: $15

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

Parameter	Value
AIR-ANT2524DW-R Specification
Antenna type	Dual-band dipole
Operating frequency range	2400 to 2500 MHz
Operating frequency range	5150 to 5850 MHz
Nominal input impedance	50 Ohms
VSWR	Less than 2:1
Peak Gain @ 2.4. GHz	2 dBi
Peak Gain @ 5 GHz	4 dBi
Elevation plane 3dB beamwidth @2.4 GHz	63 degrees
Elevation plane 3dB beamwidth @ 5 GHz	39 degrees
Connector type	RP-TNC plug
Antenna length	6.63 in. (168.5 mm)
Antenna width	0.83 in (21 mm)
Radome length	4.88 in. (124 mm)
Weight	1.3 oz
Operating temperature	–4° to 140°F(–20°C to 60°C)
Storage temperature	–40°F to 185°F(–40°C to 85°C)
Environment	Indoor, office

Q&A

What common troubleshooting steps are needed for the AIR-ANT2524DW-R antenna?

Check the RP-TNC connections, ensure the antenna is properly positioned, and confirm the access point settings.

What accessories are available for the Cisco AIR-ANT2524DW-R?

Standard accessories include mounting hardware compatible with Cisco access points. Additional accessories may include extension cables.

How does the AIR-ANT2524DW-R compare with similar products?

The AIR-ANT2524DW-R offers a competitive edge with dual-band support and higher gain on 5 GHz compared to some single-band antennas.

Is the AIR-ANT2524DW-R suitable for outdoor use?

No, the AIR-ANT2524DW-R is designed for indoor use. For outdoor applications, consider a Cisco outdoor antenna like the AIR-ANT2547V-N-HZ.

What is the frequency range of the Cisco AIR-ANT2524DW-R?

The Cisco AIR-ANT2524DW-R operates on 2.4 GHz and 5 GHz bands.

How effective is the Cisco AIR-ANT2524DW-R?

The Cisco AIR-ANT2524DW-R provides 2 dBi gain on 2.4 GHz and 4 dBi gain on 5 GHz, making it a cost-effective option for dual-band coverage.

What are the suitable application scenarios for the Cisco AIR-ANT2524DW-R?

This antenna is ideal for office environments, hotspots, and other indoor applications requiring dual-band coverage.

How do I install the Cisco AIR-ANT2524DW-R antenna?

The Cisco AIR-ANT2524DW-R comes with an RP-TNC connector, making it easy to attach to compatible Cisco access points.

Does the Cisco AIR-ANT2524DW-R require regular upgrades?

The Cisco AIR-ANT2524DW-R does not require upgrades but regular maintenance and compatibility checks are advised.

Are there alternative products to the Cisco AIR-ANT2524DW-R?

Yes, alternatives include the Cisco AIR-ANT2524DG-R for single-band 2.4 GHz needs but with lower overall gain.

What are common troubleshooting steps for the Cisco AIR-ANT2524DW-R?

Ensure the RP-TNC connector is tightly secured and check if the antenna is compatible with your access point model.

Are there any accessories available for the Cisco AIR-ANT2524DW-R?

Accessories include various mounts and extensions, but it's most commonly used with Cisco access points featuring RP-TNC connectors.

How does the Cisco AIR-ANT2524DW-R compare to similar products?

The Cisco AIR-ANT2524DW-R offers dual-band functionality and higher gain compared to some single-band alternatives.

What type of connector does the Cisco AIR-ANT2524DW-R use?

The Cisco AIR-ANT2524DW-R uses an RP-TNC connector for secure and reliable connectivity.

How cost-effective is the AIR-ANT2524DW-R antenna for large deployments?

The AIR-ANT2524DW-R provides good value due to its dual-band support, reducing the need for multiple antennas and lowering overall deployment costs.

What are the key features of the Cisco AIR-ANT2524DW-R antenna?

The Cisco AIR-ANT2524DW-R features dual-band support with 2.4 GHz 2 dBi and 5 GHz 4 dBi gain, and RP-TNC connectors, making it versatile for various applications.

What application scenarios are suitable for the AIR-ANT2524DW-R?

This antenna is ideal for indoor environments requiring dual-band Wi-Fi, such as office spaces, retail stores, and public areas.

How do I install the Cisco AIR-ANT2524DW-R antenna?

The AIR-ANT2524DW-R features RP-TNC connectors, allowing quick and easy installation on compatible Cisco access points.

Does the AIR-ANT2524DW-R require a firmware upgrade to function?

No, the AIR-ANT2524DW-R does not require a firmware upgrade. It operates independently as an antenna.

Are there alternative products to the AIR-ANT2524DW-R?

Yes, alternatives include other Cisco antennas in the same category, such as the AIR-ANT2524V4C-R, which also supports dual-band operations.

What common troubleshooting steps are needed for the AIR-ANT2524DW-R antenna?

Check the RP-TNC connections, ensure the antenna is properly positioned, and confirm the access point settings.

What accessories are available for the Cisco AIR-ANT2524DW-R?

Standard accessories include mounting hardware compatible with Cisco access points. Additional accessories may include extension cables.

How does the AIR-ANT2524DW-R compare with similar products?

The AIR-ANT2524DW-R offers a competitive edge with dual-band support and higher gain on 5 GHz compared to some single-band antennas.

Is the AIR-ANT2524DW-R suitable for outdoor use?

No, the AIR-ANT2524DW-R is designed for indoor use. For outdoor applications, consider a Cisco outdoor antenna like the AIR-ANT2547V-N-HZ.
