AIR-CAP3702I-H-K9|LinkNewNet

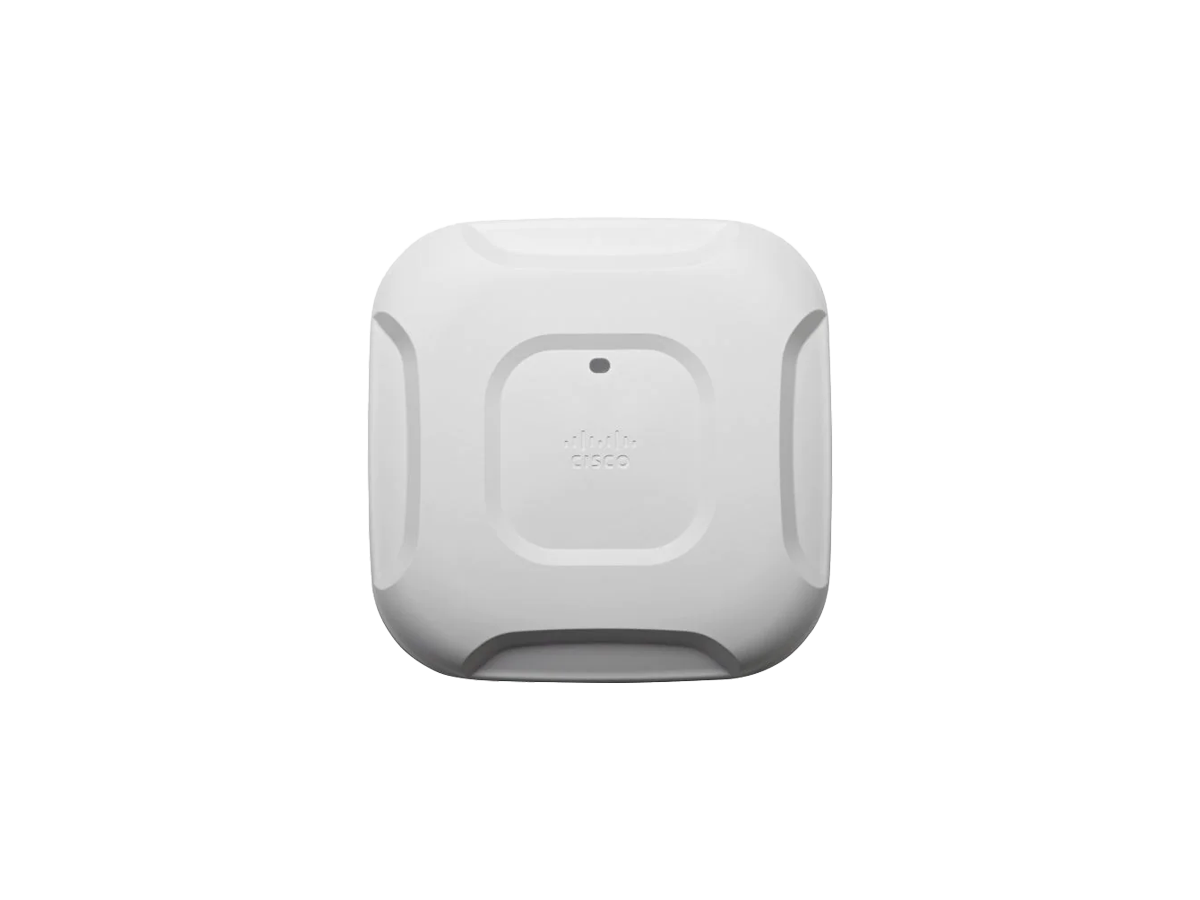

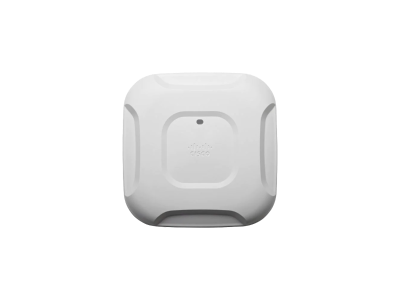

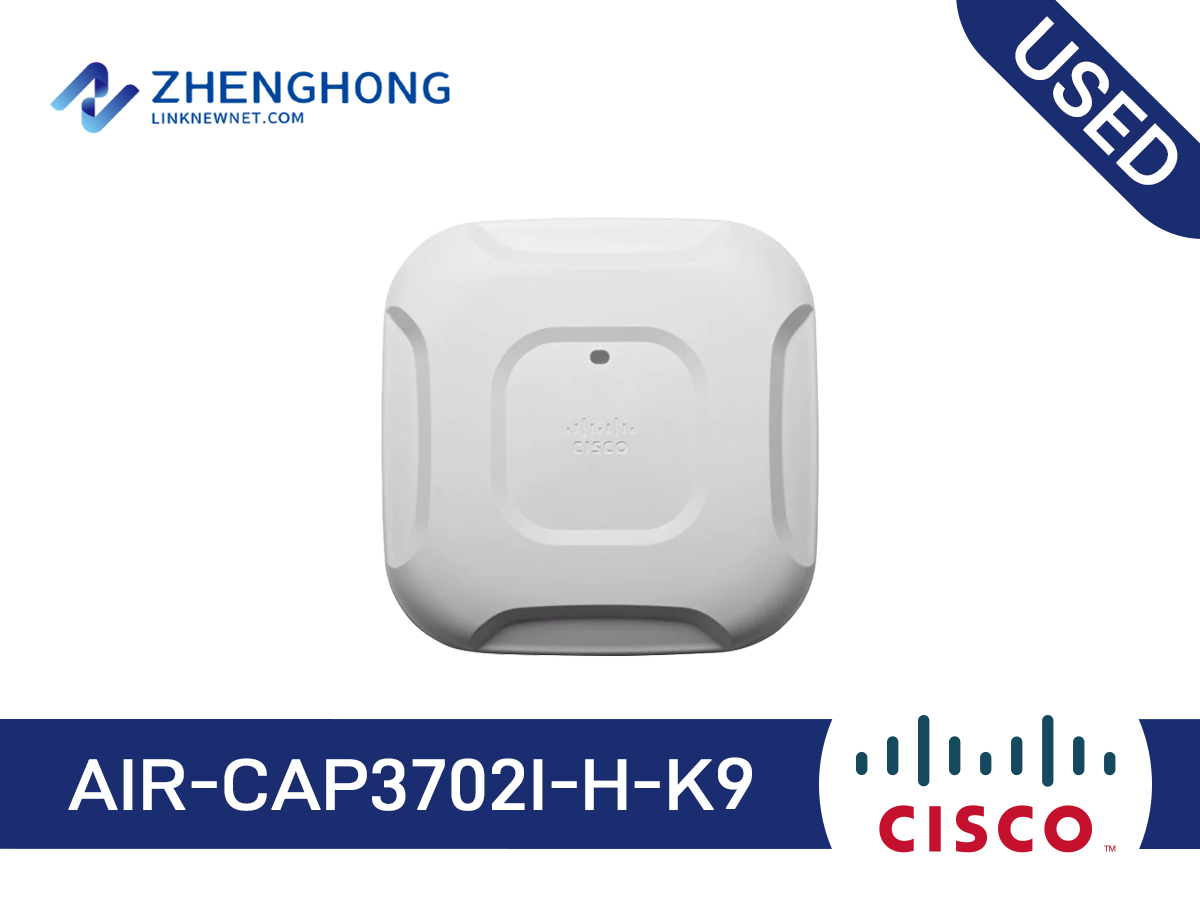

AIR-CAP3702I-H-K9 Cisco Aironet 3700 Series Wireless Access Point

Model: AIR-CAP3702I-H-K9

Detail: Cisco Aironet 3700 Series Access Point - 802.11 a/g/n/ac - 2.4GHz - 5GHz - 4*4 MIMO - Control base - Internal antennas - modular architecture

Condition: USED

List Price: $634 Price: $380

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-CAP3702I-H-K9 Specification
Devide Type	Wireless Access point
Regulatory domain	H regulatory domain
Supported wireless LAN controllers	● Cisco 2500 Series Wireless Controllers, ● Cisco Wireless Controller Module for ISR G2 ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches ● Cisco 5500 Series Wireless Controllers ● Cisco Flex 7500 Series Wireless Controllers ● Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco 5760 Wireless LAN Controller ● Cisco Catalyst 3850 Series Switches ● Cisco Catalyst 3650 Series Switches
Software	Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 7.6 or later for the Cisco Aironet 3700 Series Access Point ● 7.6 or later for support of the Wireless Security Module for the 3700 Series Access Point Cisco IOS XE Software Release: ● 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point ● Wireless Security Module for the 3700 Series Access Point support – (T arget 1HCY15)
Data rates supported	● 802.11a: up to 54 Mbps ● 802.11g: up to 54 Mbps
Maximum number of nonoverlapping channels	5 GHz ● 802.11a: ◦ 20 MHz: 21 ● 802.11n: ◦ 20 MHz: 21 ◦ 40 MHz: 9 ● 802.11ac: ◦ 20 MHz: 21 ◦ 40 MHz: 9 ◦ 80 MHz: 4 ● 802.11n on 2.4 GHz: up to 216.7 Mbps ● 802.11ac on 5 GHz: up to 1.3Gbps 2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3
Antenna	2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
Interfaces	● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45)
System memory	● 512 MB DRAM ● 64 MB flash
Module options	Cisco Aironet Wireless Security Module Cisco Universal Small Cell 5310
Power consumption	No external module installed, 4x4:3 on 2.4/5 GHz : 16.1 Watts with wireless Security module, 4x4:3 on 2.4/5 GHz +WSM: 19.6 Watts No external module installed, 3x3:3 on 2.4/5 GHz : 15.4 Watts with wireless Security module, 2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts
IEEE standards	IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security	● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ● 802.1X ● IEEE 802.11ac Draft 5 ● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
Extensible Authentication Protocol (EAP) types	● EAP-Transport Layer Security (TLS) ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ● EAP-Flexible Authentication via Secure Tunneling (FAST) ● PEAP v1 or EAP-Generic Token Card (GTC) ● EAP-Subscriber Identity Module (SIM)
Frequency band and 20-MHz operating channels	H (H regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.150 to 5.350 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels
Environmental	● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% percent (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.

Q&A

What common troubleshooting steps are available for the AIR-CAP3702I-H-K9?

Common steps include checking power connections, ensuring firmware is up to date, and verifying network configurations on your Cisco Wireless Controller.

What accessories are available for the AIR-CAP3702I-H-K9?

Accessories include additional mounting hardware, power injectors, and external antenna kits for enhanced coverage options.

How does the AIR-CAP3702I-H-K9 compare to the Cisco Aironet 3800 series?

While both are high-performance models, the 3800 series offers advanced features like dual 5GHz radio support and higher throughput capabilities.

Can the AIR-CAP3702I-H-K9 be managed in a centralized manner?

Yes, it can be centrally managed using Cisco Wireless Controllers for streamlined deployment and configuration across multiple units.

Is the AIR-CAP3702I-H-K9 cost-effective for large-scale deployments?

Yes, the Cisco Aironet 3700 Series Access Point offers a high performance-to-cost ratio, making it ideal for large-scale deployments.

What are the unique features of the AIR-CAP3702I-H-K9?

The AIR-CAP3702I-H-K9 features 802.11 a/g/n/ac support, 2.4GHz and 5GHz frequency bands, 4*4 MIMO, and a modular architecture.

In which application scenarios is the AIR-CAP3702I-H-K9 best used?

This access point is ideal for high-density environments such as enterprise campuses, auditoriums, and conference rooms.

How do I install the AIR-CAP3702I-H-K9?

The AIR-CAP3702I-H-K9 can be installed on ceilings or walls using the mounting brackets provided. Refer to the installation guide for detailed instructions.

Does the AIR-CAP3702I-H-K9 need regular firmware upgrades?

Yes, regular firmware upgrades will help address security vulnerabilities and improve performance. Check Cisco's website for the latest updates.

Are there alternative products to the AIR-CAP3702I-H-K9?

Alternative products include other Cisco Aironet models like the AIR-CAP2702I-H-K9, which offers similar features at different price points.

What are common troubleshooting steps for the AIR-CAP3702I-H-K9?

Common steps include resetting the device, checking cable connections, and ensuring firmware is up-to-date. Consult the troubleshooting guide for more details.

What accessories are available for the AIR-CAP3702I-H-K9?

Accessories include mounting brackets, power injectors, and spare radios. These can enhance the deployment and functionality of the access point.

How does the AIR-CAP3702I-H-K9 compare to other similar products?

The AIR-CAP3702I-H-K9 offers superior MIMO and modular architecture compared to most competing access points, providing better performance in high-density environments.

Does the AIR-CAP3702I-H-K9 come with internal or external antennas?

The AIR-CAP3702I-H-K9 is equipped with internal antennas, which simplify installation and provide a sleek appearance.

How cost-effective is the AIR-CAP3702I-H-K9 compared to other access points?

The AIR-CAP3702I-H-K9 offers a robust set of features and strong performance at a competitive price, making it a cost-effective choice in the Cisco 3700 Access Point category.

What are the key features of the AIR-CAP3702I-H-K9?

The key features include 802.11 a/g/n/ac support, 2.4GHz and 5GHz operation, 4*4 MIMO, and internal antennas for superior signal coverage.

What are the ideal application scenarios for the AIR-CAP3702I-H-K9?

This access point is ideal for high-density wireless environments such as large offices, lecture halls, and conference centers.

How do I install the AIR-CAP3702I-H-K9?

Installation involves physically mounting the unit, connecting it to a power source and network, then configuring it via a Cisco Wireless Controller.

Does the AIR-CAP3702I-H-K9 need regular upgrades?

Firmware upgrades may be necessary to enhance security and performance. These can be managed through the Cisco Wireless Controller.

Are there alternative products to the AIR-CAP3702I-H-K9?

Alternatives include other models in the Cisco Aironet series, such as the 3800 and 2800 series, which offer different performance and feature sets.

What common troubleshooting steps are available for the AIR-CAP3702I-H-K9?

Common steps include checking power connections, ensuring firmware is up to date, and verifying network configurations on your Cisco Wireless Controller.

What accessories are available for the AIR-CAP3702I-H-K9?

Accessories include additional mounting hardware, power injectors, and external antenna kits for enhanced coverage options.

How does the AIR-CAP3702I-H-K9 compare to the Cisco Aironet 3800 series?

While both are high-performance models, the 3800 series offers advanced features like dual 5GHz radio support and higher throughput capabilities.

Can the AIR-CAP3702I-H-K9 be managed in a centralized manner?

Yes, it can be centrally managed using Cisco Wireless Controllers for streamlined deployment and configuration across multiple units.
