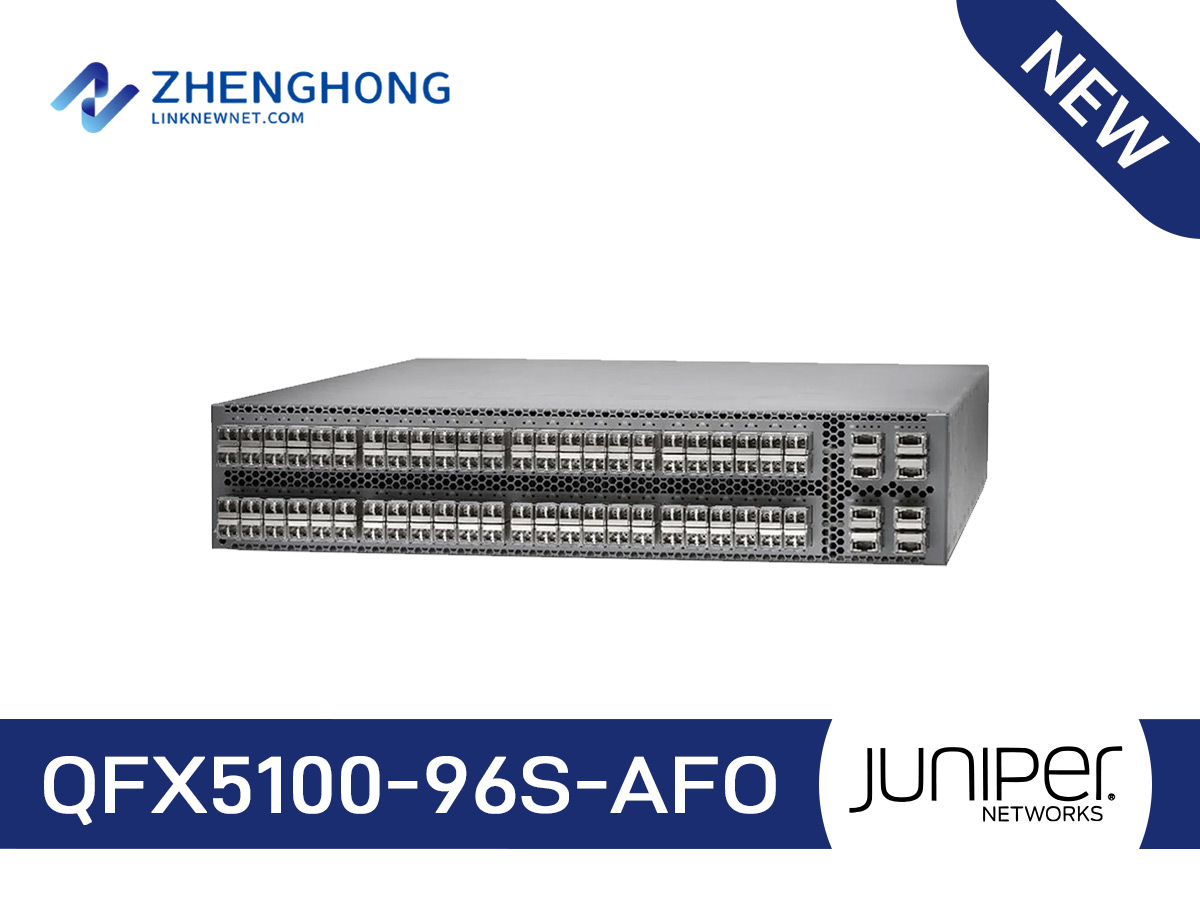

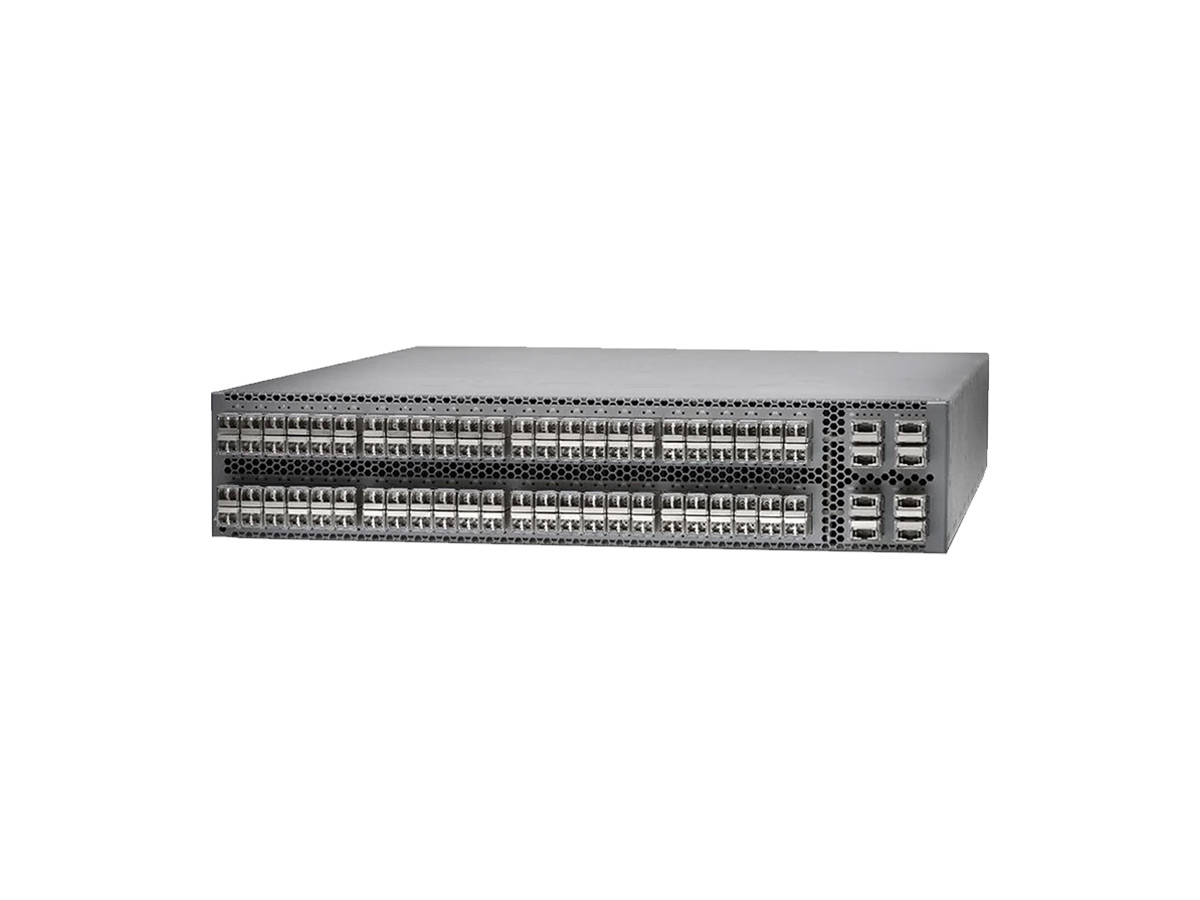

Juniper QFX5100-96S-AFO Specifications | |
| Brand | Juniper |
| Product Name | QFX5100-96S-AFO |
| Port Configuration | 96 1/10G SFP+ ports, 8 40G QSFP ports |
| Airflow | Front to Back |
| Redundancy | Redundant fans and Power Supply Units (PSUs) |
| Power Supply | AC |
| Form Factor | Fixed port switch |
| Switching Capacity | 2.56 Tbps |
| Throughput | 1.44 Bpps |
| Latency | Ultra-low latency |
| Operating System | Junos OS |
| Virtual Chassis Technology | Yes (up to 10 devices) |
| Software Features | Advanced Layer 2, Layer 3, and multicast routing protocols |
| Security Features | DHCP snooping, Dynamic ARP inspection, IP source guard |
| Management Protocols | NETCONF, SNMP, CLI |
| Dimensions (HxWxD) | 1.75 x 17.4 x 20.5 inches |
| Certifications | EN 55022 Class A, FCC Part 15 Class A, RoHS-6 |
| Warranty | Limited Lifetime Warranty |
| Energy Efficiency | Energy Efficient Ethernet (EEE) |
| Stacking Capabilities | Virtual Chassis configuration supporting up to 10 units |
| Usage | Enterprise and Data Center networks |
