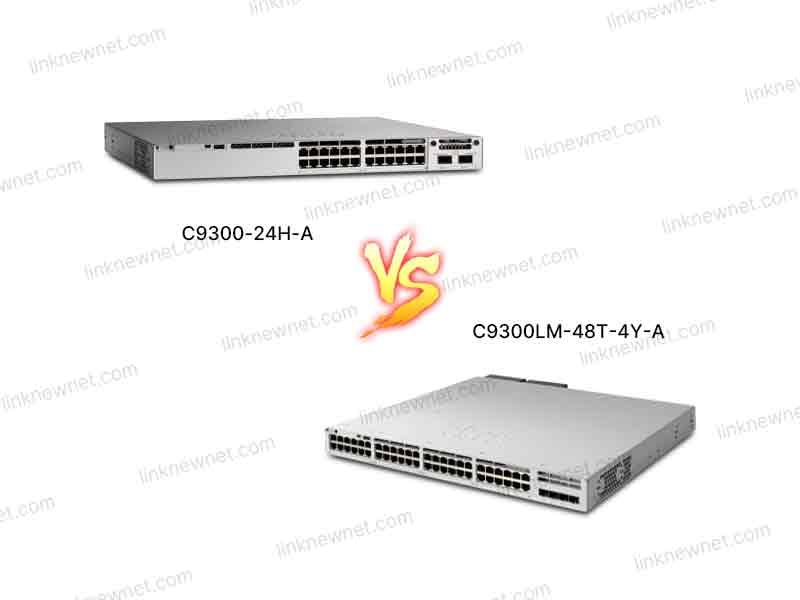

Cisco C9300-24H-A vs C9300LM-48T-4Y-A: Port Count & Positioning Matter

Jul 21 , 2025 4

Cisco C9300-24H-A vs C9300LM-48T-4Y-A: Port Count & Positioning Matter

When choosing between Catalyst 9300 series switches, the "24-port" vs "48-port" divide isn’t just about capacity—it’s a strategic choice between lightweight access and high-performance management. Today, we’ll dissect these two models across performance, features, design, usability, cost, and real-world use cases to help you decide which fits your network’s needs.

1. Performance: Hardware Dictates the "Speed Limit"

While both share Cisco’s UADK architecture, their core hardware diverges sharply due to positioning differences:

Key Takeaway: 48-port excels in high-density environments; 24-port is optimized for smaller networks.

2. Features: Built for Their Niches

Functionality aligns with target use cases, with 48-port focusing on expansion and 24-port on simplicity:

Real-World Example: A U.S. community center uses 24-port for 150 endpoints; a European e-commerce data center uses 48-port for cross-rack connectivity.

3. Design & Aesthetics: Built for Deployment

Industrial design reflects deployment needs:

• Size/Weight: 24-port (4.2kg) fits small server rooms; 48-port (5.5kg) suits data centers.

• Ports: 24-port’s all-copper simplifies office cabling; 48-port’s mixed copper/fiber supports long-distance links.

User Feedback: European IT managers praise 48-port’s “no-compromise” redundancy; U.S. engineers value 24-port’s “plug-and-play” simplicity.

4. Cost-Effectiveness: Matching Price to Scale

Pricing (China market, new):

• 24-port: ~¥16,000

• 48-port: ~¥28,000

But total cost depends on scale needs:

• SMBs with <1,000 users: 24-port saves 43% vs. 48-port, with no need for dual-power cabinets.

• Enterprises/data centers: 48-port avoids “upgrade anxiety,” saving ~¥15,000 in 3 years via reduced downtime.

Bottom Line: 24-port is an “SMB budget champion”; 48-port is an “enterprise performance workhorse.”

5. System Upgrades: Common Pitfalls & Fixes

IOS XE upgrades require caution due to port-count locks:

Issue 1: Port Count Mismatch Firmware

• Symptom: Flashing 48-port firmware on 24-port triggers “Port count mismatch.”

• Cause: Cisco embeds port-specific locks.

• Fix: Use model-matched firmware (download from Cisco’s “24-port” or “48-port” sections).

Issue 2: Stacking Module Incompatibility

• Symptom: Stack errors with 24-port FlexStack+ modules on 48-port.

• Cause: 48-port requires StackWise-480 modules.

• Fix: Replace with 48-port-specific modules.

Issue 3: Configuration Loss

• Symptom: Lost DNA Center advanced settings during upgrade.

• Cause: Failing to save advanced configs.

• Fix: Use dna center config archive to back up advanced settings.

Pro Tip: Test upgrades in a lab first (1 main device + 1 stack module) to validate compatibility.

6. Use Cases: Where They Shine

• C9300-24H-A: Small business offices (≤1,000 users), community centers (50 users + IP cameras), school teacher offices (40 computers). Strengths: Compact size, low cost, easy deployment.

• C9300LM-48T-4Y-A: Large campus cores (2,000+ users), data center access layers (cross-rack links), financial trading floors (low-latency needs). Strengths: Extreme performance, dual-power redundancy, AI-driven insights.

Shared Advantage: Both support Cisco DNA Center, IPv6 routing, and SD-WAN—future-proof for evolving networks.

From "small business simplicity" to "enterprise performance," C9300-24H-A and C9300LM-48T-4Y-A deliver purpose-built solutions—choose based on your network’s scale, and avoid the pitfalls of over- or under-provisioning.
